Burying electrical wires is a popular option to avoid overhead wiring, which can be dangerous and spoil the view of your home. The depth at which electrical conduits must be buried varies by location, purpose, and voltage. It is important to consult local building codes and electrical codes to determine the minimum burial depth required for your specific project. For example, low-voltage wires carrying no more than 30 volts of electricity must be at least six inches deep, while wires carrying 240 volts must be at least 18 inches deep. Additionally, the type of conduit and soil can also impact the burial depth. For instance, liquid-tight conduits are recommended and should be buried at a minimum depth of 24 inches, but this may vary based on location and climate conditions.
Explore related products
What You'll Learn

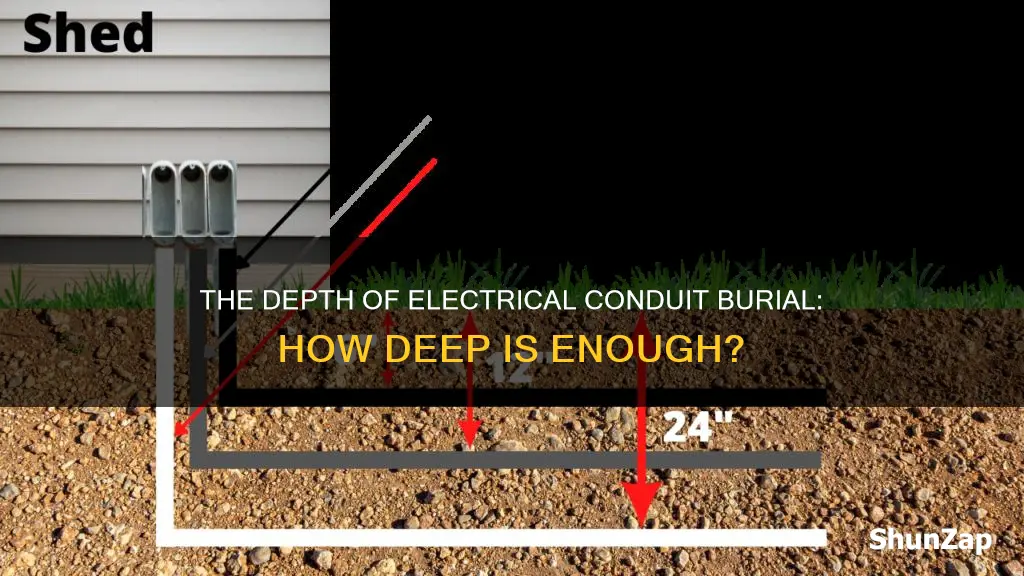

Burial depth varies by location and purpose
The burial depth of electrical conduits varies depending on several factors, including location, purpose, and local regulations.
Location plays a crucial role in determining the burial depth of electrical conduits. Different regions have varying soil types, which can affect the ease of digging and the depth required for safe burial. For example, granular soil that is easy to dig may allow for cost savings by reducing the need for expensive electrical materials. On the other hand, certain soil types may require deeper burial to protect the electrical conduits from damage or environmental factors such as freezing temperatures.
The purpose of the electrical conduit also influences the burial depth. Low-voltage wires, typically carrying 30 volts or less, must be buried at a minimum depth of 6 inches. This depth is standard for residential installations according to the National Electrical Code (NEC). However, for non-residential installations, the NEC requires a minimum cover depth of 18 inches. Additionally, the type of conduit material matters; PVC conduit, for instance, must be buried at a minimum depth of 18 inches, while galvanized metal electrical conduits require a minimum depth of 6 inches.
It is important to note that local regulations and building codes can further impact the required burial depth. OSHA, for instance, recommends a trench width of at least 18 inches for electrical wires, ensuring compliance with most state and city electrical codes. Furthermore, local authorities and building codes can provide specific depth requirements based on the unique characteristics of a location. Therefore, consulting with local experts and sales representatives who are knowledgeable about regional requirements is essential before initiating any electrical conduit burial project.
Electricity in Palmer Road, Eagle, Idaho: What's the Status?
You may want to see also
Explore related products
Electrical conduit types
Burying electrical wiring is the most popular option as overhead wiring can be dangerous and spoil the view of your home. The National Electrical Code (NEC) and local building codes determine whether a conduit should be used in an installation and which type of conduit should be used.
Rigid Metal Conduit (RMC)
RMC is constructed of either aluminum or galvanised steel and has a thick wall. It is one of the most heavy-duty types of conduit used in many industrial applications. RMC is one of the more costly options but offers additional strength.
Galvanized Rigid Conduit (GRC)
GRC has the thickest walls of all electrical conduits and is the heaviest. It is regarded for its superior corrosion resistance and it protects wiring from electromagnetic interference (EMI). GRC can be used in outdoor or indoor applications and can be exposed, concealed, or buried.
Intermediate Metal Conduit (IMC)
IMC is a type of rigid conduit rated for outdoor exposure and is intended for protecting insulated electrical cables and conductors. It has a thicker, galvanised wall, making it suitable for outdoor applications.
Electrical Metallic Tubing (EMT)
EMT is made from coated steel or aluminium and is a more economical and thinner-walled option than other conduits. This conduit type doesn’t offer the same protection as rigid metal conduit but is lighter and can be paired with conduit fittings, eliminating the need for threading. EMT can also be bent to shape using a special tool to fit around obstructions or follow the installation shape.
Liquid-Tight Non-Metallic Conduit
This type of conduit is designed for use in environments where moisture could become an issue. It must be used in conjunction with liquid-tight fittings.
High-Density Polyethylene (HDPE) Conduit
HDPE conduit is made from durable plastic that is abrasion, impact, chemical, and corrosion-resistant. It is a generally low-cost choice compared to metal products. It is flexible and smooth, making pulling cable easier than other types. It is a fantastic general-purpose conduit with uses across residential, commercial, and industrial projects. However, it struggles in high-heat situations and where direct sunlight or crush protection is an issue.
Electric Credit Unions: Ozark's Financial Powerhouse
You may want to see also
Explore related products
Local building codes
Permits and Inspections:
Before initiating any electrical work, it is crucial to contact your local building inspection department to determine the specific requirements for your project. Most projects require electrical permits and inspections to ensure compliance with local codes. An electrical inspector will verify the depth of your trench, inspect the wiring, and ensure that your work meets safety standards. Obtaining the necessary permits and inspections can also facilitate a smoother process when selling your home in the future.
Burial Depth Requirements:
The burial depth for electrical conduits is influenced by factors such as local regulations, soil type, and voltage. Different regions have varying soil conditions that can affect the ease of digging and the required burial depth. Consult your local building codes to ascertain the minimum burial depth mandated for your specific project. As a general guideline, safety codes typically require a burial depth of 24 inches to provide sufficient protection and reduce the risk of damage.
Conduit Type and Protection:
The type of conduit you select is significant. Liquid-tight conduit, such as metal conduit with a PVC cover (LFMC) or flexible non-metallic conduit (LFNC), is recommended for its crush and corrosion resistance. Additionally, consider the climate conditions in your area. Regions with extreme cold temperatures, such as Alaska, Minnesota, and parts of Canada, necessitate deeper burials for building foundations, pipes, and conduits. Ensure that your conduit is installed correctly, without exposure to crushing force, impact, water intrusion, corrosive chemicals, or high heat.
Voltage Considerations:
The voltage of the electrical wires plays a role in determining burial depth. Low-voltage wires carrying 30 volts or less must be buried to a minimum depth of 6 inches. On the other hand, wires carrying higher voltages, such as 240 volts, require a deeper burial of at least 18 inches below the surface.
Trench Width and Placement:
OSHA recommends a trench width of at least 18 inches for electrical wires to comply with state and city electrical codes. When digging trenches, consider using the same trench for water lines and electrical wires to save time and effort. Additionally, be mindful of existing utility lines by contacting your local utility service to identify their locations before beginning any excavation work.
Remember, local building codes are subject to variation, so it is essential to consult the authorities in your specific region to ensure compliance with the applicable regulations.
Treadmill Electricity Consumption: How Much Does It Cost?
You may want to see also
Explore related products
$11.83 $22.34
Electrical trench requirements
Type of Conduit
The type of conduit you choose is an important factor in determining the depth of your electrical trench. Common types of conduits include:
- Metal Conduit: This includes galvanized rigid metal conduit, which offers superior protection and durability but comes at a higher cost.
- PVC Conduit: Polyvinyl chloride (PVC) conduit is widely used, known for its flexibility and resistance to high temperatures and chemicals.
- Flexible Conduit: This type offers versatility but may have varying depth requirements.
- Liquid Tight Conduit: This type of conduit can be metal with a PVC cover (LFMC) or flexible non-metallic (LFNC). It is recommended for its crush and corrosion resistance.
Installation Location
The location of your installation plays a significant role in determining trench depth. Different regions have varying soil types, climate conditions, and local building codes that influence the required burial depth. For example, regions with extreme cold conditions, such as Alaska or Minnesota, may require deeper burial to protect the conduit from freezing. Always consult local authorities, building codes, and utility services to determine the specific depth requirements for your area.
Voltage
The voltage of the electrical wires is another critical factor in trench depth requirements. Low-voltage wires carrying no more than 30 volts must be buried at least 6 inches deep, while wires carrying higher voltages, such as 120/240V, require a minimum depth of 18 inches.
Trench Width
OSHA, the Occupational Safety and Health Administration, recommends a trench width of at least 18 inches for electrical wires. This width helps ensure compliance with state and city electrical codes, providing adequate space for the conduits and wiring.
Burial Depth
The burial depth of the electrical conduit within the trench is a critical safety consideration. The National Electrical Code (NEC) sets specific requirements, such as a minimum cover depth of 6 inches for residential installations and 18 inches for non-residential installations of RMC and IMC conduits. For PVC conduits, a burial depth of at least 18 inches is typically required, while some sources recommend a minimum of 24 inches for greater protection.
Russia Cuts Finland's Electricity: What You Need To Know
You may want to see also
Explore related products
How to safely bury electrical wires
Burying electrical wires is a complex task that requires careful planning and execution to ensure safety. Here are some detailed instructions to help you safely bury electrical wires:
Planning:
Before beginning any work, it is crucial to understand the local and municipal laws, regulations, and requirements for cable burial. Contact your local building inspection department and utility companies to gather information and seek guidance. Determine if electrical permits, inspections, or approvals are necessary for your project.
Choosing the Right Materials:
The type of wiring and conduit you select depends on various factors, including the soil type, voltage, and applicable codes. Consult an expert or refer to reliable sources to choose the appropriate materials for your specific project.
Preparing the Wires:
Ensure that the wires are rated for use in wet locations, as indicated by a "W" or "THWN-2" marking. Using wires with two layers of insulation is recommended. If you plan to use a conduit, consider pulling the wires through the conduit before installation.
Digging the Trench:
Decide on the trench depth based on the chosen wiring method and materials. Keep in mind that underground cable and wire can be installed at various depths, typically ranging from 6 inches to 24 inches. Consider renting trenching machines to facilitate the digging process. Remember to maintain a safe distance of at least 12 inches between water pipes and electric lines if they are in the same trench.
Installing the Wires:
If you are using a conduit system, such as metal or PVC conduit, follow the manufacturer's instructions for proper installation. Ensure that the conduit is secure and protected from moisture, dirt, and potential environmental damage. For direct-buried cables without conduit, bury them at the specified depth, ensuring they are GFCI-protected to enhance electrical safety.
Safety Precautions:
Throughout the process, prioritize safety by following basic precautions. Avoid taking unnecessary risks, and always seek professional advice or assistance if you are unsure about any aspect of the project.
By carefully following these steps and adhering to local regulations, you can safely bury electrical wires to provide reliable service for your project.
Medicare Coverage for Electric Scooters: What's the Deal?
You may want to see also
Frequently asked questions
The depth depends on various factors, including the type of conduit, the voltage of the wire, and the local electrical codes. Generally, electrical conduit should be buried between 6 and 24 inches deep.
The minimum depth for electrical conduit is 6 inches for low-voltage wires carrying no more than 30 volts of electricity.
Yes, it is possible to bury some types of metal electrical conduits at a shallower depth. For example, galvanized EMT (metal electrical conduit) can be buried at a depth of 6 inches as it can withstand a shovel and protect the wiring.
The recommended depth for PVC conduit is 18 inches. This depth provides protection for the wires and complies with most state and city electrical codes.
Yes, in addition to the voltage and type of conduit, the burial depth can also vary depending on the location and climate conditions. For example, regions with extreme cold conditions may require deeper burial to protect the conduit from freezing temperatures. It is important to consult local building codes and authorities to determine the specific requirements for your area.
