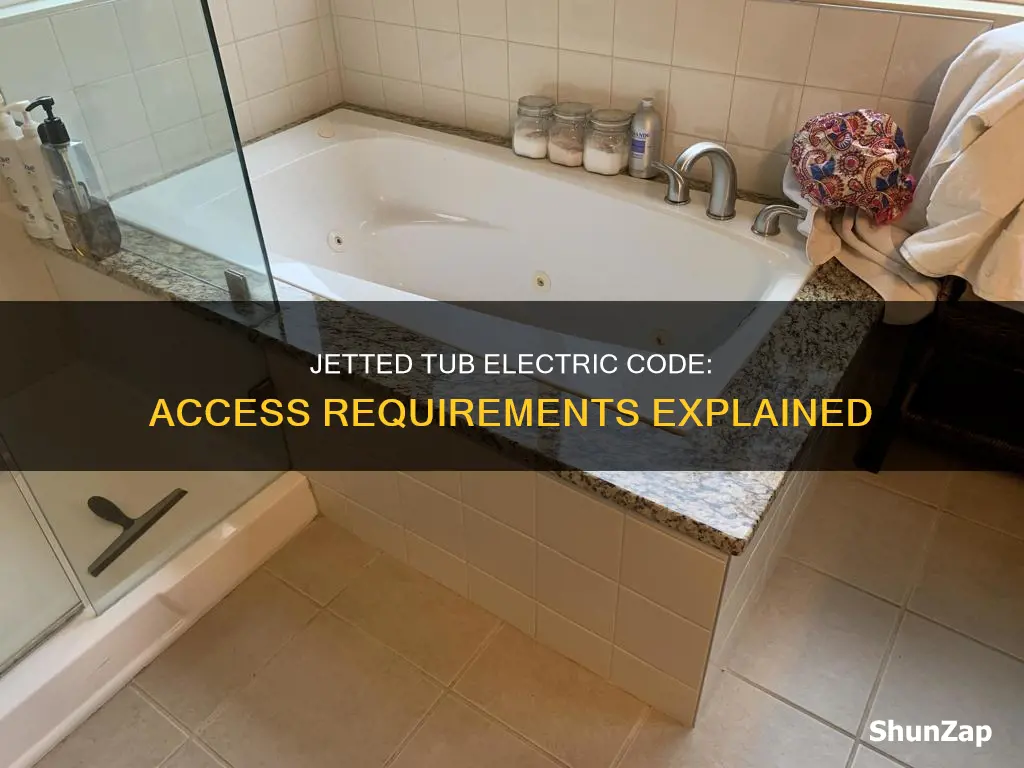

The National Electric Code (NEC) has strict regulations for the installation of whirlpool tubs, which require electrical energy to power jets, heaters, and blowers. Electrical installations for hydromassage bathtubs must be capable of being removed or exposed without damaging the building structure or finish. The code also requires that a disconnect device be installed between 5 and 10 feet from the tub and be easily accessible to the occupant. Some municipalities require a licensed electrician to install tubs, while others allow homeowners to do so with a permit and inspection.
Explore related products
GFCI wiring
GFCI stands for ground fault circuit interrupter receptacle. This special type of outlet automatically shuts off power to the outlet to prevent electrical issues and hazards. GFCI outlets are commonly found in kitchens, bathrooms, laundry rooms, and outdoor spaces.
There are a few different ways to wire a GFCI outlet for a jetted tub. One way is to tie into the existing circuit feeding the bathroom lights and use a blank-front GFCI at the tub junction box. This method requires less wire and does not involve opening the electrical panel. However, it is unclear if this method is acceptable according to code. Another way is to tie into the existing GFCI outlet and connect the tub downstream so that it is also protected. This method also requires less wire and does not involve opening the electrical panel, and it is the cheapest method as no breaker or blank-front GFCI needs to be purchased. Again, it is unclear if this method is acceptable according to code.
When wiring a GFCI outlet, it is important to first turn off the electrical power at the circuit breaker box or fuse box and confirm that the power is shut off with a voltage tester. Then, connect the wires that provide power to the terminals marked "line" on the GFCI receptacle. The hot wire, usually black, should connect to the brass-colored terminal, and the neutral, white wire should be connected to the silver-colored terminal. If present, remove the tape that covers the "load" terminals on the GFCI receptacle. Connect the wires that go downstream to the load terminals. Finally, connect the ground wire, usually bare copper, to the green screw.
Space Heaters: Fire Hazards and Safety Precautions
You may want to see also
Explore related products
Disconnect devices
The National Electrical Code (NEC) is a widely recognised standard that provides recommendations for safe electrical wiring installations. While the 1999 edition specified a minimum distance of five feet from the inside walls of pools, spas, or hot tubs, the 2002 edition omitted this dimension requirement. However, the NEC continues to emphasise the accessibility and visibility of disconnecting means.
To ensure compliance with local regulations and safety standards, it is highly recommended to hire a professional electrician who is well-versed in electrical requirements and local codes of conduct. They can guide you through the specific rules and requirements for your jetted tub's disconnect device, including voltage considerations and wiring regulations.
In addition to the placement and accessibility of the disconnect device, there are other important electrical considerations for jetted tubs. For instance, each component of the tub, such as the motor and heater, may need to have its own dedicated circuit within the service panel. The type of wiring used, such as copper or aluminium, is also regulated due to its impact on conductivity and resistance to electrical surges.
It is important to note that regulations and codes can vary across different municipalities, so it is always advisable to consult with a qualified electrician or the local codes department to ensure your jetted tub installation meets all the necessary safety standards.
Target's Electric Scooter Offerings: Available for Customers?
You may want to see also
Explore related products
Electrical devices
The National Electric Code (NEC) has strict and clear regulations for the installation of whirlpool tubs. Electrical installations for spas, hot tubs, and hydromassage tubs must comply with Part I of NEC Art. 680. The requirements that apply specifically to hydromassage tubs are in Part VII. In non-dwellings, a clearly labelled emergency shut-off must be supplied for the water recirculation and jet system. All whirlpool tubs must have a safety feature that allows the tub to be disconnected and the electricity shut off quickly. This disconnect device must be between 5 and 10 feet from the tub and easily accessible.
Municipalities need to abide by the NEC regulations, but they may also have stricter policies in place. Some require that a professional, licensed electrician installs any tub that involves electricity. Other regions allow homeowners to do the work as long as a permit is obtained and the work is inspected by a codes inspector or a codes-approved electrician.
To ensure safety, it is highly recommended to hire a professional electrician who understands the electrical requirements and local codes of conduct and regulations. Copper wiring is often required for whirlpool tub installations due to its higher conductivity and ability to withstand electrical surges better than aluminum wiring.
How Mag Torches Work: Electric Spark or Not?
You may want to see also
Explore related products
Voltage and wiring
Jetted tubs have specific electrical requirements to ensure user safety due to their proximity to water. These tubs often require dedicated circuits to enable the quick disconnection of power. Tubs operating at 120 volts need connection to a Ground Fault Circuit Interrupter (GFCI) receptacle, while those using 240 volts do not. Each motorized component, such as the motor, heater, or blower, must have its own GFCI receptacle.
The wiring material is also essential for safety. Copper wiring is generally required for jetted tubs as it has higher conductivity and better resistance to electrical surges than aluminum wiring. Copper is also less susceptible to deterioration, reducing the risk of faulty wiring over time.
When installing a jetted tub, it is essential to consider the location of the junction box. While some prefer to place it under the tub, next to the pump, others opt for the adjacent room at a level higher than the water level for easier access and added safety.
Additionally, there are various wiring methods to consider. One option is to tie into the existing circuit supplying the bathroom lights, using a blank-front GFCI at the tub junction box. Another method is to connect to the existing GFCI outlet and link the tub downstream for protection. It is important to consult with a professional to ensure that any chosen method complies with local regulations and safety standards.
Electricity's Nature: Always Seeking the Path of Least Resistance
You may want to see also
Explore related products
Local regulations
One key local regulation to consider is the requirement for a disconnect button or device that allows you to quickly shut off the electricity to the whirlpool tub in case of an emergency. This disconnect device must follow local safety codes and regulations and is typically required to be placed between five and ten feet from the tub, easily accessible to the occupant.
Another important local regulation relates to the electrical wiring and voltage requirements for jetted tubs. Most municipalities require GFCI (Ground Fault Circuit Interrupter) protection for electrical connections near water, and each motorized segment of your jetted tub (motor, heater, or blower) may need its own GFCI receptacle. Additionally, there may be specific requirements for the type of wiring used, with copper wiring often being mandated due to its higher conductivity and resistance to deterioration compared to aluminum wiring.
Finally, local regulations may dictate the voltage requirements for your jetted tub. Some tubs require 120 volts, while others may need 240 volts. A professional electrician will be able to guide you through the specific local regulations and ensure that your jetted tub installation meets all the necessary safety standards.
Toyota Corolla's Electric Emergency Brake: How Does it Work?
You may want to see also
Frequently asked questions
The National Electric Code (NEC) is a written standard of recommendations for the safe installation of electrical wiring. Electrical installations for spas, hot tubs, and hydromassage tubs must comply with Part I of NEC Art. 680.
All electrical wiring must be capable of being removed or exposed without damaging the building structure or finish. Copper wiring is often required for its higher conductivity and ability to withstand electrical surges.
A disconnect device must be installed between 5 and 10 feet from the tub and be easily accessible to the occupant. A GFCI with a disconnect button is sufficient to meet this requirement.
Yes, electrical devices not associated with the jetted tub must be bonded if they are within 5 feet of the tub. This includes metal parts of the tub structure and electrical equipment associated with the water circulating system.
It depends on your municipality's codes. Some require a professional, licensed electrician to install any tub involving electricity. Others may allow the homeowner to install it with a permit and a subsequent electrical inspection.
