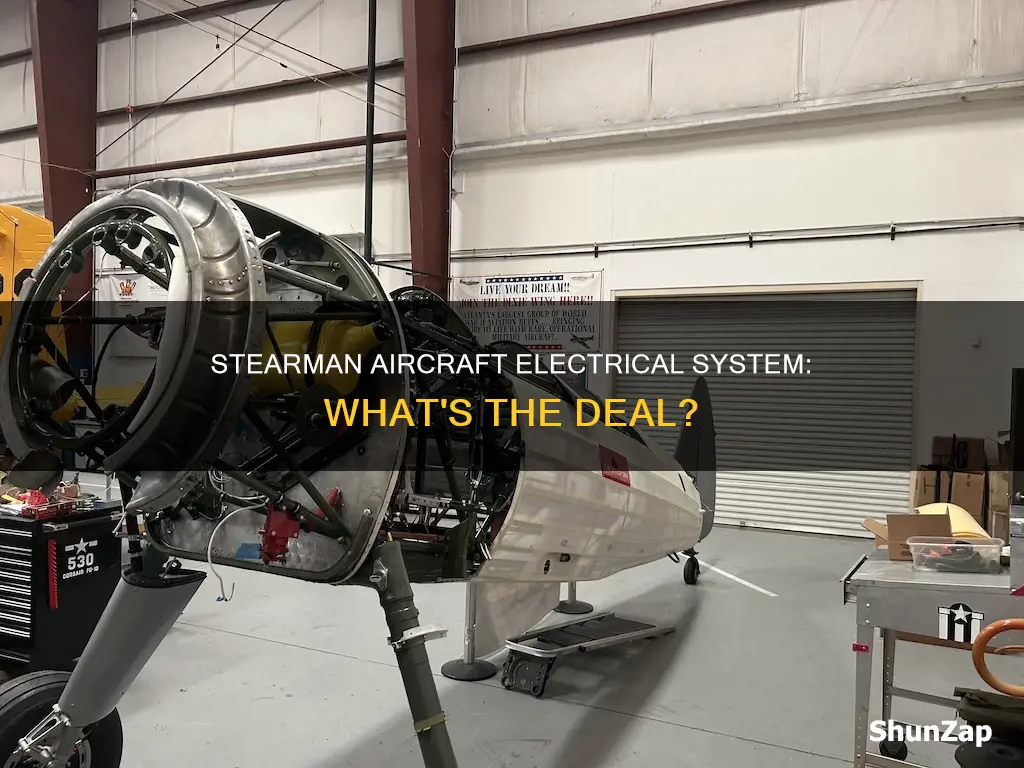

The Stearman Aircraft Company, later the Stearman Division and the Wichita Division, built more than 14,500 aircraft between 1927 and 1962. The Boeing Stearman Model 75, formerly used as a military trainer aircraft, did not initially include an electrical system or radios. However, as the aircraft evolved, the need for radio communication and navigation equipment grew, and modifications were made to include electrical systems. Today, Stearman aircraft remain popular for sports and air shows, and installing electrical systems in these vintage planes comes with its own set of challenges and considerations.
| Characteristics | Values |
|---|---|
| Electrical system | The Stearman Model 75 did not have an electrical system when it was first released. |
| Radio | The Stearman Model 75 did not have a radio when it was first released. |
| Engine | 210-hp Lycoming R-680 |
| Engine power | 1.5 to 2 PSI fuel pressure |
| Fuel burn | 12.8 GPH to 20.8 GPH |
| Oil pressure | 70-90 PSI |
| Oil temperature | 60-70 deg. C |
| Maximum G-force | +12g and -9g |
Explore related products
What You'll Learn
- The Boeing Stearman Model 75 did not have an electrical system when it was first released
- The original design objectives of the Model 75 were simplicity, low cost, and ease of maintenance
- The Stearman was used as a military trainer aircraft for the US Army Air Forces, US Navy, and the Royal Canadian Air Force during World War II
- After World War II, the Stearman was sold on the civilian market and used for crop dusting and aerobatic shows
- Installing an electrical system in a Stearman requires a generator or alternator and a battery installation
The Boeing Stearman Model 75 did not have an electrical system when it was first released
The Boeing Stearman Model 75, also known as the Kaydet, was originally designed with simplicity, low cost, and ease of maintenance in mind. When it was first released, the Model 75 did not have an electrical system or radios. This was in keeping with its design objectives, and the addition of an electrical system would have compromised these goals.
The Stearman was a popular primary training aircraft for the United States Army Air Forces, the United States Navy, and the Royal Canadian Air Force during World War II. It was well-loved for its strength, ease of flying, and rugged construction. After the war, thousands of surplus aircraft were sold on the civilian market, and the Stearman found a new life as a crop duster, sports plane, and aerobatic aircraft for air shows.
While the lack of an electrical system and radios was not initially an issue, requirements began to change as the Stearman transitioned from its military role to civilian use. Over time, radio communication and navigation equipment became increasingly necessary, and the romance of hand-cranking an inertia starter faded as operators encountered hard-starting engines on hot days. The solution was to retrofit the aircraft with a charging system, an electric starter, and a radio.
The installation of radios, however, presented a unique challenge. The Continental W670s, Lycoming R680s, and Jacobs R755s engines on the Stearman originally featured unshielded ignition harnesses and spark plugs, which created significant electromagnetic radio noise. This meant that when a radio was installed, it was often unusable due to static interference. To address this issue, shielded ignition systems were designed, and the engines were modified to accommodate them.
Service Electric's Fiber Optic Cable Burial: What You Need to Know
You may want to see also
Explore related products
The original design objectives of the Model 75 were simplicity, low cost, and ease of maintenance
The Boeing Stearman Model 75 was designed with three key objectives in mind: simplicity, low cost, and ease of maintenance. These design principles were successfully met, and any addition of an electrical system would have compromised these goals. The absence of an electrical system and radios was a deliberate choice, and the Model 75 performed admirably in its WWII military service without them.
The Stearman's transition from a post-war sprayer to a historic warbird brought about changing requirements. Over time, radio communication and navigation equipment became increasingly necessary, and the romance of hand-cranking an inertia starter lost its appeal when faced with challenging engine starts on hot days. The solution was clear: a charging system, an electric starter, and a radio.
However, retrofitting radios into the Stearman's Continental W670s, Lycoming R680s, and Jacobs R755s engines presented challenges due to their unshielded ignition harnesses and spark plugs. These ignition systems generated significant electromagnetic radio noise, which interfered with radio communication. To address this issue, a shielded ignition system was designed, with the WWII-era shields made from aluminium alloy and featuring a large braided brass conduit.
While the shielded ignition system improved radio functionality, it created servicing difficulties for the Stearman's compact distributor cap. The tight fit of the shield within the smaller engine mounting ring made it challenging to access and service the distributors, leading to maintenance delays. This issue highlighted the importance of balancing the design objectives of simplicity, low cost, and ease of maintenance, as modifications to one area could inadvertently impact another.
Despite these challenges, the Stearman Model 75 remains an iconic aircraft, beloved by owner-pilots for its versatility and fun civilian applications, including fly-ins, air shows, and formation flying.
Electric Bills: Who Pays, Landlord or Tenant?
You may want to see also
Explore related products
The Stearman was used as a military trainer aircraft for the US Army Air Forces, US Navy, and the Royal Canadian Air Force during World War II
The Stearman, also known as the Boeing Stearman or Kaydet, was a biplane used as a primary military trainer aircraft for the US Army Air Forces, US Navy, and the Royal Canadian Air Force during World War II. It was produced by the Stearman Aircraft Company, a subsidiary of Boeing, and at least 10,626 of these planes were built in the United States during the 1930s and 1940s.
The Stearman played a crucial role in training pilots for the Allied forces during the war. It was used to teach basic flying skills and manoeuvres to pilot candidates, who would then go on to fly more advanced aircraft in combat. The Stearman was well-suited for this purpose due to its sturdy design and reliable performance.
One notable feature of the early Stearman aircraft was the absence of an electrical system and radios. The original design objectives were simplicity, low cost, and ease of maintenance, and the addition of an electrical system was seen as compromising these goals. However, as the aircraft evolved, the need for radio communication and navigation equipment became more apparent, and eventually, a charging system and electric starter were added.
During World War II, the Stearman was designated differently by each branch of the military that utilised it. The US Army Air Forces referred to it as the PT-13, PT-17, or PT-18, depending on the type of radial engine it was equipped with. The US Navy, on the other hand, designated it as the NS or N2S. The Royal Canadian Air Force also used the Stearman as the Kaydet, receiving 301 PT-27s under the Lend-Lease program.
After World War II, thousands of surplus Stearman aircraft were sold on the civilian market. They found new life as crop dusters, sports planes, and performers in aerobatic and wing-walking displays at air shows. The Stearman's rugged construction and manoeuvrability made it a popular choice for civilian pilots, and even today, many of these planes remain in flying condition and are cherished by aviation enthusiasts worldwide.
Electrical Licensing: South Dakota's Recognition of Utah Credentials
You may want to see also
After World War II, the Stearman was sold on the civilian market and used for crop dusting and aerobatic shows
The Stearman, also known as the Boeing Stearman or Kaydet, was originally designed as a military trainer aircraft. During World War II, thousands of pilots were trained using these planes, which were then sold on the civilian market after the war ended. The Stearman was widely available and affordable, making it a popular choice for various civilian activities, including crop dusting and aerobatic shows.
Crop dusting, or aerial application, involves spraying crops with pesticides, fertilizers, or other chemicals to protect them from pests and diseases. The open-cockpit design of the Stearman biplane made it particularly well-suited for this task. The chemical tanks could be easily fitted into the forward cockpit, and the powerful engine provided the necessary lift and manoeuvrability for flying low over fields. The Stearman's rugged construction and fixed undercarriage also made it durable enough to withstand the challenges of crop dusting.
One notable example of a Stearman aircraft used for crop dusting is No. 68, which served at Pryor Field in Alabama during World War II. After the war, it was purchased by Clay Smith, who restored it to its former glory. No. 68 went on to win first place in the 2006 Oshkosh, Wisconsin, competition for restoration and is now a beloved collectible, making appearances at local festivals.
In addition to crop dusting, the Stearman also found a new life in aerobatic shows and wing walking performances. The manoeuvrability and open-cockpit design made it ideal for performing stunts and tricks. The Aerosuperbatics Wingwalking team, for instance, uses modified Stearman aircraft in their displays, with no controls in the forward cockpit to allow for unimpeded movement during their performances.
Today, the Stearman remains a popular sport plane and warbird, with many still in flying condition worldwide. The Stearman's rich history, distinctive design, and versatility have ensured its enduring legacy in aviation, even long after its military service ended.
Aircon Electricity Saving: On vs Off, What's Best?
You may want to see also
Installing an electrical system in a Stearman requires a generator or alternator and a battery installation
Installing an electrical system in a Stearman or any other aircraft requires a generator or an alternator and a battery installation. Generators and alternators are rated in volts (12 or 24) and amps. Common sizes for 12-volt systems are 12, 15, 25, 38, 50, or 60 amps, while 24-volt alternator ratings are typically 60 or 95 amps. The choice between a generator and an alternator depends on various factors. Generators are capable of producing electrical power even if the battery is dead, which is a significant advantage. They are also not sensitive to errant electrical spikes or reversed polarity, conditions that can render an alternator inoperative. However, generators are heavier, have lower amperage ratings, and require more maintenance than alternators.
When installing a generator, it is important to consider the carbon dust, commutators that need to be smoothed and polished, and bearings that need to be greased and cleaned. Generators produce electrical power by moving wires (conductors) through strong electrical fields or vice versa. In a generator, the conductors are copper wires that are wound around an armature that is bolted to the drive pulley. As the armature rotates, the copper wires move through a magnetic field, inducing electrical power that terminates in a part of the armature called the commutator.
Alternators, on the other hand, are capable of producing full-rated output at low engine RPM, which is essential for modern GA airplanes that require electrical power from the beginning of every flight. They are also generally lower maintenance than generators. Alternators produce electrical energy similarly to generators, but without the use of permanent magnets. Instead, the strength of the magnetic field in an alternator is automatically varied by an excitement power from the voltage regulator (VR).
It is important to note that the electrical system installation process may vary depending on the specific model of the Stearman aircraft and the chosen power source (generator or alternator). Therefore, it is recommended to refer to the appropriate service manuals and seek the assistance of a well-educated mechanic or owner to determine the cause of any problems and perform the installation correctly.
Understanding Electric Clutch Polarity: Does It Impact Performance?
You may want to see also
Frequently asked questions
The Stearman Model 75 did not come with an electrical system or radios. However, as the aircraft moved from its second career as a sprayer to its current status as a warbird, requirements began to change.
The original design objectives of the Stearman Model 75 were simplicity, low cost, and ease of maintenance. Each of those goals would have been compromised by the addition of an electrical system.
Installing an electrical system in a Stearman involves several steps, including deciding on a battery configuration, locating and hooking up components, and neatly installing all components with minimal exposed wiring.
The components required include high-current solenoids for the master switch, starter activation, and engage solenoid, as well as a current shunt for the ammeter in the avionics/control panel.
The addition of an electrical system allows for the inclusion of modern conveniences such as radio communication and navigation equipment, as well as an electric starter.
