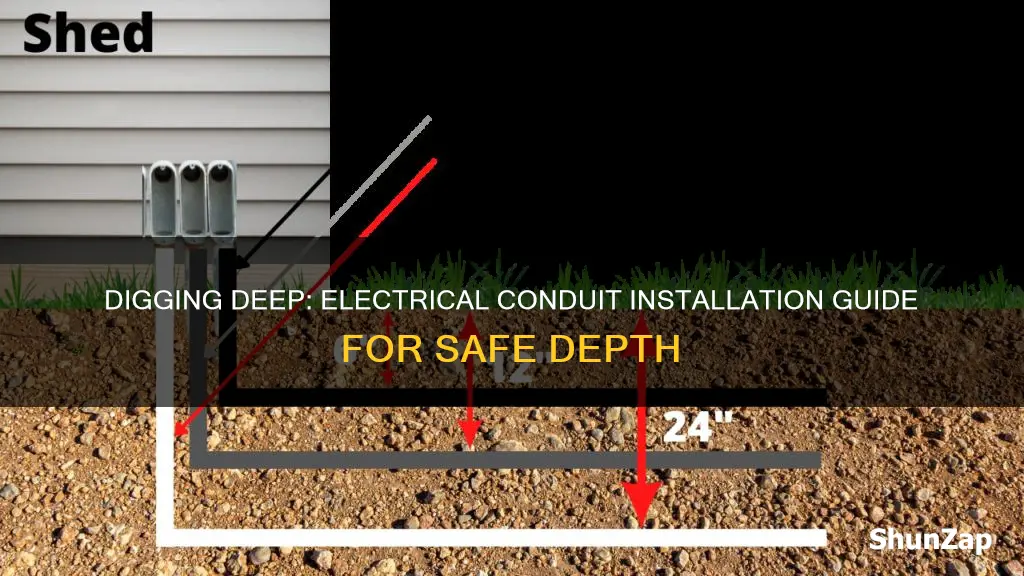

Electrical conduits are the channels through which power is transported. They are pipes that seamlessly carry electrical wiring through buildings. There are two types of electrical conduits: metal and non-metal. The depth at which these conduits should be buried depends on several factors, including the type of conduit, the location of the installation, and local building codes. The National Electrical Code (NEC) outlines the standards for safe electrical installations and specifies minimum burial depths for different types of conduits and wiring. For example, the NEC requires a minimum depth of 18 inches for PVC conduits in residential installations and 24 inches for non-residential installations.
Explore related products
What You'll Learn
Minimum depth requirements
The depth at which electrical conduit should be buried depends on a variety of factors, including the type of conduit, the nature of the installation, and the applicable building codes and regulations. The National Electrical Code (NEC) outlines specific safety requirements for all outdoor outlets across residential, commercial, and industrial settings.
As a general rule, electrical conduits should be buried at a depth of at least 18 inches, but the specific depth requirements may vary depending on the type of conduit, the wire or cable used, and local building codes. For example, the NEC requires a minimum cover depth of 6 inches for residential installations and 18 inches for non-residential installations when using EMT conduit for direct burial.
PVC conduit, one of the most frequently used electrical conduits, requires a minimum cover depth of 18 inches for residential installations and 24 inches for non-residential installations. Other types of conduits, such as galvanized metal electrical conduits, must be buried at a minimum depth of 6 inches.
It is important to note that local codes may be stricter than the NEC, so it is always recommended to confirm with a local inspector or building official before beginning any underground wiring project.
Electric Scooters: A Multi-Billion Dollar Industry's Size
You may want to see also
Explore related products
Conduit material
Metal conduits can be further categorized into rigid metal conduits (RMC) and flexible metal conduits (FMC). RMCs are typically made of stainless steel, coated steel, or aluminum, providing excellent protection against physical damage and electromagnetic interference. They are commonly used in industrial and commercial buildings. Intermediate metal conduits (IMC) are a lighter and thinner version of RMC, offering similar protection levels but being more cost-effective and easier to work with. Galvanized rigid conduits (GRC) are another type of RMC, known for their strong, durable, and thick-walled construction, making them suitable for industrial and hazardous areas.
On the other hand, flexible metal conduits (FMC) are made by coiling self-interlocked steel or aluminum strips, providing flexibility and vibration absorption. They are commonly used in dry areas and where installing rigid conduits is impractical. Liquid-tight flexible metal conduits (LFMC) are a specialized type of FMC with sealed fittings and a plastic coating, making them suitable for wet areas and outdoor equipment. Electrical metallic tubing (EMT) is a lightweight, bendable, and thinner alternative to RMC, often used for indoor wiring in residential and commercial buildings.
Non-metal conduits, also known as electrical non-metallic tubing (ENT), are typically made from polyvinyl chloride (PVC). PVC conduits are lightweight, flexible, and resistant to corrosion and moisture, making them suitable for underground installations. However, they should not be placed in direct sunlight due to low UV stability. ENT is less expensive than metal conduits and is suitable for internal installations, including residential and commercial applications. Rigid PVC conduit offers protection against abrasion and light damage at a lower cost than metal conduits.
In addition to metal and non-metal conduits, there are other specialized conduit materials, such as fiberglass conduit. Fiberglass conduit is strong, lightweight, and corrosion-resistant, making it suitable for applications where fire safety and protection are critical. It is often used in wastewater treatment facilities, chemical plants, and power plants.
The Process of Pressure Treating Electric Utility Poles
You may want to see also
Explore related products
Trench depth options
The National Electrical Code (NEC) outlines specific safety requirements for all outdoor outlets across residential, commercial, and industrial settings. The NEC code for underground conduits permits the following conduits for direct bury use in wet locations:
- Low-voltage landscape wires (under 30 volts): Must be buried at least 6 inches deep.
- All other direct burial wires: Must be buried at least 24 inches deep.
For residential installations, the NEC requires a minimum cover depth of 6 inches for direct burial and 18 inches for PVC conduit. For non-residential installations, the minimum depth is 18 inches for direct burial and 24 inches for PVC conduit.
Local codes may be stricter, so it is important to confirm with your local inspector before digging. Additionally, an electrical inspector will verify the depth of the trench and inspect the wiring before it is covered, ensuring that your installation is safe.
When planning an underground wiring project, it is important to consider the amount of manual labor required and the type of wire to be used. If necessary, a gas-powered trenching machine can be rented to reduce the amount of digging needed. The type of conduit and wire used will determine the trench depth required. For example, galvanized metal rigid electrical conduit is installed 6 inches deep, while PVC conduit is installed at a minimum depth of 18 inches.
Electric Cable Burial Depths in the UK: How Deep?
You may want to see also
Explore related products
Local building codes
The depth at which electrical conduits must be buried is a critical factor in ensuring electrical safety and complying with local regulations. This depth can vary depending on several factors, including the type of conduit, the nature of the installation, and the local building codes. As a general guideline, most safety codes recommend a burial depth of at least 18 inches, with some codes requiring a minimum of 24 inches to provide adequate protection and minimise the risk of damage.
For instance, PVC conduit, which is commonly used for underground installations due to its corrosion and moisture resistance, typically requires a minimum cover depth of 18 inches for residential installations according to the National Electrical Code (NEC). However, local codes may differ, and in some cases, a depth of 24 inches may be mandated for non-residential installations. Galvanised metal electrical conduits, on the other hand, often require a burial depth of at least 6 inches.
It is worth noting that local building codes may impose stricter requirements in regions with extreme temperatures and deep ground freezes. In such cases, the burial depth may need to be adjusted to avoid frost heave. Additionally, installations under concrete or roadways may have different depth requirements, typically allowing for a minimum depth of 18 inches. Therefore, it is imperative to consult local authorities, building codes, and inspectors to ascertain the precise depth requirements for your specific location and project.
Target's Electric Scooter Offerings: Available for Customers?
You may want to see also
Explore related products
Installation type
The depth at which electrical conduit should be buried depends on a variety of factors, including the type of conduit, the location of the installation, and the local building codes.
The type of installation will determine the depth of the electrical conduit. For example, if you are installing underground wiring for landscape lighting, a garden pond, or a carpentry workshop, you will need to follow the depth requirements for underground wiring laid out by your city or community.
- Residential installations: The National Electrical Code (NEC) requires a minimum cover depth of 6 inches for residential installations. This applies to direct burial wires and galvanized metal electrical conduits.
- Non-residential installations: The NEC requires a minimum cover depth of 18 inches for non-residential installations. This applies to both residential and non-residential installations of EMT (electrical metallic tubing) conduit, which is not typically recommended for direct burial due to its thinner walls.
- Commercial installations: Commercial sites can include installations under buildings, under concrete slabs, under parking lots, or even airport runways. The burial depth will depend on the specific location and wiring method. For example, an underground electrical service underneath a parking lot would need to be buried at a depth of 24", regardless of the wiring method used. On the other hand, an installation in PVC under a building's concrete slab would have no burial depth.
- Outdoor installations: Outdoor wiring must be in a conduit unless it is labelled as a direct bury or UF (underground feeder) cable. Direct-bury cables must be installed at a minimum depth of 24 inches, while low-voltage landscape wires (under 30 volts) must be buried at a minimum depth of 6 inches. PVC conduit used outdoors must be buried at a minimum depth of 18 inches.
- Indoor installations: If you are connecting electricity to an interior source, you will need to bore a hole through the wall and cut a plastic conduit to cover the area from the bottom of the trench to the hole in the wall. The depth of the trench will depend on the specific wiring method and local building codes.
Body Fat Testing: Electric Method Accuracy Explained
You may want to see also
Frequently asked questions
The depth at which electrical conduit should be buried depends on a variety of factors, including the type of conduit, the location of the installation, and the local building codes. As a general rule, conduit should be buried at a depth of at least 18 inches, but in some cases, it may need to be buried deeper. For example, the National Electrical Code (NEC) requires a minimum cover depth of 6 inches for residential installations and 18 inches for non-residential installations.
The depth you need to dig for electrical conduit depends on the type of conduit, the nature of the installation, and the applicable building codes and regulations. For example, PVC conduit is often used for underground installations and typically requires a minimum depth of 18 inches for residential installations and 24 inches for non-residential installations.
Yes, it is important to follow essential safety precautions when installing underground cable. This includes calling your local building inspection department to determine if an electrical permit and inspections are required for your project. The electrical inspector will verify the depth of the trench and inspect the wiring before it is covered. Additionally, it is important to use the correct type of wiring and conduit for your specific project.
