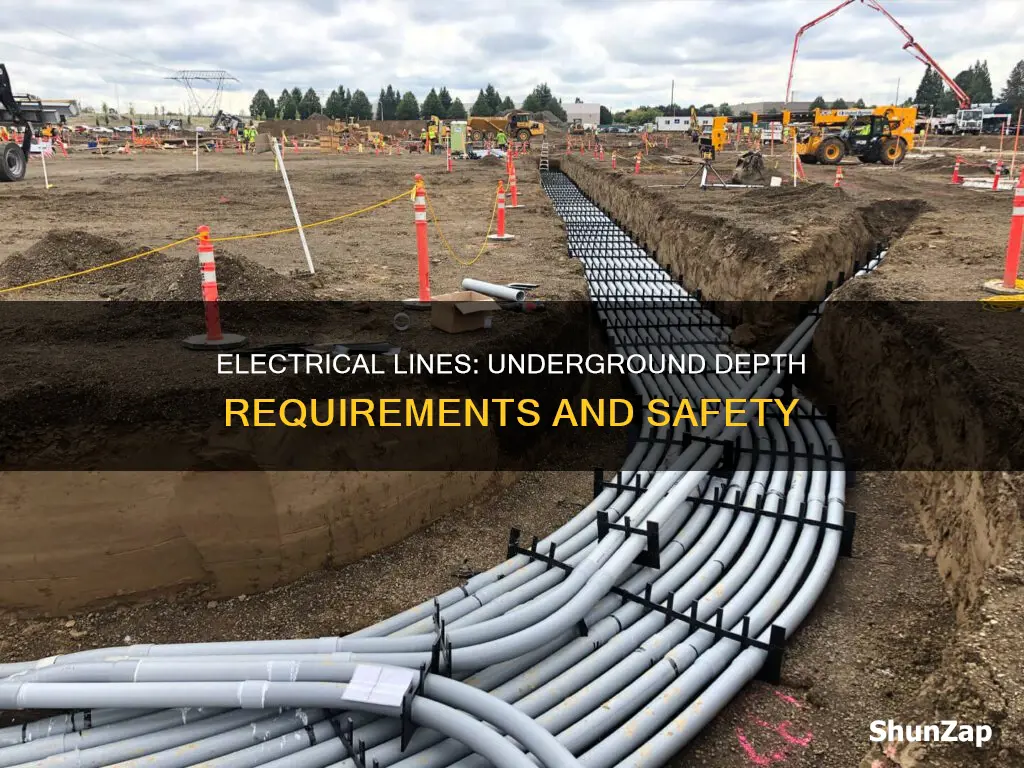

The depth at which electrical lines are laid underground depends on several factors, including wire type, voltage, and local regulations. Underground electrical wiring typically ranges from 6 to 24 inches in depth, with high-voltage cables requiring a minimum depth of two feet for safety reasons. The type of soil and the use of conduits, which protect the wires from damage and disperse electricity in the event of a malfunction, also influence the depth. Local regulations, such as the National Electric Code (NEC) in the United States, outline specific requirements for burying electrical wires to ensure safety and compliance.
| Characteristics | Values |
|---|---|
| Type of wiring | Underground cable, wire, or direct-burial wire |
| Type of conduit | Metal, plastic, PVC, RMC, IMC |
| Type of wire | Individual insulated wires, GFCI-protected direct-buried Type UF cable, GFCI-protected underground feeder cable |
| Voltage | 120v or 240v |
| Soil type | Granular, rocky, heavy clay |
| Depth | 6 inches, 12 inches, 18 inches, 24 inches, 600mm, 750v, 900mm, 450mm |
| Other requirements | Electrical permit, inspections, burial tape, rated straps, LB fitting, sand, caution tape, joist hangers, cable staples, conduit outlet body, exterior-grade acrylic-latex caulk |
Explore related products
What You'll Learn
Underground electrical wiring methods
There are several methods for installing underground electrical wiring, and the right choice depends on the type of soil, the depth of the trench, and the amount of digging required. Here is an overview of some common underground electrical wiring methods:
Duct and Direct Burial
This method involves either pulling cables through tubes, which may or may not be encased in concrete, or burying the cables directly in the earth. While direct burial is becoming more common, ducts are still necessary in rocky soils, filled land, and under roadways to prevent cable damage.
Underground Conduits
Underground conduits, also known as underground feeders (UF), are a common method for running electrical wiring through your yard. The type of conduit and wire will determine the installation depth. For example, galvanized rigid metal electrical conduits with individual insulated wires are typically installed six inches deep, while PVC conduits with individual insulated wires are installed at a depth of 18 inches.
Metal or Plastic Conduit
If the soil is rocky or heavy clay, or if there are many tree roots, you can minimise digging by protecting the buried wiring in metal or plastic conduit. Metal conduits must be grounded to metal boxes or grounding wires, unless they are short lengths providing only support or physical protection.
Ground-Fault Circuit-Interrupter (GFCI) Protection
GFCI protection provides enhanced electrical safety and reduces the need for deeper trenches. GFCI-protected underground feeder cables are typically installed at a depth of 12 inches.
When installing any type of underground electrical wiring, it is important to follow safety precautions, such as calling your local building inspection department to ensure your project meets code requirements and depth requirements. Additionally, warning ribbon tape is recommended in trenches to avoid potential accidents, and conduits should be sealed to prevent moisture buildup.
Digging Deep: Electrical Conduit Installation Guide for Safe Depth
You may want to see also
Explore related products
Factors influencing depth requirements
Several factors influence the depth requirements when laying electrical lines underground. These factors include:
Voltage: The depth at which electrical wires are buried varies depending on the voltage the wire receives. Low-voltage wires carrying no more than 30 volts of electricity must be at least six inches deep, while wires carrying 240 volts need to be at least 18 inches below the surface.
Type of Wire and Conduit: Different types of wires and conduits have specific depth requirements. For instance, GFCI-protected underground feeder cable should be installed at a depth of 12 inches, while PVC conduit with individual insulated wires needs to be 18 inches deep. The use of conduit provides protection from moisture, dirt, animals, and other environmental factors that could damage the wires.
Soil Type: The type of soil can impact the depth of burial. If the soil is granular and easy to dig, you may be able to save on electrical materials by digging deeper and potentially avoiding the need for metal or plastic conduit to protect the wiring. Conversely, if the soil is rocky or heavy clay, or there are many tree roots, you may need to protect the wiring with conduit and dig to a shallower depth.
Local Regulations and Permits: State and city electrical codes vary, and specific code requirements apply to electrical wires at different voltages and depths. It is essential to contact local authorities and utility companies to understand the depth requirements and obtain any necessary permits. Some municipalities require local utilities to mark the location of their underground utilities before starting any work.
The Electrical Outlet: A Power Source for Innovation
You may want to see also
Explore related products
Electrical wire type and voltage
The type of electrical wire and its voltage rating are crucial factors in installing underground electrical wiring. The National Electrical Code (NEC) provides guidelines for allowable wiring methods, materials, and burial depth to ensure safe and reliable underground wiring. Here are some common electrical wire types and their voltage considerations:
- Underground Feeder (UF) Cable: UF cable is commonly used for running electricity to garages, sheds, yard lights, or garden features. It is designed for direct burial or installation inside conduit. When sizing UF cable, consider the total load or electrical demand of the devices on the circuit. For long cable runs, increase the wire size to account for voltage drop, which is the loss of voltage due to the natural resistance in the wires.
- Aluminum URD Cables: URD cables are specifically designed for distributing electricity to residential areas and are often buried underground. They are made from compressed aluminum with cross-linked polyethylene (XLPE) insulation. The AA-8000 series aluminum alloy conductors meet NEC requirements for underground installations and provide good conductivity and corrosion resistance.
- Copper Tracer Wire: Copper tracer wire is used for locating and mapping underground utilities like plastic pipes or conduits. It features high molecular weight polyethylene (HMWPE) insulation, which is waterproof and highly resistant to scratches and abrasions. Copper is preferred for its excellent conductivity, durability, and corrosion resistance in buried applications.
- Galvanized Rigid Metal Conduit: This type of wiring involves installing individual insulated wires inside galvanized rigid metal conduit. The wires must be rated for wet locations, such as Type THWN-2 (thermoplastic/wet location/nylon jacket). The recommended depth for this setup is six inches.
- PVC Conduit: PVC conduit is installed with individual insulated wires and provides protection for the wiring. The recommended depth for PVC conduit is 18 inches.
- Voltage Considerations: When installing underground wiring, it is important to consider voltage drop, especially for long cable runs. A voltage drop greater than five percent can affect the performance and lifespan of motors, appliances, and devices. To mitigate voltage drop, use larger-diameter wires, copper wire instead of aluminum, and ensure the circuit load does not exceed safe capacity (80 percent for circuits).
Lake Wateree Shelters: Electricity Availability and Your Camping Experience
You may want to see also
Explore related products
Soil type considerations
The choice of how deep to lay electrical lines underground primarily depends on the type of soil. If the soil is granular and easy to dig, you can save money on electrical materials by digging deeper and may not need to install metal or plastic conduit to protect the buried wiring from physical damage. However, if the soil is rocky, heavy clay, or filled with tree roots, you can keep digging to a minimum and protect the wiring in a metal or plastic conduit.
The thermal properties of the soil are also an important consideration when laying electrical lines underground. The electricity flowing in the conductor generates heat, and the resistance to heat flow between the cable and the ambient environment causes the cable temperature to rise. Moderate temperature increases are acceptable, but temperatures above the design temperature will shorten the cable's life. Therefore, it is essential to understand the soil's thermal stability to design a power distribution system that prevents thermal runaway.
Soil thermal resistivity measurements are crucial for safe and successful underground power cable installations. Density and water content play a significant role in determining the thermal resistivity. Natural soils that support plant growth tend to have higher resistivities due to their lower density and variable water content. On the other hand, engineered backfill materials can assure adequate thermal performance under all conditions.
Additionally, the type of wiring and installation method may depend on the soil type and digging requirements. For example, if you are prepared to dig deeper, you can install PVC conduit with individual insulated wires at 18 inches, which offers reduced costs and the ability to add more wires later. However, if you want to minimize digging, you can protect the wiring in a metal or plastic conduit and install it at a shallower depth.
Toyota Camry's Electric Emergency Brake: How Does it Work?
You may want to see also
Explore related products
Safety precautions and permits
Safety should be a top priority when laying electrical lines underground. It is important to adhere to safety precautions and obtain the necessary permits to ensure the work is completed correctly and securely.
Firstly, it is crucial to contact local utility companies to mark any existing underground utilities. This step is essential to avoid accidentally damaging or interfering with existing lines. It is also a requirement in certain municipalities and states/provinces.
Secondly, before commencing any digging, it is imperative to call your local building inspection department to determine if an electrical permit and inspections are necessary for your project. Obtaining the required permits beforehand can save you time and money in the long run. The electrical inspector will provide valuable insights and approvals, ensuring that your work complies with safety standards.
Additionally, when laying electrical lines underground, it is important to prioritize personal safety. If you need to leave the trench open for an extended period, install barricades around it to prevent accidents. Also, be cautious when working with electrical wiring, as work at the main service panel has the potential for serious or fatal shocks if not performed correctly. Therefore, it is highly recommended to have an electrician or a professional involved in the project.
Furthermore, the National Electrical Code (NEC) provides guidelines for allowable wiring methods, materials, and burial depth. It is important to follow these guidelines to ensure the underground wiring is safe and reliable. The NEC specifies that electrical wire in rigid, non-metallic conduit, such as PVC, should be buried at a depth of 18 inches.
Lastly, when laying electrical lines underground, consider the type of soil you are working with. If you have rocky soil, heavy clay, or encounter tree roots, you may need to protect the wiring in metal or plastic conduit. This will minimize the amount of digging required and provide superior protection for the wiring.
In summary, by following these safety precautions and obtaining the necessary permits, you can ensure that your underground electrical project is completed safely and in compliance with local regulations.
Mumbai's Electric Grid: Stable or Not?
You may want to see also
Frequently asked questions
The standard depths for laying electrical lines underground vary between 6 and 24 inches, depending on the wire type and its voltage.
Some factors that determine the depth of underground electrical lines include the type of soil, the use of a conduit, and local depth requirements.
High-voltage underground cables must be buried at a minimum depth of two feet, according to the National Electric Code (NEC).
It is essential to obtain the necessary electrical permits and follow safety precautions. Using burial tape and rated straps to secure the cables is recommended. Additionally, consider renting trenching machines to facilitate the digging process and minimize manual labor.
