Beatrice Lang
Digging a trench for electrical wiring can be a challenging task, and there are many factors to consider, such as the type of soil, the presence of rocks or pipes, and the required depth. The depth of the trench is an important consideration as it needs to be deep enough to accommodate the electrical cable and comply with local regulations and safety standards. In this paragraph, we will explore the key factors that determine how deep you should dig a trench for electrical wiring and provide insights into the tools and techniques that can be used to complete this task effectively.
| Characteristics | Values |
|---|---|
| Minimum depth | 18 inches |
| Maximum depth | 46 inches |
| Width | 6-10 inches |
| Tools | Shovel, pick mattock, trencher, spade, hammer drill, electric jackhammer, heat gun |
| Permits | $10-$500 |
| Inspections | Up to three |
Explore related products
What You'll Learn

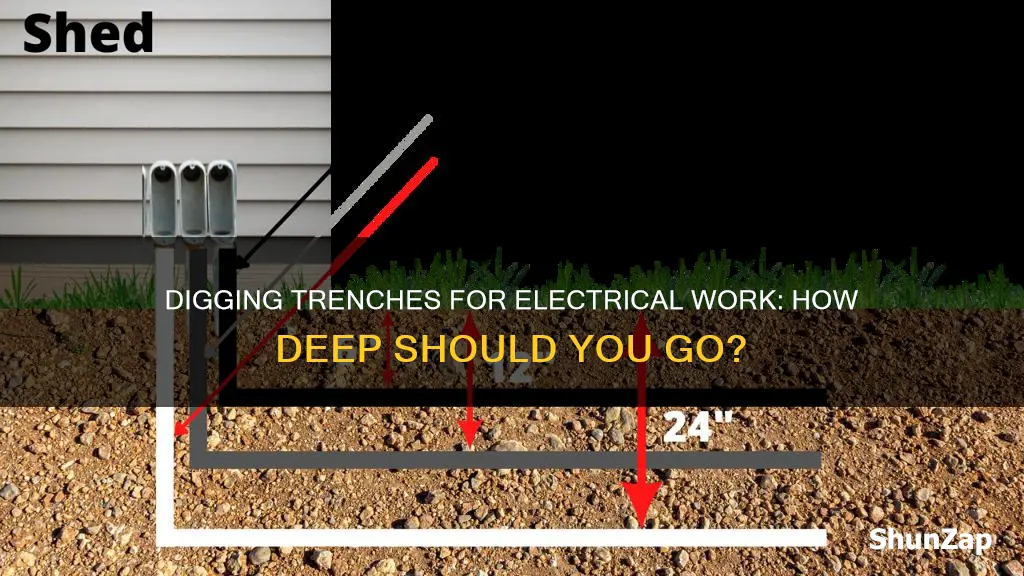

The depth of the trench
For a permanent installation, especially when installing plastic, it is recommended to dig below the frost line for your area to prevent damage from freezing temperatures. This can be as deep as 42" plus an additional 4" for the conduit and backfill, according to one source. Another source mentions that their local code requires a minimum depth of 12" in conduit and 24" for direct burial.
The type of tool used for digging will also influence the depth of the trench. For example, one individual with experience digging trenches mentions that they typically dig 6"-8" wide trenches for a depth of up to 18", and wider trenches for greater depths. They also mention that the deeper the trench, the wider it should be to prevent the dirt from falling in.
In some cases, the depth of the trench may be influenced by the location and likelihood of future digging. For instance, an electrician suggested that a cable could be installed just 2" below the lawn if it was made of steel wire armour, the location was not expected to see a lot of digging, and the cable location was known.
Before digging, it is essential to secure any necessary permits and inspections, as well as checking for any buried pipes or wires along the designated path.
Electric Ignition on YZ 125: How Does it Work?
You may want to see also
Explore related products
The tools needed to dig
The tools you will need to dig a trench for electrical wiring depend on the depth and width of the trench, as well as the type of soil you are digging into.
If you are digging by hand, a shovel or spade is the most common tool. A narrow spade, around 6-8 inches wide, can be used for a trench that is 18 inches deep. A wider spade, around 10 inches, can be used for a trench that is 24 inches deep. For deeper trenches, a wider trench is recommended to prevent the dirt from falling back in. A shovel with a long handle can help to reduce bending while reaching the bottom of the trench, and a head with side walls will help to lift and remove soil without spillage. A pick mattock or pick axe hoe can also be used, particularly if you are likely to encounter stones or other obstacles in the soil.
For narrower trenches, a drainage spade, or tile spade, can be used. This is a handheld wire-burying tool that is designed for digging shallow routes, up to 12 inches deep and 5 inches wide. A trenching hoe, or grub hoe, can also be used for digging and for burying wire.
For deeper trenches, or where there is a lot of ground to cover, a power trencher may be required. Walk-behind trenchers are available for DIYers, but care should be taken to avoid accidents. Bed edger trenchers are useful for creating clean, shallow trenches for landscaping borders, while wire trenchers can be used to install electric dog fences and landscape lighting.
AC Fan Electricity Saving: Fact or Fiction?
You may want to see also
Explore related products
Electrical wire size
The depth of your trench will depend on the type of conduit, wire, or cable you are using. For instance, install galvanized rigid metal electrical conduit with individual insulated wires like Type THWN-2 (thermoplastic/wet location/nylon jacket) at a depth of six inches. For PVC conduit with individual insulated wires, the recommended depth is 18 inches. If you are installing Type UF cable, it should be installed at a depth of 24 inches.
The National Electrical Code contains provisions for allowable wiring methods, materials, and safety considerations. Before beginning your project, it is important to secure a permit and check for any inspections that may be required.
The trench should be wide enough to accommodate the conduit or cable. For example, if you are using a narrow spade of 6" to 8" or 0.2 meters, the trench can be 18" or 0.45 meters deep. If you are using a wider spade of 10" or 0.25 meters, the trench can be 24" or 0.6 meters deep.
It is also important to consider the type of soil you have. If you have granular soil that is easy to dig, you may be able to save money on electrical materials by digging deeper and potentially avoiding the need to install metal or plastic conduit to protect the wiring.
Additionally, you can use a heat gun to mold the conduit if necessary and create the desired shape to access your service panel. Don't forget to attach a plastic conduit outlet body to the end of the conduit and seal it with exterior-grade acrylic-latex caulk to keep water out.
Before returning the soil over the wires, you may want to cover them with sand for extra protection. You can also apply caution tape across the trench to ensure that anyone digging in the future will be aware of the electrical wire.
Tri County Electric: ERCOT's Texas Power Provider
You may want to see also
Explore related products
Permits and inspections
Before you start digging a trench for electrical wiring, it is important to obtain the necessary permits and understand the inspection requirements. The permitting process ensures that the relevant authorities are aware of the trench's creation and helps to enforce safety regulations.
The specific permits and inspections required can vary depending on your location, so it is essential to contact your local building inspection department or permitting authority to obtain accurate information. In some cases, an electrician may already have a permit for the electrical work, but a separate permit for trenching may still be needed.
Generally, trenching projects that involve installing new electrical outlets, adding wiring, or altering low-voltage systems will require a permit. This permit typically needs to be secured before any digging begins and can cost anywhere from $10 to $500. It is recommended to obtain the permit at least two weeks in advance to keep your project on track.
After receiving the permit, you may need to undergo several inspections during and after the trenching process. The number of inspections can vary, but typically, a final inspection is required to ensure the work complies with safety standards and local codes. The electrical inspector will verify the depth of the trench, inspect the wiring, and ensure the work is safe before it is covered.
To initiate an inspection, contact the building department responsible for your area at least 24 hours in advance and have your permit information ready. They will schedule an inspection, during which they may verify the depth of the trench and inspect the wiring, conduit, and other installed components.
In addition to obtaining permits and inspections, it is crucial to comply with safety regulations and follow recommended practices. For example, calling for underground utility locates before digging can help prevent accidental damage to buried pipes or wires. Additionally, using caution tape across the trench can help identify the area for future reference and prevent accidental digging that could damage the electrical wiring.
Sleep Mode: Power-Saving or Power-Draining?
You may want to see also
Explore related products
Covering the wires
Firstly, it is essential to use the correct type of wire for the project. Direct burial cable can be placed directly into the trench without needing to be pushed through a conduit. However, if you are using a different type of cable, it must be threaded through a conduit before placing it into the trench. It is also important to note that low-voltage wires must be kept separate from 120/240-volt circuits and placed in their own conduits.
Once the cables are in place, it is recommended to cover them with sand for added protection. This layer of sand provides a buffer between the wires and the surrounding soil, reducing the risk of accidental damage from digging or other external factors. The sand also helps with drainage, preventing water buildup that could potentially damage the electrical system.
After the sand layer is applied, the trench can be backfilled with soil. It is important to carefully compact and refill the trench to prevent air pockets and ensure stability. This process should be done in layers, compacting and refilling in increments to achieve a secure and safe burial of the electrical wires.
Finally, to ensure the safety of the electrical system and comply with regulations, it is crucial to mark the path of the underground wiring. Caution tape can be applied across the length of the trench to alert anyone digging in the area of the presence of electrical wires. This helps prevent accidental damage and ensures the long-term safety of the electrical installation.
In summary, covering electrical wires in a trench involves using appropriate cable types, placing them in conduits if necessary, adding a protective sand layer, carefully backfilling with soil, and marking the path with caution tape. These steps help ensure the safety, functionality, and compliance of the underground electrical wiring installation.
Electric Vehicle Sales: The Tesla Effect and Rising Demand
You may want to see also
Frequently asked questions
The depth of your trench depends on the type of soil, local regulations, and the voltage of the wires. Some sources recommend a depth of 18", while others suggest going below the frost line in your area to prevent PVC pipes from snapping. You should also consider the width of your trench, making it wider for greater depths to prevent the dirt from falling in.
You can use a variety of tools to dig a trench, including a shovel, a pick mattock (or pick axe hoe), a spade, or a trencher. If you're digging by hand, be prepared for hard work and potential aches and pains! A narrow spade can be useful for digging narrow trenches.
Before you start digging, it's important to secure a permit and plan for any necessary inspections. You should also locate your service panel and mark the path you plan to dig with chalk or spray paint. Contact the utility company to check for any buried pipes or wires along your route.
Once you've dug the trench, you can push your cable through a conduit and lay it in the trench. It's important to separate low-voltage wires from higher-voltage circuits and use separate conduits for each. Seal the conduits with exterior-grade acrylic-latex caulk to protect against water damage.
Yes, electrical work can be dangerous. When connecting to the electric supply, you must hire a licensed electrician. You can use caution tape to mark the trench and ensure that anyone digging in the future will identify the area and avoid hitting the electrical wire.
