The depth at which you need to install electrical wiring outdoors depends on several factors, including the type of wiring, the voltage, and the local electrical codes. The National Electrical Code (NEC) outlines specific safety requirements for outdoor wiring, with burial depths ranging from 4 to 24 inches. Low-voltage wiring carrying no more than 30 volts must be buried at least 6 inches deep, while wires carrying 240 volts need to be at least 18 inches below the surface. Direct burial cable typically requires a depth of 24 inches, while PVC conduit and galvanized metal electrical conduits are generally installed at a minimum depth of 18 inches and 6 inches, respectively. It is important to consult local regulations and seek professional guidance before undertaking any outdoor electrical wiring projects to ensure compliance with safety standards and avoid potential hazards.
| Characteristics | Values |
|---|---|
| Burial depth | 4 to 24 inches |
| Wiring method | Direct burial cable, conduit, or type of circuit |
| Location of buried wire | Driveway, airport runway, etc. |
| Trench width | 18 inches minimum |
| Wire voltage | 30 volts or less, 120 volts or less, 120/240 volts |
| Feeder cable | Underground Feeder Cable (UF) |
| Burial depth for UF cable | 12 inches |
| Burial depth for rigid metal conduit (RMC) | 6 inches |
| Burial depth for low-voltage wire | 6 inches minimum |
| Burial depth for wires carrying 240 volts | 18 inches minimum |
| Burial depth for direct burial cable | 24 inches |
| Burial depth for PVC conduit | 18 inches |
| Burial depth for galvanized metal electrical conduit | 6 inches |
Explore related products
What You'll Learn
Burial depth depends on wiring method and location

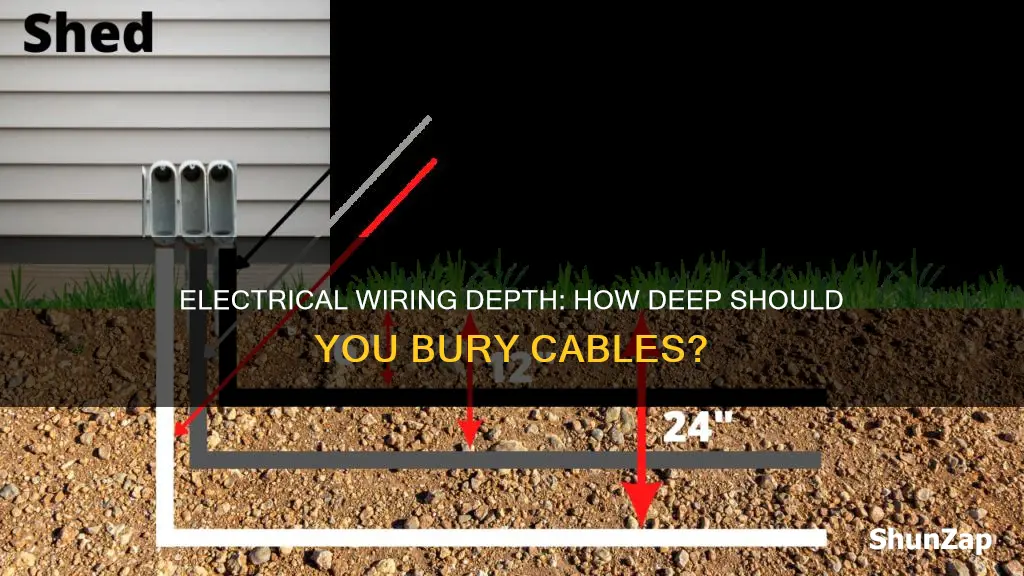

The burial depth of electrical wiring depends on the wiring method and the location. The National Electrical Code (NEC) outlines specific safety requirements for outdoor wiring, with burial depths ranging from 4 to 24 inches.
For low-voltage wiring carrying no more than 30 volts of electricity, a depth of at least 6 inches is required. This includes landscape lighting wires, pool and spa lighting wires, and direct burial low-voltage landscape wires connected to a transformer.
For higher-voltage wiring, such as those carrying 240 volts of power, a minimum depth of 18 inches is necessary. This ensures adequate protection for the wires and complies with electrical codes.
The type of conduit used also determines the burial depth. PVC conduit, for instance, requires a depth of at least 18 inches, while galvanized metal electrical conduits need to be buried at a minimum of 6 inches.
It is important to note that burial depths may vary depending on the specific location of the wiring. Wires under concrete patios, slabs, and driveways have distinct depth requirements compared to those under a yard.
Before commencing any outdoor electrical wiring project, it is crucial to consult local and municipal laws, regulations, and electrical codes. Additionally, contacting utility companies to mark existing underground utilities is essential to ensure a safe and compliant installation.
Electric Cable Burial Depths in the UK: How Deep?
You may want to see also
Explore related products
Local laws and regulations on cable burial
The National Electrical Code (NEC) in the United States sets the required burial depth for electrical wires, which can range from 4 to 24 inches depending on the wiring method, type of circuit, and location of the buried wire. For example, rigid metal conduit (RMC) has a shallower burial depth requirement of 6 inches, while underground feeder cable (UF) requires a depth of 12 inches.
Some local and municipal laws may require you to obtain construction and electrical permits before starting any work involving cable burial. It is also recommended to contact local utilities to mark the location of their underground utilities on your property.
The depth of cable burial is also determined by the voltage of the wire. Low-voltage wires carrying no more than 30 volts must be at least 6 inches deep, while wires carrying 240 volts or more must be at least 18 inches deep.
In the UK, BS 7671 provides guidance on cable burial, stating that cables must be adequately protected and buried at a depth unlikely to cause disturbance during natural overground traffic and use, including footfall and gardening.
According to industry professionals, a minimum depth of 0.5 meters is recommended to protect cables from damage during light hand digging in gardens or similar locations.
Additionally, some cables are designed specifically for burial and have extra protection, such as steel wire armouring. For cables without external protection, ducting, conduit, or a protected channel may be necessary to safeguard them from damage.
The Nervous System's Electric Current: Powering Our Bodies
You may want to see also
Explore related products
Trench width and electrical codes
When it comes to outdoor electrical wiring, one of the most important considerations is how deep to bury the wires. The National Electrical Code (NEC) sets the burial depth rules, which range from 4 to 24 inches, depending on the wiring method and location. For example, low-voltage wiring carrying no more than 30 volts must be buried at least 6 inches deep, while wires carrying 240 volts need to be at least 18 inches below the surface.
Now, let's focus on trench width and electrical codes. The Occupational Safety and Health Administration (OSHA) recommends a trench width of at least 18 inches for electrical wires. This width is likely to comply with most state and city electrical codes. However, it's important to note that electrical codes can vary from state to state and even city to city. So, it's always best to check with your local housing authority or electrical inspector to ensure compliance with the specific codes in your area.
The trench width requirements may also depend on the type of conduit used. A conduit is a protective shell that surrounds the wires, shielding them from environmental damage, moisture, dirt, and animals. While outdoor electrical wires are not always required by law to be placed in a conduit, it is highly recommended for added protection. If the trench is for power only, a 4-inch ditch-witch trench is typically sufficient to accommodate the conduit.
Additionally, cable trenches may need to comply with specific codes or standards, especially when installed in concrete trenches or industrial buildings. In some cases, local inspectors may require the use of trays at the bottom of the trench to lift the cables off the ground and allow for drainage. It is crucial to consult with local authorities and professionals to ensure compliance with all applicable electrical codes and standards.
Electric Bills: Who Pays, Landlord or Tenant?
You may want to see also
Explore related products
Underground wiring and conduit types
Underground wiring is a great way to keep electrical wires safe from weather damage and create a neater look. The National Electrical Code (NEC) sets the rules for burial depth, which range from 4 to 24 inches, depending on the wiring method and location.
For low-voltage wiring carrying no more than 30 volts, a depth of at least 6 inches is required. For higher voltages of 240 volts, the depth must be at least 18 inches. If you're using rigid metal conduit (RMC), the shallowest burial depth is 6 inches. Underground feeder cable (UF), on the other hand, requires a depth of 12 inches. UF cables are designed for burial without a conduit and are ideal for supplying power to outdoor or underground structures like lighting, pumps, and detached garages. They are made with bare copper wire surrounded by a durable polyvinyl chloride (PVC) insulation layer, which protects against moisture and UV exposure.
Another type of wire used in underground construction is the AA-8000 series aluminum alloy conductor, which is treated to resist corrosion and comply with NEC standards for underground feeder applications. Copper tracer wire is also used to aid in the detection and mapping of non-metallic underground utilities.
For residential areas, Aluminum URD cables are commonly used to distribute electricity. They are made from compressed aluminum with cross-linked polyethylene (XLPE) insulation and are designed to meet the requirements of the NEC.
When installing underground wiring, it's important to consider the type of soil. If the soil is granular and easy to dig, you may not need to install metal or plastic conduit. However, if the soil is rocky or heavy clay, using a conduit will help protect the wiring from physical damage. Conduits provide protection from moisture, dirt, animals, and other environmental factors that can cause damage to the wires.
Electric Flooring: Mind the Gaps and Traps
You may want to see also
Explore related products
Safety requirements for outdoor outlets
When installing outdoor electrical wiring, it is important to adhere to safety requirements to ensure the safety of yourself and others. Here are some detailed instructions and safety requirements for installing and maintaining outdoor electrical outlets:
Planning and Permits
Before starting any outdoor electrical work, it is crucial to check local and municipal laws, regulations, and electrical codes. Contact your local housing authority to understand the specific requirements for burial depth, which can range from 4 to 24 inches depending on factors such as wiring method and location. Apply for the necessary construction and electrical permits, and call your local “Call Before You Dig” hotline to have utility providers mark the locations of underground utilities on your property.
Wiring Type and Burial
Use wiring approved for outdoor use, such as underground feeder cable (UF cable), which is designed for burial and should be buried at a depth of 24 inches. Low-voltage wiring carrying no more than 30 volts must be buried at least 6 inches deep, while wires carrying 240 volts should be at least 18 inches below the surface. Consider using conduit, a protective shell that safeguards wires from environmental damage caused by moisture, dirt, and animals, even though it may not be legally required.
GFCI Protection and Weatherproofing
All outdoor receptacles must have GFCI (Ground Fault Circuit Interrupter) protection to prevent electrical shocks. Additionally, outdoor outlets should be weather-resistant and adequately sealed to prevent water intrusion, which can lead to short circuits. Ensure that the outlets have weatherproof covers to protect them from rain, snow, and debris, even when a plug is inserted.
Overhead Clearance and Spacing
For outdoor lighting, use fixtures rated for damp or wet locations. Maintain a minimum distance of 5 feet between low-voltage light fixtures and the outside walls of pools, spas, or hot tubs. Electrical service wires above a pool, spa, or hot tub must be at least 22 1/2 feet above the water surface or diving platform.
Safety Precautions
Never use indoor extension cords outdoors. Instead, use outdoor extension cords, which are designed to withstand the elements. Avoid overloading outdoor outlets by plugging in heavy appliances or equipment simultaneously, as it may lead to fire risk. Regularly inspect outdoor outlets for potential hazards, such as cracked or broken outlets, and ensure that the area around the outlets is clear of debris and spider webs to prevent injuries.
Professional Assistance
Replacing or installing outdoor outlets is not a DIY task and should be handled by a licensed electrician who can ensure compliance with safety protocols and local electrical codes. They have the necessary tools and expertise to safely replace and install outdoor outlets, ensuring secure connections and adequate sealing.
Microwaves vs Ovens: Which Kitchen Appliance Drains More Power?
You may want to see also
Frequently asked questions
The depth of burial depends on the wiring method, the location of the buried wire, and the local electrical codes. The National Electrical Code (NEC) outlines that direct burial cable must be dug down to 24 inches deep. If you put the cable into a conduit body, you need a trench that is 18 inches deep. Rigid metal conduit (RMC) has the shallowest burial depth of 6 inches.
You should check the local and municipal laws and regulations on cable burial and obtain any necessary permits. You should also call your local utility companies to mark the existing underground utilities.
Burying electrical wires keeps them safer from weather damage and provides a neater look.
