Electric car door locks operate using a combination of electronic components and mechanical mechanisms, controlled by the vehicle's central computer system. When a driver presses the lock or unlock button on the key fob or the car's interior, a signal is sent to the Body Control Module (BCM), which acts as the central hub for managing various electrical functions. The BCM then activates a small electric motor or solenoid within the door lock assembly, which either engages or disengages the locking mechanism. This process is often accompanied by a clicking sound and, in many modern vehicles, a visual or auditory confirmation. Additionally, electric door locks can be integrated with other systems, such as keyless entry, alarm systems, and even smartphone apps, providing enhanced convenience and security for the vehicle owner.
| Characteristics | Values |
|---|---|
| Power Source | Vehicle's electrical system (12V battery) |
| Actuation Mechanism | Electric motor or solenoid |
| Control Method | Key fob, door switch, or central locking system |
| Locking/Unlocking Process | Motor or solenoid moves a gear or linkage to engage/disengage the latch |
| Feedback Mechanism | Audible click, visual indicator (e.g., LED), or haptic feedback |
| Security Features | Encrypted signals, rolling codes, and immobilizer integration |
| Power Consumption | Low (typically < 10A during operation) |
| Durability | Designed for thousands of cycles (e.g., 50,000+ lock/unlock operations) |
| Integration | Connected to the vehicle's body control module (BCM) or ECU |
| Fail-Safe Mechanism | Manual override (e.g., mechanical key or hidden switch) |
| Noise Level | Minimal (designed to be quiet during operation) |
| Response Time | Near-instantaneous (typically < 1 second) |
| Environmental Resistance | Waterproof and dustproof (IP65-rated or higher) |
| Maintenance | Low maintenance (periodic lubrication and inspection) |
| Compatibility | Works with most modern vehicles (retrofittable in some cases) |
Explore related products
What You'll Learn
- Actuator Mechanism: Electric motor or solenoid moves a rod to lock/unlock the door latch
- Control Module: The car’s computer sends signals to activate the locking mechanism
- Key Fob Communication: Wireless signals from the key fob trigger the locking system remotely
- Power Supply: The car’s battery powers the electric door lock system
- Safety Features: Auto-locking, child safety locks, and anti-lockout mechanisms enhance security and convenience

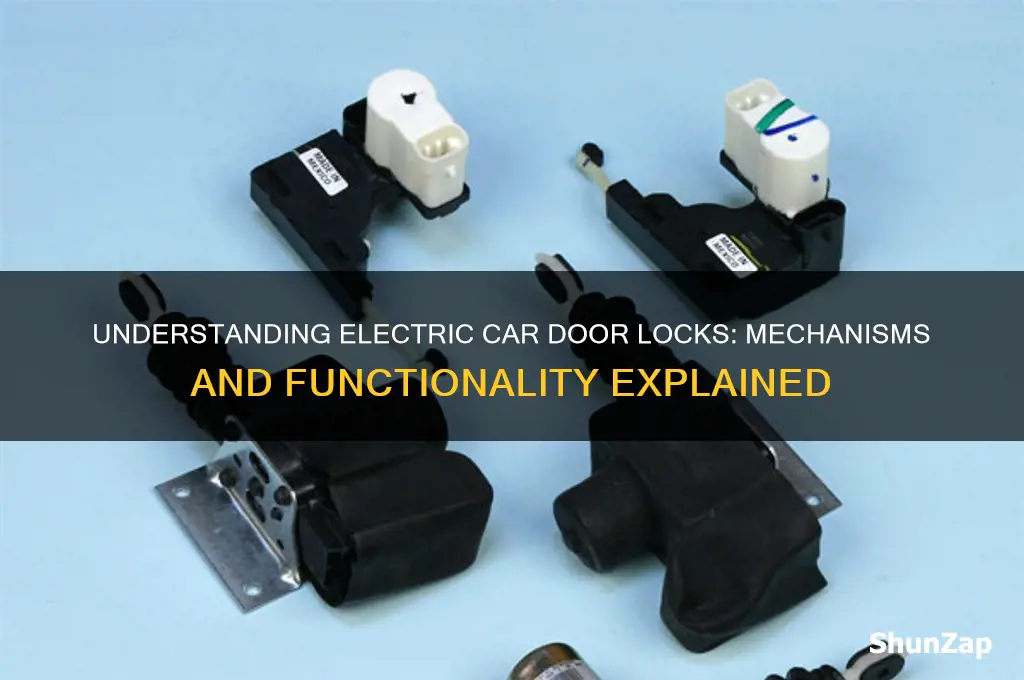

Actuator Mechanism: Electric motor or solenoid moves a rod to lock/unlock the door latch
Electric car door locks rely on a precise actuator mechanism to translate a simple command into secure action. At the heart of this mechanism lies either an electric motor or a solenoid, both tasked with moving a rod that directly engages the door latch. This rod acts as the physical link between the electronic signal and the mechanical lock, ensuring seamless operation with every press of the key fob or button.
The choice between an electric motor and a solenoid hinges on design priorities. Electric motors, often used in high-end vehicles, offer smoother, quieter operation due to their rotational motion, which is converted into linear movement via gears or screws. Solenoids, on the other hand, provide a more compact and cost-effective solution, using a coil of wire to generate a magnetic field that directly pulls a plunger, moving the rod with rapid, decisive force.
Understanding the actuator mechanism is crucial for troubleshooting common issues. A malfunctioning rod, often caused by dirt or misalignment, can lead to doors that won’t lock or unlock. Regular cleaning and lubrication of the rod and latch mechanism can prevent such problems. For DIY enthusiasts, inspecting the rod’s movement by partially disassembling the door panel can reveal obstructions or wear. However, replacing a faulty electric motor or solenoid typically requires professional tools and expertise due to their integration with the vehicle’s electrical system.
When comparing the two actuator types, solenoids are generally more prone to wear due to their abrupt, linear motion, while electric motors offer longevity but at a higher initial cost. Manufacturers often balance these factors based on the vehicle’s class and intended use. For instance, luxury vehicles prioritize the refined operation of electric motors, whereas economy models may opt for the simplicity of solenoids. Regardless of the type, both mechanisms are designed to withstand thousands of cycles, ensuring reliability over the vehicle’s lifespan.
In practice, the actuator mechanism’s efficiency is evident in its response time—typically under a second from command to execution. This speed is critical for security, especially in keyless entry systems where delays could pose risks. For optimal performance, ensure the vehicle’s battery is well-maintained, as voltage drops can slow the actuator’s response. Additionally, extreme temperatures can affect both motors and solenoids; parking in shaded areas or using thermal insulation can mitigate these effects, particularly in regions with harsh climates.
Understanding Car Electric Thermostats: Functionality and Benefits Explained
You may want to see also
Explore related products
Control Module: The car’s computer sends signals to activate the locking mechanism
Electric car door locks rely on a sophisticated interplay of electronics and mechanics, with the control module acting as the central orchestrator. This small yet powerful component, often referred to as the car’s computer, processes inputs from various sources—such as the key fob, interior switches, or even smartphone apps—and translates them into precise signals. These signals are then transmitted to the locking mechanism, ensuring seamless operation. For instance, when you press the "lock" button on your key fob, the control module verifies the signal’s authenticity before activating the actuators in each door. This process happens in milliseconds, showcasing the module’s efficiency and precision.
To understand the control module’s role, consider it the brain of the door locking system. It not only sends activation signals but also monitors the system for errors or malfunctions. Modern control modules are equipped with diagnostic capabilities, allowing them to detect issues like a jammed lock or a failing actuator. In such cases, the module may trigger a warning light on the dashboard or send a notification to the driver’s smartphone. This dual functionality—control and diagnostics—ensures both convenience and safety, making the control module indispensable in electric vehicles.
From a practical standpoint, maintaining the control module is crucial for the longevity of your electric car’s door locking system. Exposure to moisture, extreme temperatures, or electrical surges can damage the module, leading to erratic locking behavior. To prevent this, ensure your vehicle’s wiring harness is intact and shielded from environmental factors. Additionally, regular software updates from the manufacturer can enhance the module’s performance and security features. For example, updates may include improved encryption protocols to prevent unauthorized access, a growing concern in the era of connected vehicles.
Comparing traditional mechanical locks to electric systems highlights the control module’s transformative impact. In older vehicles, locking all doors required physical effort, often involving a single mechanical linkage. Electric systems, however, enable centralized control, remote operation, and integration with other vehicle functions like alarms or automatic locking at speed. This evolution underscores the control module’s role as a key enabler of modern automotive convenience. By consolidating multiple functions into a single unit, it simplifies the design while enhancing reliability and user experience.
In conclusion, the control module is the unsung hero of electric car door locks, bridging the gap between user input and mechanical action. Its ability to process signals, monitor system health, and adapt to technological advancements makes it a cornerstone of contemporary vehicle design. Whether you’re locking your car from across the parking lot or relying on its diagnostics to flag potential issues, the control module works silently in the background, ensuring your doors respond exactly as intended. Understanding its function not only demystifies the technology but also empowers you to care for your vehicle more effectively.
Understanding the Electric Vehicle Tax Credit Eligibility
You may want to see also
Explore related products
Key Fob Communication: Wireless signals from the key fob trigger the locking system remotely
Modern electric car door locks rely heavily on key fob communication, a process that seamlessly blends convenience with advanced technology. At its core, this system operates through wireless signals transmitted from the key fob to the vehicle’s locking mechanism. When you press the lock or unlock button, the fob emits a radio frequency (RF) signal, typically in the 315 MHz or 433 MHz range, which travels a short distance to the car’s receiver module. This signal is encoded with a unique identifier to ensure only your fob can control your vehicle, preventing unauthorized access.
The communication between the key fob and the car is not just a one-way street; it’s a secure, encrypted exchange. When the car receives the signal, it verifies the code to confirm authenticity before activating the locking or unlocking mechanism. This process happens in milliseconds, making it nearly instantaneous from the user’s perspective. For added security, many systems use rolling codes, which change with each use, making it extremely difficult for potential thieves to intercept and replicate the signal.
To maximize the effectiveness of your key fob, keep it within the recommended range of 30 to 50 feet from the vehicle. Environmental factors like large metal objects or electronic interference can reduce this range, so be mindful of your surroundings. If your fob’s battery is low, the signal strength diminishes, leading to unreliable performance. Replace the battery annually or when you notice a delay in response. Additionally, avoid exposing the fob to extreme temperatures or moisture, as this can damage its internal components.
Comparing key fob communication to traditional mechanical keys highlights its superiority in both convenience and security. While mechanical keys require physical contact and can be easily copied, key fobs offer contactless operation and advanced encryption. However, this technology isn’t foolproof. Signal jamming devices or relay attacks, where thieves amplify the fob’s signal to unlock the car remotely, are emerging threats. To mitigate these risks, store your fob in a signal-blocking pouch or far from entry points like doors and windows when at home.
In practice, understanding how key fob communication works empowers you to use this technology more effectively. For instance, if your car doesn’t respond to the fob, check for obstructions between the fob and the vehicle, ensure the battery is functional, and verify you’re within range. For long-term reliability, periodically test the fob’s range and responsiveness. By staying informed and proactive, you can fully leverage the convenience of wireless key fob communication while safeguarding your vehicle against potential vulnerabilities.
Electric Cars vs. Gas: Which is Easier to Repair?
You may want to see also
Explore related products
Power Supply: The car’s battery powers the electric door lock system
Electric car door locks rely on a consistent and reliable power source to function, and this is where the vehicle's battery steps in as the unsung hero. The car's battery, typically a 12-volt lead-acid or lithium-ion unit, serves as the primary power supply for the entire electrical system, including the door lock mechanism. When you press the unlock button on your key fob or the lock switch inside the car, a signal is sent to the door lock actuator, which is essentially a small electric motor. This motor requires a steady flow of electricity to engage the locking or unlocking mechanism, and the car's battery is responsible for delivering this power.
From an analytical perspective, the power supply's role in electric door locks is a delicate balance between voltage, current, and resistance. The battery must provide a stable 12-volt supply to ensure the actuator operates smoothly and efficiently. If the voltage drops below a certain threshold, typically around 10 volts, the actuator may struggle to function, resulting in slow or incomplete locking/unlocking actions. Conversely, excessive voltage can damage the actuator's internal components, leading to premature failure. To mitigate these risks, modern electric cars often incorporate voltage regulators and surge protectors to maintain a consistent power supply to the door lock system.
To ensure optimal performance, it's essential to maintain your car's battery in good condition. Regularly inspect the battery terminals for corrosion, which can impede the flow of electricity and reduce the power supply's effectiveness. Clean the terminals with a mixture of baking soda and water, then apply a thin layer of dielectric grease to prevent future corrosion. Additionally, consider investing in a battery tender or maintainer, especially if you frequently drive short distances or leave your car unused for extended periods. These devices help keep the battery charged and conditioned, ensuring a reliable power supply for your electric door locks.
A comparative analysis of power supply systems in electric and traditional cars reveals some interesting differences. In conventional vehicles, the alternator plays a crucial role in maintaining the battery's charge, whereas electric cars rely on regenerative braking and dedicated charging systems. This distinction highlights the importance of proper battery management in electric vehicles, as they lack the alternator's supplementary charging capabilities. As a result, electric car owners must be more vigilant about monitoring their battery's health and ensuring a consistent power supply to critical systems like the door locks.
In practice, understanding the power supply's role in electric car door locks can help you troubleshoot common issues. If your door locks are responding slowly or not at all, start by checking the battery's voltage with a multimeter. A reading below 12 volts may indicate a weak or failing battery, which could be affecting the door lock system's performance. In such cases, consider replacing the battery or consulting a professional mechanic. By recognizing the vital connection between the car's battery and the electric door lock system, you can take proactive steps to maintain your vehicle's security and convenience features, ensuring a seamless and hassle-free driving experience.
Georgia's Shift: Why the Electric Chair Was Retired for Executions
You may want to see also
Explore related products
Safety Features: Auto-locking, child safety locks, and anti-lockout mechanisms enhance security and convenience
Electric car door locks are not just about securing your vehicle; they are a sophisticated blend of safety and convenience. Among the standout features are auto-locking, child safety locks, and anti-lockout mechanisms, each designed to address specific risks while enhancing user experience. Auto-locking, for instance, activates when the car reaches a certain speed, typically 8 to 15 mph, ensuring doors remain secure during transit without requiring manual intervention. This feature is particularly useful for drivers who might forget to lock their doors, reducing the risk of accidental openings or unauthorized access.
Child safety locks are another critical component, especially for families. These locks prevent rear doors from being opened from the inside, even when the handle is pulled. This feature is essential for preventing young children from accidentally exiting the vehicle while it’s in motion. Most electric vehicles allow parents to activate this feature via a switch located on the edge of the rear doors, making it easy to toggle on or off as needed. For optimal safety, it’s recommended to engage child safety locks for children under the age of 12 or until they understand the importance of staying seated.
Anti-lockout mechanisms are a thoughtful addition that balances security with practicality. These systems prevent drivers from locking their keys or key fob inside the car by detecting the presence of the key fob within the vehicle. If the system senses the fob is inside, it will either prevent the doors from locking entirely or automatically unlock them if the driver attempts to lock them. This feature is particularly useful in newer electric vehicles, where keyless entry and push-button start are standard. However, it’s still advisable to develop the habit of checking for keys before exiting, as not all systems are foolproof.
The integration of these safety features into electric car door locks showcases the industry’s commitment to both security and user convenience. While auto-locking and child safety locks focus on preventing accidents and unauthorized access, anti-lockout mechanisms ensure that drivers aren’t left stranded due to a momentary lapse in attention. Together, these features create a layered approach to safety, making electric vehicles not just eco-friendly but also smarter and safer for all occupants. For maximum effectiveness, familiarize yourself with your vehicle’s specific settings and test these features periodically to ensure they function as intended.
Emergency Disconnection of Electric and Hybrid Vehicles
You may want to see also
Frequently asked questions
Electric car door locks operate using an electric actuator connected to the car’s central locking system. When the lock button is pressed, a signal is sent to the actuator, which moves a mechanism to either engage or disengage the door latch, locking or unlocking the door.
The electric door locks are powered by the car’s battery. When activated, the locking system draws a small amount of electrical current to operate the actuators, ensuring the doors lock or unlock smoothly.
Yes, electric car door locks can fail due to issues like a blown fuse, a malfunctioning actuator, wiring problems, or a faulty control module. Extreme temperatures or wear and tear over time can also contribute to lock failures.
