Trystan Casey

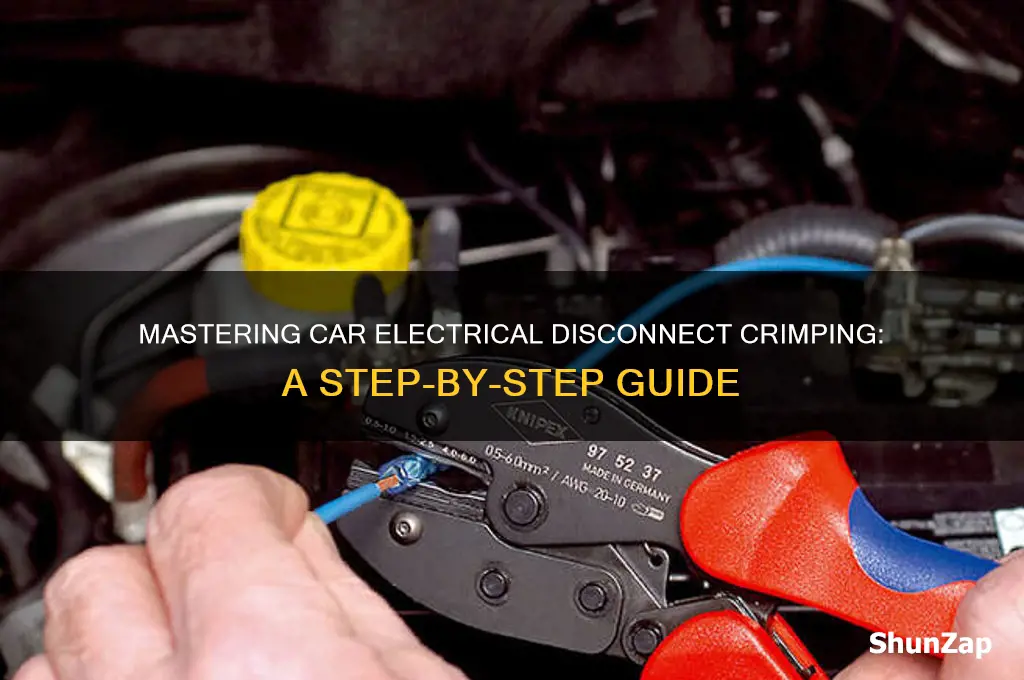

Crimping car electrical disconnects is a crucial skill for anyone working on automotive wiring, as it ensures secure and reliable connections that can withstand vibrations and environmental conditions. To crimp a car electrical disconnect, you’ll need a specialized crimping tool, the correct terminal size, and stripped wire ends. Begin by selecting the appropriate terminal for your wire gauge and disconnect type, then insert the stripped wire into the terminal barrel. Position the terminal in the crimping tool’s jaws, ensuring proper alignment, and apply firm pressure to create a tight, uniform crimp. Finally, insert the crimped terminal into the disconnect housing, ensuring it locks securely in place. Proper technique is essential to avoid loose connections or damage to the wire, ensuring long-term functionality and safety in your vehicle’s electrical system.
| Characteristics | Values |
|---|---|
| Tool Required | Crimping tool (ratcheting crimper preferred for consistent pressure) |
| Wire Stripper | To remove insulation from wire ends |
| Connectors | Car-specific electrical disconnects (male and female terminals) |
| Wire Gauge | Match connector size to wire gauge (AWG) |
| Crimping Location | Barrel of the connector (not the insulation grip area) |
| Crimping Pressure | Firm, even pressure until crimper ratchets or reaches full closure |
| Insulation Grip | Connector should grip wire insulation securely |
| Pull Test | After crimping, gently tug wire to ensure secure connection |
| Heat Shrink Tubing | Optional, for added insulation and strain relief |
| Soldering | Not typically required for automotive crimps |
| Common Mistakes | Insufficient crimping pressure, incorrect connector size, crimping insulation instead of wire |
Explore related products
What You'll Learn
- Tools Needed: Essential crimping tools for car electrical disconnects
- Wire Preparation: Stripping and cleaning wires before crimping
- Connector Selection: Choosing the right disconnect type and size
- Crimping Technique: Proper method to ensure secure connections
- Testing Connections: Verifying crimped disconnects for reliability
Tools Needed: Essential crimping tools for car electrical disconnects
Crimping car electrical disconnects requires precision and the right tools to ensure a secure, reliable connection. The foundation of any successful crimp lies in the crimping tool itself. Ratchet crimping tools are the gold standard here, designed specifically for automotive terminals. Unlike standard pliers, these tools feature calibrated ratcheting mechanisms that apply consistent pressure, ensuring the terminal is crimped to the correct specification every time. Look for models with interchangeable dies to accommodate various terminal sizes, typically ranging from 10 to 22 AWG wire.
While the crimping tool is essential, it’s only part of the equation. Wire strippers are equally critical, as clean, precise wire stripping is crucial for a strong crimp. Opt for a stripper with adjustable settings to match the wire gauge, ensuring you remove only the necessary insulation without damaging the conductor. For added convenience, consider a combination tool that integrates stripping and crimping functions, though purists may prefer separate tools for greater control.
Beyond the basics, heat shrink tubing and a heat gun elevate your crimping game. After crimping, sliding a piece of heat shrink tubing over the terminal and applying heat creates a protective seal, safeguarding the connection from moisture, corrosion, and vibration. This step is particularly vital in automotive applications, where environmental factors can degrade connections over time. Ensure the heat shrink tubing matches the terminal size and wire gauge for a snug fit.
Lastly, don’t overlook the importance of inspection tools. A magnifying glass or jeweler’s loupe allows you to verify the integrity of the crimp, ensuring the wire strands are fully captured within the terminal barrel. For more advanced users, a microscope can provide an even closer look, though this is typically overkill for most automotive applications. Pairing visual inspection with a pull-test tool further ensures the connection’s durability, simulating real-world stress to confirm it meets industry standards.
In summary, while the crimping tool takes center stage, a holistic approach to tool selection—including strippers, heat shrink equipment, and inspection aids—ensures your car electrical disconnects are not just crimped, but crimped right. Each tool plays a unique role in achieving a connection that’s both mechanically sound and environmentally resilient, critical for the demanding conditions of automotive systems.
Greece's Electrical Outlets: Types, Compatibility, and Travel Tips
You may want to see also
Explore related products
Wire Preparation: Stripping and cleaning wires before crimping
Proper wire preparation is the cornerstone of a secure and reliable crimp connection in car electrical systems. Inadequate stripping or cleaning can lead to increased resistance, intermittent connections, or even complete failure. Imagine a frayed wire end – those loose strands won't make solid contact within the crimp terminal, leading to heat buildup and potential melting of insulation.
Stripping wires requires precision. Use a wire stripper specifically designed for automotive wire gauges. Aim to expose 1/8 to 3/16 inch of bare conductor, ensuring you remove only the insulation without nicking the copper strands. Nicks weaken the wire and compromise the crimp's integrity.
Cleaning the exposed wire is equally crucial. Oxidation, dirt, or grease on the conductor surface create barriers to electrical flow. Use a fine-grit sandpaper or a dedicated wire cleaning brush to gently remove any contaminants. For stubborn grime, a small amount of isopropyl alcohol on a clean cloth can be effective, but ensure the wire is completely dry before crimping.
Remember, the goal is a clean, bright copper surface ready for a strong mechanical and electrical bond with the terminal.
Sharing JuiceBox Between Two Electric Cars: Tips and Best Practices
You may want to see also
Explore related products
$25.66
Connector Selection: Choosing the right disconnect type and size
Selecting the right disconnect type and size begins with understanding the specific demands of your car’s electrical system. Automotive connectors come in various styles, such as bullet, spade, butt, and ring terminals, each designed for different applications. For instance, bullet connectors are ideal for low-current circuits like interior lighting, while ring terminals excel in high-vibration environments, such as engine compartments, due to their secure mounting on studs. Spade terminals, with their flat, U-shaped design, are versatile and commonly used for quick-disconnect scenarios. Matching the connector type to the application ensures reliability and safety, preventing issues like loose connections or overheating.
Once you’ve identified the connector type, sizing becomes critical. Wire gauge dictates the appropriate terminal size, ensuring a snug fit that maintains conductivity without damaging the wire. For example, a 16-gauge wire pairs best with a #22 terminal, while a thicker 10-gauge wire requires a #8 terminal. Using a terminal that’s too small risks poor contact and resistance, while one that’s too large can lead to wire slippage. Always strip the wire to the correct length—typically 3/8 inch for most automotive terminals—to ensure proper insertion into the crimp barrel. A well-matched size not only enhances performance but also simplifies future maintenance or repairs.
Material selection is another key factor in connector choice. Copper terminals offer superior conductivity but are prone to corrosion, making them less ideal for exposed areas. Tin-plated copper provides better corrosion resistance, while vinyl-insulated terminals add an extra layer of protection against moisture and abrasion. For harsh environments, consider sealed or waterproof connectors, which are designed to withstand exposure to dirt, water, and chemicals. Investing in high-quality materials upfront can save time and money by reducing the need for frequent replacements.
Finally, consider the crimping process itself, as it directly impacts the connector’s effectiveness. Use a ratcheting crimper with the correct die size for your terminal to ensure a uniform, secure crimp. Avoid over-crimping, which can weaken the terminal, or under-crimping, which results in a loose connection. Test the crimp by gently tugging the wire—it should hold firm without slipping. Pairing the right tool with the right technique guarantees a professional-grade connection that meets automotive standards. By carefully evaluating type, size, material, and crimping method, you’ll achieve a disconnect that’s both functional and durable.
Does Subaru Offer an Electric Car? Exploring Their EV Lineup
You may want to see also
Explore related products
Crimping Technique: Proper method to ensure secure connections
Crimping car electrical disconnects demands precision to ensure a secure, long-lasting connection. Unlike soldering, crimping relies on mechanical deformation to join the terminal and wire, making the technique itself critical. A poorly executed crimp can lead to increased resistance, overheating, or even complete failure, potentially causing electrical faults or safety hazards in your vehicle.
Understanding the anatomy of a crimp is key. The terminal barrel, when properly crimped, should fully enclose the wire strands without damaging the conductor. The insulation crimp, if present, secures the wire’s outer sheath, providing strain relief and preventing pull-out.
The process begins with selecting the correct terminal size and type for your wire gauge. Using a crimping tool designed for automotive terminals, position the wire and terminal in the appropriate die. Apply firm, even pressure to the tool handles, ensuring the terminal barrel deforms uniformly around the wire strands. Avoid over-crimping, which can weaken the wire, or under-crimping, which results in a loose connection. A properly crimped terminal should have a consistent, hexagonal shape when viewed from the side.
For added reliability, consider using a wire stripper with a built-in crimping function, ensuring precise wire stripping and crimping in one step. Always inspect your crimps visually and, if possible, perform a pull test to verify the connection’s strength. Remember, a secure crimp is the foundation of a reliable electrical system in your vehicle.
Amber Tape in Electrical Circuits: Purpose, Benefits, and Applications
You may want to see also
Explore related products
Testing Connections: Verifying crimped disconnects for reliability
Crimping car electrical disconnects is a critical task, but ensuring their reliability is equally vital. After crimping, testing connections is the only way to confirm that the terminal and wire are securely joined. A visual inspection might reveal a neat crimp, but it won’t expose issues like insufficient pressure, wire strand protrusion, or conductor damage. Use a digital multimeter set to the continuity or resistance mode to verify the connection. Place one probe on the wire’s bare end and the other on the terminal’s metal surface. A low resistance reading (ideally under 0.1 ohms) indicates a reliable connection. If resistance is high or continuity is broken, re-crimp or replace the terminal.
Another effective method for testing crimped disconnects is the pull-test, which assesses mechanical strength. Automotive standards often require terminals to withstand a minimum pull force, typically 5 to 10 pounds, depending on the wire gauge. Use a calibrated pull tester or a handheld gauge to apply steady force to the wire while holding the terminal stationary. If the wire pulls free or the terminal deforms, the crimp is inadequate. This test is particularly crucial for high-vibration environments, such as underhood applications, where connections must endure constant stress. Always consult the terminal manufacturer’s specifications for the recommended pull force.
Thermal cycling is a less common but highly revealing test for crimped disconnects, especially in vehicles exposed to extreme temperatures. Rapid temperature fluctuations can cause materials to expand and contract, weakening the connection over time. Simulate this by placing the crimped terminal in a thermal chamber and cycling it between -40°C and 125°C for 20 cycles. Afterward, retest for continuity and perform a pull-test. If the connection fails, the crimp may not be suitable for harsh climates. This test is time-consuming but invaluable for long-term reliability in demanding conditions.
For a quick field test, the "wiggle test" can provide immediate feedback on a crimped connection’s stability. Gently but firmly tug and twist the wire at various angles while monitoring for voltage drop using a multimeter in voltage mode. Apply a 12V source to the circuit and observe the reading. If the voltage fluctuates or drops, the connection is unreliable. While not as precise as other methods, this test is practical for diagnosing issues in situ without specialized equipment. Combine it with other tests for a comprehensive evaluation.
Finally, consider the role of corrosion prevention in maintaining crimp reliability. Even a perfect crimp can degrade over time if exposed to moisture or chemicals. Apply a thin layer of dielectric grease or corrosion inhibitor to the terminal after crimping, especially in outdoor or underhood applications. Periodically inspect connections for signs of corrosion, such as green residue or darkened metal. If detected, clean the terminal with isopropyl alcohol and a wire brush, then reapply protection. This proactive approach ensures that crimped disconnects remain reliable throughout the vehicle’s lifespan.
Electric Fences: Essential Tools for Modern Farming Efficiency and Safety
You may want to see also
Frequently asked questions
You will need a crimping tool (preferably an automotive-grade one), the correct size crimp connectors for your wire gauge, wire strippers, and a heat gun or shrink wrap for insulation (optional).
Use wire strippers to remove about 1/4 to 1/2 inch of insulation from the wire end. Ensure the stripping depth matches the connector size to avoid exposing too much or too little wire.
Insert the stripped wire into the connector until it reaches the base. Ensure the wire is fully seated and the strands are not frayed or bent. The connector should grip the wire securely.
Position the connector in the crimping tool’s appropriate die size, then squeeze the tool firmly to create a tight, uniform crimp. Test the connection by gently tugging the wire to ensure it doesn’t pull out. Apply heat shrink tubing if desired for added protection.
