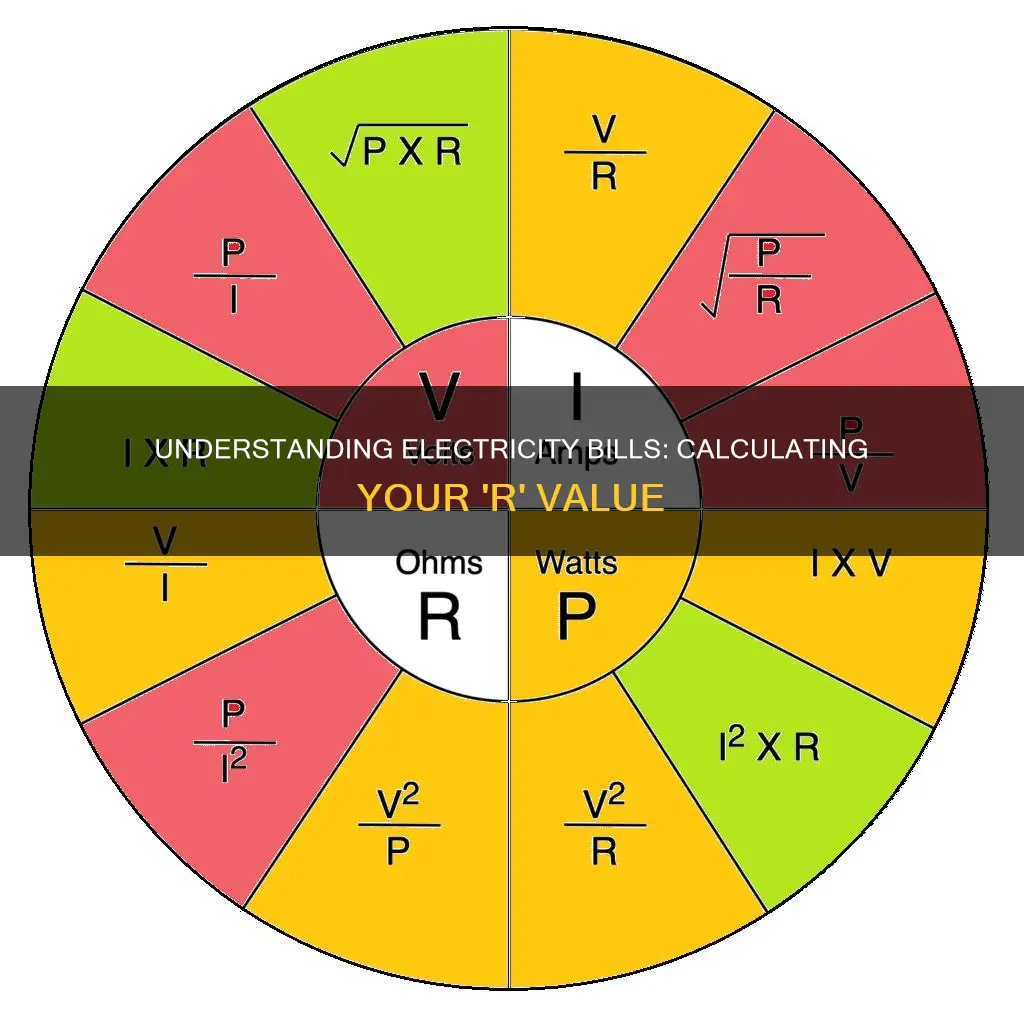

Ohm's Law is a fundamental formula in the study of electricity and electronics, used to calculate the relationship between voltage, current, and resistance in an electrical circuit. The law is named after German physicist Georg Ohm and is considered as important to the study of electronics as Einstein's Relativity equation is to physicists. Ohm's Law can be used to calculate the value of resistance (R) in a circuit, using the formula R = V/I, where V is voltage and I is current.
| Characteristics | Values |
|---|---|
| Ohm's Law | E = IR, or V = I x R, or Volts = Amps x Ohms, or V = A x Ω |
| R | Resistance |
| V | Voltage |
| I | Current, or Intensity (of charge flow) |
| E | Electromotive force |
| P | Power |
| P | The rate (in watts) at which energy is supplied by a source or dissipated by a device |
| P | Power dissipated in a resistor |
| P | Power dissipated in a resistor = V^2/R |
| P | Power can also be given by P = I^2R, which means power increases if resistance increases |
Explore related products
What You'll Learn
Ohm's Law and electricity
Ohm's law, named after German physicist Georg Ohm, is a formula used to calculate the relationship between voltage, current, and resistance in an electrical circuit. It is one of the basic equations used in the analysis of electrical circuits and applies to both metal conductors and circuit components (resistors).
The law states that the amount of electric current flowing through a conductor is directly proportional to the voltage imposed on it. In other words, one volt of pressure is required to push one amp of current through one ohm of resistance. Mathematically, this is expressed as V = IR, where V is voltage, I is current, and R is resistance.
Ohm's law can be used to validate the static values of circuit components, current levels, voltage supplies, and voltage drops. For example, if a test instrument detects a higher-than-normal current measurement, it could mean that resistance has decreased or that voltage has increased.
Ohm's law also applies to alternating-current circuits, where the relation between voltage and current is more complicated than for direct currents due to the presence of reactance. The combination of resistance and reactance is called impedance, and when impedance is constant, Ohm's law is applicable.
Technicians use Ohm's law to detect problems in circuits when customary values do not register on their digital multimeters or clamp meters. By rearranging the equation, technicians can calculate the unknown variable and identify the faltering component.
Electric Sheep: Configuring on Ubuntu, Step-by-Step Guide
You may want to see also
Explore related products
How to calculate voltage
To calculate voltage, you need to understand Ohm's law, which is a fundamental principle in electrical engineering and physics. It describes the relationship between voltage, current, and resistance in an electrical circuit. The law states that the current through a conductor between two points is directly proportional to the voltage across the two points and inversely proportional to the resistance between them.
Ohm's law can be applied to both metal conductors and circuit components (resistors). Materials and components that obey Ohm's law are described as "ohmic", meaning they produce the same value for resistance (R = V/I) regardless of the value of V or I applied. In other words, the ratio of V/I is constant, and when the current is plotted as a function of voltage, the curve is linear.
The formula for Ohm's law is E = IR, where E is voltage (measured in volts), I is the current (in amps), and R is resistance (in ohms). This can also be written as V = I x R or V = A x Ω. With this formula, if you know the current and resistance, you can calculate the voltage by multiplying the two values.
To calculate the voltage across a resistor, you can follow these steps:
- Identify the type of circuit: Is it a series circuit or a parallel circuit? In a series circuit, the current is the same at any point, and the voltage across each resistor will be the same. In a parallel circuit, the total current is the sum of the currents running through each parallel path.
- Find the total current of the circuit: If the total voltage of the circuit is not given, you need to calculate it first. In a series circuit, the total current is the same everywhere, so you can use a multimeter to measure it directly. In a parallel circuit, the total current is the sum of the currents in each path.
- Calculate the total resistance: Add together all the resistance values on the circuit.
- Use Ohm's law to calculate the voltage: With the total current and total resistance, you can now use Ohm's law (V = I x R) to calculate the voltage across the entire circuit.
- Check your answer: Add up all the voltages you calculated for each resistor and see if it matches the total voltage of the circuit. If it doesn't, check your calculations and ensure you didn't round any numbers.
Electricity at White Lake State Park: What Campers Need to Know
You may want to see also
Explore related products
How to calculate current
To calculate the current in a circuit, you can use Ohm's Law, which is one of the fundamental equations in electrical engineering. Ohm's Law states that the current in a circuit is directly proportional to the potential difference (voltage) and inversely proportional to the resistance.
The formula for calculating current is I = V/R, where I is the current in amps, V is the potential difference or voltage in volts, and R is the resistance in ohms. For example, if you have a circuit with a voltage of 12 volts and a resistance of 4 ohms, the current would be 12/4 = 3 amps.
It's important to note that Ohm's Law applies to both direct current (DC) and alternating current (AC) circuits. However, in AC circuits, the resistance is often replaced by impedance since these circuits involve the effects of both reactance and resistance.
You can also calculate the current in amps if you know the power drawn from the circuit using Watt's Law. The power formula states that the current in amps is equal to the power in watts divided by the voltage. For example, if you have a circuit with a power of 100 watts and a voltage of 20 volts, the current would be 100/20 = 5 amps.
Additionally, in some cases, you can calculate the current using the voltage and resistance values provided on the nameplates of electrical components. These nameplates provide standard voltage and current values, and technicians can use this information to detect problems in a circuit.
Tennessee's Electric Chair: Is It Still in Use?
You may want to see also
Explore related products
How to calculate resistance
To calculate resistance in a circuit, you need to first determine if the resistors are in series or parallel. A series circuit will have a single loop with no branching paths, while a parallel circuit will have multiple paths for the current to travel through.
If the resistors are in series, the total resistance is simply the sum of all the individual resistances. So, if you have three resistors with values of 1 ohm, 1.5 ohms, and 1.875 ohms, the total resistance would be 4.375 ohms.
On the other hand, if the resistors are in parallel, the calculation is a bit more complicated. The inverse of the total resistance equals the sum of the inverses of each individual resistance. For example, if you have three resistors in parallel with values of 1 ohm, 6 ohms, and 13 ohms, you would take the inverse of each value (1, 0.166, and 0.0769), add them together (1 + 0.166 + 0.0769 = 1.243), and then take the inverse again to get the total resistance (approximately 0.804 ohms).
You can also use Ohm's Law to calculate resistance if you know the voltage and current. Ohm's Law states that resistance (R) is equal to voltage (V) divided by current (I). So, if you have a voltage of 12 volts and a current of 0.6 amps, the resistance would be 20 ohms.
It's important to note that resistance can also be measured physically using a multimeter, which is a device used to measure electrical properties.
Medicaid Coverage for Electric Wheelchairs in Massachusetts
You may want to see also
Explore related products
How to calculate power
Power is the rate at which energy is supplied by a source or dissipated by a device. It is measured in watts. The formula for determining the power in an electric circuit is to multiply the voltage in volts by the current in amps, which gives an answer in watts. This is known as Ohm's Law, which states that voltage is equal to the current multiplied by the resistance, or V = I x R.
Ohm's Law is a fundamental formula used to calculate the relationship between voltage, current, and resistance in an electric circuit. It applies to both metal conductors and circuit components (resistors). The law is named after German physicist Georg Ohm, who discovered that the amount of electric current flowing through a conductor is directly proportional to the voltage imposed on it. In other words, one volt of pressure is required to push one amp of current through one ohm of resistance.
Ohm's Law can be used to calculate the power in a circuit when the voltage and current are known. For example, if you have a battery voltage of 18 volts and a lamp resistance of 3 ohms, you can use Ohm's Law to determine the current. Once you know the current, you can multiply it by the voltage to determine the power. In this case, the lamp is dissipating 108 watts of power.
It is also possible to calculate power using the formula P = V^2/R, where P is power, V is voltage, and R is resistance. This formula shows that power decreases if resistance increases. Another formula for power is P = I^2 x R, where P is power, I is current, and R is resistance. This formula demonstrates that power increases if resistance increases.
Burying Electrical Conduit: How Deep Should Kiwis Go?
You may want to see also
Frequently asked questions
R stands for resistance and is one of the key quantities at work in electrical circuits.
Ohm's Law is a formula used to calculate the relationship between voltage, current, and resistance in an electrical circuit. It is one of the basic equations used in the analysis of electrical circuits and is as important to students of electronics as Einstein's Relativity equation is to physicists.
The formula for Ohm's Law is E = IR or V = I x R, where E stands for voltage, I for current, and R for resistance.
If you know two of the values for voltage, current, or resistance, you can rearrange the formula to calculate the third. For example, if you know voltage and current, you can divide voltage by current to calculate resistance.
