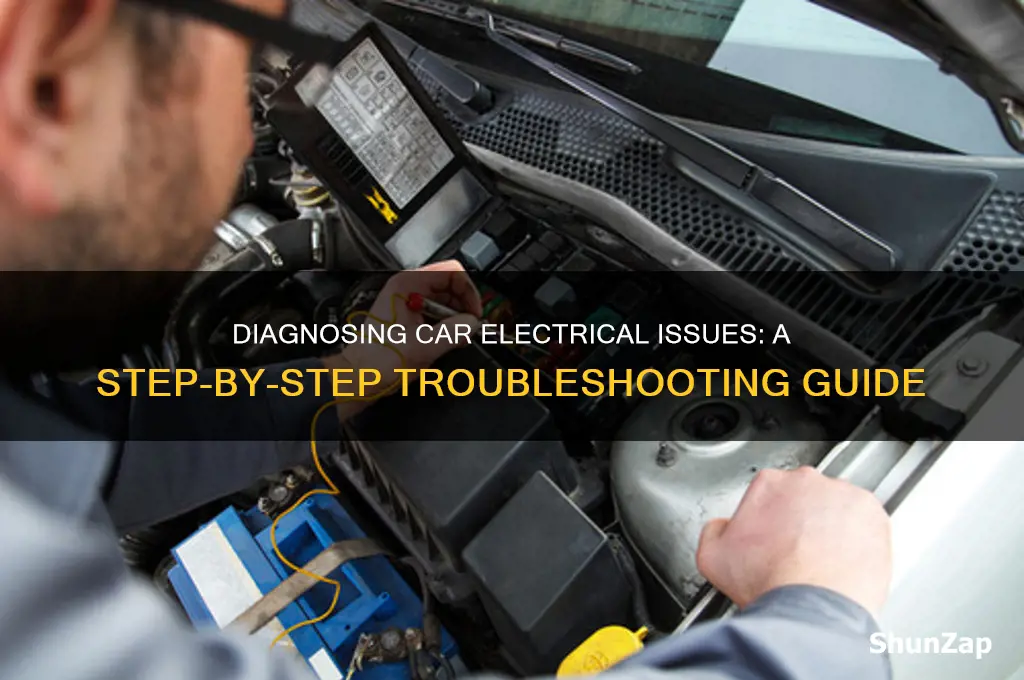

Diagnosing car electrical problems requires a systematic approach to identify the root cause of the issue. Start by checking the battery’s voltage and condition, as a weak or dead battery is often the culprit. Inspect fuses and relays for signs of damage or corrosion, and examine wiring harnesses for loose connections, fraying, or shorts. Use a multimeter to test circuits and components for proper voltage, resistance, and continuity. Pay attention to symptoms like dim lights, erratic gauges, or non-functioning accessories, as they can point to specific areas of concern. Consulting the vehicle’s wiring diagram can provide valuable insights into the electrical system’s layout. If the problem persists, consider using advanced diagnostic tools or seeking professional assistance to ensure accurate troubleshooting and repair.
| Characteristics | Values |
|---|---|
| Visual Inspection | Check for loose, corroded, or damaged wires, fuses, and connectors. |
| Battery Testing | Use a multimeter to test battery voltage (should be ~12.6V when off, ~14V when running). |
| Alternator Testing | Test alternator output (should be 13.5–14.5V with engine running). |
| Fuse and Relay Check | Inspect fuses for burns or breaks; test relays for continuity or proper operation. |
| Wiring Harness Inspection | Look for frayed, melted, or disconnected wires; check for rodent damage. |
| Circuit Testing | Use a multimeter to test for continuity, shorts, or open circuits in specific circuits. |
| Load Testing | Test the electrical system under load (e.g., headlights, AC) to identify drops in voltage. |
| Diagnostic Tools | Use OBD-II scanners or manufacturer-specific tools to read error codes. |
| Ground Connections | Inspect and clean all grounding points for corrosion or poor contact. |
| Parasitic Draw Test | Measure current draw with the car off to identify components draining the battery. |
| Lighting System Check | Test all lights (headlights, taillights, indicators) for proper function. |
| Starter Motor Testing | Check starter motor operation and solenoid for proper engagement. |
| Ignition System Testing | Test ignition coils, spark plugs, and wires for proper spark and operation. |
| Sensor and Module Diagnostics | Test sensors (e.g., crankshaft, camshaft) and modules (e.g., ECU) for proper signals. |
| Voltage Drop Testing | Measure voltage drops across connections to identify high-resistance points. |
| Professional Assistance | Consult a mechanic for complex issues or if diagnostic tools are unavailable. |
Explore related products
What You'll Learn
- Battery Testing: Check voltage, connections, and age to ensure the battery is functioning properly
- Fuse Inspection: Identify blown fuses using a multimeter or visual inspection for breaks
- Wiring Issues: Look for frayed, corroded, or disconnected wires causing electrical faults
- Alternator Check: Test charging output and belt condition to verify alternator functionality
- Ground Connections: Inspect grounding points for corrosion or looseness affecting electrical flow
Battery Testing: Check voltage, connections, and age to ensure the battery is functioning properly
A car battery is the heart of the electrical system, and its health directly impacts the vehicle's performance. To diagnose electrical problems, start by testing the battery, as a weak or failing battery can mimic symptoms of more complex issues. Use a multimeter to check the voltage; a fully charged battery should read between 12.6 and 12.8 volts when the engine is off. If the voltage drops below 12.4 volts, the battery may be discharged or damaged. Always perform this test with the engine off and all electrical components turned off to ensure accuracy.
Next, inspect the battery connections for corrosion, looseness, or damage. Corroded terminals can disrupt the flow of electricity, leading to starting issues or erratic electrical behavior. Clean the terminals with a mixture of baking soda and water, then dry them thoroughly and apply a thin coat of dielectric grease to prevent future corrosion. Ensure the battery cables are securely tightened, but avoid over-tightening, as this can damage the terminals. Loose connections can cause voltage drops, leading to dim lights, slow cranking, or intermittent electrical failures.
The age of the battery is another critical factor in diagnosing electrical problems. Most car batteries last between 3 to 5 years, depending on usage, climate, and maintenance. If the battery is nearing or past this age range, it’s more prone to failure, even if it appears to function normally. Keep a record of the battery’s installation date or check the manufacturing date code (a letter and digit stamped on the battery case, where A = January, B = February, etc.). Replacing an aging battery proactively can prevent unexpected breakdowns and save diagnostic time.
For a comprehensive assessment, perform a load test using a battery tester. This test simulates real-world conditions by applying a load to the battery while measuring its ability to maintain voltage. A healthy battery should hold above 9.6 volts for 15 seconds during the test. If the voltage drops significantly, the battery may need replacement. Load testing is particularly useful for identifying weak batteries that still show acceptable voltage under no-load conditions. Many auto parts stores offer free battery testing, making this an accessible and valuable diagnostic step.
In summary, battery testing is a foundational step in diagnosing car electrical problems. By checking voltage, inspecting connections, considering age, and performing a load test, you can quickly determine if the battery is the root cause of the issue. Addressing battery-related problems early not only resolves immediate symptoms but also prevents further strain on the vehicle’s electrical system. This systematic approach ensures accuracy and efficiency, saving time and potential repair costs.
Gas Dryer vs. Washer: Which Appliance Consumes More Electricity?
You may want to see also
Explore related products
Fuse Inspection: Identify blown fuses using a multimeter or visual inspection for breaks
A blown fuse is often the culprit behind a malfunctioning electrical component in your car, from non-functional lights to unresponsive power windows. Identifying these faulty fuses is a critical step in diagnosing and resolving car electrical problems. The process is straightforward and can be accomplished using either a multimeter or a simple visual inspection.
Visual Inspection: A Quick First Step
Start by locating your car’s fuse box, typically found under the dashboard, in the engine bay, or both. Consult your vehicle’s manual for the exact location and fuse layout. Once accessed, visually inspect each fuse for signs of damage. A blown fuse often exhibits a broken or melted wire within the transparent casing, or the metal strip may appear darkened or severed. If you spot any abnormalities, replace the fuse with one of the same amperage rating, usually printed on the fuse itself or in the manual. This method is quick and requires no tools, making it an ideal first step before moving to more detailed diagnostics.
Multimeter Testing: Precision and Accuracy
For a more definitive diagnosis, use a multimeter to test fuse continuity. Set the multimeter to the continuity or resistance setting (often indicated by a diode symbol or the word "ohms"). With the car turned off, remove the fuse and place the multimeter probes on the metal prongs at each end. A functional fuse will show low resistance (typically a reading close to 0 ohms or a continuous beep), while a blown fuse will show infinite resistance (no beep or an "OL" reading). This method is particularly useful when visual inspection is inconclusive or when dealing with fuses in less accessible locations.
Practical Tips for Effective Fuse Inspection
Always ensure the car is turned off before inspecting or testing fuses to avoid electrical shock or short circuits. Keep a spare set of fuses in your vehicle, as they are inexpensive and readily available at auto parts stores. If a fuse blows repeatedly, it’s a sign of an underlying issue, such as a short circuit or overloaded circuit, which requires further investigation. Avoid replacing a blown fuse with one of a higher amperage rating, as this can lead to wiring damage or fire hazards.
Fuse inspection is a fundamental skill in car electrical troubleshooting, offering a quick and often effective solution to common issues. Whether through visual inspection or multimeter testing, identifying blown fuses can save time and money by pinpointing the root cause of electrical failures. Mastering this technique empowers car owners to tackle problems with confidence and precision.
Electric Cars: Cost-Effective Choice or Expensive Trend?
You may want to see also
Explore related products
Wiring Issues: Look for frayed, corroded, or disconnected wires causing electrical faults
Frayed, corroded, or disconnected wires are often the silent culprits behind a car's electrical gremlins. These issues can manifest as intermittent problems, such as flickering lights, unresponsive switches, or even complete system failures. The first step in diagnosing wiring issues is a visual inspection. Pop the hood and trace the wiring harnesses, paying close attention to areas prone to wear and tear, like near the battery, engine bay edges, and where wires pass through tight spaces. Look for exposed copper strands, cracked insulation, or wires that have come loose from their connectors.
A multimeter becomes your trusty sidekick here. Set it to continuity mode and test the suspected wires. Touch one probe to each end of the wire; a continuous beep indicates a good connection, while no sound suggests a break. For corrosion, which often hides under connectors, gently remove the terminal and inspect for green or white powdery residue. Cleaning with a wire brush and dielectric grease can restore conductivity.
While DIY diagnosis is empowering, proceed with caution. Working on a car's electrical system carries risks, including short circuits and potential damage to sensitive components. If you're unsure about a repair, consulting a professional is always the safer choice. Remember, electrical issues can be complex, and what seems like a simple wiring problem might be a symptom of a deeper issue.
Electric Vehicles: Air Conditioning Standard or Luxury?
You may want to see also
Explore related products
![Power Probe III Clamshell - [Car Automotive Diagnostic Test Tool, Digital Volt Meter, AC/DC Current Resistance, Circuit Tester] (Fire)](https://m.media-amazon.com/images/I/71KxuK3+TcL._AC_UL320_.jpg)
Alternator Check: Test charging output and belt condition to verify alternator functionality
A failing alternator can leave you stranded, as it's responsible for recharging your car's battery and powering electrical systems while the engine runs. To diagnose alternator issues, start by testing its charging output and inspecting the drive belt condition. These two checks can quickly reveal whether the alternator is functioning properly or if it needs attention.
Testing Charging Output: Use a multimeter to measure the alternator's voltage output. With the engine off, the battery should read around 12.6 volts. Start the engine and rev it to 2000 RPM. The voltage should rise to between 13.8 and 14.5 volts, indicating the alternator is charging the battery. If the voltage remains below 13 volts or exceeds 15 volts, the alternator may be faulty. For older vehicles, consult the manual for specific voltage ranges, as some may operate within slightly different parameters.
Inspecting the Drive Belt: A loose, cracked, or glazed drive belt can prevent the alternator from spinning efficiently, reducing its output. Turn off the engine and visually inspect the belt for signs of wear. Press down on the belt; it should deflect no more than ½ inch with firm pressure. If the belt feels too loose or shows visible damage, replace it immediately. On serpentine belt systems, check the tensioner pulley for smooth operation, as a failing tensioner can also affect alternator performance.
Practical Tips: Perform these checks in a well-lit area, and ensure the engine has cooled before inspecting the belt. If the charging output test is inconclusive, consider a load test at a professional shop, which simulates high electrical demand to stress the alternator. Keep in mind that some modern vehicles use smart charging systems, which may require specialized tools for accurate diagnosis.
By combining these two checks, you can quickly narrow down whether the alternator is the source of your electrical problems. Addressing issues early prevents battery drain and ensures your vehicle’s electrical systems remain reliable.
Illinois Electric Vehicle Tax Credit: What You Need to Know
You may want to see also
Explore related products
$268.5 $302.56
Ground Connections: Inspect grounding points for corrosion or looseness affecting electrical flow
Corroded or loose ground connections are a silent saboteur of automotive electrical systems, often manifesting as intermittent issues that defy easy diagnosis. Unlike a blown fuse or dead battery, grounding problems create subtle symptoms: dimming headlights, erratic gauge behavior, or unexplained component failures. These issues arise because electricity, like water, seeks the path of least resistance. A compromised ground forces current to detour through unintended pathways, leading to voltage drops and erratic performance.
Identifying these culprits requires a systematic approach. Start by locating your vehicle's primary grounding points, typically where thick black cables connect the battery negative terminal to the engine block and chassis. Consult your service manual for additional grounding locations specific to your make and model.
Upon inspection, look for telltale signs of trouble. Corrosion appears as a white, green, or powdery residue around the connection point. Looseness is evident when the cable wiggles excessively or the mounting bolt can be turned by hand. Both conditions impede the flow of electrons, effectively starving electrical components of the power they need.
To remedy these issues, begin by disconnecting the battery negative terminal for safety. Using a wire brush or sandpaper, meticulously clean both the cable terminal and the mating surface on the engine or chassis. Ensure all traces of corrosion are removed, revealing clean metal. Apply a thin coat of dielectric grease to prevent future corrosion. Reattach the cable securely, tightening the bolt to the specified torque (consult your manual for the correct value).
While addressing primary grounding points is crucial, don't overlook secondary grounds. These smaller connections, often found on components like sensors, lights, and switches, are equally susceptible to corrosion and looseness. A multimeter can be invaluable for testing continuity between these grounds and the chassis, ensuring a solid electrical path. Remember, a comprehensive grounding inspection is a fundamental step in diagnosing electrical gremlins, transforming frustrating intermittents into solvable problems.
Are Fast Chargers a Cost-Effective Choice for Electric Car Owners?
You may want to see also
Frequently asked questions
Common signs include dim or flickering lights, a dead battery, difficulty starting the car, unusual noises from the electrical system, or warning lights on the dashboard.
Essential tools include a multimeter to test voltage, current, and resistance; a circuit tester for checking continuity; and a battery load tester to assess battery health.
Yes, a failing alternator can lead to low battery voltage, dim lights, or a dead battery, as it’s responsible for charging the battery and powering the electrical system while the engine runs.
Use a battery load tester or multimeter to check the battery’s voltage. A fully charged battery should read around 12.6 volts. If it’s significantly lower, the battery may be faulty.
A repeatedly blowing fuse indicates a short circuit or overloaded circuit. Inspect the wiring connected to the fuse for damage, and consult a professional if the issue persists.
