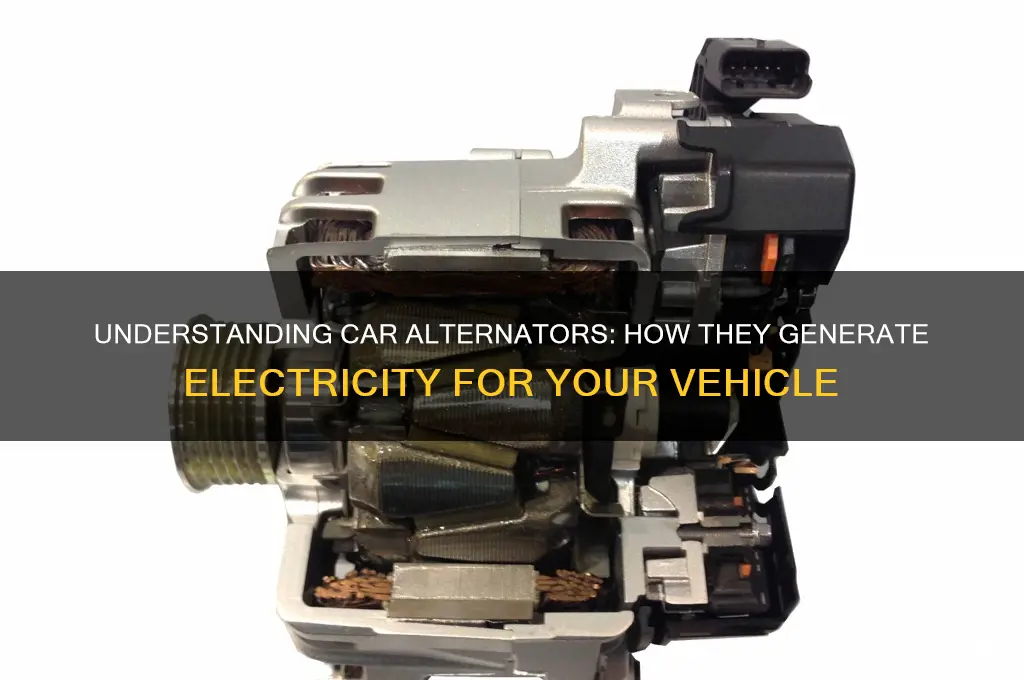

A car alternator is a vital component of a vehicle's electrical system, responsible for generating electricity to power the car's accessories and recharge the battery while the engine is running. Unlike a generator, which produces direct current (DC), an alternator generates alternating current (AC) through the rotation of a magnetic field within a set of wire coils, known as the stator. This rotation is driven by the engine's crankshaft via a belt, and the AC is then converted into DC by a rectifier before being distributed throughout the vehicle. The alternator's ability to produce a consistent and reliable supply of electricity is crucial for maintaining the functionality of modern vehicles, which increasingly rely on electrical systems for everything from lighting to engine management.
| Characteristics | Values |
|---|---|
| Principle of Operation | Electromagnetic Induction |
| Input Energy | Mechanical Energy (from crankshaft via serpentine belt) |
| Output Energy | Electrical Energy (Alternating Current - AC) |
| Key Components | Rotor (magnetized), Stator (coils of wire), Rectifier (diode bridge), Voltage Regulator |
| Rotor Type | Electromagnet (powered by field current) |
| Stator Configuration | 3-phase winding (typically 6 or 9 coils) |
| Rectifier Function | Converts AC to Direct Current (DC) for battery charging |
| Voltage Output (Regulated) | ~13.5 - 14.5 VDC (varies by vehicle) |
| Current Output | 50-100+ Amps (depending on load and alternator capacity) |
| Efficiency | 50-60% (varies with load and RPM) |
| Typical RPM Range | 2,000 - 15,000 RPM (engine-dependent) |
| Cooling Method | Air-cooled (natural convection or fan-assisted) |
| Common Failure Modes | Bearing wear, diode failure, voltage regulator malfunction |
| Modern Features | Smart Charging (load-sensing), Integrated Overload Protection |
| Environmental Impact | Generates electricity to reduce battery drain, supports stop-start systems |
| Maintenance Interval | Typically 100,000+ miles (depends on usage and conditions) |
Explore related products
What You'll Learn
- Magnetic Field Generation: Rotor spins inside stator, creating a rotating magnetic field via electromagnetism
- Electromagnetic Induction: Moving magnetic field induces voltage in stator windings, generating AC electricity
- Rectification Process: Diodes convert AC to DC, ensuring consistent power output for the vehicle
- Voltage Regulation: Voltage regulator controls output, maintaining steady 13.5-14.5 volts for battery charging
- Mechanical Drive: Serpentine belt connects alternator to crankshaft, transferring engine power for rotation
Magnetic Field Generation: Rotor spins inside stator, creating a rotating magnetic field via electromagnetism
The process of magnetic field generation in a car alternator is a fundamental aspect of its electricity production. At the heart of this mechanism is the interaction between the rotor and the stator, two critical components designed to work in harmony. The rotor, typically equipped with a series of electromagnets or permanent magnets, is mounted on the rotating shaft driven by the engine's serpentine belt. Surrounding the rotor is the stator, a stationary component consisting of a set of wire coils wound around an iron core. When the engine runs, the rotor spins rapidly inside the stator, initiating the process of electromagnetic induction.
As the rotor spins, the magnets or electromagnets attached to it create a magnetic field that rotates in sync with the rotor's motion. This rotating magnetic field is the cornerstone of the alternator's ability to generate electricity. According to Faraday's law of electromagnetic induction, a changing magnetic field induces an electromotive force (EMF) or voltage in a conductor. In this case, the changing magnetic field is produced by the rotor's rotation, and the conductors are the wire coils in the stator. The precise arrangement of the rotor's magnets and the stator's coils ensures that the magnetic field cuts across the conductors at varying angles, maximizing the induced voltage.
The electromagnetism involved in this process is crucial. If the rotor uses electromagnets, they are energized by a small amount of current from the vehicle's battery, creating a strong magnetic field. This field is then rotated as the rotor spins, ensuring a consistent and powerful interaction with the stator coils. The iron core of the stator enhances the magnetic field's strength and directs it efficiently through the coils, further amplifying the induced voltage. This interplay between the rotor's magnetic field and the stator's coils is the essence of magnetic field generation in the alternator.
The rotating magnetic field produced by the rotor induces alternating current (AC) in the stator coils. This AC flows through the coils in a sinusoidal pattern, corresponding to the rotation of the magnetic field. The number of coils and their arrangement in the stator determine the frequency and amplitude of the AC produced. For instance, a typical car alternator has three sets of coils, each spaced 120 degrees apart, which results in a three-phase AC output. This design ensures a smoother and more continuous flow of electricity compared to a single-phase system.
Finally, the efficiency of magnetic field generation relies on the precision engineering of the alternator's components. The rotor must spin with minimal friction, and the magnetic field must be strong and stable. The stator coils must be wound tightly and evenly to capture the maximum amount of induced voltage. Together, these elements ensure that the alternator can reliably convert mechanical energy from the engine into electrical energy, powering the vehicle's electrical systems and recharging the battery. Understanding this magnetic field generation process is key to grasping how a car alternator produces electricity efficiently and consistently.
