A Club Car electric golf cart utilizes a straightforward yet efficient system for reversing direction. Unlike traditional vehicles with a separate reverse gear, Club Car models typically employ a reverse contactor integrated into the electrical system. When the driver engages the reverse switch, usually located on the dashboard, it sends a signal to the controller. The controller then activates the reverse contactor, which essentially flips the direction of the electric current flowing to the motor. This reversal of current causes the motor to spin in the opposite direction, propelling the cart backward. This system is both reliable and energy-efficient, making it a standard feature in Club Car electric vehicles.
| Characteristics | Values |
|---|---|
| Reversing Mechanism | Utilizes a reverse contactor and solenoid to change motor direction. |
| Activation Method | Activated by a reverse switch or button on the dashboard. |
| Power Source | Powered by the vehicle's battery pack (48V or 36V typical). |
| Contactor Role | Reverses the polarity of the electric motor to change direction. |
| Solenoid Function | Engages the reverse contactor when the reverse switch is activated. |
| Safety Feature | Includes a neutral safety switch to prevent accidental engagement. |
| Indicator | Reverse indicator light on the dashboard confirms activation. |
| Maintenance | Requires periodic inspection of the solenoid, contactor, and wiring. |
| Compatibility | Works on Club Car electric models like Precedent, Onward, and others. |
| Troubleshooting | Common issues include faulty solenoids, blown fuses, or wiring faults. |
| Upgrades | Aftermarket reverse kits available for enhanced performance. |
Explore related products
What You'll Learn
- Solenoid Activation: Reversing triggers the reverse solenoid, redirecting motor current flow for backward movement
- Controller Role: The electronic controller switches motor polarity to enable reverse operation
- Safety Interlock: Reverse is blocked unless the cart is stationary, ensuring safe operation
- Switch Mechanism: The reverse switch sends signals to the controller to initiate backward motion
- Battery Impact: Reversing uses more power, slightly reducing overall battery efficiency and range
Solenoid Activation: Reversing triggers the reverse solenoid, redirecting motor current flow for backward movement
When reversing a Club Car electric golf cart, the process begins with the activation of the reverse solenoid, a critical component in the vehicle’s electrical system. The reverse solenoid is an electromechanical switch designed to redirect the flow of electrical current to the motor, enabling backward movement. This solenoid is typically triggered when the driver engages the reverse mode, either through a switch or a lever in the cart’s control panel. Upon activation, the solenoid receives a signal from the controller, which energizes its coil and initiates the reversal process.
The primary function of the reverse solenoid is to alter the direction of the motor’s current flow. In a Club Car electric golf cart, the motor is a DC (direct current) motor, and its rotational direction depends on the polarity of the electrical current supplied to it. When the cart is moving forward, the current flows in one direction. To reverse the cart, the solenoid switches the polarity of the current, effectively reversing the magnetic fields within the motor and causing it to rotate in the opposite direction. This redirection of current is instantaneous and ensures smooth transition from forward to backward motion.
The reverse solenoid operates in conjunction with the cart’s controller, which manages the overall electrical system. When the reverse switch is engaged, the controller sends a signal to the solenoid, activating it. The solenoid then physically shifts its internal contacts to reroute the power from the batteries to the motor in the reverse configuration. This action is crucial because it ensures that the motor receives the correct polarity of current for backward movement. Without the solenoid’s intervention, the motor would continue to operate in the forward direction, making reversal impossible.
It’s important to note that the reverse solenoid must function reliably to ensure safe and efficient operation of the golf cart. Malfunctions in the solenoid, such as worn contacts or a faulty coil, can prevent the cart from reversing or cause erratic behavior. Regular maintenance, including inspection of the solenoid and its wiring, is essential to avoid such issues. Additionally, the solenoid’s activation is often accompanied by an audible click, which serves as an indicator that the reversal process has been initiated.
In summary, the reverse solenoid plays a pivotal role in the Club Car electric golf cart’s ability to move backward. By redirecting the motor’s current flow upon activation, it ensures that the cart transitions smoothly from forward to reverse. Understanding the function and importance of the solenoid highlights its significance in the overall electrical system of the vehicle. Proper care and maintenance of this component are vital to maintaining the cart’s reliability and performance.
Electric Vehicles and Floods: What You Need to Know
You may want to see also
Explore related products
Controller Role: The electronic controller switches motor polarity to enable reverse operation
The electronic controller in a Club Car electric golf cart plays a pivotal role in enabling reverse operation by manipulating the motor's polarity. When the cart is set to move forward, the controller directs the flow of electrical current to the motor in a specific direction, causing the motor to rotate in a manner that propels the vehicle forward. To initiate reverse, the controller must reverse the direction of this current flow, effectively switching the motor's polarity. This is achieved through a series of internal relays or solid-state switches within the controller that respond to the driver's input, such as moving the direction selector to the reverse position.
Upon selecting reverse, the controller receives a signal from the direction switch, prompting it to alter the sequence in which it energizes the motor windings. In a typical DC motor setup, reversing the polarity of the windings causes the magnetic fields within the motor to interact differently, resulting in rotation in the opposite direction. The controller accomplishes this by swapping the connections to the motor terminals, ensuring that the current flows in the reverse direction. This action is seamless and instantaneous, allowing the motor to transition from forward to reverse operation without hesitation.
The controller's ability to switch motor polarity is governed by its programming and the design of its circuitry. Modern controllers often use microprocessors to manage this process, ensuring precision and reliability. When the reverse signal is detected, the microprocessor triggers the appropriate relays or transistors to reconfigure the motor connections. This not only reverses the motor's direction but also ensures that other systems, such as regenerative braking or speed control, function correctly in reverse mode. The controller must also monitor the motor's performance during reverse operation to prevent overheating or excessive current draw.
In addition to reversing motor polarity, the controller may adjust other parameters to optimize reverse operation. For instance, it might reduce the maximum speed in reverse for safety reasons or modify the torque output to suit the cart's load and terrain conditions. These adjustments are pre-programmed into the controller's firmware, ensuring that the cart operates efficiently and safely in both forward and reverse directions. The seamless integration of these functions highlights the sophistication of the controller's role in managing the cart's electrical systems.
Understanding the controller's function in switching motor polarity provides insight into the broader operation of the Club Car's electrical system. It underscores the importance of the controller as the central intelligence unit that interprets driver inputs and translates them into precise motor actions. Without this capability, the cart would lack the versatility to navigate tight spaces or reverse out of obstacles, making the controller's role indispensable for practical and safe operation. Regular maintenance and calibration of the controller are essential to ensure it continues to perform this critical function reliably over the life of the vehicle.
Best Paste for Secure and Reliable Electrical Service Lug Connections
You may want to see also
Explore related products
Safety Interlock: Reverse is blocked unless the cart is stationary, ensuring safe operation
The Safety Interlock system in a Club Car electric golf cart is a critical feature designed to prevent accidental or unsafe reversing. This mechanism ensures that the cart must be completely stationary before the reverse function can be engaged. When the cart is in motion, the interlock system blocks the reverse operation, thereby eliminating the risk of sudden direction changes that could lead to collisions, injuries, or damage. This feature is particularly important in busy environments like golf courses, where pedestrians and other carts are often nearby. By requiring the cart to be at a full stop, the interlock system promotes safe and controlled operation, reducing the likelihood of accidents caused by operator error or misjudgment.
The Safety Interlock operates through a combination of mechanical and electrical components that monitor the cart's movement. When the cart is moving forward, sensors detect its motion and send a signal to the controller, which disables the reverse function. Only when the cart comes to a complete stop do these sensors allow the reverse operation to be activated. This process is seamless and automatic, requiring no additional input from the operator beyond bringing the cart to a halt. The interlock system is integrated into the cart's main control circuitry, ensuring reliability and consistency in its operation. This design prioritizes safety without compromising the functionality or ease of use of the cart.
To engage reverse safely, the operator must first ensure the cart is stationary and the brake is applied. Once these conditions are met, the Safety Interlock releases, allowing the reverse function to be selected. This typically involves moving the direction switch or lever from the forward position to the reverse position. The interlock system verifies that the cart is not in motion before permitting this transition, providing an additional layer of protection. This process is intuitive and straightforward, allowing operators to focus on their surroundings rather than complex procedures, while still ensuring safe reversing.
Regular maintenance of the Safety Interlock system is essential to guarantee its continued effectiveness. Over time, sensors or switches may wear out or become misaligned, potentially compromising the system's ability to block reverse when the cart is moving. Operators should periodically inspect the interlock components, including sensors, wiring, and switches, to ensure they are functioning correctly. Club Car provides guidelines for maintenance and troubleshooting in their user manuals, which should be followed to keep the system in optimal condition. By prioritizing the upkeep of the interlock system, cart owners can maintain the highest level of safety for both operators and bystanders.
In summary, the Safety Interlock feature in Club Car electric golf carts plays a vital role in preventing unsafe reversing by blocking the reverse function unless the cart is stationary. This system combines sensors, controllers, and mechanical components to ensure that the cart must be at a complete stop before reverse can be engaged. Its design is both intuitive and reliable, promoting safe operation without adding complexity for the user. Regular maintenance of the interlock system is crucial to its effectiveness, ensuring that it continues to protect against accidents and injuries. By incorporating this feature, Club Car demonstrates its commitment to safety, making their electric carts a trusted choice for operators in various environments.
Portable AC Power Guide: What Type of Electricity Does It Use?
You may want to see also
Explore related products

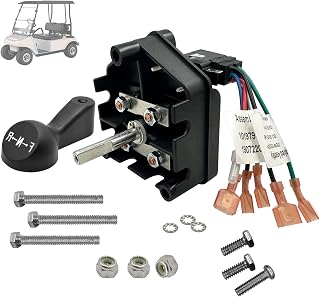

Switch Mechanism: The reverse switch sends signals to the controller to initiate backward motion
The switch mechanism in a Club Car electric golf cart plays a pivotal role in enabling backward motion. At its core, the reverse switch is a simple yet essential component that acts as the intermediary between the driver’s input and the cart’s controller. When the driver engages the reverse switch, typically located on the dashboard or near the ignition, it completes an electrical circuit. This action sends a specific signal to the controller, the brain of the cart’s electrical system, indicating the intent to move in reverse. The switch is designed to be fail-safe, ensuring that accidental activation is minimized while remaining easily accessible for deliberate use.
The reverse switch operates on a binary principle: it is either engaged or disengaged. When engaged, it triggers a low-voltage signal that travels through the wiring harness to the controller. This signal is distinct from the forward command, allowing the controller to differentiate between the two directions. The switch mechanism often incorporates a mechanical interlock or a detent to prevent simultaneous activation of both forward and reverse modes, which could damage the motor or controller. This design ensures that the cart can only move in one direction at a time, enhancing safety and operational reliability.
Internally, the reverse switch consists of a set of contacts that close when the switch is activated. These contacts are connected to the controller via dedicated wires, ensuring the signal is transmitted accurately. The controller, upon receiving the reverse signal, adjusts the polarity of the power sent to the electric motor. This change in polarity causes the motor to rotate in the opposite direction, propelling the cart backward. The switch mechanism is engineered to be durable, as it must withstand frequent use and environmental exposure, particularly in outdoor settings.
Proper maintenance of the reverse switch is crucial for consistent performance. Over time, dirt, corrosion, or wear can degrade the switch’s contacts, leading to intermittent or failed operation. Regular inspection and cleaning of the switch and its connections can prevent such issues. Additionally, ensuring the switch is securely mounted and free from damage will maintain the integrity of the signal transmission to the controller. Neglecting these maintenance steps can result in the cart failing to reverse, requiring troubleshooting or replacement of the switch mechanism.
In summary, the reverse switch in a Club Car electric golf cart is a critical component that bridges the driver’s command with the controller’s execution of backward motion. Its design prioritizes simplicity, safety, and reliability, ensuring seamless operation when engaged. Understanding the switch mechanism’s function and maintaining its condition are key to preserving the cart’s reverse functionality. By sending a clear signal to the controller, the reverse switch enables the precise control needed for safe and efficient backward movement.
Electric Vehicle Revolution: Who's Leading the Charge?
You may want to see also
Explore related products
Battery Impact: Reversing uses more power, slightly reducing overall battery efficiency and range
When reversing a Club Car electric golf cart, the process inherently requires more power compared to driving forward, which has a direct impact on battery performance. This increased power demand occurs because the motor must work harder to overcome the resistance and inefficiency of the reversing mechanism. In most Club Car models, reversing involves activating a solenoid or a reverse switch, which changes the direction of the motor’s rotation. This change in direction is less efficient than forward motion, as the motor’s design is optimized for forward travel. As a result, the battery discharges at a slightly higher rate during reversing, reducing its overall efficiency.
The additional power draw during reversing translates to a minor but noticeable reduction in the cart’s battery range. Electric golf cart batteries, typically lead-acid or lithium-ion, have a finite amount of stored energy. When more power is consumed for reversing, the battery’s available energy decreases faster than it would under normal forward operation. For example, frequent or prolonged reversing can shorten the distance the cart can travel on a single charge. This effect is more pronounced in older batteries or those with reduced capacity due to age or wear, as they have less reserve energy to handle the increased load.
Another factor contributing to reduced battery efficiency during reversing is the inefficiency of the electrical system under reverse operation. The motor and controller are not as optimized for reverse motion, leading to energy losses in the form of heat and friction. These losses mean that a greater portion of the battery’s energy is wasted rather than being converted into useful work. Over time, this inefficiency can compound, especially if reversing is a frequent part of the cart’s usage, further diminishing the battery’s overall performance and lifespan.
To mitigate the battery impact of reversing, it’s essential to minimize unnecessary reverse operations. Operators should plan routes and maneuvers to reduce the need for frequent reversing, especially over long distances. Additionally, maintaining the battery in optimal condition—such as keeping it fully charged and regularly inspecting for issues—can help offset the additional strain caused by reversing. For those with lithium-ion batteries, the impact may be less severe due to their higher efficiency and energy density, but the principle still applies: reversing uses more power and reduces range.
In summary, reversing a Club Car electric golf cart increases power consumption, which slightly reduces battery efficiency and range. This is due to the motor working harder, the inefficiency of the reversing mechanism, and energy losses in the system. While the impact is minor for occasional reversing, frequent or prolonged reverse operation can compound these effects, particularly in older or less efficient batteries. By understanding this relationship, operators can take steps to minimize reversing and maintain their batteries, ensuring optimal performance and longevity of their electric golf cart.
Electric Cars in London: Free Parking Benefits Explained
You may want to see also
Frequently asked questions
The reverse function on a Club Car electric golf cart is activated by pressing the reverse pedal, which sends a signal to the controller to reverse the direction of the electric motor.
The reverse pedal acts as a switch that, when depressed, changes the polarity of the electrical current sent to the motor, causing it to rotate in the opposite direction and move the cart backward.
No, the reverse function should only be engaged when the cart is at a complete stop to prevent damage to the motor and drivetrain.
Yes, most Club Car models include a safety feature that requires the cart to be in neutral or stopped before the reverse pedal can be activated, preventing accidental engagement.
