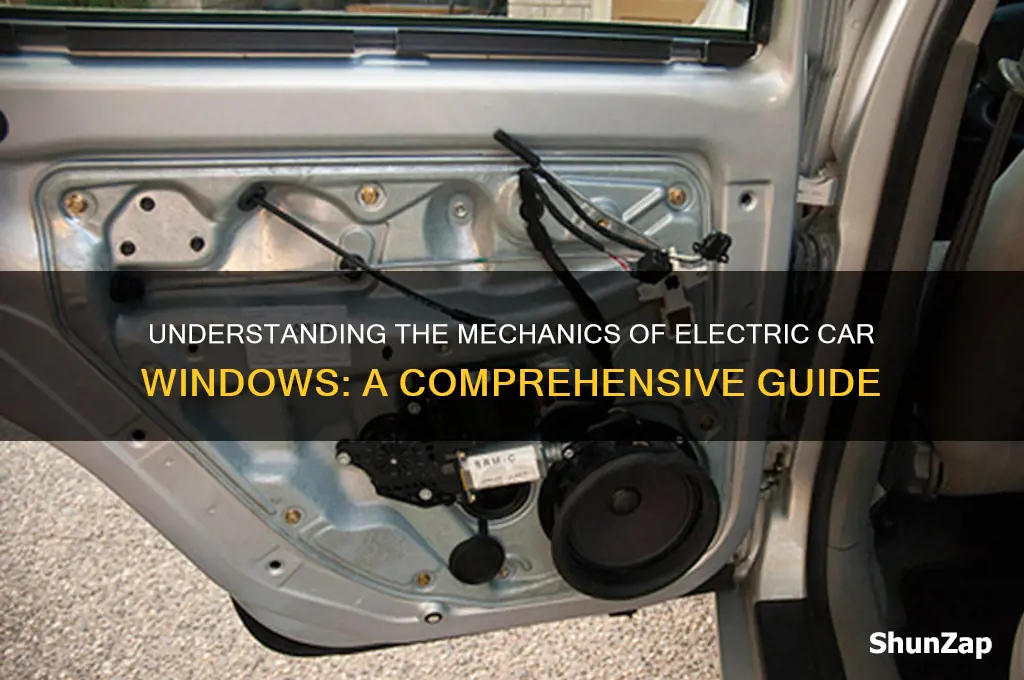

Electric car windows operate through a sophisticated yet straightforward mechanism that combines electrical and mechanical components. When the window switch is activated, an electrical signal is sent to a motor located in the door panel. This motor, typically a small, high-torque DC motor, drives a series of gears or a worm gear mechanism, which converts the motor's rotational motion into linear motion. The linear motion is then transferred to a regulator assembly, often consisting of cables, arms, or a scissor-like mechanism, which raises or lowers the window glass along a set of tracks. The system is powered by the vehicle's electrical system and includes safety features like auto-reverse, which stops and reverses the window if it detects an obstruction. This efficient design ensures smooth, reliable operation while maintaining passenger comfort and safety.
| Characteristics | Values |
|---|---|
| Power Source | Vehicle's electrical system (battery-powered) |
| Main Component | Electric motor (usually a DC motor) |
| Control Mechanism | Switch or button on the door panel |
| Window Movement | Up/Down via a worm gear or cable system connected to the motor |
| Regulator Type | Scissor-type or cable-driven regulator |
| Safety Feature | Auto-reverse (stops and reverses if obstruction is detected) |
| Speed | Adjustable based on motor power and gear ratio (typically 2-5 seconds) |
| Noise Level | Low to moderate, depending on motor and mechanism quality |
| Energy Consumption | Minimal (draws power only when in use) |
| Maintenance | Periodic lubrication and inspection of tracks and seals |
| Common Issues | Motor failure, broken cables, or misaligned tracks |
| Modern Enhancements | One-touch auto up/down, anti-pinch technology, and integrated sensors |
| Compatibility | Works with most vehicles, retrofittable in older models |
| Environmental Impact | Low (uses minimal energy compared to other vehicle systems) |
| Cost | Varies by vehicle and system complexity (typically $100-$300 for repair) |
Explore related products
What You'll Learn
- Motor Mechanism: Small electric motor drives a gear system to move window up/down
- Switch Operation: Control switch sends electrical signal to activate motor function
- Regulator Assembly: Ensures smooth, consistent window movement and prevents jamming
- Power Supply: Draws electricity from car battery via fused circuit
- Safety Features: Auto-reverse function stops window if obstruction is detected
Motor Mechanism: Small electric motor drives a gear system to move window up/down
The motor mechanism is the heart of an electric car window system, responsible for converting electrical energy into mechanical motion to move the window up or down. At its core is a small electric motor, typically a DC (Direct Current) motor, which is compact yet powerful enough to handle the task. This motor is designed to operate efficiently within the limited space available in a car door. When the driver or passenger activates the window switch, an electrical signal is sent to the motor, prompting it to rotate in one direction to lower the window or the opposite direction to raise it.
The motor's rotational motion is transferred to the window glass through a gear system, which amplifies torque and ensures smooth, controlled movement. This gear system often consists of a worm gear or a series of spur gears connected to a long, vertical arm called the window regulator. The worm gear is particularly common due to its ability to provide high gear reduction, allowing the motor to move the window at a practical speed while maintaining sufficient force to overcome resistance. The gears are typically made of durable materials like metal or high-strength plastic to withstand repeated use and varying environmental conditions.
Attached to the gear system is the window regulator, a mechanical assembly that translates the rotational motion into the vertical movement of the window glass. The regulator usually includes a set of rails or cables that guide the window as it moves up or down. In many modern vehicles, the regulator is designed with a cable-driven system, where flexible cables connect the gears to the window glass. This design allows for smoother operation and reduces the risk of binding or misalignment compared to older scissor-type mechanisms.
To ensure precise control, the motor mechanism often incorporates limit switches or hall effect sensors that detect when the window has reached its fully open or closed position. These sensors send a signal to the motor to stop, preventing over-extension or damage to the system. Additionally, the motor is equipped with a thermal protection feature to prevent overheating during prolonged use, ensuring longevity and safety.
Overall, the motor mechanism in an electric car window is a finely tuned system that balances power, precision, and durability. Its compact design and efficient operation make it a reliable component of modern vehicles, providing convenience and comfort to drivers and passengers alike. Understanding this mechanism highlights the ingenuity behind seemingly simple automotive features.
Avoid Electrical Tape for Wire Splicing: Risks and Better Alternatives
You may want to see also
Explore related products
Switch Operation: Control switch sends electrical signal to activate motor function
The operation of an electric car window begins with the control switch, typically located on the door panel or the central console. When the driver or passenger presses the switch, it initiates a sequence of events that ultimately moves the window up or down. The switch acts as the primary interface between the user and the window mechanism, translating a physical action into an electrical signal. This signal is crucial as it carries the command to the window motor, dictating whether the window should ascend, descend, or stop. The switch is designed to be intuitive, often featuring a rocker or toggle mechanism that corresponds to the direction of window movement.
Upon activation, the control switch closes an electrical circuit, allowing current to flow from the car’s battery to the window motor. This circuit is part of the vehicle’s broader electrical system and is protected by fuses to prevent overloads. The electrical signal sent by the switch is a low-voltage current, typically 12 volts in most vehicles. This signal travels through wiring harnesses embedded within the car door, ensuring a direct and reliable connection between the switch and the motor. The wiring is insulated to prevent short circuits and is designed to withstand the mechanical stresses of the moving door components.
The electrical signal from the switch reaches the window motor, which is typically a small, high-torque DC motor. The motor is connected to a gearbox that reduces the speed of rotation while increasing torque, enabling it to lift or lower the window glass effectively. The direction of the motor’s rotation depends on the polarity of the electrical signal received. When the switch is pressed in one direction, the motor rotates clockwise, causing the window to roll down. When pressed in the opposite direction, the motor rotates counterclockwise, rolling the window up. This polarity reversal is achieved through a double-throw switch mechanism within the control switch.
In addition to controlling the motor’s direction, the switch also manages the duration of the electrical signal. Most modern electric window systems incorporate a feature called "one-touch" or "express" operation, where a brief press of the switch activates the motor until the window reaches its fully open or closed position. This is achieved through the use of a relay or a body control module (BCM) that monitors the window’s position via Hall effect sensors or mechanical limit switches. Once the window reaches its limit, the BCM cuts off power to the motor, stopping its operation. This automation ensures convenience and safety, preventing the motor from overheating or the window from being forced beyond its mechanical limits.
The control switch also plays a role in safety features integrated into electric window systems. Many vehicles are equipped with an auto-reverse function, which detects obstructions in the window’s path by monitoring the motor’s current draw. If the current spikes unexpectedly, indicating resistance, the switch reverses the motor’s direction to prevent injury or damage. This feature is particularly important in vehicles with child safety locks, where the rear window switches can be disabled to prevent accidental operation. The switch’s ability to send precise electrical signals is therefore critical not only for functionality but also for ensuring the safety of occupants.
Nitro RC Cars vs. Electric: Power Source Explained
You may want to see also
Explore related products
Regulator Assembly: Ensures smooth, consistent window movement and prevents jamming
The regulator assembly is a critical component in the operation of an electric car window, designed to ensure smooth, consistent movement while preventing jamming. This mechanism is typically housed within the door and consists of a series of gears, cables, or arms that translate the rotational motion of the electric motor into the vertical motion required to raise or lower the window. The regulator assembly is engineered to handle the weight of the window glass and maintain precise alignment throughout its travel, which is essential for seamless operation. Without a properly functioning regulator, the window might move erratically, bind against the door frame, or fail to operate altogether.
One of the key features of the regulator assembly is its ability to manage the force exerted by the motor, ensuring the window moves at a controlled speed. This is achieved through a combination of gears or pulleys that reduce the motor's high-speed rotation to a slower, more manageable pace suitable for window movement. Additionally, the assembly often includes a set of guide rails or channels that keep the window glass aligned vertically, preventing it from tilting or shifting sideways during operation. These guides are crucial for maintaining smooth motion and avoiding friction that could lead to jamming.
To prevent jamming, the regulator assembly incorporates several safeguards. For instance, many designs include a flexible cable or linkage system that can absorb minor misalignments or obstructions without causing the mechanism to seize. Some regulators also feature a clutch mechanism that disengages the motor if excessive resistance is detected, protecting both the window and the motor from damage. This clutch system is particularly important in preventing the window from crushing objects or becoming stuck if it encounters an obstacle while closing.
Maintenance of the regulator assembly is vital to ensure its longevity and reliability. Over time, dirt, debris, or corrosion can accumulate within the mechanism, leading to increased friction and potential jamming. Regular cleaning and lubrication of the moving parts, such as the gears, cables, and guide rails, can significantly reduce wear and ensure smooth operation. Additionally, inspecting the assembly for signs of damage or wear, such as frayed cables or bent components, allows for timely repairs before a complete failure occurs.
In modern vehicles, the regulator assembly is often integrated with electronic controls that provide additional functionality, such as one-touch operation or automatic reversal if an obstruction is detected. These features rely on the precision and reliability of the regulator assembly to function correctly. For example, the automatic reversal system uses sensors to monitor the window's movement, and if the regulator assembly is not operating smoothly, the system may fail to detect obstructions accurately. Thus, the regulator assembly plays a central role not only in basic window operation but also in advanced safety and convenience features.
In summary, the regulator assembly is a sophisticated mechanism that ensures electric car windows move smoothly, consistently, and safely. By managing the motor's force, maintaining window alignment, and incorporating safeguards against jamming, it enables reliable operation while protecting both the window and the vehicle's occupants. Proper maintenance and understanding of this component are essential for anyone looking to keep their electric car windows functioning optimally.
Electricity-Powered Devices: Unveiling Rotational Motion Technology Innovations
You may want to see also
Explore related products
Power Supply: Draws electricity from car battery via fused circuit
The power supply for an electric car window is a critical component that ensures the window operates smoothly and safely. At the heart of this system is the car’s battery, which serves as the primary source of electricity. When the driver or passenger activates the window switch, the circuit is completed, allowing electrical current to flow from the battery to the window motor. This process is designed to be efficient and reliable, ensuring that the window moves up or down with minimal delay. The battery provides a consistent 12-volt supply, which is sufficient to power the motor without draining the battery excessively, even with frequent use.
The electrical connection between the car battery and the window motor is established via a fused circuit. This circuit acts as a protective pathway, ensuring that the electrical current reaches the motor safely. The fuse is a crucial safety feature, as it prevents excessive current from damaging the motor or causing electrical fires. If a short circuit or overload occurs, the fuse will blow, interrupting the flow of electricity and safeguarding the system. This fused circuit is typically integrated into the car’s main wiring harness, ensuring a secure and organized connection that minimizes the risk of loose wires or electrical faults.
To draw electricity from the car battery, the fused circuit is connected to the battery’s positive terminal, while the negative terminal is grounded to the vehicle’s chassis. This creates a complete circuit, allowing current to flow when the window switch is activated. The wiring is insulated to prevent short circuits and is often routed through the car’s doors or pillars to reach the window motor. The design of this circuit ensures that power is delivered efficiently, with minimal energy loss, even over the relatively long distance from the battery to the window mechanism.
The fused circuit also includes a relay or switch that controls the flow of electricity to the window motor. When the window switch is pressed, the relay closes, completing the circuit and allowing current to reach the motor. This relay is typically located in a central module or directly within the door panel for easy access. The use of a relay ensures that the window switch itself does not carry the full load of the motor, reducing wear and tear on the switch and improving overall system longevity.
In addition to the fuse, some vehicles incorporate additional safety features within the power supply circuit, such as circuit breakers or overload protection. These mechanisms provide an extra layer of safety, ensuring that the window motor does not draw more current than it can handle. The power supply system is also designed to be compatible with the car’s overall electrical architecture, allowing it to function seamlessly with other components like the alternator, which recharges the battery while the engine is running. This integration ensures that the electric window system remains operational even during extended periods of use.
Overall, the power supply for an electric car window is a well-engineered system that draws electricity from the car battery via a fused circuit. This setup ensures that the window motor receives the necessary power while incorporating safety features to protect against electrical faults. By combining reliability, efficiency, and safety, the power supply system plays a vital role in the smooth operation of electric car windows, enhancing both convenience and comfort for vehicle occupants.
Choosing the Right Electrical Wire for Catenary Lighting Installations
You may want to see also
Explore related products
Safety Features: Auto-reverse function stops window if obstruction is detected
Electric car windows operate using a motor-driven mechanism that allows them to move up and down at the press of a button. While this convenience enhances user experience, it also introduces potential safety risks, particularly if an obstruction is encountered during operation. To mitigate these risks, modern electric car windows are equipped with an auto-reverse function, a critical safety feature designed to detect obstructions and prevent accidents. This function ensures that if the window encounters resistance—such as a hand, arm, or object—it automatically stops and reverses direction, minimizing the risk of injury or damage.
The auto-reverse function relies on advanced sensors and a control module integrated into the window system. These sensors continuously monitor the window's movement and detect any unusual resistance or pressure. When an obstruction is detected, the control module immediately sends a signal to the motor, instructing it to stop and reverse the window's direction. This process happens within milliseconds, ensuring swift action to prevent harm. The system is calibrated to respond to even minor obstructions, making it highly effective in protecting passengers, especially children and pets, who may accidentally place a body part in the window's path.
One of the key components enabling the auto-reverse function is the current-sensing technology within the window motor. As the window moves, the motor draws a specific amount of electrical current. If an obstruction is encountered, the increased resistance causes the current to spike. The control module detects this sudden change and triggers the auto-reverse mechanism. This technology is both reliable and efficient, ensuring that the window responds appropriately without false activations. Additionally, some systems use pressure sensors or optical sensors to further enhance detection accuracy, providing an extra layer of safety.
The auto-reverse function is not only a safety feature but also a regulatory requirement in many regions. Automotive safety standards, such as those set by the National Highway Traffic Safety Administration (NHTSA) in the United States, mandate the inclusion of this feature in all power windows. This ensures that vehicles meet minimum safety criteria and protect occupants from potential hazards. Manufacturers often test the auto-reverse function rigorously during development to ensure it performs consistently under various conditions, including different temperatures and load scenarios.
Instructively, vehicle owners should regularly test the auto-reverse function to ensure it is working correctly. This can be done by placing a soft, non-damaging object, such as a small piece of foam or cloth, in the window's path while operating it. If the window stops and reverses as expected, the system is functioning properly. However, if the window fails to reverse, it is crucial to have the system inspected and repaired by a professional. Regular maintenance, including keeping the window tracks clean and lubricated, can also help ensure the auto-reverse function operates optimally.
In conclusion, the auto-reverse function is a vital safety feature in electric car windows, designed to protect passengers and prevent accidents by detecting obstructions and reversing the window's direction. Its reliance on advanced sensors, current-sensing technology, and regulatory compliance underscores its importance in modern vehicles. By understanding how this feature works and ensuring its proper maintenance, vehicle owners can maximize safety and enjoy the convenience of electric windows without compromising protection.
Where to Ride Your Electric Scooter Legally in the UK
You may want to see also
Frequently asked questions
An electric car window operates using a motor, a switch, and a regulator mechanism. When the switch is activated, the motor turns, which moves the regulator to either raise or lower the window glass along a track.
The electric car window motor is powered by the vehicle’s electrical system, typically drawing power from the car’s battery through a dedicated circuit controlled by the window switch.
Most electric car windows do not have a manual override. If the motor fails, the window will likely remain stuck in its current position until the motor or related components are repaired or replaced.
