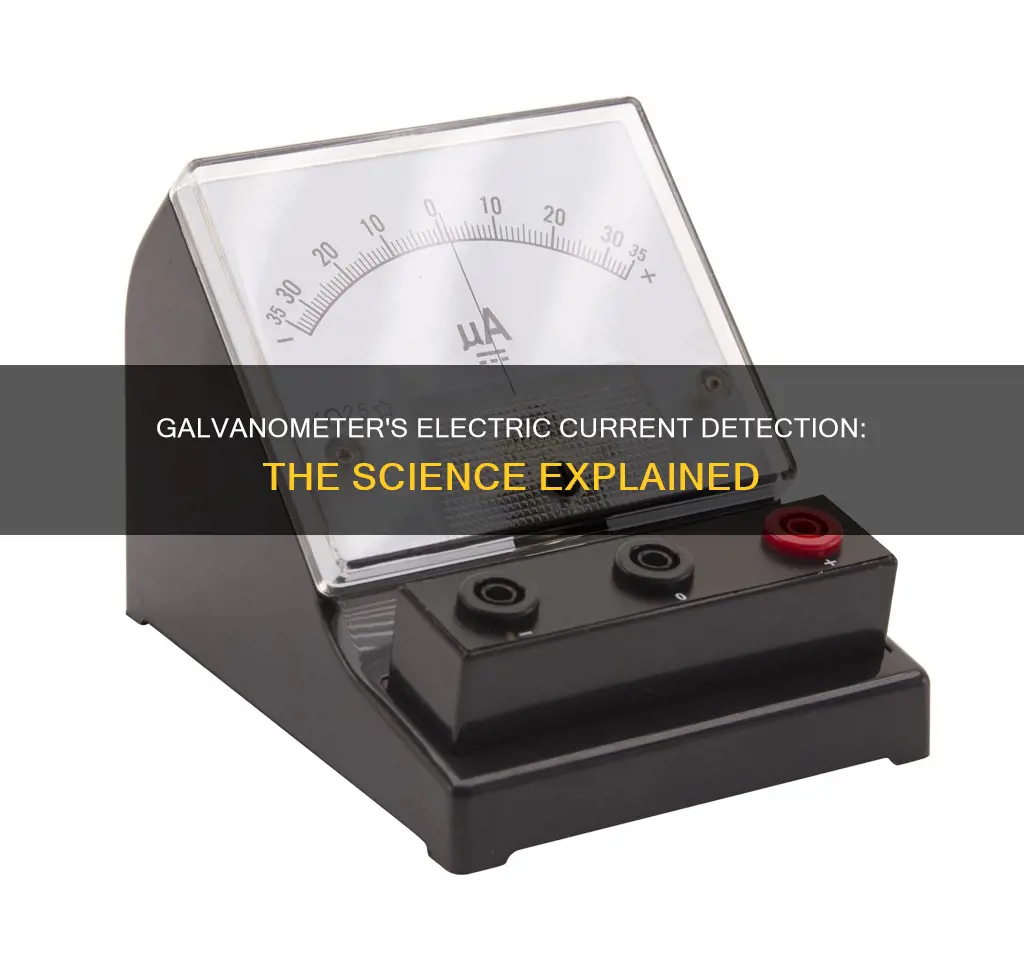

Galvanometer's Electric Current Detection: The Science Explained

how does a galvanometer detect electric curreny

A galvanometer is an electrical instrument used to detect and measure small electric currents. It was one of the earliest instruments designed for this purpose and laid the foundation for the development of more advanced electrical measuring devices like ammeters and voltmeters. The term galvanometer was derived from the surname of Italian electricity researcher Luigi Galvani, who discovered that electric current would make a dead frog's leg jerk. The galvanometer detects electric current through the deflection of a needle, which is caused by the interaction between the magnetic field generated by the current in the coil and the external magnetic field.

Characteristics Values
Foundation for Ammeters and voltmeters
Type Analog meter, D'Arsonval/Weston, astatic, tangent, mirror, string, ballistic
Detection Method Deflection of a needle or mirror
Coil Made of wire, attached to a pointer or mirror, rotates
Magnetic Field External, permanent, interacts with the magnetic field generated by the current
Current Small currents, microamperes
Uses Scientific experiments, electrical engineering, early telecommunication systems, electrical circuits

shunzap

The galvanometer's coil and external magnetic field interaction

The coil, which is typically wound around a soft iron core, is placed within the external magnetic field. The current flowing through the coil creates a magnetic field around the coil, and this field interacts with the external field, causing the coil to experience torque and rotate. This rotation is directly proportional to the magnitude of the current flowing through the coil. The coil's rotation results from the magnetic field interaction, and the amount of rotation corresponds to the strength of the current.

The galvanometer's coil is a critical component, consisting of a fine wire coil suspended in a magnetic field. The coil is attached to a thin pointer or needle that moves in response to the coil's rotation. The coil's rotation due to the magnetic field interaction causes the needle to deflect, indicating the current flow. The needle's deflection corresponds to the direction and magnitude of the current flowing through the coil.

The interaction between the magnetic fields creates a torque or twisting force on the coil, causing it to rotate. This rotation is directly related to the strength of the current, with a greater current resulting in a stronger magnetic field and, consequently, a larger rotation. When the current stops flowing, the coil returns to its resting position, typically through a spring mechanism or gravity, allowing the needle to indicate the absence of current.

shunzap

The deflection of a needle

The galvanometer was first observed by Hans Christian Ørsted in 1820, who noticed that a magnetic compass's needle deflects when near a wire carrying an electric current. This instrument was then named by André-Marie Ampère, who gave mathematical expression to Ørsted's discovery. The term "galvanometer" derives from the surname of Italian electricity researcher Luigi Galvani, who discovered that electric current would make a dead frog's leg jerk.

The coil, carrying the current, reacts within the stationary magnetic field, and the amount of rotation is proportional to the magnitude of the current flowing through it. The coil is usually wound on a lightweight metal frame and is free to rotate about an axis. This rotation is a direct result of magnetic field interaction.

The galvanometer has a calibrated scale that allows the user to measure the magnitude of the current based on the needle's position. The needle is a very visible indication of the electric current. The needle, or pointer, moves in response to the coil's rotation, indicating the degree of deflection on a calibrated scale. This allows the user to read the current or other electrical quantities being measured.

Electric Fence Wizzing: What Not to Do!

You may want to see also

shunzap

The role of electromagnetic induction

The galvanometer is a sensitive electrical instrument used for detecting and measuring small electric currents. It was one of the earliest instruments designed for this purpose and laid the foundation for the development of more advanced electrical measuring devices like ammeters and voltmeters.

Galvanometers operate on the principle of electromagnetic induction, which allows them to respond to the flow of electric current by producing a mechanical deflection. The heart of a galvanometer is a coil of wire, often wound around a soft iron core. This coil is usually suspended within the galvanometer housing in such a way that it can rotate freely. When an electric current flows through the coil, it generates a magnetic field around itself. This magnetic field then interacts with a permanent external magnetic field inside the instrument, causing the coil to experience a torque and rotate.

The rotation of the coil due to electromagnetic induction results in the mechanical deflection of a needle attached to the coil. This deflection is directly proportional to the current flowing through the coil. The direction and amount of the needle's deflection correspond to the direction and magnitude of the current. The galvanometer has a calibrated scale that allows the user to measure the magnitude of the current based on the needle's position.

The interplay between the magnetic fields created by electromagnetic induction is a critical concept for understanding how galvanometers work. The coil, carrying the current, reacts within the stationary external magnetic field, and the amount of rotation is proportional to the current's magnitude. This rotation of the coil and the resulting needle deflection provide a visual indication of the current flow.

In summary, the role of electromagnetic induction in a galvanometer is to enable the detection and measurement of small electric currents by generating a magnetic field around the coil, causing it to rotate, and producing a corresponding deflection in the needle. This deflection is then used to determine the magnitude of the current.

shunzap

The instrument's sensitivity and range

The galvanometer is a highly sensitive instrument used to detect and measure small electric currents. It was one of the earliest instruments designed for this purpose and laid the foundation for the development of more advanced electrical measuring devices like ammeters and voltmeters.

The galvanometer's high sensitivity allows it to detect currents as minute as microamperes. This level of sensitivity is achieved through the interaction of magnetic fields. When an electric current flows through the galvanometer's coil, it generates a magnetic field that interacts with a permanent external magnetic field, typically provided by a permanent magnet inside the instrument. The interplay between these magnetic fields creates a force that causes the coil to rotate, resulting in the deflection of a needle attached to the coil. The amount of rotation and the direction and amount of the needle's deflection are proportional to the magnitude and direction of the current flowing through the coil.

The design of the galvanometer contributes to its sensitivity. The coil, which is usually wound on a lightweight metal frame, is suspended within the galvanometer housing in a way that allows it to rotate freely. This delicate suspension, combined with the concentrated magnetic field, enhances the instrument's sensitivity.

While galvanometers are highly sensitive and accurate for measuring small currents, they have limitations in terms of measurement range and response time. They are typically limited in their range and are most effective for measuring small currents rather than high currents. For instance, other instruments like ammeters and oscilloscopes are more suitable for measuring larger currents or rapidly changing currents.

Despite these limitations, galvanometers remain valuable in situations where precision and sensitivity are required, such as in scientific research and early telecommunication systems. They have played a crucial role in the development of science and technology, enabling long-range communication through submarine cables and contributing to discoveries in the electrical activity of the heart and brain.

shunzap

The development of advanced electrical measuring devices

The galvanometer was one of the earliest instruments designed to detect and measure small electric currents. It operates on the principle of electromagnetic induction, which allows it to respond to the flow of electric current by producing a mechanical deflection. The development of the galvanometer paved the way for more advanced electrical measuring devices, such as ammeters and voltmeters, which provide more accurate and versatile measurements.

Over time, there have been significant advancements in electrical measuring devices, and modern galvanometers have evolved significantly from their early forms. Here are some key developments that have contributed to the advancement of these devices:

  • Mirror Galvanometer: The mirror galvanometer, invented in the 19th century, was a significant improvement over the early moving-magnet form of the galvanometer. It used a lightweight mirror instead of a pointer to achieve higher sensitivity in detecting extremely small currents. This type of galvanometer played a crucial role in the first trans-Atlantic submarine telegraph cables in the 1850s, where it detected faint pulses of current.
  • Astatic Galvanometers: These galvanometers used opposing magnets to become independent of the Earth's magnetic field and could operate in any orientation. Hermann von Helmholtz invented an astatic galvanometer in 1849, and a more sensitive version, the Thomson mirror galvanometer, was patented in 1858 by William Thomson (Lord Kelvin).
  • D'Arsonval/Weston Type Galvanometer: This modern galvanometer type features a small pivoting coil of wire, called a spindle, in the field of a permanent magnet. The coil is attached to a thin pointer that moves across a calibrated scale. The design ensures a uniform magnetic field, making the angular deflection of the pointer proportional to the current.
  • Tube Diode: In 1904, John Ambrose Fleming developed the first tube diode, revolutionizing electrical measurement technology. The diode allowed current to flow in only one direction, acting as a rectifier. This technology found applications in various measuring devices, increasing their accuracy.
  • Electrical Amplifier: The development of the electrical amplifier in 1906 by Lee de Forest built upon the use of diodes and further advanced electrical measurement capabilities.
  • Digital-to-Analog Converter: Roswell Gilbert's invention of the first digital-to-analog converter in 1957 significantly improved the accuracy and noise performance of measuring instruments. However, the initial circuit was large and impractical for widespread use.
  • Semiconductors and Multichannel Devices: The 1970s saw a drop in semiconductor prices, leading to advancements in measuring devices. This trend continued, and by the 1980s, electric circuits increasingly utilized semiconductors, resulting in more reliable and affordable measuring devices. Additionally, the development of multichannel and multifunctional devices, such as the hybridNETBOX, further enhanced the versatility and capabilities of electrical measurements.

Frequently asked questions

A galvanometer is an instrument that detects electric current through the deflection of a needle. This needle is attached to a coil of wire that is suspended in a magnetic field. When an electric current flows through the coil, it generates a magnetic field that interacts with the external magnetic field, causing the coil to rotate. The rotation of the coil leads to the deflection of the needle, which corresponds to the direction and magnitude of the current flowing through the coil.

The key components of a galvanometer are the coil, the permanent magnet or magnetic field source, and the pointer or needle. The coil is the heart of the galvanometer and is usually made of wire wound around a soft iron core. The permanent magnet provides the external magnetic field, and the pointer or needle attached to the coil indicates the degree of deflection.

The deflection of the needle in a galvanometer is caused by the interaction between the magnetic fields generated by the current in the coil and the external magnetic field. This interaction creates a force that causes the coil to rotate, resulting in the deflection of the needle. The direction and amount of deflection correspond to the direction and magnitude of the current.

The primary purpose of a galvanometer is to detect and measure small electric currents. It can determine the absence or presence of current and provide an indication of its magnitude. Galvanometers are highly sensitive and accurate for measuring small currents but are limited in their measurement range and response time.

Galvanometers have been used in scientific experiments, electrical engineering, and early telecommunication systems. They were crucial in the development of long-range communication through submarine cables and the discovery of electrical activity in the heart and brain. They also served as the foundation for more advanced current and voltage measuring instruments like ammeters and voltmeters.
