Understanding polarity is essential to properly connecting transformers and other electrical equipment. Polarity refers to the positive and negative poles of an electrical circuit, which indicate the direction of current flow. In the context of transformers, additive and subtractive polarities are the two main types, with power and instrument transformers typically having subtractive polarity and some distribution transformers having additive polarity. Transformer polarity is particularly important when connecting transformers in parallel, as transformers with different polarities will not work together. The polarity of a transformer can be determined through a polarity test, which involves using voltmeters to check the voltages between primary and secondary windings.
| Characteristics | Values |
|---|---|
| Definition of Polarity | The electrical property of a body that either develops magnetic poles or has terminal points between which exists a difference in potential |
| Types of Polarity | Additive and Subtractive |
| Importance of Understanding Polarity | Essential for properly paralleling single-phase transformers and connecting instrument transformers to metering devices and protective relays |
| Voltage-Drop Rule | Useful for checking or connecting wye-delta transformer banks and specific phase shifts |
| Standards for Transformer Lead Markings | Established in 1918 by the American Institute of Electrical Engineers; windings are numbered 1,2,3,4, etc. with lowest and highest numbers representing the full winding |
| Testing Polarity | Use voltmeters to check if voltages add or subtract correctly, ensuring proper connection |
| Paralleling Transformers | Connecting same polarity terminals of primary and secondary windings in parallel increases power capacity and system reliability |
| Three-Phase Transformers | Polarity is important when a 3-phase transformer works in parallel with other transformers; transformers with different polarities won't work in parallel |
| Correcting Incorrect Polarity | Can be corrected by swapping over high or low voltage connections depending on the design of the transformer |
Explore related products
What You'll Learn
Understanding electrical polarity
Electrical polarity is characterised by positive and negative poles, akin to the north and south poles of Earth's magnetic field. These poles are present in every electrical circuit, and electrons theoretically flow from the negative pole to the positive pole. In a direct current (DC) circuit, the poles are fixed, resulting in unidirectional electron flow. However, in an alternating current (AC) circuit, the poles alternate, causing the electron flow to reverse periodically.
The concept of polarity is particularly crucial in the context of transformers. Transformer polarity refers to the two types of polarities observed in transformers: additive and subtractive. Additive polarity is characterised by the voltage between the primary and secondary sides being the sum of the high and low voltages. On the other hand, subtractive polarity involves the voltage difference between these sides. Power and instrument transformers typically employ subtractive polarity, while some distribution transformers utilise additive polarity.
The distinction between additive and subtractive polarities is essential for understanding transformer connections and operations. When connecting transformers in parallel to increase capacity, it is crucial to ensure that the same polarity terminals of the primary and secondary windings are connected. Connecting opposite polarities can lead to short circuits and transformer damage.
Furthermore, polarity plays a significant role in analysing transformer performance during normal and abnormal operations. The voltage-drop rule, although often omitted in transformer polarity definitions, is a valuable tool for checking phase relations in wye-delta transformer banks or configuring transformer banks for specific phase shifts required by the power system.
Enhancing Electric Arc Performance: Increasing Temperature for Better Results
You may want to see also
Explore related products
Polarity marking standards
Understanding electrical polarity is essential to properly connecting transformers and other electrical equipment. The word “polarity” refers to the poles of electrical circuits, which are positive and negative, or north and south in the case of Earth’s magnetic poles. Poles are given terminals that designate the direction of current flow.
In 1918, the American Institute of Electrical Engineers and other organisations established standards for external transformer lead markings. These markings served as the basis for establishing polarity as we know it today. The basic standard was as follows: The leads of any winding (high voltage or low voltage) brought out of the case shall be numbered 1, 2, 3, 4, and so on. The lowest and highest numbers represent the full winding, while the intermediate numbers represent fractions of the winding or taps.
The first transformers were wound with no consideration of polarity. However, when engineers attempted to parallel transformers for more capacity, they discovered that the terminals had to be connected in a certain way for the transformers to operate properly. This led to the need for standard markings to indicate polarity.
Today, transformer terminal markings are standardised, with each terminal marked to distinguish it from the others. There are two varieties of polarity: subtractive and additive. Both follow the same rules. Power and instrument transformers are subtractive, whereas some distribution transformers are additive. The polarity marking can be a dot, a square, or an X, or it can be indicated by the standardised transformer terminal markings.
The ANSI/IEEE standard for transformers states that the high voltage should lead the low voltage by 30° with wye-delta or delta-wye banks. This means that different connections are required depending on whether the high side is wye or delta.
DIY Electric Fence Tester: Building a Simple Device
You may want to see also
Explore related products
Paralleling transformers
To connect transformers in parallel, certain conditions must be met to ensure optimal operation and avoid issues like large circulating currents. Firstly, the transformers must have the same primary and secondary voltage ratings. If the voltages differ, circulating currents will flow between the transformers, which can be dangerous. Secondly, the transformers should have the same percentage impedance to ensure they share the load according to their individual abilities. Thirdly, the transformers should have the same polarity to prevent short circuits and transformer damage. Additionally, it is important to ensure the same phase angle shift, phase sequence, frequency, tap changers, and vectors.
It is worth noting that while different MVA ratings are not ideal for parallel operation, it is possible to parallel transformers with different MVA ratings. However, the load may not be shared equally between the transformers.
Baking Fish in an Electric Oven: A Simple Guide
You may want to see also
Explore related products
Voltage-drop rule
Understanding the concept of polarity is essential to properly connecting transformers and other electrical equipment. The word "polarity" refers to the poles of electrical circuits, which are positive and negative. Poles are given terminals that designate the direction of current flow. In a direct current (DC) circuit, one pole is always negative, the other is always positive, and electrons flow in one direction only. In an alternating current (AC) circuit, the two poles alternate between negative and positive, and the electron flow reverses back and forth.
The voltage-drop rule is a fundamental concept in electrical engineering that is used to check the phase relations in wye-delta transformer banks or to connect a transformer bank for a specific phase shift required by the power system. The rule states that the high voltage should lead the low voltage by 30° with wye-delta or delta-wye banks. This rule is often omitted in the definition of transformer polarity but is crucial for ensuring proper connections and performance of the electrical system.

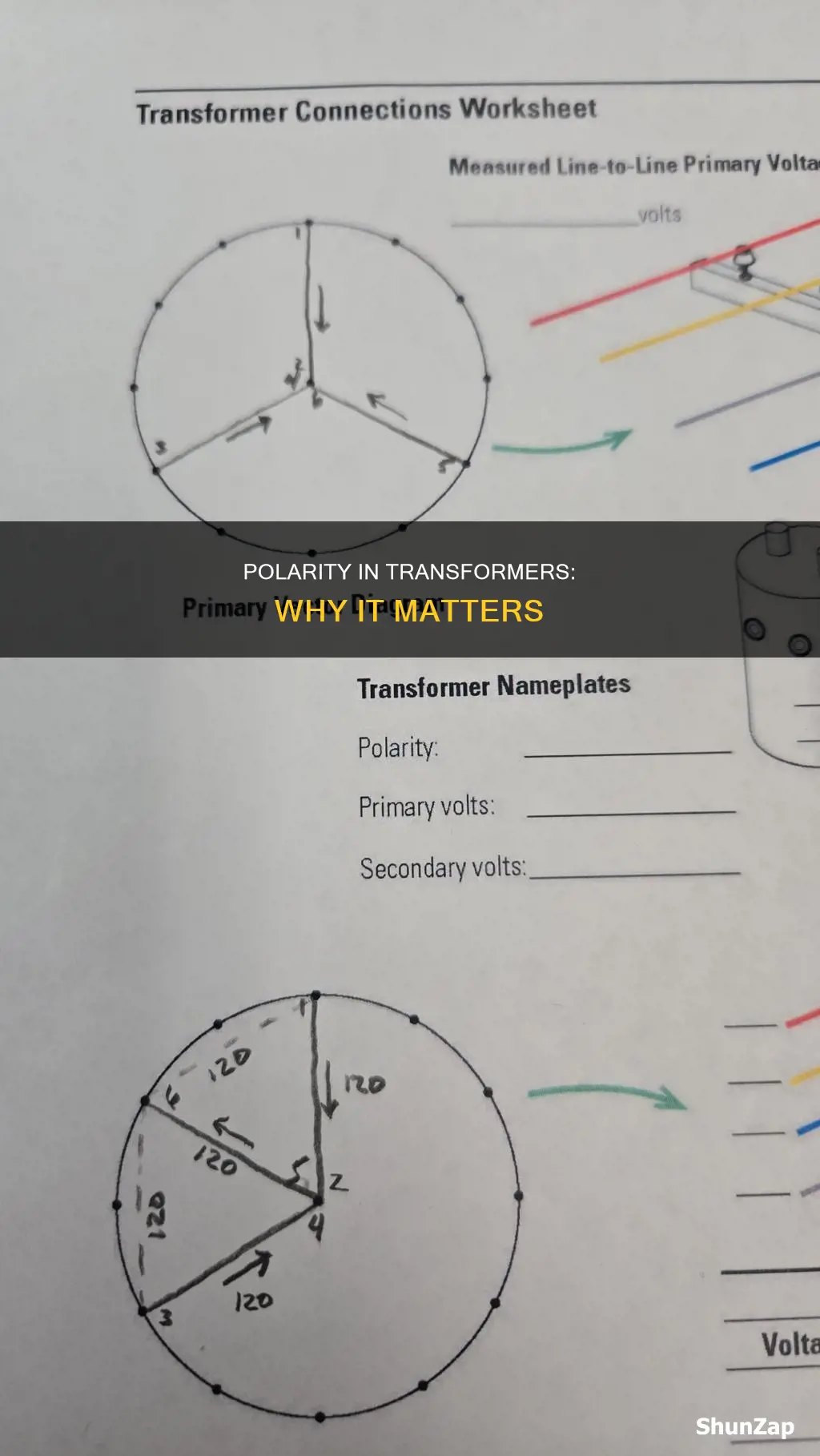

The voltage-drop rule is illustrated in diagrams of three-phase transformer connections. Arrows on these voltage drops are typically omitted to avoid confusion. By comparing the line-to-neutral voltages on the two sides of a transformer bank, it can be observed that the phase-a-to-n voltage leads the phase-A-to-neutral voltage. This rule is essential for ensuring that the transformers are connected correctly and that the polarities are not opposite, as connecting opposite polarities can cause a short circuit and damage the transformer.
The voltage-drop rule is also important for understanding the performance of an electrical system. A high voltage drop in a transformer can lead to low voltage at the load side of the system. This can impact the performance of the system and the equipment connected to it. Therefore, understanding the voltage-drop rule is crucial for ensuring the proper functioning and protection of electrical systems and equipment.
In summary, the voltage-drop rule is a critical concept in electrical engineering that helps ensure the correct connections and phase relations in transformer banks. It plays a vital role in maintaining the performance and safety of electrical systems by preventing issues such as short circuits and low voltage at the load side.
Who's Responsible for Underground Electricity Cables?
You may want to see also
Explore related products
Testing transformer polarity
Transformer polarity is fundamental to understanding the functionality of transformers and how they are used. Testing transformer polarity is a method to ensure correct polarity alignment when connecting transformers in parallel.
Polarity refers to the poles of electrical circuits, which are positive and negative, or north and south, like Earth's magnetic poles. Poles are given terminals that designate the direction of current flow. In a direct current (DC) circuit, one pole is always negative, and the other is always positive, so the current flows in one direction only. In an alternating current (AC) circuit, the two poles alternate, and the electron flow reverses back and forth.
The two fundamental rules of transformer polarity are:
- Current flowing in at the polarity mark of one winding flows out of the polarity mark of the other winding.
- The voltage drop from polarity to non-polarity across one winding is essentially in phase with the voltage drop from polarity to non-polarity across the other winding(s).
The voltage-drop rule is a useful tool to check the phase relations through wye-delta transformer banks, or when connecting a transformer bank for a specific phase shift.
There are two types of transformer polarities: additive and subtractive. Power and instrument transformers are subtractive, while some distribution transformers are additive.
To test transformer polarity, we use voltmeters to check if the voltages add or subtract correctly, ensuring proper connection. This is known as the dot convention, which identifies the polarity of windings in a transformer. If additive polarity, the voltmeter (Vc) should show the sum of the voltages of the primary (Va) and secondary (Vb) windings. In subtractive polarity, Vc should show the difference between Va and Vb.
It is important to note that connecting transformers with opposite polarities can cause a short circuit and damage the transformer.
How to Check for Electric Folding Mirrors on Your BMW
You may want to see also
Frequently asked questions
Polarity refers to the positive and negative poles (or north and south, like Earth's magnetic poles) of an electrical circuit. In a direct current (DC) circuit, one pole is always negative and the other is always positive, with electrons flowing in one direction only. In an alternating current (AC) circuit, the two poles alternate, and electron flow reverses back and forth.
Understanding polarity is essential for properly connecting transformers in parallel. Connecting transformers with opposite polarities can cause a short circuit and damage the equipment. Polarity is also important for testing protection relays and systems, and understanding power system performance during normal and abnormal operations.
The polarity of a transformer can be determined by using voltmeters to check if the voltages add or subtract correctly. The transformer terminal markings are also a key to understanding polarity. Standardized markings include a dot, a square, or an X, as well as the standardized transformer terminal markings that have been in place for many years.
