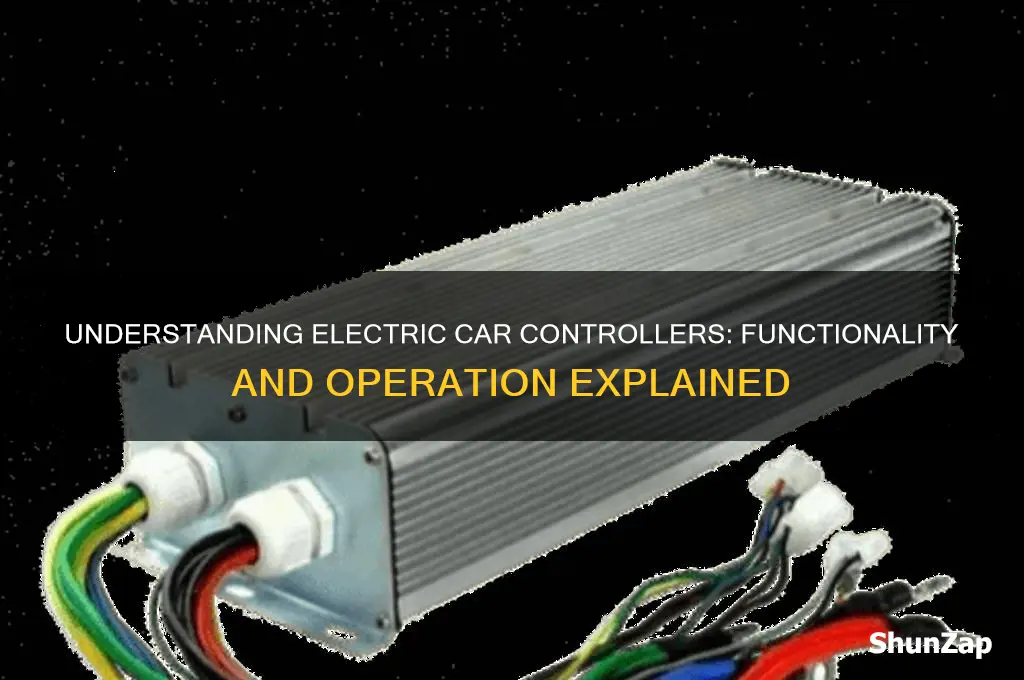

Electric car controllers, also known as motor controllers or vehicle control units (VCUs), are the brains behind the operation of electric vehicles (EVs), managing the flow of electrical energy from the battery to the electric motor. These sophisticated devices play a critical role in ensuring optimal performance, efficiency, and safety by regulating the speed, torque, and direction of the motor based on driver input. The controller achieves this by converting the direct current (DC) from the battery into alternating current (AC) required by the motor, using power electronics such as insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs). Additionally, the controller monitors various parameters, including battery state of charge, temperature, and motor load, to prevent overheating, overcharging, or other potential issues, thereby extending the lifespan of the EV components and enhancing overall driving experience.
Explore related products
What You'll Learn
- Power Management: Controls energy flow from battery to motor, optimizing efficiency and performance
- Motor Control: Regulates motor speed and torque via pulse-width modulation (PWM) signals
- Regenerative Braking: Converts kinetic energy back into battery charge during deceleration
- Thermal Management: Monitors and cools controller to prevent overheating and ensure reliability
- Fault Detection: Identifies errors (e.g., overvoltage, overheating) and triggers safety protocols
Power Management: Controls energy flow from battery to motor, optimizing efficiency and performance
The electric car controller, often referred to as the motor control unit (MCU), plays a pivotal role in managing the energy flow from the battery to the electric motor. Its primary function is to ensure that the motor receives the appropriate amount of power to operate efficiently while maximizing the vehicle's performance. This process begins with the controller monitoring the driver's input, such as the position of the accelerator pedal. Based on this input, the controller calculates the required torque and speed for the motor, translating the driver's demand into precise electrical signals. These signals dictate the voltage and current supplied to the motor, ensuring smooth and responsive acceleration.
Power management in electric vehicles (EVs) is a delicate balance between delivering sufficient power for performance and conserving energy for extended range. The controller achieves this by modulating the pulse-width modulation (PWM) signals sent to the motor's inverter. PWM allows the controller to adjust the power output by varying the duration of electrical pulses, effectively controlling the motor's speed and torque. During low-demand scenarios, such as cruising or coasting, the controller reduces the power output to minimize energy consumption. Conversely, during high-demand situations like rapid acceleration or climbing hills, it increases the power flow to meet the required performance without overloading the system.
Efficiency optimization is another critical aspect of power management. The controller continuously monitors the battery's state of charge (SoC) and temperature to prevent over-discharge or overheating, which could damage the battery. It also employs regenerative braking, a feature where the motor acts as a generator during deceleration, converting kinetic energy back into electrical energy and storing it in the battery. This process not only improves energy efficiency but also extends the vehicle's range. The controller ensures that the regenerative braking system operates seamlessly, balancing energy recovery with smooth deceleration.
Thermal management is integral to maintaining efficiency and performance. The controller monitors the temperature of both the motor and the power electronics to prevent overheating, which can degrade performance and longevity. If temperatures rise above optimal levels, the controller may reduce power output temporarily to allow the components to cool. Additionally, it coordinates with the vehicle's cooling system to dissipate heat effectively, ensuring that the motor and electronics operate within safe temperature ranges. This proactive approach to thermal management is essential for sustaining high efficiency and reliability over time.
Finally, the controller plays a crucial role in fault detection and mitigation. It continuously monitors the system for anomalies such as short circuits, overvoltage, or under-voltage conditions. If a fault is detected, the controller can take corrective actions, such as reducing power output or shutting down the system to prevent damage. This real-time monitoring and response capability ensures the safety and longevity of the electric powertrain. By meticulously managing the energy flow, optimizing efficiency, and safeguarding the system, the electric car controller is indispensable for the seamless operation of electric vehicles.
