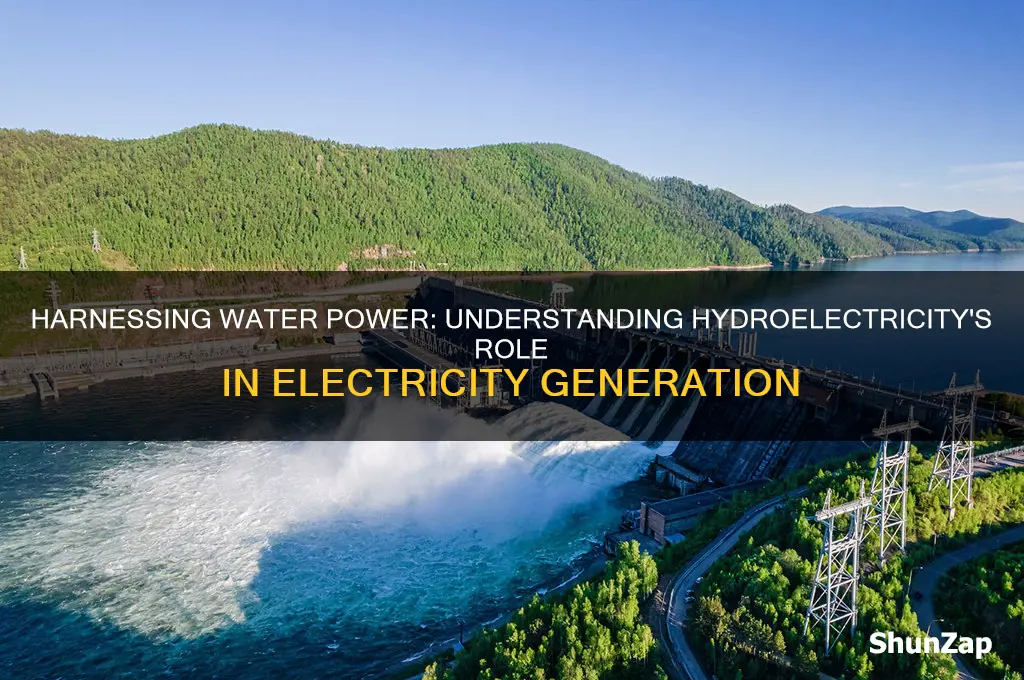

Hydroelectricity is a renewable energy source that harnesses the power of flowing or falling water to generate electricity. The process begins with the construction of a dam on a river, creating a reservoir that stores water at an elevated level. When electricity is needed, the water is released through large turbines, which spin as the water flows downward due to gravity. The mechanical energy from the spinning turbines is then converted into electrical energy by generators, producing a clean and reliable power supply. This method of electricity production is highly efficient and environmentally friendly, as it relies on the natural water cycle and produces no direct emissions, making it a key component of sustainable energy systems worldwide.
| Characteristics | Values |
|---|---|
| Primary Principle | Converts kinetic energy from flowing or falling water into mechanical energy, then into electrical energy. |
| Main Components | Dam, reservoir, intake, penstock, turbine, generator, transformer, transmission lines. |
| Energy Source | Potential energy (stored water) and kinetic energy (moving water). |
| Efficiency | 90% (one of the most efficient methods of electricity generation). |
| Global Capacity (2023) | ~1,330 GW (approximately 16% of global electricity production). |
| Largest Hydroelectric Plant | Three Gorges Dam, China (22.5 GW installed capacity). |
| Environmental Impact | Low greenhouse gas emissions; habitat disruption, methane emissions from reservoirs, and impact on aquatic life. |
| Types | Run-of-river, storage (reservoir), pumped storage, tidal. |
| Cost (Levelized, 2023) | $0.05 - $0.10 per kWh (varies by region and project scale). |
| Lifespan | 50-100 years (longer than most power plants). |
| Water Usage | Consumptive use is minimal; water is returned to the river after generation. |
| Renewability | Fully renewable, dependent on consistent water supply. |
| Key Countries (2023) | China, Brazil, Canada, U.S., Russia (top producers). |
| Annual Global Generation (2023) | ~4,300 TWh. |
| Advantages | Reliable, low operating costs, peak load management (pumped storage). |
| Disadvantages | High initial investment, environmental and social displacement issues. |
Explore related products
What You'll Learn
- Water Source: Rivers, dams, or reservoirs provide the necessary water flow for hydroelectric power generation
- Turbine Types: Pelton, Francis, and Kaplan turbines convert water kinetic energy into mechanical energy
- Generator Function: Generators transform mechanical energy from turbines into electrical energy through electromagnetic induction
- Dam Structure: Dams store water, control flow, and create head for efficient hydroelectric power production
- Environmental Impact: Hydroelectricity affects ecosystems, fish migration, and local habitats despite being renewable
Water Source: Rivers, dams, or reservoirs provide the necessary water flow for hydroelectric power generation
Rivers, dams, and reservoirs are the lifeblood of hydroelectric power generation, each playing a distinct role in harnessing water's kinetic energy. Rivers, with their natural flow, provide a consistent and renewable source of water, making them ideal for run-of-the-river hydroelectric plants. These systems divert a portion of the river's flow through turbines, generating electricity without the need for large-scale water storage. For instance, the Belo Monte Dam in Brazil utilizes the Xingu River's flow, producing up to 11,233 megawatts of power while minimizing environmental impact by avoiding a massive reservoir.
Dams, on the other hand, serve as both water storage and energy generators. By impounding water in reservoirs, dams create a height difference, or head, that drives turbines with greater force. The Three Gorges Dam in China, the world’s largest hydroelectric facility, relies on the Yangtze River’s flow and a reservoir spanning 660 square kilometers. This setup allows for controlled water release, ensuring consistent power generation even during dry seasons. However, dam construction often involves significant ecological and social trade-offs, such as habitat disruption and displacement of communities.
Reservoirs, whether natural or artificial, act as energy storage systems, enabling hydroelectric plants to respond to fluctuating demand. During periods of low electricity usage, excess water is stored, and during peak demand, it is released to maximize power output. The Hoover Dam’s Lake Mead reservoir in the United States exemplifies this, balancing water supply for irrigation and energy production. Yet, reservoirs can lead to methane emissions from decomposing organic matter, highlighting the need for sustainable management practices.
Selecting the right water source depends on geographical and environmental factors. Run-of-the-river systems are best suited for regions with steady, year-round river flow, while dams and reservoirs are more effective in areas with seasonal variability. For instance, Norway’s extensive hydroelectric network leverages its abundant rivers and fjords, providing nearly 95% of the country’s electricity. In contrast, arid regions like Egypt rely on the Aswan High Dam’s reservoir to store Nile River water for both power and irrigation.
In practice, optimizing water sources for hydroelectricity requires balancing energy needs with environmental stewardship. Engineers must consider factors like water flow rates, seasonal variations, and ecological impacts when designing projects. For example, fish ladders and sediment management systems can mitigate the effects of dams on aquatic ecosystems. By carefully selecting and managing water sources, hydroelectric power can remain a reliable and sustainable component of the global energy mix.
Phantom Power: Which Home Appliances Drain Electricity When Off?
You may want to see also
Explore related products
Turbine Types: Pelton, Francis, and Kaplan turbines convert water kinetic energy into mechanical energy
Hydroelectric power plants harness the kinetic energy of moving water to generate electricity, and at the heart of this process are turbines designed to optimize energy conversion. Among the most widely used are Pelton, Francis, and Kaplan turbines, each tailored to specific water flow conditions and head heights. Understanding their unique characteristics ensures efficient energy extraction across diverse hydroelectric environments.
Pelton turbines excel in high head, low flow scenarios, making them ideal for mountainous regions with steep drops. Their design features a series of buckets arranged around a wheel, which water jets strike at high velocity. For instance, a Pelton turbine operating at a head of 500 meters can achieve efficiencies above 90%. Maintenance involves regular inspection of nozzle alignment and bucket integrity to prevent energy loss. When selecting a Pelton turbine, ensure the jet diameter matches the flow rate to maximize efficiency, typically calculated as \( D = 0.5 \times \sqrt{\frac{Q}{P}} \), where \( D \) is diameter, \( Q \) is flow, and \( P \) is power.
Francis turbines dominate medium head applications, commonly found in dams with heads between 20 to 700 meters. Their mixed-flow design allows water to enter radially and exit axially, balancing pressure and velocity. A Francis turbine in a 100-meter head plant can convert over 95% of potential energy into mechanical energy. Operators should monitor wicket gate positioning to adjust flow dynamically, especially during peak demand. For optimal performance, the runner blades must be precisely angled to match the water’s spiral trajectory, a task achieved through computational fluid dynamics modeling.
Kaplan turbines are the go-to for low head, high flow situations, such as run-of-river projects. Their adjustable blades and axial flow design enable efficiency across varying flow rates, typically ranging from 70% to 85%. For example, a Kaplan turbine in a 10-meter head plant can handle flows up to 1,000 cubic meters per second. Regular blade adjustment and sediment removal are critical to prevent erosion and maintain efficiency. When installing a Kaplan turbine, ensure the draft tube is correctly sized to minimize cavitation, which occurs when pressure drops below vapor pressure, causing vapor bubbles to form and collapse.
In summary, selecting the right turbine type hinges on site-specific factors like head height, flow rate, and operational demands. Pelton turbines thrive in high head environments, Francis turbines excel in medium head settings, and Kaplan turbines are unmatched in low head, high flow conditions. Each turbine’s design and maintenance requirements reflect its role in maximizing energy conversion, making them indispensable tools in hydroelectric power generation. By matching the turbine to the site, operators can ensure sustainable and efficient electricity production.
Mastering Comfort: A Guide to Using Your Electric Guitar Strap
You may want to see also
Explore related products
Generator Function: Generators transform mechanical energy from turbines into electrical energy through electromagnetic induction
The heart of hydroelectric power generation lies in the generator, a device that bridges the gap between the kinetic energy of moving water and the electrical energy that powers our homes. At its core, the generator operates on the principle of electromagnetic induction, a phenomenon discovered by Michael Faraday in the early 19th century. This process involves the movement of a conductor, such as a coil of wire, within a magnetic field, which induces an electric current in the conductor. In hydroelectric plants, this conductor is part of the generator’s rotor, which spins within a stationary magnetic field created by the stator. The mechanical energy from the turbine, driven by the force of falling or flowing water, is thus converted into electrical energy.
To understand the generator’s function, imagine a bicycle dynamo, but on a massive scale. As water flows through the turbine, it rotates the shaft connected to the generator’s rotor. The rotor contains a series of electromagnets or coils of wire, which move through the magnetic field generated by the stator. This movement causes electrons in the wire to flow, creating an alternating current (AC). The speed of the rotor directly influences the frequency of the AC, typically standardized to 50 or 60 Hertz depending on the region. For instance, a generator in a large hydroelectric dam might rotate at 120 revolutions per minute (RPM) to produce 60 Hz electricity, ensuring compatibility with the grid.
One critical aspect of generator design is efficiency. Modern hydroelectric generators can achieve efficiencies of up to 95%, meaning only a small fraction of the mechanical energy is lost as heat. This efficiency is partly due to advancements in materials, such as the use of high-grade silicon steel for the stator core and superconducting materials in some cutting-edge designs. Additionally, cooling systems, often using hydrogen or water, are employed to maintain optimal operating temperatures, as overheating can degrade performance and damage components. For small-scale hydroelectric systems, such as those used in remote areas, generators are often designed to be compact and low-maintenance, with sealed bearings and corrosion-resistant materials to withstand harsh environments.
A practical example of generator function can be seen in run-of-river hydroelectric plants, where the natural flow of a river drives the turbine. Here, the generator must be capable of handling variable water flow rates, which translate to fluctuating mechanical input. To address this, such generators often incorporate variable-speed drives or advanced control systems that adjust the magnetic field strength to maintain consistent electrical output. This adaptability ensures that even during periods of low water flow, the generator can continue to produce electricity efficiently, maximizing the plant’s overall energy yield.
In conclusion, the generator is not merely a component but the linchpin of hydroelectric power generation. Its ability to transform mechanical energy into electrical energy through electromagnetic induction is both a testament to human ingenuity and a cornerstone of renewable energy systems. Whether in a massive dam or a small run-of-river plant, the generator’s design and operation are tailored to harness the power of water with maximum efficiency and reliability. Understanding its function provides valuable insights into how we can sustainably meet our energy needs while minimizing environmental impact.
Mastering Electro Dart in Jedi Survivor: Tips and Strategies
You may want to see also
Explore related products
Dam Structure: Dams store water, control flow, and create head for efficient hydroelectric power production
Dams are the backbone of hydroelectric power production, serving as both water reservoirs and flow regulators. Their primary function is to store water, often in vast quantities, creating a potential energy source that can be harnessed on demand. For instance, the Three Gorges Dam in China holds approximately 39.3 billion cubic meters of water, enough to generate up to 22,500 megawatts of electricity. This storage capability ensures a consistent water supply, even during dry seasons, making hydroelectric power a reliable renewable energy source.
Controlling water flow is another critical role of dams in hydroelectric systems. By regulating the release of water, operators can match electricity generation to demand. During peak hours, more water is released to spin turbines faster, while flow is reduced during off-peak times to conserve resources. The Hoover Dam, for example, uses a system of gates and tunnels to manage the Colorado River’s flow, balancing electricity production with downstream water needs. This precision in flow control maximizes efficiency and minimizes waste.
The creation of head—the vertical drop of water from the reservoir to the turbines—is perhaps the most vital aspect of dam structure. Greater head means higher pressure, which translates to more energy and, consequently, more electricity. Dams like the Itaipu on the Brazil-Paraguay border utilize a head of over 100 meters to generate 14 gigawatts of power, making it one of the most productive hydroelectric plants globally. Engineers carefully design dam heights and reservoir capacities to optimize this head, ensuring maximum energy output.
Constructing a dam for hydroelectric power involves careful planning and execution. Key considerations include the site’s geology, environmental impact, and long-term maintenance. For instance, rock foundations provide better stability than soil, reducing the risk of structural failure. Additionally, fish ladders and sediment management systems are often incorporated to mitigate ecological effects. Regular inspections and repairs are essential to ensure the dam’s longevity and safety, as seen in the ongoing maintenance of the Grand Coulee Dam in the U.S., which has been operational since 1942.
In summary, dams are not just barriers holding back water; they are sophisticated structures designed to store, control, and optimize water flow for hydroelectric power generation. Their ability to create head transforms potential energy into electricity, making them indispensable in the renewable energy landscape. By understanding and refining dam design, we can enhance the efficiency and sustainability of hydroelectric power, contributing to a greener energy future.
Harnessing Earth's Deep Hot Rocks for Sustainable Electricity Generation
You may want to see also
Explore related products
Environmental Impact: Hydroelectricity affects ecosystems, fish migration, and local habitats despite being renewable
Hydroelectric power, while a cornerstone of renewable energy, disrupts aquatic ecosystems in profound ways. Dams, the linchpin of hydroelectricity, fragment rivers into isolated segments. This fragmentation prevents fish like salmon and eels from reaching upstream spawning grounds, decimating populations that rely on migratory cycles. For instance, the Grand Coulee Dam on the Columbia River has reduced salmon runs by over 80%, threatening both biodiversity and indigenous communities dependent on these fish. The physical barrier isn’t the only issue; altered water flow downstream disrupts sediment transport, starving riverbanks and deltas of nutrients essential for plant and animal life.
Beyond fish migration, hydroelectric projects often inundate vast areas, creating reservoirs that submerge forests, wetlands, and agricultural lands. The Three Gorges Dam in China, the world’s largest hydroelectric facility, flooded 13 cities, 140 towns, and 1,350 villages, displacing over 1.3 million people and obliterating habitats for countless species. These reservoirs also emit methane, a potent greenhouse gas, as organic matter decomposes underwater. Studies show that in tropical regions, methane emissions from reservoirs can rival those of fossil fuel plants, undermining hydroelectricity’s "clean" reputation.
The environmental toll extends to water quality and temperature. Dams trap sediments, leading to clearer but nutrient-poor water downstream, which harms species adapted to turbid conditions. Additionally, water released from deep reservoir layers is often colder than natural river temperatures, disrupting aquatic life cycles. For example, cold-water releases from the Glen Canyon Dam have stunted native fish populations in the Colorado River, while favoring invasive species like trout. Such thermal pollution highlights the unintended consequences of manipulating natural water systems.
Despite these challenges, mitigation strategies can lessen hydroelectricity’s ecological footprint. Fish ladders and bypass systems, like those installed on the Columbia River, help migratory species navigate dams, though their effectiveness varies. Reservoir management techniques, such as selective withdrawal, can minimize temperature fluctuations and methane emissions. However, these solutions are often costly and site-specific, requiring careful planning and long-term monitoring. As the world pivots toward renewable energy, balancing hydroelectricity’s benefits with its ecological costs remains a critical challenge.
Mastering the Electrical Screwdriver: Efficient Techniques for DIY Projects
You may want to see also
Frequently asked questions
Electricity is produced using hydroelectricity by harnessing the kinetic energy of flowing or falling water. Water stored in a reservoir or flowing in a river is directed through turbines, which spin and drive generators to produce electricity.
The main components of a hydroelectric power plant include a dam to store water, a reservoir to hold the water, penstocks to channel water to the turbines, turbines to convert water energy into mechanical energy, and generators to convert mechanical energy into electricity.
Yes, hydroelectricity is a renewable source of energy because it relies on the natural water cycle, which is continuously replenished by rainfall and snowmelt. As long as water flows, hydroelectric power can be generated sustainably.
While hydroelectricity is clean and renewable, it can have environmental impacts such as altering river ecosystems, affecting fish migration, and causing habitat disruption due to dam construction. Additionally, large reservoirs can lead to methane emissions from decomposing organic matter.
