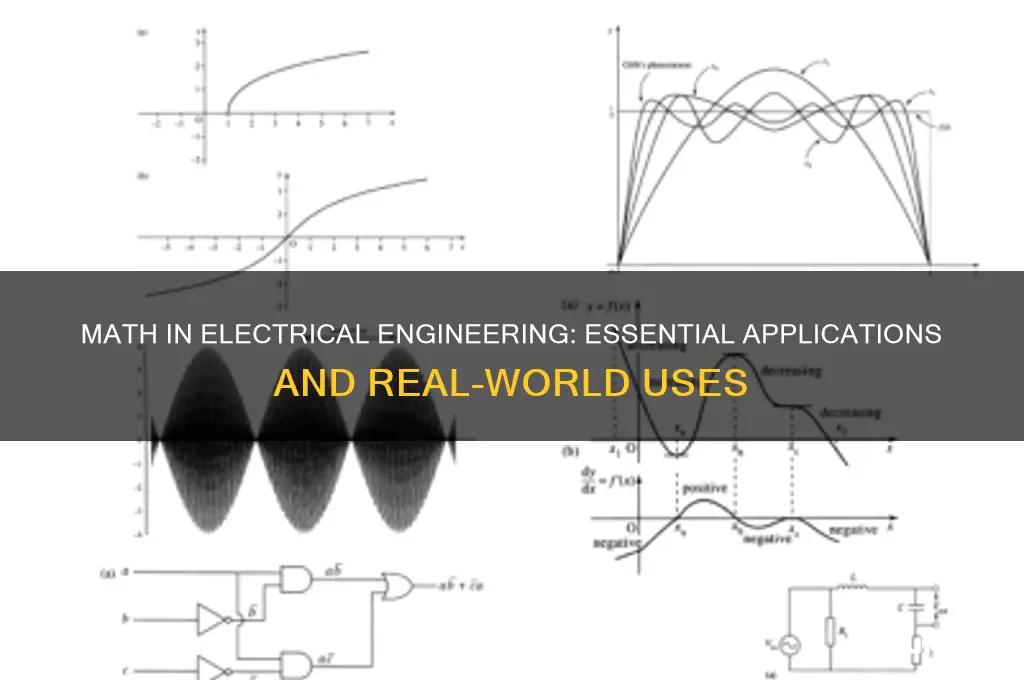

Mathematics serves as the foundational backbone of electrical engineering, providing the tools and frameworks necessary to analyze, design, and optimize electrical systems. From circuit analysis using differential equations and linear algebra to signal processing with Fourier transforms, math enables engineers to model complex phenomena, predict system behavior, and ensure reliability. Calculus is essential for understanding voltage, current, and power relationships, while probability and statistics aid in noise reduction and system robustness. Additionally, discrete mathematics and graph theory are crucial for digital logic design and network optimization. Without mathematics, the precise calculations and theoretical insights required to innovate in fields like power systems, telecommunications, and electronics would be unattainable, making it an indispensable discipline in electrical engineering.
Explore related products
What You'll Learn
- Circuit Analysis: Solving equations for voltage, current, and resistance using Ohm's Law
- Signal Processing: Applying Fourier transforms to analyze and filter electrical signals
- Control Systems: Using differential equations to model and stabilize dynamic systems
- Power Systems: Calculating energy efficiency, losses, and load distribution in electrical grids
- Digital Logic: Designing circuits with Boolean algebra for computing and automation
Circuit Analysis: Solving equations for voltage, current, and resistance using Ohm's Law
Electrical circuits are the backbone of modern technology, from smartphones to power grids. Understanding how voltage, current, and resistance interact is crucial for designing, troubleshooting, and optimizing these systems. Ohm’s Law, a fundamental principle in electrical engineering, provides the mathematical framework to analyze these relationships. By mastering this law, engineers can predict circuit behavior, ensure safety, and innovate effectively.
At its core, Ohm’s Law states that the current (I) flowing through a conductor is directly proportional to the voltage (V) applied across it and inversely proportional to the resistance (R) of the conductor. Mathematically, this is expressed as *V = I × R*. This simple equation is the cornerstone of circuit analysis, enabling engineers to solve for any one variable when the other two are known. For example, if a circuit has a voltage of 12 volts and a resistance of 4 ohms, the current can be calculated as *I = V / R = 12 / 4 = 3 amperes*. This straightforward calculation is essential for determining component compatibility and preventing overheating or failure.
However, circuit analysis often involves more complex scenarios, such as series and parallel combinations of resistors. In a series circuit, resistances add up, while in a parallel circuit, the total resistance decreases. Ohm’s Law remains applicable but requires additional steps. For instance, in a series circuit with resistors of 2 ohms and 3 ohms, the total resistance is *R_total = 2 + 3 = 5 ohms*. If a 10-volt source is applied, the current is *I = 10 / 5 = 2 amperes*. In contrast, for parallel resistors, the reciprocal formula *1/R_total = 1/R1 + 1/R2* is used. These calculations highlight the versatility of Ohm’s Law in handling diverse circuit configurations.
Practical applications of Ohm’s Law extend beyond theoretical analysis. For instance, when designing a LED circuit, engineers must ensure the current does not exceed the LED’s rating to avoid damage. If an LED requires 20 milliamperes (0.02 A) and operates at 2 volts, a resistor must be added in series to limit the current. Using Ohm’s Law, the required resistance is *R = (V_supply - V_LED) / I = (5 - 2) / 0.02 = 150 ohms*. This example demonstrates how mathematical precision translates into real-world problem-solving.
In conclusion, Ohm’s Law is not just a theoretical concept but a practical tool that underpins electrical engineering. By solving equations for voltage, current, and resistance, engineers can design efficient circuits, diagnose faults, and ensure safety. Whether simplifying complex networks or optimizing component performance, the mathematical rigor of Ohm’s Law remains indispensable in the ever-evolving field of electrical engineering.
