The National Electrical Code (NEC) and National Electrical Safety Code (NESC) provide guidelines for the height clearances of overhead power lines. These guidelines vary depending on the location and type of wiring. For instance, the minimum vertical clearance of wires above the ground is 14.5 feet for areas used only by pedestrians, such as sidewalks and patios. Over streets, alleys, roads, and driveways, the NESC standard height is 15 feet, while the NEC recommends 16 feet. Electricians must also consider local amendments and changes to these specifications, as well as the type of soil when installing underground wiring.
| Characteristics | Values |
|---|---|
| Height of electrical wires above public streets, alleys, roads, parking areas, driveways, and other land | 15 feet to 18 feet |
| Height of electrical wires above areas used only by pedestrians | 14.5 feet |
| Height of electrical wires above pathways used by riders on horseback | 16 feet |
| Height of electrical wires above driveways and other passages used by vehicles less than 8 feet in height | 12 feet |
| Height of electrical wires over pools or hot tubs | 10 feet to 22.5 feet |
| Height of electrical wires over ponds or lakes | 17 feet |
| Height of data wires over pedestrian traffic | 9.5 feet |
| Distance between electric fence posts for temporary fences | 50 feet |
| Distance between electric fence posts for permanent fences | 12 feet |
| Height of wall receptacles | 1 foot from the floor to the bottom of the receptacle box, or 16 inches to the top of the box |
| Height of wall switches | 4 feet from the floor to the bottom of the switch box |
| Height of lighting fixtures in bathrooms | 8 feet vertically from the top of a bathtub or shower |
| Height of garbage disposal circuits | 15-20 amp |
| Height of refrigerator circuits | 20 amp |
| Height of built-in microwave circuits | 20 amp |
Explore related products
What You'll Learn
- The National Electrical Code (NEC) and National Electrical Safety Code (NESC) set guidelines for electrical wires above streets, sidewalks, etc
- The minimum vertical clearance for wires over areas used by pedestrians is 14.5 feet
- For wires over pools or hot tubs, the minimum vertical clearance is 10 feet
- For wires over ponds or lakes, the minimum vertical clearance is 17 feet
- Underground electrical wiring should be at least 18-24 inches deep
The National Electrical Code (NEC) and National Electrical Safety Code (NESC) set guidelines for electrical wires above streets, sidewalks, etc
The National Electrical Code (NEC) and the National Electrical Safety Code (NESC) set guidelines for electrical wires above streets, sidewalks, and other public spaces. These guidelines are designed to ensure public safety and prevent accidental contact with electrical currents. While the NEC and NESC provide national guidelines, local rules and regulations may vary and often have stricter standards. In cases of discrepancy, local rules take precedence over national codes.
The NEC and NESC specify different minimum height clearances for electrical wires based on the type of area they span. For instance, in areas used exclusively by pedestrians, such as sidewalks, decks, and patios, the minimum vertical clearance of wires above the ground is generally 14.5 feet. This height is considered sufficient to allow safe passage for pedestrians, even when carrying tools or other objects. However, it is important to exercise caution when carrying long objects like ladders.
Where pathways are likely to be used by riders on horseback, the minimum clearance for overhead wires is increased to 16 feet. For driveways, alleys, roads, or streets that may accommodate vehicles exceeding 8 feet in height, the guideline dictates that power lines should maintain a minimum height of 15.5 feet above the ground, measured at their lowest point. This height standard also applies to data wires above vehicle traffic.
Additionally, the NESC establishes specific guidelines for data wires above pedestrian traffic, requiring a minimum vertical clearance of 9.5 feet. These guidelines are designed to ensure the safety of the public and prevent potential electrical hazards. It is important to note that the NESC's 15-foot standard for clearance over roadways is based on engineered calculations considering the height of standard power poles. While these guidelines provide a framework for safety, it is always advisable to contact local authorities or the power company if you notice any downed or drooping power lines that appear unsafe.
Electrical Steel: Grain Orientation and Manufacturing Techniques
You may want to see also
Explore related products
The minimum vertical clearance for wires over areas used by pedestrians is 14.5 feet
The minimum vertical clearance for wires over areas used by pedestrians is generally 14.5 feet. This includes areas like sidewalks, decks, and patios. These distances are considered safe for pedestrians, even when they are carrying tools or other objects. However, it is important to exercise caution when carrying a ladder or other lengthy objects.
It is important to note that the minimum clearance height for wires may vary depending on the location and voltage levels. For instance, in residential areas with lower voltage, the minimum clearance is typically 12 feet, while for higher voltage in similar areas, it increases to 15 feet. Over public streets and areas with truck traffic, the minimum clearance is usually 18 feet.
The National Electrical Safety Code (NESC) provides guidelines for height clearances of overhead power lines over streets, sidewalks, alleys, roads, and driveways. The NESC guidelines specify a minimum vertical clearance of 9.5 feet for data wires over pedestrian traffic and 15.5 feet for data wires over vehicle traffic.
In addition to the NESC, the National Electrical Code (NEC) also sets requirements for residential systems and areas with higher energy demands, such as kitchens. The NEC specifies a clearance of 16 feet for vertical clearance from the ground. It is important to refer to the specific codes and regulations in your local area, as enforcement of the NESC and compliance with its guidelines can vary depending on the state and local jurisdictions.
The Age of Your GE Electric Range: A Guide
You may want to see also
Explore related products
For wires over pools or hot tubs, the minimum vertical clearance is 10 feet
When it comes to electrical safety, maintaining adequate clearance heights for wires is crucial, especially over pools and hot tubs. For wires over these water features, a minimum vertical clearance of 10 feet is mandated for data wires. This clearance is measured from the lowest point of the wire's droop to ensure safety.
It is imperative to be vigilant about these clearances, as they can vary depending on the type of wire and the area it traverses. For instance, communication lines and electrical service lines should maintain a separation of at least 30 inches. Moreover, seasonal variations can impact the ground-to-wire distance, so adjustments should be made accordingly, especially in snowy regions.
The guidelines for vertical clearances are set forth by the NEC and NESC, ensuring safety over streets, sidewalks, driveways, alleys, roads, and other areas. These standards are in place to safeguard against potential electrical hazards and accidents.
In the case of electrical wires over pools or hot tubs, the minimum vertical clearance of 10 feet is a critical safety measure. This clearance height is specifically for data wires and helps prevent any electrical-related incidents in these recreational areas. It is important to adhere to these guidelines to ensure the well-being of individuals using pools and hot tubs and to mitigate any potential electrical risks.
Electric Savings: Hyundai Kona Rebate Options Explored
You may want to see also
Explore related products
For wires over ponds or lakes, the minimum vertical clearance is 17 feet
The height requirements for electrical wires vary depending on the context and the governing body. The National Electrical Safety Code (NESC) and the National Electrical Code (NEC) are two organizations that provide guidelines for height clearances of electrical wires in different situations.
For wires over ponds or lakes, the minimum vertical clearance is specified as 17 feet. This is a safety measure to prevent accidents and electrical hazards. The NESC sets forth guidelines for vertical clearances of data wires, which vary depending on the community. For instance, data wires over pedestrian traffic have a minimum vertical clearance of 9.5 feet, while those over vehicle traffic require at least 15.5 feet of clearance.
It is important to note that the minimum vertical clearances are measured from the lowest point of the wire's droop. Seasonal variations in vertical clearance should also be considered, especially in climates where snow accumulation can reduce the ground-to-wire distance.
In the context of electrical wiring over water features, there are specific requirements. For electrical wires over a pool or hot tub, the minimum vertical clearance is 22.5 feet, measured from the surface of the water or the base of the diving board. This height requirement ensures the safety of individuals using the pool or hot tub and provides clearance for any potential splashing or movement.
Additionally, it is worth mentioning that different standards may apply based on local regulations and amendments. While the NESC and NEC provide general guidelines, specific requirements can vary depending on the state, local areas, and local building departments. Therefore, it is advisable to refer to local authorities and professionals for the most accurate and up-to-date information regarding electrical wire height requirements in your specific location.
Michigan's Electoral Votes: What's the Count?
You may want to see also
Explore related products
![Cable Matters 10Gbps Pure Copper 24 AWG Cat 6A Ethernet Cable - 200ft, [Direct-Burial Rated, Waterproof and Weatherproof] Outdoor Ethernet Cable with 500 MHz Bandwidth, Long Cat6a PoE Cord](https://m.media-amazon.com/images/I/81OWWqZJV5L._AC_UY218_.jpg)

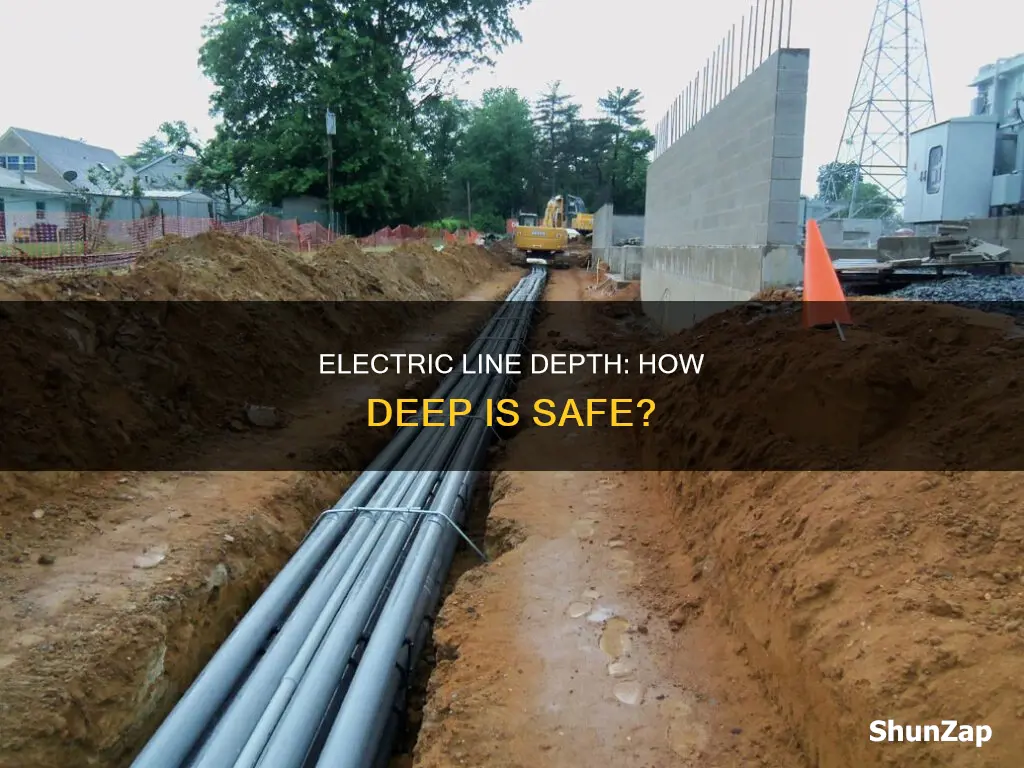

Underground electrical wiring should be at least 18-24 inches deep
Firstly, the depth of underground wiring ensures safety and reliability. Shallow wiring is more susceptible to damage from physical impact, temperature changes, and moisture. Burying electrical wires at the recommended depth helps to maintain a consistent temperature, reducing the risk of overheating and short circuits. Additionally, deeper wiring provides better protection from accidental strikes during digging or construction projects.
The National Electrical Code (NEC) provides guidelines for wiring methods, materials, and safety considerations to ensure compliance with the required burial depth. One option to achieve the necessary depth is to use metal or plastic conduit, which offers protection from physical damage. This method is particularly useful when dealing with rocky or heavy clay soil, or when encountering tree roots that make digging difficult.
Another option is to use direct-buried Type UF-B cable, which can be installed without the need for expensive conduit. This method is suitable for small backyard electrical projects and branch circuits up to 20 amperes. However, it is important to ensure ground-fault circuit-interrupter (GFCI) protection and use a circuit breaker or fuse to comply with safety standards.
For those with granular and easy-to-dig soil, renting a walk-behind trenching machine can be a convenient choice. These machines are readily available at hardware stores and equipment rental outlets, making it easier to reach the desired depth of 18-24 inches.
By following these guidelines and choosing the appropriate method, you can ensure that your underground electrical wiring is installed safely and securely, providing reliable service for years to come.
Kitchen Electrical Circuits: How Many Are Needed?
You may want to see also
Frequently asked questions
The National Electrical Code contains provisions for the burial depth of wiring, which depends on the type of soil. If the soil is easy to dig, you may not need to install metal or plastic conduit and can dig deeper. If the soil is rocky or heavy clay, you can dig less but will need to protect the wiring with a conduit.
The National Electrical Code (NEC) and National Electrical Safety Code (NESC) have guidelines for height clearances. For areas used only by pedestrians, the minimum vertical clearance is 14.5 feet. For driveways and other passages used by vehicles that are less than 8 feet in height, the minimum vertical clearance is 12 feet.
For rural areas, the guideline is for power lines to be at at least 15.5 feet above the ground for vehicles that are more than 8 feet in height.
