Electrical insulators are materials that prevent the flow of electric current, ensuring safety and efficiency in electrical systems. They are essential in various industries, including electrical power transmission, telecommunications, and electronics. The type of insulator used depends on the voltage level and specific requirements of the application. Insulators can be made from various materials, including porcelain, glass, composite polymers, electrical ceramics, and flexible materials like PVC. Some common types of insulators include pin insulators, suspension insulators, post insulators, bushing insulators, and composite insulators. Each type has unique characteristics and is designed to withstand specific voltage levels and environmental conditions, making them integral components in electrical systems.
Explore related products
What You'll Learn
- Pin insulators are used in power distribution systems and are made of porcelain or glass
- Post insulators are used in electrical substations and are made of porcelain or composite materials
- Suspension insulators are used in overhead transmission lines and consist of glass or porcelain discs
- Bushing insulators are used in transformers, circuit breakers, and other high-voltage apparatus
- Strain insulators are used to handle tensile loads and must have good mechanical strength
Pin insulators are used in power distribution systems and are made of porcelain or glass
Insulators are essential in preventing electric shocks and minimising power losses by reducing leakage currents. They are designed to prevent the flow of electric current and provide insulation between conductive elements. There are various types of insulators, each with its own unique characteristics and applications.
Pin insulators are a type of distribution line insulator commonly used in power distribution systems. They are mounted on top of electrical poles or towers, with the conductor fixed to the grooves on the upper end. Pin insulators are typically made of porcelain or glass, but can also be made of other materials such as ceramics, polymer, or silicon rubber. Porcelain insulators are made from clay, quartz, alumina, and feldspar and are covered with a smooth glaze to shed water. They offer excellent electrical insulation properties and mechanical strength, making them suitable for various voltage levels. Glass insulators, on the other hand, have even higher resistance to electrical conductivity and are highly durable.
Pin insulators are simple in design and easy to install and maintain. They are also cost-effective, making them a popular choice for power distribution systems. These insulators are suitable for voltages up to 33 kV, and their use beyond this range becomes inefficient and uneconomical due to their bulkiness. The number of insulators used in a power distribution system depends on the voltage level and the specific requirements of the pole line.
One unique feature of pin insulators is their ability to handle mechanical stress. However, environmental factors like temperature fluctuations and excessive wind load can cause the insulator to crack, compromising its insulating properties. To address this issue, cap and pin insulators are designed using toughened glass or porcelain, ensuring that they do not exhibit brittle fracture characteristics. This design allows cap and pin insulators to bear the full tensile working load even if the glass or porcelain shed is damaged, making them more suitable for overhead line work.
Adjusting Your 2007 Electra Glide Headlight: A Simple Guide
You may want to see also
Explore related products
Post insulators are used in electrical substations and are made of porcelain or composite materials
Insulators are materials that prevent the flow of electric current. They are used in various industries, including electrical power transmission, telecommunications, and electronics. There are several types of insulators, including pin insulators, suspension insulators, shackle insulators, and post insulators.

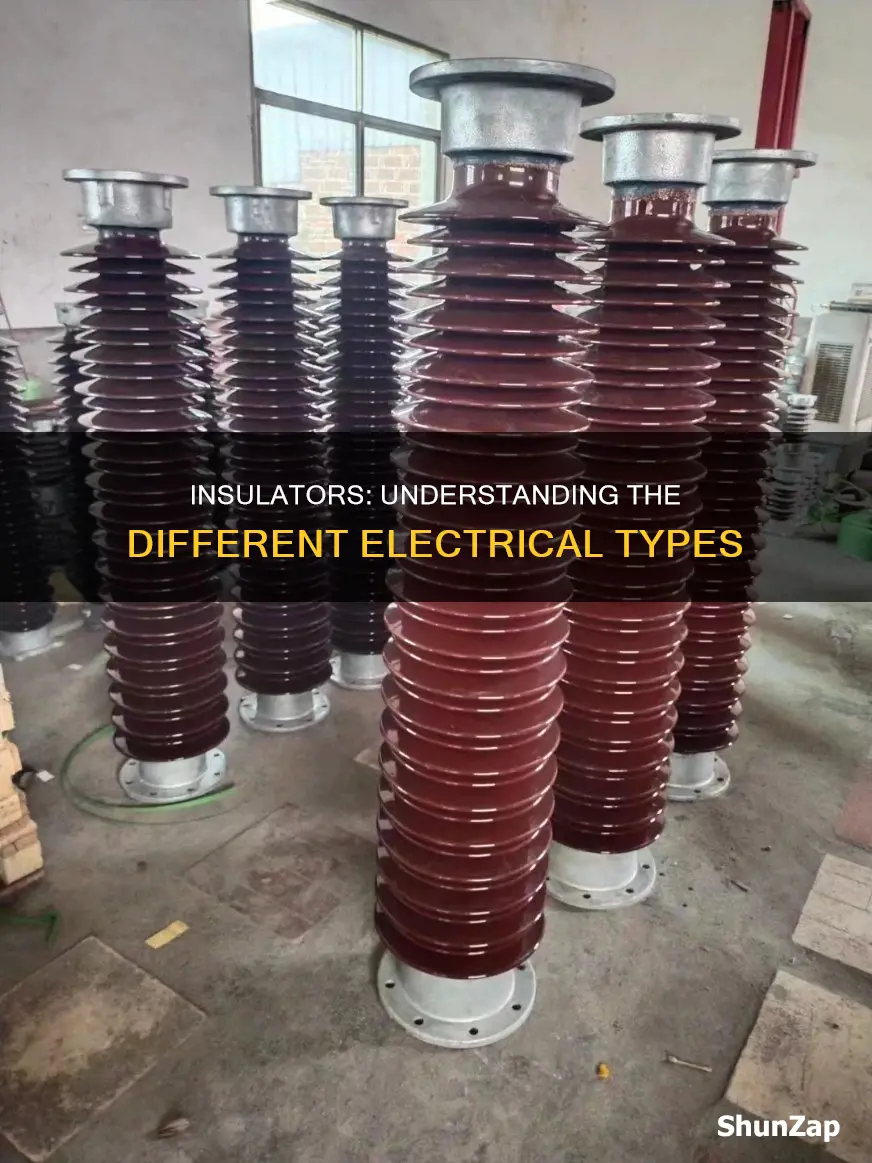

Post insulators are a type of insulator that was introduced in the 1930s. They are used in electrical substations and switchyards to isolate electrical equipment from the ground and provide insulation between different components. They are also used in railways and telecommunication lines to support overhead power, telephone, and broadband lines.
Post insulators are typically made of porcelain or composite materials. Porcelain insulators are made from clay, quartz, or alumina and feldspar and are covered with a smooth glaze to shed water. They are used when high mechanical strength is required. Porcelain has a dielectric strength of about 4–10 kV/mm. Composite insulators, on the other hand, are made from a combination of fiberglass-reinforced epoxy or silicone rubber. They are less costly, lighter in weight, and have excellent hydrophobic properties, making them ideal for polluted areas.
Post insulators are usually mounted vertically on supporting structures such as transmission towers or substation equipment. They have a higher number of petticoats and a greater height compared to pin insulators, making them more suitable for higher-voltage applications. They are designed to withstand high levels of electrical stress and environmental conditions such as extreme temperatures, wind, rain, and ice.
Learn to Play "Electric Feel" on Keyboard
You may want to see also
Explore related products
Suspension insulators are used in overhead transmission lines and consist of glass or porcelain discs
There are several types of electrical insulators, including pin insulators, post insulators, stay insulators, strain insulators, suspension insulators, and shackle insulators. Each type is designed for specific applications and environments.
Suspension insulators, for instance, are commonly used in overhead transmission lines and are made of glass or porcelain discs. They are flexible insulator strings, with the discs connected by metal links. This design provides maximum independence, meaning that if one disc fails, the rest remain unaffected.
The two main types of suspension insulators are cap and pin insulators and interlink insulators (also known as Hewlett type insulators). Cap and pin insulators consist of a forged steel cap and galvanised steel connected to a porcelain material, with a ball clevis and socket completing the connection. Interlink insulators, on the other hand, are made of two curved sections joined at a 90-degree angle.
In terms of insulating materials, suspension insulators can be further categorised into composite, porcelain, polymer, and glass insulators. The choice of material depends on various factors, such as voltage requirements, environmental conditions, and mechanical strength. For instance, porcelain insulators are often used where high mechanical strength is required. They are made from clay, quartz, or alumina and feldspar and are glazed to shed water. Glass insulators, on the other hand, have higher dielectric strength but are more susceptible to condensation and challenging to cast in the required shapes.
California's Electric School Bus Revolution
You may want to see also
Explore related products
Bushing insulators are used in transformers, circuit breakers, and other high-voltage apparatus
Electrical insulators are designed to prevent the flow of electric current and provide insulation between conductive elements. They are used in various electrical applications, such as power transmission, telecommunications, and electronics. Insulators are typically made from materials with high electrical resistance, such as ceramics, glass, porcelain, or polymer composites.
Bushing insulators are a specific type of insulator used in transformers, circuit breakers, and other high-voltage equipment. They are essential components that perform the critical function of carrying current at high voltages through equipment enclosures. Bushings are hollow insulators that allow an electrical conductor to pass safely through a conducting barrier, such as the case of a transformer or circuit breaker, without making electrical contact with it. They provide electrical insulation between a conductor and a grounded structure, preventing electrical breakdown.
Bushing insulators are designed to withstand high electrical field strengths and voltages. They can be made from various materials, including porcelain, resin-impregnated paper, epoxy resins, and silicone rubber. The choice of material depends on the specific requirements and design considerations of the electrical system or equipment. For example, at higher system voltages, condenser bushings are used due to their ability to handle high electric field stresses. Condenser bushings have a complex construction, with an inner capacitance-graded insulated core sandwiched between the central current-carrying tube and the external insulator.
Bushing insulators also play a role in sealing and supporting conductors. They can be oil-filled or dry-type, providing insulation and support while ensuring a sealed environment. Seals and gaskets are used to prevent oil leakage and maintain the integrity of the insulating oil. Bushing insulators are commonly used in power transformers, shunt reactors, and capacitors, making them versatile components in electrical systems.
Overall, bushing insulators are crucial in high-voltage applications, providing insulation, supporting conductors, and preventing electrical breakdown. Their design and material selection are carefully considered to ensure effective performance and longevity in electrical equipment.
Waves to Electrical Signals: The Science Behind It
You may want to see also
Explore related products
Strain insulators are used to handle tensile loads and must have good mechanical strength
Insulators are used to prevent the flow of electric current and provide insulation between conductive elements. They are made from materials such as porcelain, glass, composite polymer materials, and fiberglass. There are five main types of insulators used in transmission lines: pin, suspension, strain, stay, and shackle.
Strain insulators are a type of suspension string used to handle significant tensile loads in areas like dead ends or sharp corners of transmission lines. They are typically used outdoors in overhead wiring, where they are exposed to rain and, in urban settings, pollution. The shape of the insulator is critical to its function, as a wetted path from one cable to another can create a low-resistance electrical path. Strain insulators designed for horizontal mounting, often referred to as "dead ends", incorporate flanges to shed water. Those designed for vertical mounting, known as "suspension insulators", are often bell-shaped.
Strain insulators are inserted between two lengths of wire to isolate them electrically while maintaining a mechanical connection. They are also used where a wire attaches to a pole or tower, transmitting the pull of the wire to the support while providing electrical insulation. The shape of the insulator maximizes the distance between the cables while also maximizing the load-bearing transfer capacity.
Strain insulators are typically made of glass, porcelain, or fiberglass, and are shaped to accommodate two cables or a cable shoe and the supporting hardware on the support structure, such as a hook eye or eyelet on a steel pole or tower. Porcelain insulators are often used where high mechanical strength is required. They are constructed from clay, alumina, quartz, or feldspar and coated with a smooth glaze to shed water. The dielectric strength of porcelain is about 4-10 kV/mm, while glass has a higher dielectric strength but is more susceptible to condensation.
How Electricity Travels to the Ground Safely
You may want to see also
Frequently asked questions
There are many types of insulators used in electrical systems, but they can be categorized into two main types: low-voltage insulators and high-voltage insulators.
Low-voltage insulators are used for low-voltage distribution lines and communication lines. Examples include needle-type pillar insulators, shackle insulators, and strain insulators.
High-voltage insulators are used for high-voltage and ultra-high-voltage transmission lines, substations, and switchyards. Examples include suspension insulators, post insulators, and bushing insulators.
