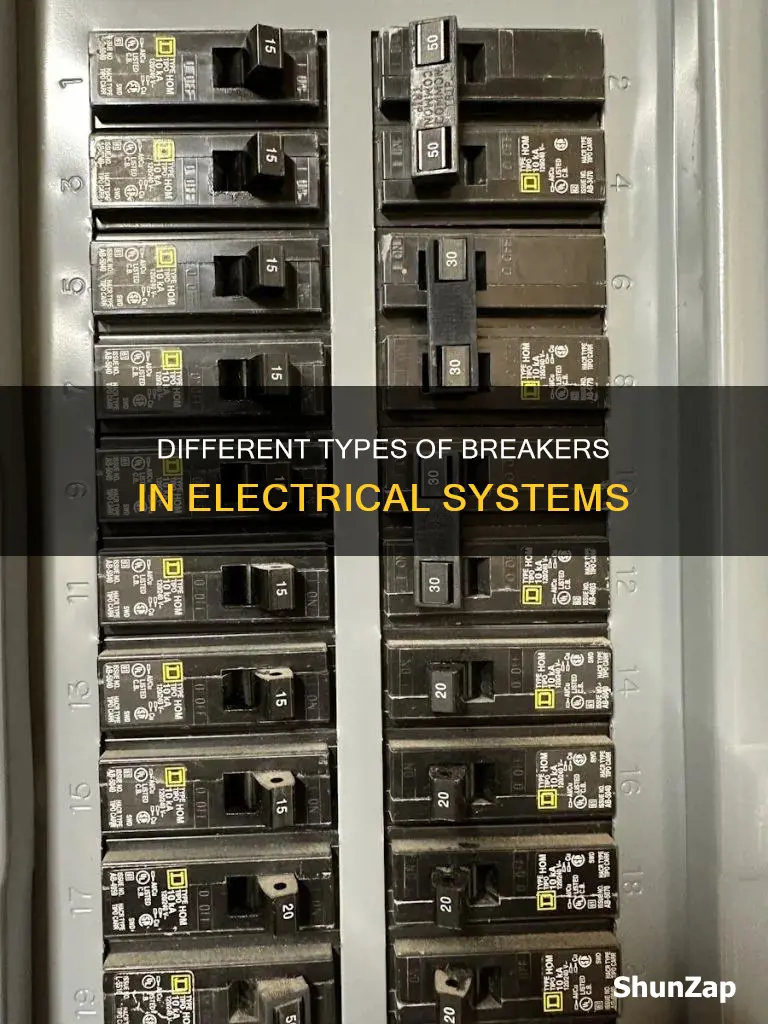

Circuit breakers are essential safety devices that protect electrical circuits from damage by interrupting the electrical flow in the event of an overload or short circuit. They are designed to prevent electrical fires and protect electronic equipment. There are several types of circuit breakers, each designed for specific applications and environments. The main types include Miniature Circuit Breakers (MCBs), Molded Case Circuit Breakers (MCCBs), Residual Current Circuit Breakers (RCCBs), Ground Fault Circuit Interrupters (GFCIs), and Arc Fault Circuit Interrupters (AFCIs). Understanding the different types of circuit breakers is crucial for maintaining electrical safety and ensuring the proper functioning of electrical systems.
| Characteristics | Values |
|---|---|
| Function | Interrupt electrical flow to prevent fires and protect electronic equipment |
| Types | Standard breakers, Ground Fault Circuit Interrupters (GFCIs), Arc Fault Circuit Interrupters (AFCIs), Miniature Circuit Breakers (MCBs), Molded Case Circuit Breakers (MCCBs), Residual Current Circuit Breakers (RCCBs), Single-pole breakers, Double-pole breakers |
| Load Capacity | Determined by the total circuit load and the amp size of the circuit breaker |
| Safety Rating | 80% of the maximum load |
| Installation | Consult a licensed electrician |
| Brands | Ensure compatibility with the breaker panel |
| Reuse | Can be reset manually or automatically after a fault is cleared |
| Applications | Residential, commercial, or industrial settings |
| Convenience | Manage electrical systems remotely |
Explore related products
What You'll Learn
Ground Fault Circuit Interrupter (GFCI) breakers
There are several types of circuit breakers, each designed for specific applications and environments. Circuit breakers are essential safety devices in homes, interrupting electrical flow to prevent fires and protect electronic equipment.
GFCI breakers offer protection against electrical shorts and overloaded currents. They are required by electrical codes for areas in the home that can become wet, such as bathrooms, laundry rooms, kitchens, and outdoor areas. GFCI breakers are also recommended for use with appliances and power tools that are used near water. This is because water can conduct electricity and create a path for current to flow through the user, resulting in electrical shock.
GFCI breakers are designed to react quickly, tripping or shutting off the circuit in less than one-tenth of a second. They do this by sensing the difference in the amount of current flowing into and out of the circuit, even in small amounts of current as low as 4 or 5 milliamps. This quick reaction time helps to prevent electrical incidents and protect human life.
There are three types of GFCIs: the most common is the “receptacle-type”, which is similar to a standard wall outlet. The second type is the “circuit breaker-type”, which replaces standard circuit breakers and provides GFCI protection to all receptacles on that circuit. The third type is the “portable-type”, which is designed for easy transport and can be plugged into existing non-GFCI outlets or connected with a cord and plug arrangement.
Explaining Electrical Work: My Job Responsibilities
You may want to see also
Explore related products
Arc Fault Circuit Interrupter (AFCI) breakers
Circuit breakers are essential safety devices in homes and buildings. They are switches that monitor electrical current and automatically interrupt electrical flow in a circuit in the event of an overload or short. This protects electrical components from overheating or catching fire.
One type of circuit breaker is the Arc Fault Circuit Interrupter (AFCI) breaker. AFCIs are designed to protect against fires caused by arcing faults in home electrical wiring. Arcing is when an electrical cord becomes damaged or its coating becomes too thin, creating a serious fire risk. AFCIs continuously monitor the current and can discriminate between normal and abnormal arcing conditions. Once an abnormal arc is detected, the AFCI opens its internal contacts, de-energising the circuit and reducing the potential for a fire.
AFCIs provide a higher level of protection than standard circuit breakers, which only respond to overloads and short circuits. They are required by the National Electrical Code for certain electrical circuits in the home, including all branch circuits supplying outlets or devices in dwelling unit kitchens, family rooms, dining rooms, living rooms, bedrooms, hallways, laundry areas, and similar rooms.
AFCIs can be used in conjunction with Ground Fault Circuit Interrupter (GFCI) protection, which protects against line-to-ground faults and electric shock. GFCIs are tripped by an overload of current, a short circuit, or a line-to-ground fault, and they cut power to the entire circuit.
It is important to note that installing or replacing a circuit breaker is a job for a licensed electrician and may require a permit.
Jetted Tub Electric Code: Access Requirements Explained
You may want to see also
Explore related products
Single-pole breakers
Unlike fuses, which must be replaced once they melt and interrupt the circuit, single-pole circuit breakers can be reset manually or automatically to resume normal operation after a fault is cleared. This makes them reusable and convenient. When choosing a single-pole breaker, it is important to consider the amp size required for the circuit. Most appliances will have their amp rating listed, and it is important to consult an electrician if you are unsure about the total circuit load.
In addition to single-pole breakers, there are also double-pole breakers, which monitor the flow of electricity through two wires simultaneously. These breakers are typically used for appliances that require a substantial amount of energy, such as washing machines and dryers. Ground Fault Circuit Interrupter (GFCI) breakers are another type of breaker designed to protect against line-to-ground faults and are often required for areas in the home that can become wet, such as bathrooms and laundry rooms. Arc Fault Circuit Interrupter (AFCI) breakers are also available, offering protection against unintentional electrical discharges that could lead to fires.
Classifying Sensors: DoD's Electro-Optical and Seismic Methods Explained
You may want to see also
Explore related products
Double-pole breakers
There are three basic circuit breaker varieties: standard breakers (which include both single-pole and double-pole circuit breakers), ground fault circuit interrupter circuit breakers (GFCIs), and arc fault circuit interrupter circuit breakers (AFCIs).
Unlike single-pole breakers, which have one hot wire and one neutral wire, double-pole breakers have two hot wires that are connected by a single neutral wire. This means that if there is a short circuit on either of the hot wires, both trip. They can be used to serve two separate 120-volt circuits or a single 240-volt circuit.
Testing Electric Hydrometers: A Step-by-Step Guide
You may want to see also
Explore related products
Miniature Circuit Breakers (MCBs)
There are several types of circuit breakers, each designed for specific applications and environments. Circuit breakers are essential safety devices that monitor electrical currents and automatically interrupt the electrical flow in a circuit in the event of an overload or short circuit, thereby preventing fires and protecting electronic equipment.
One of the main types of circuit breakers is the Miniature Circuit Breaker (MCB). MCBs are compact devices designed for low-current residential and light commercial applications. They protect against overcurrents up to a certain threshold, typically 6 to 63 amps. MCBs are commonly used in homes, offices, shops, and other small-scale installations where moderate current ratings are sufficient.
MCBs consist of several components, including main contacts, a trip unit, terminals, housing, a trip indicator, and auxiliary contacts. The main contacts carry the load current and are connected to the incoming and outgoing wires of the circuit. The trip unit is the core component that monitors the current and trips the breaker in the event of an over-current or short circuit. Terminals are the connections for the incoming and outgoing wires, while the housing provides protective casing and insulation. The trip indicator shows whether the breaker is in the "on" or "off" position, and some MCBs have auxiliary contacts for additional functions.
There are several types of MCBs based on factors such as current rating, voltage rating, and trip characteristics. Thermal MCBs, for example, trip based on the temperature rise caused by the current flowing through the circuit. They have a bimetallic strip that bends and trips the breaker when the temperature rises above a certain threshold. Magnetic MCBs, on the other hand, trip based on the magnetic force generated by the current flowing through the circuit. They have a solenoid that pulls the trip mechanism when the magnetic force exceeds a threshold. Hybrid MCBs combine the features of both thermal and magnetic MCBs and can trip based on either the temperature rise or the magnetic force.
MCBs also have different types, such as Type A, Type B, and Type C, which refer to different levels of protection. Type A MCBs protect against over-current and are suitable for circuits with a known and relatively constant maximum expected current, like lighting circuits. Type B MCBs protect against over-current and short circuits, while Type C MCBs protect against both over-current and short circuits. The lifespan of an MCB can be several decades with proper maintenance and usage, and it is recommended that qualified electricians install and replace them to ensure safety and maintain manufacturer warranties.
Electric Start: A Standard Feature on All Honda Shadows?
You may want to see also
Frequently asked questions
The main types of circuit breakers include Miniature Circuit Breakers (MCBs), Molded Case Circuit Breakers (MCCBs), Residual Current Circuit Breakers (RCCBs), Ground Fault Circuit Interrupters (GFCIs), and Arc Fault Circuit Interrupters (AFCIs).
GFCI circuit breakers cut power to the entire circuit in the event of an overload of current, a short circuit, or a line-to-ground fault. They are required in areas where water is a common hazard, such as bathrooms, kitchens, and outdoor areas.
AFCI circuit breakers protect against unintentional electrical discharges in electrical cords or wiring that could lead to a fire. They detect dangerous electrical arcs and instantly disconnect the damaged circuit before it catches fire.
Single-pole circuit breakers are the most common type found in homes. They monitor the current of a single wire and trip in the event of an overload or short circuit. They can accommodate between 15 and 30 amps and deliver 120 volts to the circuit.
Double-pole circuit breakers monitor the flow of electricity through two wires simultaneously and are used for appliances that require a substantial amount of energy, such as washing machines and dryers. They deliver either 240 volts or 120/240 volts and can accommodate 15 to 200 amps.
