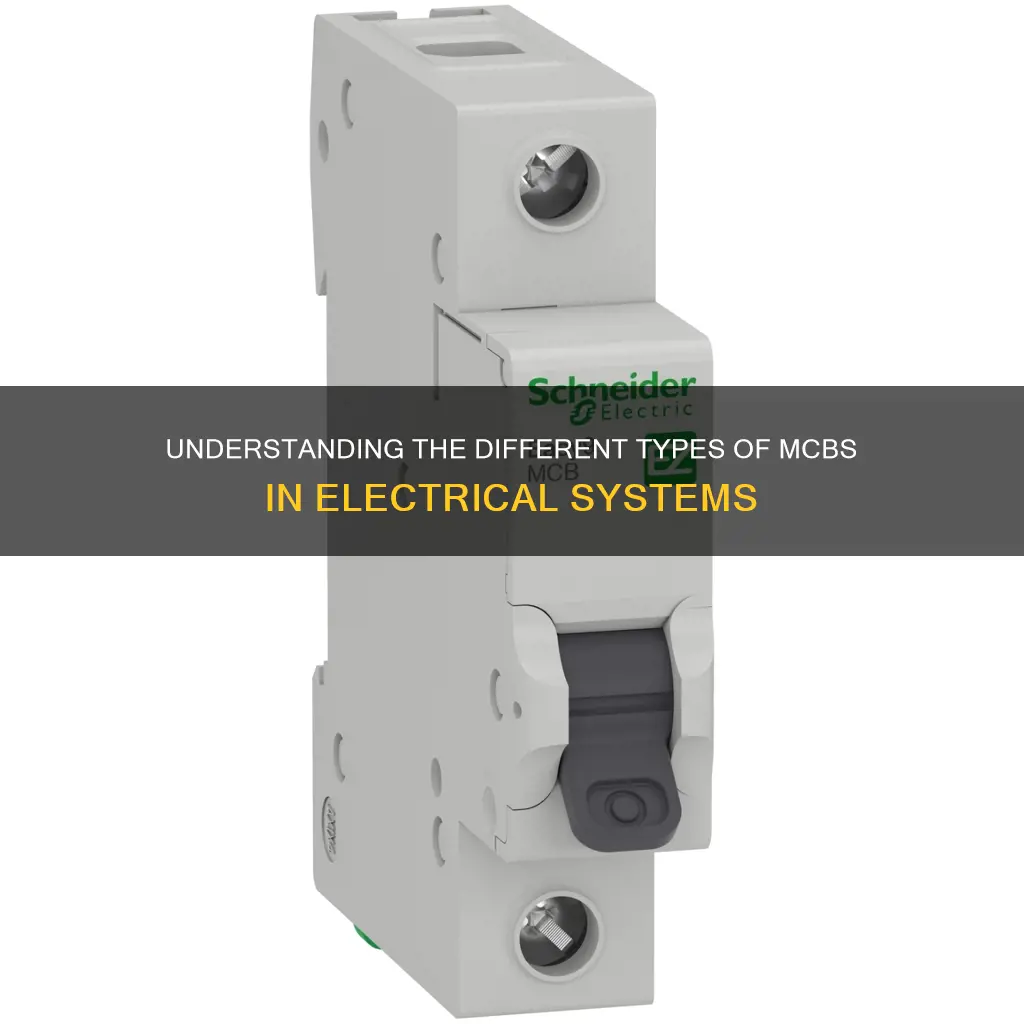

Miniature Circuit Breakers (MCBs) are electromechanical safety devices that protect electrical lines and loads from overcurrent, undervoltage, or overheating. They are designed to prevent electrical faults and equipment failure, and they form part of a broader family of more powerful circuit-breaking components. MCBs are widely used in domestic, commercial, and industrial settings, and they are available in several types, including single-pole, double-pole, and miniature variants. The different types of MCBs are categorised by their current rating, curve characteristics, and pole configurations, with the three key versions being Type B, Type C, and Type D.
| Characteristics | Values |
|---|---|
| Function | Prevent damage to an electrical circuit as a result of excess current |
| Types | A, B, C, D, K, Z, Single Pole, Double Pole, Triple Pole |
| Used in | Homes, offices, shops, commercial and industrial settings |
| Protection | Prevents electrical faults, ensures safety of appliances and minimises risks |
| Prevents | Overloading, short-circuiting, undervoltage, overheating |
| Trips at | A Type: 2-3 times the actual current rating, B Type: 3-5 times the actual current flow, C Type: 5-10 times the actual current flow, D Type: 10-20 times the actual current flow |
Explore related products
What You'll Learn
Types of MCB: A, B, C, D, K, and Z
Miniature Circuit Breakers (MCBs) are electromechanical safety devices that protect electrical circuits from damage due to excess current, overloading, and short-circuiting. They are designed to trip and cut off the power supply when the current exceeds safe limits. MCBs are classified into different types based on their tripping characteristics, which are determined by the range of tripping fault current and the operating time. The most common types of MCBs are A, B, C, D, K, and Z.
Type A MCBs are highly sensitive devices that trip instantaneously when the current reaches 2 to 3 times the rated current. They are designed for low levels of overcurrent protection and are used for the protection of highly sensitive devices. Type A MCBs are rarely used due to their high sensitivity.
Type B MCBs are designed for domestic and commercial applications at low voltages, where the likelihood of an overcurrent is low. They trip when the current is 3 to 5 times the rated current, with an operating time of 0.04 to 13 seconds. Type B MCBs are commonly used in home wiring and lighting circuits.
Type C MCBs are used for more powerful electrical devices where surges are likely to be higher, typically in commercial and industrial environments. They trip at currents between 5 and 10 times their rated load and are often used in electrical motors and fluorescent lighting. Type C offers higher protection compared to Type B.
Type D MCBs are the least sensitive type and are designed for heavy-duty commercial and industrial devices where strong current surges occasionally occur. They have a surge capacity of 10 to 20 times higher than the power threshold and are used in devices such as X-ray machines, welding equipment, and large motors.
Type K MCBs are used for inductive loads with a chance of high inrush currents, such as motor circuits. They trip when the current reaches 8 to 12 times the rated current with an operating time of less than 0.1 seconds. Type K is similar to Type D but has a longer overload time.
Type Z MCBs are designed for the protection of semiconductor devices and are used in electronic circuits. They operate when the current reaches 2 to 3 times the rated current with an operating time of less than 0.1 seconds. Type Z MCBs are highly sensitive and operate very quickly to protect sensitive devices.
The choice of MCB type depends on factors such as current rating, load type, environmental conditions, tripping characteristics, and the number of poles required to protect multiple circuits. MCBs play a crucial role in maintaining a constant power flow, ensuring the safety of appliances, and preventing electrical faults and fires.
Easy Guide: Loading Your Swingline Electric Stapler
You may want to see also
Explore related products
Type B: Trips at 3-5 times rated current
Type B Miniature Circuit Breakers (MCBs) are the most common type of MCB. They are characterised by their quick response to short-circuit conditions, with a time delay of around 0.04 seconds. Type B MCBs are suitable for most domestic and light commercial applications where inrush currents are not too high. This includes lighting, small motors, and similar loads, but they are mostly used for the protection of cables.
Type B MCBs trip when the current flowing through them reaches between 3 and 5 times the rated current. This is known as the B Curve. The B Curve is also used in some applications where frequent current peaks occur for a very short period (between 100ms and 2 seconds). In these cases, a Z-type MCB should be used.
Type B MCBs are commonly used in control panels to protect electronic devices such as PLCs and DC power supplies. They are also used in residential and commercial buildings for lighting power distribution boards.
Type B MCBs are important for electrical safety as they prevent electrical faults, ensuring the safety of appliances and minimising risks.
Keep Electric Cords Tangle-Free: Simple Hacks
You may want to see also
Explore related products
Type C: Trips at 5-10 times rated current
Type C MCBs are miniature circuit breakers that trip at currents between 5 and 10 times their rated load. They are used for powerful electrical devices with higher surges, typically in commercial and industrial environments. Type C MCBs offer higher protection compared to Type B MCBs and have a higher capacity to handle surges. They are often used in devices with high power consumption requirements, such as electrical motors, pumps, air conditioners, and fluorescent lighting.
Type C MCBs are suitable for installations with relatively higher inrush currents. They have a slower response to short circuit currents compared to Type B MCBs, but a higher capacity for overcurrents. This makes them ideal for devices that require medium starting currents. Type C MCBs are designed to prevent electrical faults and protect both devices and wiring from damage. They are an essential safety feature in electrical systems, helping to minimise risks and ensure the safety of appliances.
The tripping mechanism in Type C MCBs is designed to respond to overloads and short circuits. When the current exceeds the designated safe limit, the MCB automatically cuts off the power supply, disrupting the circuit and protecting the system. This mechanism is crucial in preventing damage to electrical circuits and equipment. Type C MCBs are typically used in devices that require a higher level of protection against electrical faults and surges.
Type C MCBs are an important component in maintaining a constant power flow in industrial equipment. They are often installed in commercial spaces such as supermarkets, hotels, and malls to protect multiple devices. Type C MCBs are also used in residential applications, providing safety and efficiency in electrical systems. They are suitable for electromagnetic starting loads and offer easy reset options after tripping, making them a reliable choice for various electrical applications.
Oricorio's Electric Moves: What's the Verdict?
You may want to see also
Explore related products
Type D: Least sensitive, used in heavy-duty devices
Type D MCBs are the least sensitive type of miniature circuit breaker. They are designed to only activate when the current surges to between 10 and 20 times the recommended maximum. This makes them ideal for heavy-duty commercial and industrial devices that experience very strong current surges.
Type D MCBs are commonly used in equipment such as welding machines, X-ray machines, large motors, and uninterruptible power supply units. These devices require a high level of protection from voltage fluctuations and power surges due to their high power consumption and expense.
MCBs, in general, are essential safety devices that protect electrical circuits. They are designed to prevent electrical faults and equipment failure by automatically cutting off the power supply when an overload or short circuit is detected. This not only safeguards devices and wiring from damage but also helps prevent electrical fires.
Type D MCBs are part of a broader family of circuit-breaking components, which also includes more sensitive types like Type A, B, C, K, and Z MCBs. Each type of MCB is designed with specific tripping characteristics to respond to different strengths of electrical surges in various settings. The selection of the appropriate type of MCB depends on factors such as current rating, load type, and environmental conditions.
Add Electronic Signatures to Word Documents
You may want to see also
Explore related products
Single, double, triple, and four-pole MCBs
MCB, or Miniature Circuit Breaker, is an electromechanical device that protects electrical circuits. MCBs are installed in electrical panels to ensure a uniform power distribution to all devices. They are also used to protect multiple devices in our homes and commercial spaces from power surges.
Single-pole MCBs are the most basic type of MCB and are used to protect single, non-grounded circuits. They are commonly used in residential and light commercial applications.
Double-pole MCBs, also known as two-pole MCBs, are used to protect two circuits that share a common neutral wire. They are often used in residential and commercial applications where two circuits need to be protected, such as in a split-phase power system.
Triple-pole MCBs, or three-pole MCBs, are used to protect three circuits that share a common neutral wire. They are commonly used in three-phase power systems, which are typically found in industrial applications.
Four-pole MCBs are used to protect four circuits that share a common neutral wire. They are less common than single, double, and triple-pole MCBs but are used in specialised applications where four circuits need to be protected.
Who's Responsible for Underground Electricity Cables?
You may want to see also
Frequently asked questions
MCB stands for Miniature Circuit Breaker. It is an automatically operated electrical switch that prevents damage to an electrical circuit by cutting off the power supply during overload and faults.
There are six main types of MCBs: A, B, C, D, K, and Z. Types B, C, and D are the most commonly used.
Type B MCBs are designed to trip at currents between three and five times their rated load. They are used to protect cables and conductors from overload and short circuit. Type B MCBs are commonly used in domestic and commercial settings.
Type C MCBs are used for more powerful electrical devices where surges are likely to be higher. They are designed to trip at currents between five and ten times their rated load. Type C MCBs are commonly used in commercial and industrial environments.
Type D MCBs are the least sensitive type, only activating when the current surges to between ten and twenty times the recommended maximum. They are used in heavy-duty commercial and industrial devices where very strong current surges occasionally occur, such as welding equipment and X-ray machines.
