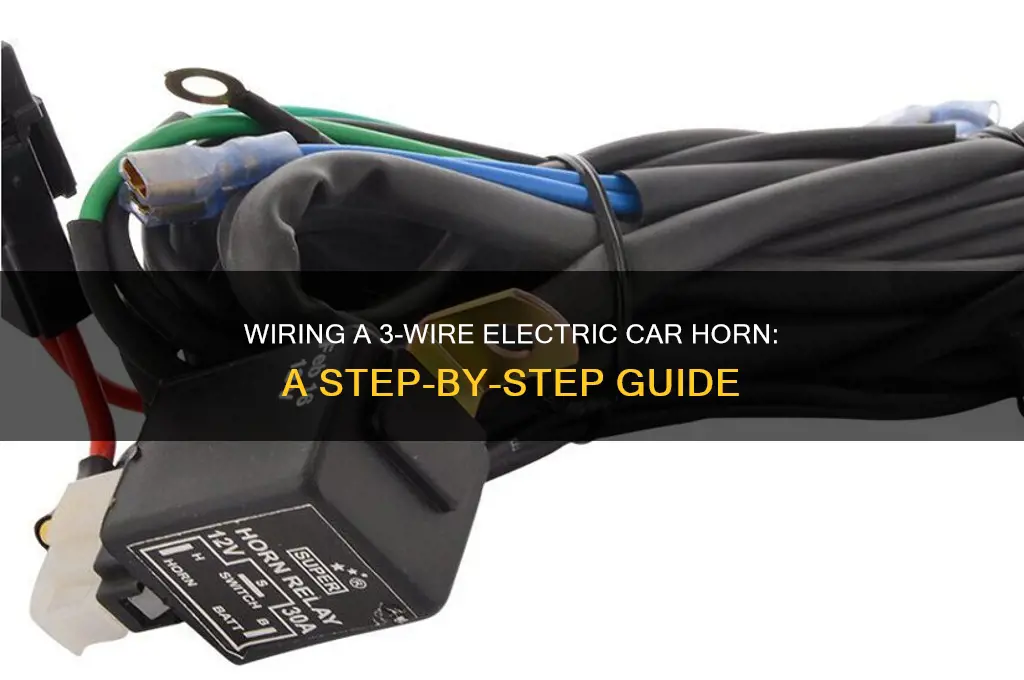

Installing a 3-wire electric car horn involves connecting three primary wires: the power wire (usually red), the ground wire (typically black), and the trigger wire (often blue or green). Begin by locating the vehicle’s battery to connect the power wire directly to the positive terminal and the ground wire to the chassis or negative terminal. The trigger wire should be linked to the horn button or relay, ensuring the horn sounds when the button is pressed. Properly secure all connections with electrical tape or heat shrink tubing to prevent shorts, and test the horn to confirm functionality. Always consult the horn’s manual for specific wiring diagrams and safety guidelines.
Explore related products
What You'll Learn
- Understanding Horn Components: Identify the horn’s parts: electromagnet, diaphragm, and contact points for proper assembly
- Wiring Connections: Connect power, ground, and relay wires correctly to ensure the horn functions safely
- Mounting the Horn: Secure the horn to the vehicle using brackets and bolts for stability
- Testing the Circuit: Use a multimeter to check for continuity and proper voltage flow in the circuit
- Troubleshooting Issues: Diagnose common problems like no sound, weak sound, or continuous honking and fix them
Understanding Horn Components: Identify the horn’s parts: electromagnet, diaphragm, and contact points for proper assembly
A 3-wire electric car horn may seem like a simple device, but its functionality relies on the precise interaction of three key components: the electromagnet, diaphragm, and contact points. Understanding these parts is crucial for proper assembly, troubleshooting, and maintenance. Let's dissect each component and its role in producing that familiar honking sound.
The Electromagnet: Powering the Process
At the heart of the horn lies the electromagnet, a coil of wire wrapped around a metal core. When electricity flows through the coil, it generates a magnetic field. This field acts as the driving force behind the horn's operation. In a 3-wire system, one wire typically supplies power to the electromagnet, while another connects to the ground.
The Diaphragm: Creating the Sound
Attached to the electromagnet is a thin, flexible diaphragm, often made of steel or a similar material. When the electromagnet is energized, it attracts the diaphragm, causing it to vibrate rapidly. These vibrations are what produce the sound waves we hear as the horn's blast. The diaphragm's material and thickness directly influence the horn's tone and volume.
Contact Points: Completing the Circuit
The third wire in the system connects to the contact points, which are crucial for controlling the horn's operation. These points, typically made of a conductive material like copper, are positioned near the electromagnet. When the horn button is pressed, the circuit is completed, allowing current to flow through the electromagnet and activate the diaphragm.
Assembly and Troubleshooting Tips:
Understanding these components allows for informed assembly and troubleshooting. When installing a 3-wire horn, ensure the electromagnet is securely mounted and the diaphragm is properly aligned. Check for loose connections at the contact points, as these can lead to intermittent or no sound. If the horn sounds weak or distorted, inspect the diaphragm for damage or debris. Remember, the electromagnet's strength and the diaphragm's condition are key factors in the horn's performance.
Electric Car Lifespan: How Long Do They Really Last?
You may want to see also
Explore related products
![Car Horns 12v 130dB Supe Loud [2 pack]kit -Truck Train Horn-Waterproof-Tweeter/Bass,High Low Tone General Accessories, Electric Snails for Cars, Motorcycles, SUVs, Electric Cars(Universal replacement)](https://m.media-amazon.com/images/I/71BDszQtR3L._AC_UY218_.jpg)
Wiring Connections: Connect power, ground, and relay wires correctly to ensure the horn functions safely
A 3-wire electric car horn relies on precise wiring connections to function safely and effectively. The three wires—power, ground, and relay—must be connected correctly to ensure the horn operates when needed without causing electrical issues. Miswiring can lead to malfunctions, short circuits, or even damage to the vehicle’s electrical system. Understanding the role of each wire and how they interact is crucial for a successful installation.
Begin by identifying the wires: the power wire (usually red) connects to the vehicle’s battery or a switched power source, the ground wire (typically black) connects to the chassis or a metal ground point, and the relay wire (often blue or green) activates the horn when triggered by the horn button. Use a multimeter to verify voltage at the power wire (12V in most cars) and ensure the ground wire has a solid connection to metal, free of rust or paint. Strip the wire ends cleanly and use appropriate connectors or soldering for secure joints.
When connecting the relay wire, ensure it’s linked to the horn button’s output terminal. This wire carries the signal from the button to the relay, which then completes the circuit to power the horn. If using a relay with multiple terminals, consult the relay’s diagram to identify the correct input and output pins. Always double-check polarity to avoid reverse connections, which can damage the relay or horn.
Safety is paramount during installation. Disconnect the battery before starting to prevent accidental shorts. Insulate all connections with heat shrink tubing or electrical tape to protect against moisture and vibration. Test the horn before reassembling any panels to confirm proper function. If the horn doesn’t sound, recheck connections and use the multimeter to trace the issue—common culprits include loose grounds or broken wires.
In summary, correct wiring connections are the backbone of a functional 3-wire electric car horn. By methodically connecting power, ground, and relay wires, and adhering to safety practices, you ensure the horn operates reliably without compromising the vehicle’s electrical system. Attention to detail and thorough testing guarantee a safe and effective installation.
Electric Vehicles: AWD Standard or Optional Feature?
You may want to see also
Explore related products
Mounting the Horn: Secure the horn to the vehicle using brackets and bolts for stability
Mounting a 3-wire electric car horn begins with selecting the right location—ideally, a spot near the front grille or bumper where sound can project unobstructed. The horn’s placement should balance acoustics and accessibility for wiring and maintenance. Once the location is chosen, the next critical step is securing the horn with brackets and bolts to ensure stability under all driving conditions. This isn’t just about preventing rattles or vibrations; it’s about maintaining the horn’s functionality and safety, especially in high-speed or off-road scenarios.
The process starts with aligning the horn’s mounting holes with the chosen surface. Use brackets specifically designed for your horn model, as these will provide the necessary clearance and fit. Stainless steel or galvanized brackets are recommended to resist corrosion, particularly in vehicles exposed to harsh weather or road salts. Secure the brackets with bolts of the appropriate size—typically M6 or M8, depending on the horn—and ensure they are tightened to the manufacturer’s torque specifications. Over-tightening can strip threads, while under-tightening risks instability.
A practical tip is to use thread-locking adhesive on the bolts to prevent them from loosening over time due to vibrations. Additionally, consider adding rubber gaskets or washers between the horn and mounting surface to dampen vibrations and reduce noise interference. This small step can significantly improve the horn’s longevity and sound quality. If the vehicle is frequently driven on rough terrain, double-check the mounting periodically to ensure bolts haven’t worked loose.
Comparing this to other mounting methods, such as adhesive-based systems, brackets and bolts offer superior reliability and durability. Adhesives may fail under extreme temperatures or vibrations, whereas mechanical fastening provides a consistent hold. For electric horns, which rely on stable electrical connections, a secure mount is essential to prevent wire damage or disconnection. Proper mounting isn’t just about holding the horn in place—it’s about ensuring it performs reliably when you need it most.
In conclusion, mounting a 3-wire electric car horn using brackets and bolts is a straightforward yet critical task. By choosing the right materials, following torque specifications, and incorporating vibration-dampening measures, you can achieve a stable and long-lasting installation. This approach not only enhances the horn’s performance but also contributes to overall vehicle safety, making it a worthwhile investment of time and effort.
The Pioneers Behind Electric Cars: Unveiling the Inventors and Innovators
You may want to see also
Explore related products
Testing the Circuit: Use a multimeter to check for continuity and proper voltage flow in the circuit
Before installing or troubleshooting a 3-wire electric car horn, verifying the integrity of the circuit is crucial. A multimeter becomes your indispensable tool here, allowing you to confirm continuity and voltage flow, ensuring the electrical pathway is sound. Without this step, you risk overlooking a faulty connection or damaged wire, leading to intermittent or non-functional horn operation.
Understanding the Test Points: In a 3-wire horn setup, you’ll typically have a power wire (usually red), a ground wire (black), and a control wire (often blue or green). Set your multimeter to the continuity mode (represented by a diode symbol or a sound wave) to check for breaks in the wires. Touch the probes to the ends of each wire; a continuous circuit will produce a beep or show low resistance (close to 0 ohms). If there’s no beep or the resistance is high, the wire is damaged or disconnected. Next, switch to the voltage setting (DCV for car systems) and test the power wire against ground with the ignition on. A healthy circuit should read 12–14 volts, depending on battery charge.
Practical Tips for Accuracy: Always disconnect the horn from the circuit before testing to avoid false readings or damage. Ensure the multimeter probes are firmly pressed against the wire ends or terminals, as loose contact can mimic a broken circuit. If testing the control wire, activate the horn button while measuring continuity; the circuit should close momentarily, indicated by a beep or low resistance. Keep the multimeter leads organized to prevent accidental short circuits, especially in cramped engine bays.
Interpreting Results: If continuity is confirmed but voltage is absent, suspect a blown fuse, faulty relay, or poor ground connection. Conversely, if voltage is present but the horn doesn’t sound, the issue may lie with the horn itself or the control wire’s signal. Document your findings to systematically narrow down the problem. For instance, if the power wire shows 12 volts but the ground wire has high resistance, clean or replace the grounding point before proceeding.
Cautions and Conclusion: Avoid testing the circuit with the horn connected, as this can lead to unintended activation or damage. Be mindful of polarity when testing voltage; reversing the probes can yield incorrect readings. By methodically checking continuity and voltage, you not only diagnose the issue but also ensure the circuit’s safety and reliability. This step, though often overlooked, is the linchpin of a successful horn installation or repair.
Surge Protectors: Electric Vehicle Charging Safeguards?
You may want to see also
Explore related products
Troubleshooting Issues: Diagnose common problems like no sound, weak sound, or continuous honking and fix them
A silent horn can be a safety hazard, while a weak or incessant one is equally problematic. Diagnosing these issues requires a systematic approach, starting with the simplest checks. Begin by verifying the horn’s power supply. Ensure the battery is fully charged and the fuse in the horn’s circuit is intact. A blown fuse or a loose connection at the battery terminal can render the horn inoperative. If the fuse is fine, proceed to inspect the horn relay, typically located in the fuse box. A faulty relay often prevents power from reaching the horn, resulting in silence.
Weak sound from a 3-wire electric car horn often stems from insufficient power or a malfunctioning ground connection. Check the ground wire for corrosion, looseness, or damage. Clean the connection point with a wire brush and secure it tightly. If the ground is intact, test the voltage at the horn’s power wire using a multimeter. A reading significantly below 12 volts indicates a power delivery issue, possibly due to a weak battery or high resistance in the wiring. In such cases, trace the wiring harness for breaks or frays and repair as needed.
Continuous honking is less common but equally frustrating, usually caused by a stuck relay or a short circuit. Disconnect the horn’s power wire and observe if the honking stops. If it does, the issue lies in the wiring or the horn button. Inspect the horn button for debris or mechanical failure that might keep the circuit closed. If the honking persists after disconnecting power, the horn itself may be faulty, requiring replacement. Always disconnect the battery before handling electrical components to avoid accidental shocks.
For persistent issues, consider testing the horn outside the vehicle. Connect it directly to the battery using jumper wires to bypass potential wiring faults. If the horn functions correctly, the problem lies in the vehicle’s electrical system. If not, the horn is defective. Replacement horns are readily available, but ensure compatibility with your vehicle’s voltage and mounting specifications. Always consult the vehicle’s manual for specific troubleshooting steps and safety precautions.
In summary, troubleshooting a 3-wire electric car horn involves methodical checks of power, ground, and relay functionality. Addressing no sound, weak sound, or continuous honking requires a blend of inspection, testing, and repair. By systematically eliminating potential causes, you can restore the horn’s functionality and ensure safety on the road.
Accelerating Adoption: Strategies to Make Electric Cars Mainstream
You may want to see also
Frequently asked questions
A 3-wire electric car horn typically has wires for power (+12V), ground, and a signal/trigger. Connect the power wire to the vehicle’s 12V battery or fuse box, the ground wire to the chassis or a metal surface, and the signal wire to the horn button or relay. Always consult the horn’s manual for specific wiring instructions.
Check the connections to ensure the power, ground, and signal wires are securely attached. Verify the fuse for the horn circuit is intact and test the voltage at the horn’s power terminal. If the connections and power are correct, the horn itself may be faulty and need replacement.
While it’s possible to connect a 3-wire horn directly to the horn button, using a relay is recommended for high-current horns to prevent damage to the button switch. A relay acts as a switch, handling the high current and extending the life of the horn and wiring system.
