Class 2 electrical circuits are an important aspect of wiring in both residential and commercial buildings. These circuits are classified as power-limited building control wiring, allowing for more fragile wiring methods and exceptions from standard requirements. To ensure safety and compliance, it is crucial to understand the distinctions between Class 2 and other circuit classes, such as Class 1 and Class 3. This classification system is based on power sources and supply types, with Class 2 circuits typically having lower power limits and specific safety measures in place. Understanding these differences is essential for contractors, building managers, and homeowners to make informed decisions about electrical installations and ensure adherence to local codes and regulations.
| Characteristics | Values |
|---|---|
| Circuit classification | Determined by the power supply |
| Class 2 circuitry | Doorbell wiring and associated transformer |
| Power supply | Batteries, AC voltage(s), independent transformers, or electronic power supplies |
| Class 1 | Regular power wiring using wiring methods from chapter 3, the NEC 300's |
| Class 2 | Article 725 wiring method for power-limited building control wiring |
| Class 2 power limits | 40 to 80 va |
| Class 2 wire | Extra layer of installation, approved by the NEC for inside walls |
| Class 2 compliance | Required for low-voltage power supplies and electrical wiring by the National Electric Code (NEC) |
| Class 1 and 2 circuits | Must be separated |
| Class 2 power supply | No ground connection, only line and neutral connection |
| Class II power supply | Used for medical devices for home settings to protect from electrical shock |
Explore related products
What You'll Learn
Understanding Class 1, 2, and 3 circuits
Class 1, 2, and 3 circuits are commonly used for remote control, signalling, and power-limited applications. The power supply connected to these circuits largely determines their class. The power supply can come in the form of batteries or AC voltages delivered through independent transformers.
Class 1 circuits are regular power wiring that uses one or more of the wiring methods provided in the NEC 300s. These circuits are further divided into two subgroups: power-limited and remote-control and signalling circuits. The power-limited subgroup has a source of 30V and an apparent power of less than 1000VA, while the remote-control and signalling subgroup has a source of 600V or less. Class 1 circuits are equipped with overcurrent protection to limit the amount of current in the event of an overload, short, or ground fault condition.
Class 2 circuits are considered safe from a fire and shock standpoint due to the power limitations of the transformer or power supply. They are allowed if the upstream power supply is a listed class 2 device. The power limits of class 2 supplies are low, ranging from 40 to 80 VA, and they inherently have self-protected circuitry. Class 2 circuits focus on fire prevention as their primary safety goal.
Class 3 circuits can operate at higher voltages than Class 2 circuits, and they provide protection against shocks. They also focus on fire prevention as their primary safety goal.
Class 2 and 3 circuits can be installed together, provided there is a barrier between the two circuits. They can also be placed with enclosures with single fitting openings, such as a tee, alongside Class 1 circuits, as long as there is a non-conductive material separating the two circuits.
Class 1, 2, and 3 circuits are not conflicting designs but rather clear-cut methods to ensure that technical specifications are met for extremely high-power circuitry.
Electric Brakes on Trailers: Easy Connection Guide
You may want to see also
Explore related products
Class 2 compliance and inspections
The National Electric Code (NEC) requires that low-voltage power supplies and electrical wiring be Class 2 compliant. Class 2 is an article 725 wiring method for power-limited building control wiring, allowing more fragile wiring methods and exceptions from the requirements of Chapter 3 of the NEC. To be Class 2 compliant, 12V DC drivers must be 60W and under, and 24V drivers must be 96W and under.
Class 2 compliance is particularly important when retrofitting or creating new construction with low-voltage LED lights and systems. If you are creating new construction or adding major modifications, you will most likely require an inspection. New construction requires a work permit that must be obtained from a local safety or electrical inspector. Some small jobs may not require a permit, but it is in your best interest to get a safety inspection to avoid any unintended problems. For example, if you rewire a kitchen or basement without having it inspected and then try to sell the house, an inspector may ask you to tear down the walls to check the wiring.
The inspection process consists of two visits: the 'rough-in' inspection and the 'final' inspection. The rough-in inspection consists of checking that all wiring is properly installed before any switches, fixtures, insulation, and walls are added. For low-voltage installations, this is when the inspector will specifically check if the wiring is Class 2 compliant. The inspector will also check to see if the fixtures are approved by a National Recognized Testing Laboratory (NRTL), such as Underwriter Laboratories (UL) or Intertek (ETL). Once the rough-in inspection is passed, you can then complete the installation with insulation, walls, switches, and fixtures before the final inspection.
To pass inspection, a junction box must be installed to encapsulate a 120V AC wire connection to a 12-24V DC power converter (driver). Junction boxes provide a safe, grounded fireproof enclosure, preventing wire nuts from coming loose and causing a short circuit and a possible electrical fire.
Connecting to Electro-Voice ZLX: A Simple Guide
You may want to see also
Explore related products
$39.87
Class 2 wiring methods
Understanding Class 2 Compliance
Class 2 compliance is a critical consideration when installing low-voltage LED lights and systems. The National Electric Code (NEC) mandates that low-voltage power supplies and electrical wiring must adhere to Class 2 standards. This code was established to prevent electrical fires and shock hazards. Whether it's a new construction or a major retrofit, an inspection is typically required to ensure compliance. Obtaining a work permit from a local safety or electrical inspector is necessary before initiating the project.
Class 2 Wiring Method Characteristics
Installation Considerations
When installing Class 2 wiring, it's important to ensure that the circuits are routed independently of other circuits, both within control enclosures and in field raceways. Class 2 In-Wall Rated Wire is approved by the NEC for installation inside walls, providing an extra layer of protection against cracking or melting. Additionally, junction boxes can be installed to separate Class 1 and Class 2 circuits, providing a safe, grounded fireproof enclosure.
Benefits of Class 2 Wiring Methods
Power Distribution
Electrical Code Differences: Commercial vs. California Residential
You may want to see also
Explore related products
Terminology: Class 2 vs Class II
The terms "Class 2" and "Class II" are often used in discussions about electrical systems and devices, but they refer to different classifications with distinct standards and definitions. Here is a detailed explanation of the terminology:
Class 2
Class 2 is a designation defined by the National Electrical Code (NEC) in the United States. It pertains to wiring requirements and power output limitations between the supply output and load input. The primary focus of Class 2 is to reduce the risk of fire hazards by setting maximum power levels and considering factors like wire size, installation methods, and derating factors. Class 2 wiring methods allow for more fragile wiring techniques and exceptions from the standard requirements. The power limits of Class 2 supplies are typically very low, ranging from 40 to 80 VA, and they inherently have self-protected circuitry or design.
Class II
Class II, on the other hand, is a standard established by the International Electrical Commission (IEC). It refers to the internal architecture and electrical insulation of a power supply. Class II devices incorporate double insulation or reinforced insulation, providing two layers of protection against electric shock. This additional insulation eliminates the need for a ground connection, as required in Class I devices. Products with Class II power supplies often display a symbol indicating double insulation, such as a square within a square.
Distinguishing Between Class 2 and Class II
The distinction between Class 2 and Class II is crucial and often a source of confusion. Class 2 focuses on limiting power output and wiring requirements to prevent fire hazards, while Class II concentrates on the internal design and insulation of devices to enhance safety against electric shock. Class 2 is primarily concerned with wiring and voltage regulations, whereas Class II relates to the input of the power supply and the presence or absence of a ground connection.
Applications and Requirements
Class 2 compliance is essential when retrofitting or constructing new buildings with low-voltage LED lights and systems. The NEC requires Class 2 compliance for low-voltage power supplies and electrical wiring to prevent electrical fires and shock hazards. Inspections are typically required for new construction or major modifications, and work permits must be obtained from local safety or electrical inspectors. Class 2 wiring must be properly installed, and Class 2 In-Wall Rated Wire provides an extra layer of protection against cracking or melting, making it suitable for installation inside walls.
Class II requirements are particularly relevant for LED lighting systems and medical devices. In LED lighting, Class II certification ensures that the LED drivers, which regulate power and current, meet safety standards. For medical devices, especially those for home use, Class II input is necessary to protect users from electrical shock if the device lacks protective earth-ground wiring or malfunctions.
Selling Your Electrical Business: Strategies for Success
You may want to see also
Explore related products
Power supply and circuit classification
Converters can be further classified into DC/DC converters and AC/DC converters. DC/DC converters are commonly used in electronic devices and appliances, supplying microcomputers and memory with low voltage. AC/DC converters are used to charge devices like notebook PCs and smartphones, and they combine a rectifier made of diodes with a DC/DC converter.
When it comes to power supply classification, there are several types to consider. Regulated linear power supplies use a 3-terminal regulator to provide the required level of DC power to the load. Programmable DC power supplies are classified into DC constant voltage power supplies and DC constant current power supplies, depending on whether the output voltage or current is stabilized.
Additionally, power supply circuits are classified into AC/DC power supplies and DC/DC power supplies. The former converts AC to DC and regulates voltages, while the latter converts an unstable DC into a stabilized DC.
It's important to note that when adding an electrical outlet to an existing line, you are essentially extending the current circuit. This can be done as a DIY project with the right tools, knowledge, and precautions. However, safety should always be the top priority, and it's crucial to adhere to safety standards and building codes to avoid electrical hazards.
Lawn Mower Electric Clutches: Universal Fit or Unique?
You may want to see also
Frequently asked questions
Class 2 circuitry is an article 725 wiring method for power-limited building control wiring. It allows for more fragile wiring methods and exceptions from the requirements of Chapter 3 of the NEC 300's.
Class 1 circuits are regular power wiring using one or more of the wiring methods provided in Chapter 3 of the NEC 300's. Class 2 circuits, on the other hand, are power-limited and have very low power supplies, typically in the range of 40 to 80 VA.
Class 2 compliance is important for electrical safety. The National Electric Code (NEC) requires Class 2 compliance for low-voltage power supplies and electrical wiring to prevent electrical fires and shock.

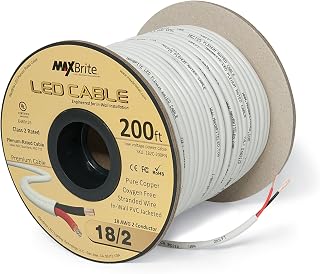

To ensure Class 2 compliance, you must use Class 2 In-Wall Rated Wire, which is approved by the NEC for installation inside walls. This type of wire provides an extra layer of insulation that is more resistant to cracking or melting.
