The Chicago Electric compound miter saw is a powerful tool that enables users to make a variety of cuts, including miter cuts, bevel cuts, and compound angle cuts. Adjusting the miter angle on the Chicago Electric saw involves first unplugging the saw from its electrical outlet. The miter angle can then be adjusted between 0 and 45 degrees to the right or left by loosening the Fasten Knob on the Guide Fence. For bevel cuts, the Bevel Lock Lever at the rear of the saw needs to be loosened, and the angle adjusted using the Bevel Angle Indicator. When adjusting the depth of cut, only the front Depth Stop Bolt should be adjusted, while the rear Bolt must be left untouched to prevent the blade from damaging the table.
Characteristics and Values Table for Adjusting the Chicago Electric Miter Saw
| Characteristics | Values |
|---|---|
| Miter Angle Adjustment | 0 - 45 degrees to the right or left |
| Fasten Knob | Loosen to adjust the miter angle |
| Depth Stop | Controls the depth of the cut; adjust the front Depth Stop Bolt clockwise |
| Head Lockdown Pin | Unlock before adjusting the depth |
| Bevel Angle Adjustment | Loosen the Bevel Lock Lever, adjust the angle, and tighten |
| Blade Installation | Remove cover bolt and screw, press "spindle lock button," unscrew bolt, and replace the blade |
Explore related products
What You'll Learn
- Adjusting the miter angle: loosen the Fasten Knob to adjust 0-45 degrees right or left
- Adjusting the bevel angle: loosen the Bevel Lock Lever, adjust, and tighten
- Installing the blade: remove cover bolt, cover screw, and bolt holding the blade
- Using the depth stop: adjust the front Depth Stop Bolt to control cut depth
- Adjusting the fence: match the direction of the new blade with the saw Blade Housing
Adjusting the miter angle: loosen the Fasten Knob to adjust 0-45 degrees right or left
To adjust the miter angle of a Chicago Electric miter saw, follow these steps:
First, ensure that the saw is unplugged from its electrical outlet for safety. The miter angle of the saw can be adjusted between 0 and 45 degrees to the right or left. Loosen the Fasten Knob, located on the Guide Fence, to make this adjustment. This knob controls the angle of the saw blade, allowing you to tilt it to the desired angle.
Once the Fasten Knob is loosened, you can adjust the angle of the blade. You can tilt it either to the right or to the left, depending on the cut you need to make. Fine-tune the angle until it reaches the desired position. Make sure that the blade is securely locked in place at the chosen angle before proceeding with any cutting operations.
After adjusting the miter angle, remember to tighten the Fasten Knob securely. This step is crucial to ensure the blade remains stable during use. Failure to tighten the knob adequately may result in unintended movement of the blade, affecting the accuracy of your cuts and potentially creating a safety hazard.
By following these steps, you can quickly and easily adjust the miter angle of your Chicago Electric miter saw to make accurate cuts at various angles, ensuring precise and efficient woodworking or metalworking projects. Remember always to prioritize safety when working with power tools, and ensure that the saw is unplugged and the blade has stopped spinning before making any adjustments.
Electric Furnaces and Carbon Monoxide: What's the Risk?
You may want to see also
Explore related products
Adjusting the bevel angle: loosen the Bevel Lock Lever, adjust, and tighten
When adjusting the bevel angle of your Chicago Electric miter saw, it is important to take safety precautions. Ensure that the saw is unplugged from its electrical outlet before beginning any adjustments. This is a crucial step to prevent accidental activation during the process. Additionally, always refer to your miter saw manual for specific safety information and instructions on how to adjust your saw.
Now, let's guide you through the process of adjusting the bevel angle:
Loosen the Bevel Lock Lever:
Locate the Bevel Lock Lever on your Chicago Electric miter saw. This lever is responsible for locking the bevel angle in place. By loosening this lever, you will be able to adjust the bevel angle.
Adjust the Bevel Angle:
Once the Bevel Lock Lever is loosened, you can proceed to adjust the bevel angle to your desired setting. Bevel adjustments allow you to tilt the blade and the motor assembly relative to the base of the saw. This adjustment is typically used for making bevel cuts, which are angled cuts through the wood.
Tighten the Bevel Lock Lever:
After you have adjusted the bevel angle to your desired position, it's time to secure it in place. Tighten the Bevel Lock Lever firmly to lock in the new bevel angle. Ensure that it is securely tightened to prevent any unintended movement during operation.
By following these steps, you can adjust the bevel angle on your Chicago Electric miter saw. Remember to refer to your saw's manual for specific instructions and safety precautions related to your particular model. Safety should always be a priority when working with power tools.
Repairing Electrical Cord Plugs: A DIY Guide
You may want to see also
Explore related products
Installing the blade: remove cover bolt, cover screw, and bolt holding the blade
To install the blade on a Chicago Electric miter saw, follow these steps carefully:
First, remove the cover bolt using the socket wrench provided with the saw. This will allow you to access the inner components of the saw to proceed with the blade installation. Next, locate and remove the cover screw. For this step, use the T-20 star wrench that also came with your saw. With these two fasteners removed, you can now access and remove the bolt holding the blade in place.
Before proceeding, ensure you press the "spindle lock button" to lock the blade. This step is crucial for your safety and stability when handling the blade. With the blade locked, proceed to unscrew the bolt by turning it clockwise. Remember always to follow the right direction when unscrewing to avoid damaging the threads. Once the bolt is removed, carefully remove the guard and set it aside safely.
Now, you can take out the old blade. Be cautious as the blade's edges may be sharp. At this point, you have successfully removed the cover bolt, cover screw, and bolt holding the blade, and you can continue with installing the new blade by following the manufacturer's instructions for your specific model.
Please refer to your Chicago Electric miter saw manual for detailed instructions and illustrations specific to your saw model, ensuring a safe and accurate blade installation process.
Repairing Electric Scooter Brakes: A Step-by-Step Guide
You may want to see also
Explore related products
Using the depth stop: adjust the front Depth Stop Bolt to control cut depth
When using a Chicago Electric miter saw, it is important to only adjust the front Depth Stop Bolt to control the cut depth. The rear bolt should not be adjusted as it is crucial for preventing the blade from cutting the table during normal cutting.
To adjust the front Depth Stop Bolt, follow these steps:
- Ensure that you have unlocked the Head Lockdown Pin. Refer to your owner's manual for detailed instructions on how to do this, as the process may vary slightly depending on your specific Chicago Electric miter saw model.
- Raise the saw head assembly.
- Push the Depth Stop to the right to engage the Depth Stop Bolt setting.
- Pull down on the saw head to adjust the depth as needed for your desired cut.
- You can also turn the Depth Stop Bolt clockwise to fine-tune the depth setting.
It is important to note that the Depth Stop feature is particularly useful when you want to make a kerfing or rabbet cut that does not cut through the entire workpiece. Always refer to your owner's manual for specific instructions and safety precautions before adjusting your miter saw. Additionally, ensure that your work area is clean, well-lit, and free of hazards, such as power cords, to prevent accidents.
Hydroponics Electricity Consumption: Is It Cost-Effective?
You may want to see also
Explore related products
Adjusting the fence: match the direction of the new blade with the saw Blade Housing

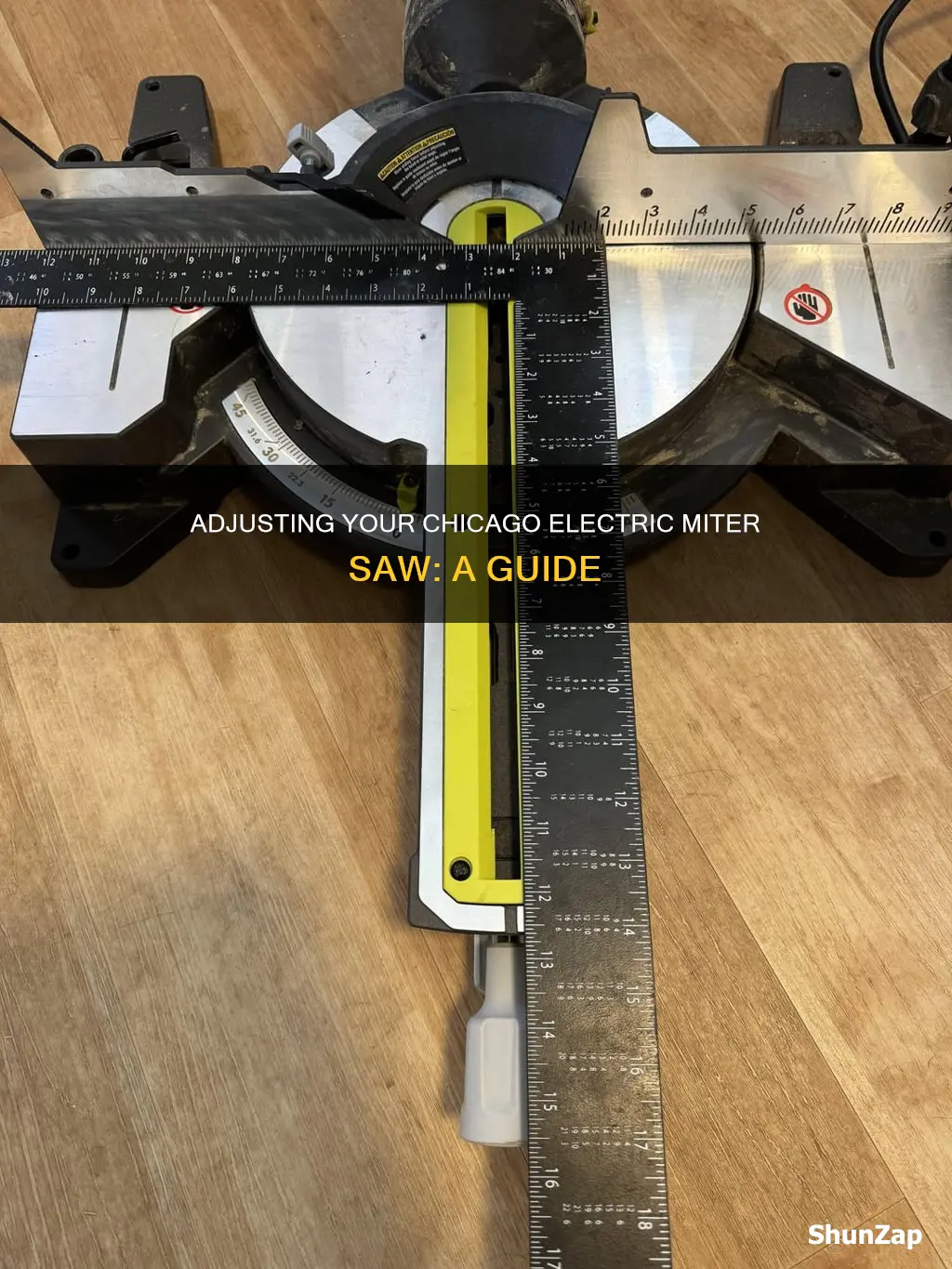

To adjust the fence on a miter saw, you must first ensure the saw is unplugged from its power source. Next, loosen the bolts on the left-hand side of the fence with a wrench. Now, lower the saw blade and place a speed square flat against the fence. Move the square against the side of the blade, being careful to avoid the blade's teeth.
If there is a gap at the front or back edge of the speed square, the blade is not square to the fence and requires adjustment. Adjust the fence so that the speed square is in complete contact with the side of the saw blade, then tighten the bolts.
If your miter saw has a split fence, like the Porter Cable 3802L, you must remove the fence slide from the left fence. Loosen the bolts holding the left fence to the saw, then adjust the left fence to the saw blade with a square. Set one side of the square against the face of the saw blade, then move the left fence until it is flush with the square. Secure the left fence bolts by tightening one of the bolts on the left fence.
Now, place a straight edge against the recently-adjusted left fence, loosen the bolts on the right-hand side of the fence, and adjust the right fence against the straight edge. Secure the right fence by tightening its bolts.
Finally, place a level across both fences and adjust the right fence until it is flush with the left fence and the level is even.
Solar Storms: Impacting Electricity and Modern Life
You may want to see also
Frequently asked questions
First, make sure the miter saw is unplugged from its electrical outlet. The miter angle of a cut can be adjusted 0-45 degrees to the right or left. Loosen the Fasten Knob located on the Guide Fence to adjust the angle.
Loosen the Bevel Lock Lever at the rear of the saw. Read the angle on the Bevel Angle Indicator and tighten it firmly, but do not over-tighten.
Only adjust the front Depth Stop Bolt. The rear Bolt is used to prevent the blade from cutting the table during normal cutting. Do not adjust the rear Depth Bolt. Turn the Depth Stop Bolt clockwise to adjust the depth.
Reinstall a new blade on the Inner Flange, ensuring the direction matches the one marked on the saw Blade Housing. Replace the Outer Flange and Arbor Bolt, tightening it with a wrench by turning it counterclockwise. Rotate the Center Cover back into place and tighten the Center Cover Fixing Bolt with the wrench, turning it clockwise. Finally, release the Locking Pin.
Remove the cover bolt using the provided socket wrench. Then, remove the cover screw using the provided T-20 star wrench. Press the "spindle lock button" to lock the blade in place, and with the blade locked, unscrew the bolt by turning it clockwise. Finally, remove the guard and the blade.
