Wiktor Wise
Adjusting the truss rod on an electric bass guitar is a delicate process that requires careful attention to detail. The truss rod is a metal bar, usually made of steel, that runs through the neck of the bass guitar, providing stability and counteracting the tension of the strings. Over time, due to factors such as changes in temperature, humidity, and the constant pull of the strings, the wooden neck of the bass can bend or straighten, affecting the curvature of the neck and the distance between the strings and frets. To adjust the truss rod, bassists must use an Allen wrench or a Phillips screwdriver to make small adjustments, typically no more than a quarter turn at a time, allowing the wood to settle before making further changes. This process involves clamping a capo along the first fret and using a feeler gauge to measure the gap between the strings and frets, adjusting the truss rod accordingly. By mastering truss rod adjustment, bassists can ensure optimal playability and maintain the quality of their instrument's sound.
| Characteristics | Values |
|---|---|
| Truss rod function | Stabilizes the neck of a bass guitar |
| Truss rod material | Steel or graphite |
| Truss rod types | Single-action, dual-action |
| Adjustment tool | Allen wrench or Phillips screwdriver |
| Adjustment frequency | Seasonal, occasional |
| Adjustment amount | 1/4 turn, 1/8 turn, or less |
| Adjustment time | 5-10 minutes, up to an hour, or a day |
| Adjustment cost | Free, or a luthier's fee |
| Adjustment risks | Damage to the neck, strings, or truss rod |
Explore related products
What You'll Learn
Adjusting neck relief
Adjusting the neck relief of an electric bass guitar is a delicate process that requires careful attention to avoid damaging the instrument. The truss rod, a metal bar that reinforces the neck, is responsible for counteracting the tension of the strings and allowing adjustments to the neck relief. Here is a step-by-step guide to adjusting neck relief:
Step 1: Understand the Issue
Start by examining the neck to identify any curvature issues. Place the guitar on its side, close one eye, and look down the neck from the headstock towards the bridge. Pay attention to the area between the 3rd and 9th fret, as the truss rod will have the most significant impact in this region. Determine if the neck is straight or has an upbow or backbow.
Step 2: Prepare the Truss Rod
Before making any adjustments, ensure you have the correct tools. The truss rod nut is typically hexagonal and located at one end of the bass neck, either covered by a plate on the headstock or hidden by the pickguard. On some basses, you may need to remove the neck to access the truss rod. Mark the truss rod nut to know your starting point and use the correct size hex key to avoid stripping the nut.

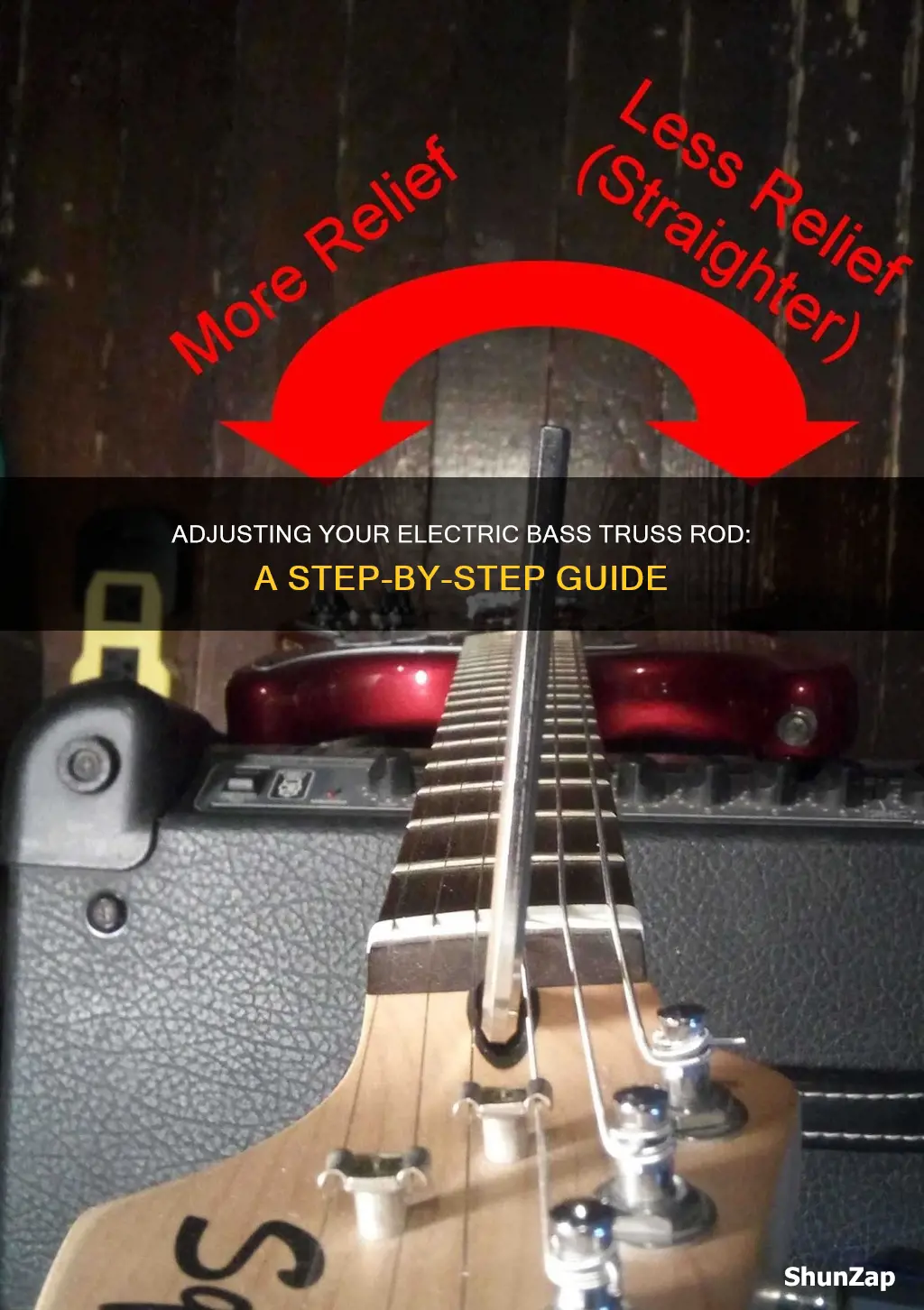

Step 3: Adjust the Truss Rod
To increase neck relief, loosen the truss rod by turning it counter-clockwise. To decrease neck relief, tighten the truss rod by turning it clockwise. Only make small adjustments at a time, ideally a quarter turn or less, and allow the wood to settle between adjustments. Do not force anything, and if you encounter excessive resistance, stop and seek an experienced technician to avoid damaging your instrument.
Step 4: Check the Results
After each adjustment, re-tune the strings and check the straightness of the neck. You can use a straight edge or the bass strings themselves as a reference. Fret the first and last fret of the lowest string, and observe the space between the bottom of the string and the tops of the frets. A slight gap, approximately the thickness of a credit card, is desirable to allow the strings to vibrate freely.
Step 5: Fine-Tune
It may take several adjustments over a few days to achieve the desired neck relief. Once you are satisfied with the neck relief, you will need to adjust the action/string height at the saddles and the intonation at the bridge. Additionally, check the action at the nut to ensure everything is set up correctly.
Connecting Your Samsung Electric Dryer: A Step-by-Step Guide
You may want to see also
Explore related products
Using the correct tools
Adjusting the truss rod of an electric bass guitar is a delicate process that requires the right tools. The truss rod is a metal bar, usually made from steel, that runs through the neck of the guitar. It helps to stabilise the neck and counteract the tension of the strings.
To adjust the truss rod, you will need a set of tools, including:
- An Allen wrench or hex key: This is used to tighten or loosen the truss rod. Different bass guitars may have differently sized truss rod adjustment slots, so it is important to use an Allen wrench that fits correctly.
- A screwdriver: This is needed to remove and replace the truss rod cover, if your bass has one.
- A capo: This is clamped along the first fret to hold the E string in place.
- A feeler gauge: This is a thin blade used to measure small gaps between the strings and frets. A 0.015 in (0.38 mm) feeler gauge is recommended.
- A metal ruler: A ruler with 1/64 inch markings can be useful for taking precise measurements.
It is important to use the correct tools and follow the proper techniques when adjusting the truss rod of an electric bass guitar. Small adjustments should be made gradually, allowing time for the wood to settle and adjust to changes in tension.
Understanding MOSFET Signal Amplification: A Technical Guide
You may want to see also
Explore related products
$10.39
How to loosen and tighten
To loosen the truss rod, turn it counter-clockwise. This will decrease the tension on the neck of the bass and influence the neck to pull away from the strings. This is necessary when there is too much "neck relief", which can be identified by checking if there is any gap between the strings and the frets. If there is no gap, the neck has a back bow and the truss rod needs to be loosened.
To tighten the truss rod, turn it clockwise. This will increase the tension on the back of the neck and influence the neck to curve upward toward the strings. This is necessary when there is insufficient "neck relief", which can be identified by checking if there is a gap between the strings and the frets. If the gap is too large (more than the thickness of a business card or credit card), the truss rod should be tightened.
It is important to make adjustments in small increments, such as a quarter turn at a time, to prevent damage to the bass. After each adjustment, leave time for the wood to settle, retune the bass, and check the relief before making further adjustments. Additionally, it is recommended to loosen the strings before tightening the truss rod to minimize the stress on the neck.
Electric Brakes on Ezgo Golf Carts: What You Need to Know
You may want to see also
Explore related products
$20.68
Truss rod maintenance
Truss rods are rugged, so you need not worry about experimenting with different adjustments. Through practice, you will learn to compensate for seasonal changes, different string gauges, different playing styles, and slightly worn frets by adjusting the truss rod.
To adjust the truss rod, you will need a truss rod wrench or an Allen wrench that fits the slot for the truss rod adjustment. Some basses will have specific tools designed for adjusting the truss rod. If the slot on your bass won't fit an Allen wrench, you'll need to get a tool designed for your bass. You can find these at music supply stores or online.
If the curvature of your bass neck is not correct, you need to adjust the truss rod. To adjust the action, turn the screw in the truss rod to change the curvature of the neck. If the gap is too large, insert the wrench into the screw (located either on the headstock or at the other end of the neck) and then tighten the truss rod by turning the screw clockwise. If your strings buzz when you play on the first four frets (near the headstock), you need to loosen the truss rod by turning the wrench or screwdriver counter-clockwise.
If there is very little space or if the neck is back-bowed and there is no space at all, loosen the truss rod until there is 0.02" of space between the top of the sixth fret and the bottom of the string. Re-tune the guitar after every half turn of the truss wrench. Conversely, if there is an excessive amount of space between the top of the sixth fret and the bottom of the string when suppressing the low E string at the 12th fret, tighten the neck until there is 0.02" of space. Re-tune the guitar after every half turn of the truss wrench.
Do not overtighten the screw on the truss rod cover, or you could crack the wood.
Emergency Electric: A Quick Guide to Turning Power On
You may want to see also
Explore related products
The impact of temperature and humidity
The truss rod is a steel or graphite bar that runs through the neck of a bass guitar, stabilising it and counteracting the tension of the strings. The neck of a bass guitar is made of wood, a natural material that will adjust to changes in temperature and humidity over time. As the weather changes from season to season, the wood in the neck of your bass guitar can bend or straighten. This can cause the strings to pull away from the frets or rest against them, making playing difficult as the strings need space to vibrate freely.
To counteract these changes, you can adjust the truss rod to change the curvature of the neck. However, it is important to note that adjustments should be made in small increments of no more than a quarter to a half of a turn per day, to allow the wood fibres to settle and react to the change in tension. If you feel excessive resistance during an adjustment, stop, as you may damage the instrument.
In summer, the neck gets straight with humidity and the truss rod may need to be loosened. Conversely, in winter, the neck may get too concave and the truss rod will need to be tightened.
To determine whether the truss rod needs to be tightened or loosened, fret the first and last notes on the E string to use as a straight edge against the neck's relief. If there is a bow (too much gap), tighten the truss rod. If there is a backbow (no gap), loosen it.
Electric Blankets: Safe or Hazardous for Elderly Users?
You may want to see also
Frequently asked questions
A truss rod is a metal bar that runs through the neck of a bass guitar to stabilize it. Adjusting the truss rod will help you counteract the changes in the wood of the neck caused by changes in temperature, pressure, and humidity, and the constant pull of the strings.
First, check if the curvature of your bass neck is correct. Turn the guitar on its side, close one eye, and look down the neck from the headstock towards the bridge. If there is a curve, you need to adjust the truss rod.
Clamp a capo along the first fret and slide a feeler gauge beneath the strings on the 7th fret. Insert an Allen wrench into the truss rod adjustment slot. Turn the wrench left to loosen the rod, and right to tighten it. Only adjust the truss rod in small increments (about a quarter turn at a time) and allow the wood to settle before making further adjustments.
