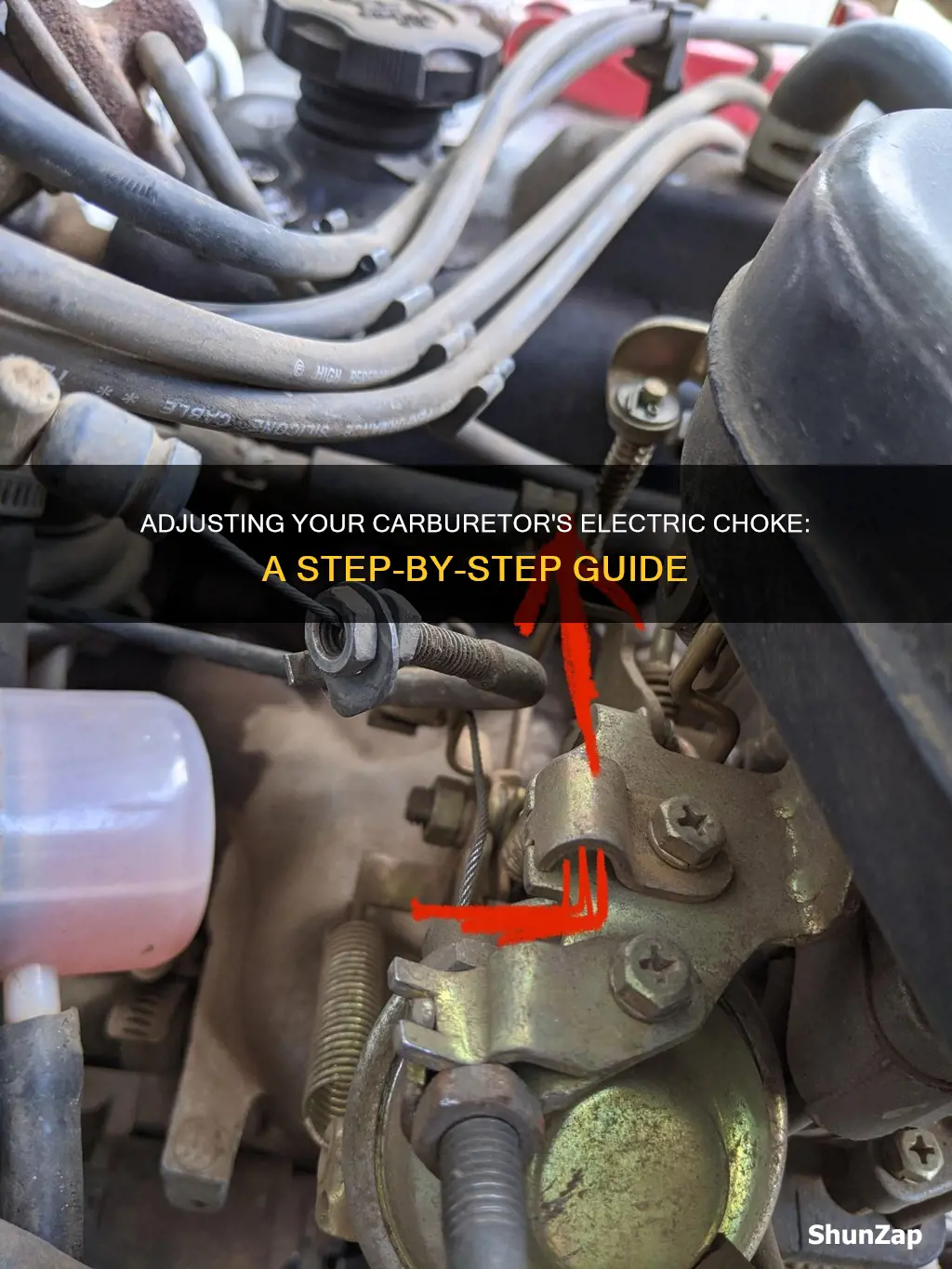

Adjusting the electric choke on a carburetor can help improve engine performance and fuel efficiency. The choke valve restricts the flow of air in the carburetor, enriching the fuel-air mixture, which is critical for a cold engine to start. Adjusting the choke involves calibrating the choke operation to ensure the choke plate opens and closes at the right time. This process often involves loosening the screws on the choke housing and rotating the choke cap clockwise or counterclockwise to increase or decrease the choke duration. Fine-tuning the electric choke can help prevent issues such as stalling, backfiring, or poor vehicle driveability.
Characteristics and Values Table for Adjusting an Electric Choke on a Carburetor
| Characteristics | Values |
|---|---|
| Choke comes off too soon | Loosen the three screws and rotate the cap counterclockwise one notch at a time |
| Choke comes off too late | Rotate the cap clockwise one notch at a time |
| Choke setting from the factory | "Index" or center position |
| Symptoms of choke coming off too soon | Stalling, surging, backfiring, stumbles, or poor vehicle driveability when the vehicle is cold |
| Number of screws holding the automatic choke housing | 3 |
| Direction to rotate housing for richer/longer time | Clockwise |
| Direction to rotate housing for leaner/shorter time | Counter-clockwise |
Explore related products
What You'll Learn
Loosen the three screws to rotate the choke cap
To adjust the choke settings on a Holley Carburetor, you need to control the choke operation by rotating the choke cap. Loosen the three screws on the choke housing retainer to rotate the choke cap. It is important to not loosen the screws too much, as this will cause the cap to freewheel. The choke cap can then be rotated clockwise or counterclockwise, depending on the choke operation. If the choke comes off too soon, rotate the cap counterclockwise one notch at a time until the choke operation is satisfactory. Conversely, if the choke comes off too late, rotate the cap clockwise. The choke setting from the factory is on "index" or at the center position. After making the final adjustments, start the engine and ensure the choke plate opens completely.
Loosening the screws on the choke housing retainer allows for the rotation of the choke cap, which is crucial for fine-tuning the choke settings. By adjusting the choke cap, you can control the choke operation and ensure it aligns with the engine's requirements. This process involves making gradual adjustments until the desired choke operation is achieved.
The choke operation is essential for enriching the fuel mixture and making it easier for the engine to start, particularly in cold conditions. By restricting the flow of air into the carburetor, the choke helps create a more concentrated fuel mixture. However, it is important to adjust the choke correctly to avoid issues such as a rich engine or spark plug fouling.
When adjusting the choke, it is important to pay attention to the engine's performance. If the choke is not adjusted correctly, the engine may hesitate or surge when the choke is released, indicating that it is not closing enough. Conversely, if the engine idles roughly when the choke is engaged, it may be opening too much. Fine-tuning the choke settings involves making small adjustments and observing the engine's response to ensure optimal performance.
Loosening the screws and rotating the choke cap is a crucial step in the process of adjusting the electric choke on a carburetor. It allows for precise control over the choke operation and ensures the engine receives the appropriate fuel mixture for efficient starting and performance. By following the recommended procedures and making gradual adjustments, you can achieve the desired choke operation and maintain the optimal functionality of your vehicle's engine.
Electrical Wall Rocker Switches: Do They Degrade Over Time?
You may want to see also
Explore related products
Rotate clockwise for richer/longer choke operation
To adjust the choke settings on a carburetor, you can control the choke operation by rotating the choke cap. If the choke comes off too late, rotate the cap clockwise one notch at a time until the choke operation is satisfactory. The choke setting from the factory is on “index” or at the center position.
The choke operation (opening and closing) can be adjusted by rotating the choke cap. There is a center pointer and index marks on the choke mounting. When the vehicle’s ignition is turned on, the heating element inside the choke cap unwinds and allows the choke to open.
To adjust the choke, first loosen the choke housing screws on the retainer. Loosen them up just enough to allow you to rotate the choke cap but not enough to allow it to freewheel. Slightly crack the throttle open, unload the fast idle cam, and turn the choke cap clockwise until you see the choke plate open. Then, rotate it back slowly until the choke plate just comes closed.
Depending on the engine combination or the climate, the vehicle might need the choke to stay on a little longer or come off quicker. These changes can be made by increasing or decreasing the tension by rotating the cap on the bottom metal choke spring.
Recording Electric Drums: Tips and Tricks for Beginners
You may want to see also
Explore related products
Rotate counter-clockwise for leaner/shorter choke operation
To adjust the choke cap on a carburetor, you must first loosen the three choke cap locking screws. Then, to achieve a leaner/shorter choke operation, rotate the choke cap counter-clockwise one notch at a time until the choke performs as desired. This will decrease the rpm.
The choke operation, or how the choke opens and closes, can be adjusted by rotating the choke cap. There should be a centre pointer and index marks on the choke mounting, along with an index mark on the thermostatic choke cap. When the ignition is turned on, the heating element inside the choke cap unwinds and allows the choke to open.
The choke cap can be rotated counter-clockwise to decrease the rpm and achieve a leaner/shorter choke operation. This is because rotating the choke cap counter-clockwise reduces the choke's richness, or the amount of time it stays closed.
It is important to note that the choke should be set when the motor or engine is cold. After making adjustments, start the engine and ensure that the choke plate opens completely. A choke that comes off too soon may cause stalling, surging, backfiring, stumbling, or poor vehicle driveability when the vehicle is cold.
Easy Electric Recliner Sofa Cord Repair Guide
You may want to see also
Explore related products
Ensure choke plate opens completely after adjustments
To ensure the choke plate opens completely after adjustments, you should follow these steps:
Firstly, it is important to note that the choke plate should only be adjusted when the engine is completely cool. Do not adjust the choke cap beyond the index marks, as this will damage the internals of the electric choke unit. Loosen the choke cap locking screws—there may be two or three of these, depending on your engine. Rotate the choke cap one notch at a time, in a counter-clockwise direction, until the choke performs properly.
The fast idle cam has a series of steps that will step down (reduce) the idle RPM until the choke plate fully opens. The fast idle speed adjustment is usually set at the factory and should give about 1,500-1,600 rpm at cold start-up. If the engine is not idling around 1,600 rpm on start-up, the fast idle screw will need to be adjusted. Turn the engine off and let it cool until the choke is fully closed. With the engine off, turn the throttle to its side wide-open position and hold it there. This will expose the fast idle set screw behind the choke housing. Using a ¼ inch open-ended wrench, turn the screw clockwise to increase the rpm or counter-clockwise to decrease the rpm. Close the throttle and restart the engine and check the rpm. Adjust as many times as needed until the engine idles well from a cold start until it is completely warmed up.
Double-check to make sure the idle adjustment screw isn't rubbing or making contact with the intake manifold just below the carburetor base. If the choke plate still does not open completely, check the hot air tube to see if it is hot (blazing hot to the touch). If it is electric, make sure there is 12 volts at the choke wire and a good ground.
The Quickest Way to Inflate Balloons: Using an Electric Pump
You may want to see also
Explore related products
Check for symptoms of a choke that comes off too soon
If the choke comes off too soon, you may experience one or more of the following symptoms:
- Stalling
- Surging
- Backfiring
- Stumbles
- Poor vehicle driveability when the vehicle is cold
To rectify this, loosen the three screws and rotate the choke cap counterclockwise one notch at a time until the choke operation is satisfactory. It is important to note that the "out-of-the-box" settings of your carburetor should already be very close for all adjustments, and you only need to make fine-tuning adjustments.
Muscle Response to Electrical Impulses: Understanding the Science
You may want to see also
Frequently asked questions
Your Holley Carburetor has been factory wet-flowed and calibrated. The “out-of-the-box” settings should be very close for all adjustments. You can control the choke operation by rotating the choke cap. If the choke comes off too soon, loosen the three screws and rotate the cap counterclockwise one notch at a time, until the choke operation is satisfactory. If the choke comes off too late, rotate the cap clockwise one notch at a time.
If the choke comes off too late, it could exhibit one or more of the following symptoms: black smoke from the tailpipe, poor driveability when cold, poor gas mileage, misses, or rough idle. If this happens, shut down the engine and advance the throttle to wide-open, exposing the fast idle set screw below the choke housing. Then, use a 1/4” open-end wrench, turn the screw clockwise to increase the RPM or counterclockwise to decrease it.
To set the choke properly, loosen the screws and adjust it so that it's about 1/16" open when fully closed. The motor should be cold when doing this.
To slow down the opening rate of an electric choke, reduce the electrical current going through the bimetal spring element by adding some external resistance to the circuit.
To adjust the choke on a Weber 78B carburetor, first, remove the air cleaner. Then, with the engine cold, loosen the screws on the choke housing, open the throttle a little and turn the housing until the choke closes. Now, push the choke butterfly open with your finger and pull it away quickly. Adjust the housing until the choke closes with a soft click and tighten the housing screws.
