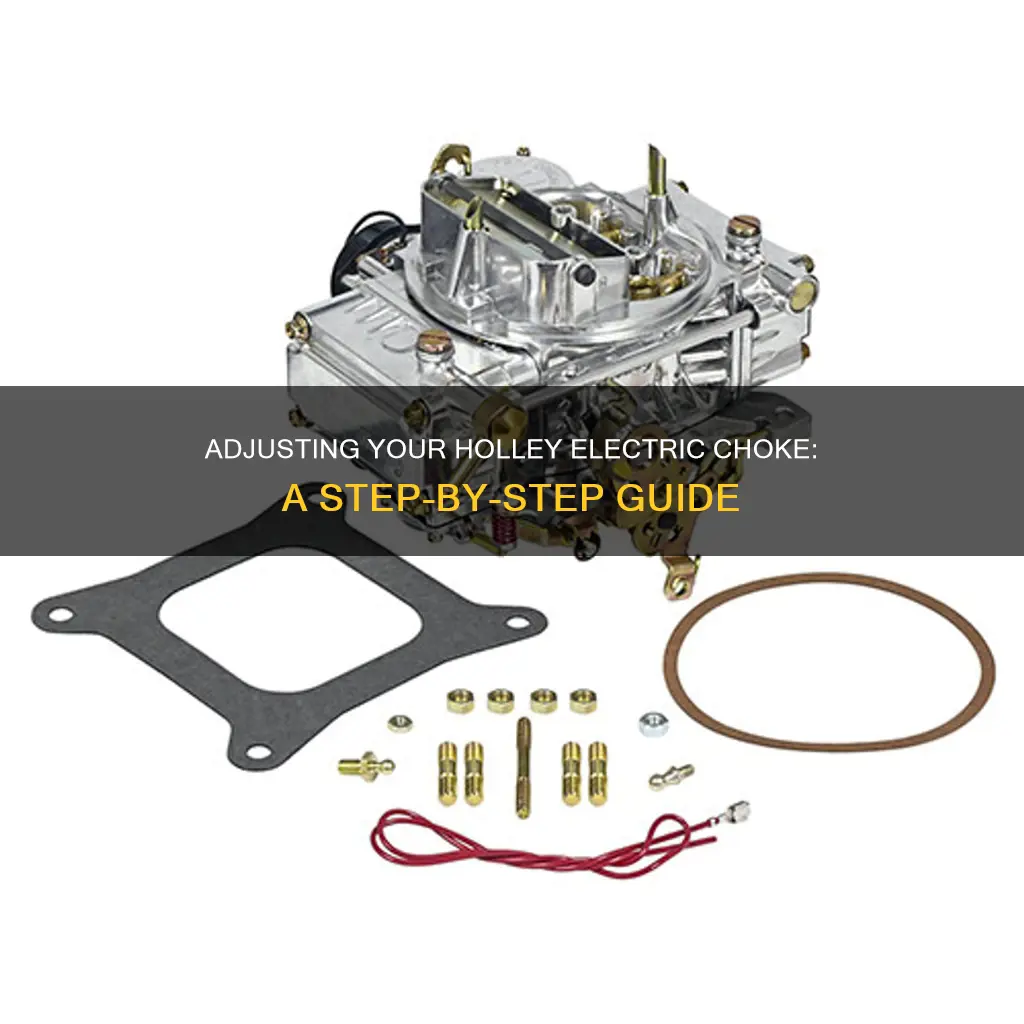

Learning how to adjust the electric choke on a Holley carburetor is essential to ensure your engine starts correctly. An improperly adjusted choke can cause issues with cold starts, as the engine requires a richer air-fuel mixture to start due to the slower vaporization of cold fuel. Adjusting the choke involves setting the choke operation and fine-tuning the fast idle settings. The choke operation can be adjusted by rotating the choke cap, while the fast idle settings can be fine-tuned by adjusting the fast idle speed screw. With the right adjustments, you can ensure your Holley carburetor engine starts smoothly, even in cold conditions.
Characteristics and Values Table for Adjusting Electric Choke on Holley
| Characteristics | Values |
|---|---|
| Engine | Cold engine requires a richer air/fuel mixture as cold fuel vaporizes slowly |
| Choke | Provides a richer mixture by slightly closing off the carburetor's air supply |
| Adjustment | Choke operation (opening and closing) can be adjusted by rotating the choke cap |
| Mounting | Center pointer and index marks on the choke mounting |
| Ignition | When the vehicle's ignition is turned on, the heating element inside the choke cap unwinds and allows the choke to open |
| RPM | Using a 1/4 inch open-ended wrench, turn the screw clockwise to increase the rpm or counterclockwise to decrease the rpm |
| Throttle | Slightly crack the throttle open, unload the fast idle cam, and turn the choke cap clockwise until the choke plate opens |
| Idle | Adjust until the engine idles well from a cold start until it is completely warmed up |
| Screw | Double-check the clearance between the idle adjustment screw and the intake manifold |
| Settings | Loosen the choke housing screws on the retainer |
| Fast Idle | Open up the throttle and back off the fast idle speed screw |
| Speed | Crank the curb idle speed screw to the desired fast idle speed |
Explore related products
What You'll Learn
Adjusting the choke operation
You can control the choke operation by rotating the choke cap. If the choke comes off too soon, loosen the three screws and rotate the cap anticlockwise one notch at a time, until the choke operation is satisfactory. If the choke is coming off too late, rotate the cap clockwise one notch at a time until it works as desired. The choke setting from the factory is on "index" or at the center position. After making the final adjustments, start the engine and make sure the choke plate opens fully.
To adjust the fast idle, start with a completely cold engine. Open the throttle and back off your fast idle speed screw until the throttle is shut, the choke is closed, and it is not catching the cam. Now, start the car, and use a screwdriver to adjust the curb idle speed screw to your desired fast idle speed. Let the engine warm up, and the choke will open fully. If you are happy with the operation, shut the car off and manually close the choke. Look at the relationship of the fast idle screw to the cam, and adjust as necessary. Now, start the engine again, get it back up to operating temperature, and make sure the choke is open. Finally, adjust the curb idle speed screw to your desired idle speed.
To check the rpm, close the throttle and restart the engine. Adjust as many times as needed until the engine idles well from a cold start until it is completely warmed up. Double-check that the idle adjustment screw isn't rubbing or making contact with the intake manifold just below the carburetor base.
