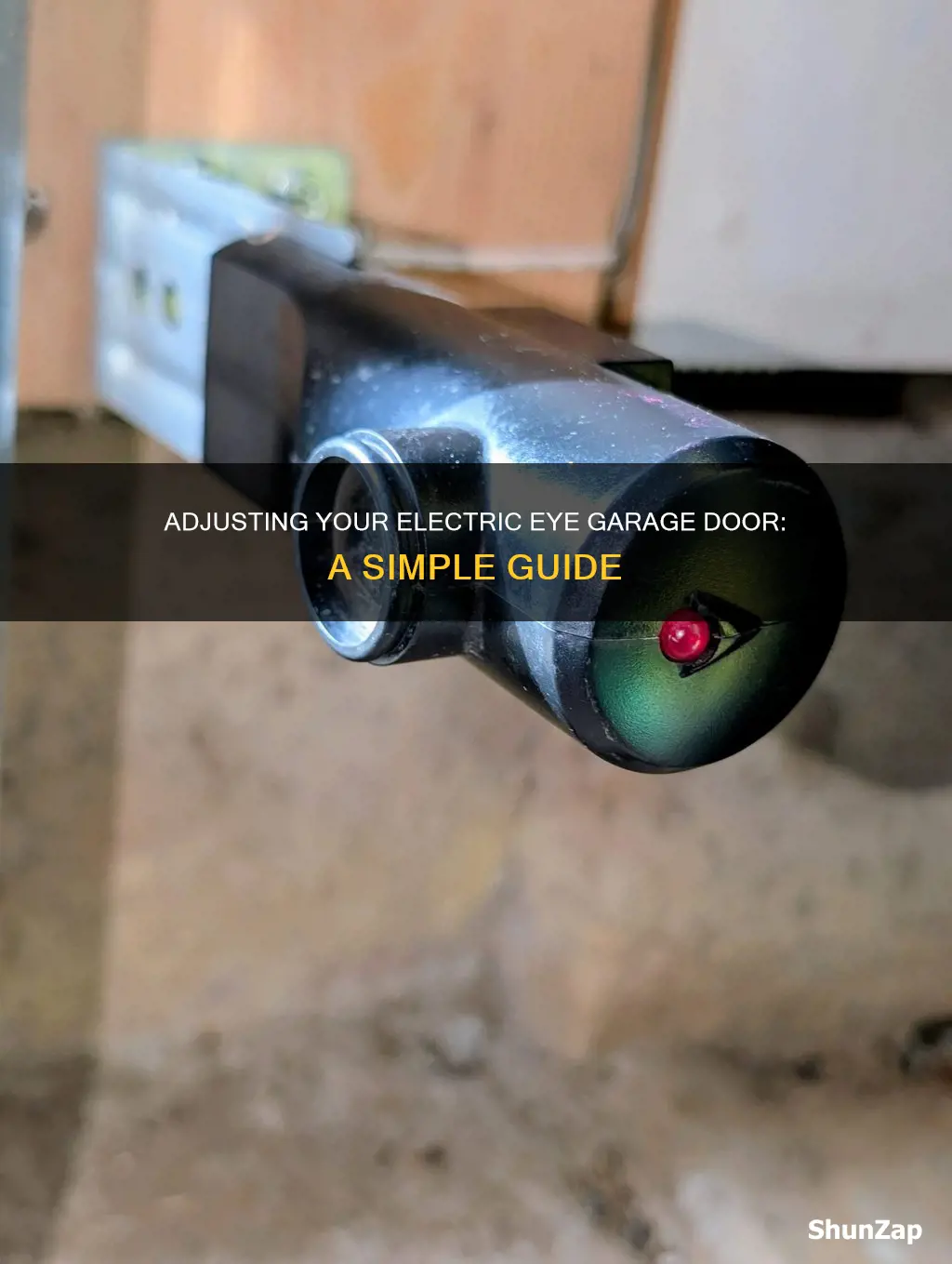

Electric eye garage doors, also known as safety sensors, are a crucial component of your garage door system. They are designed to prevent damage or injury to vehicles, people, or pets by detecting obstructions in the doorway. If your garage door is not functioning correctly, it may be an indication that the sensors are misaligned or dirty. To adjust the electric eye, you will need to gather the necessary tools, such as a screwdriver, and locate the sensors. You will then need to check the sensor lights, examine the sensors for any dirt or debris, and ensure that the sensors are level and parallel to each other. Finally, you can make fine-tune adjustments to the alignment and sensitivity until the desired performance is achieved.
| Characteristics | Values |
|---|---|
| Sensor Lights | Should be on and aligned |
| Sensor Lights Colour | Green and yellow |
| Sensor Lights Flickering | Indicates misalignment |
| Sensor Lights Off | Possible electrical problem |
| Sensor Obstruction | Check for dirt, dust, cobwebs or debris |
| Sensor Cleaning | Clean with a damp cloth |
| Sensor Power | Turn off power before adjusting |
| Sensor Mounting | Loosen screws, don't remove |
| Sensor Adjustment | Move up and down, forwards, backwards, inside and out |
| Sensor Alignment | Ensure sensors are level and parallel to each other |
| Sensor Functionality | Test sensors after adjustment |
Explore related products
What You'll Learn
Check for electrical problems
If your garage door is not working as it should, it may be due to electrical problems. The photo eye of an automatic-opening garage door is a safety feature. If the photo eye senses an obstruction, it stops the door from closing, potentially preventing damage or injury.
Firstly, check the sensor lights. If the LED lights on the sensors are flickering, they are misaligned. If the lights are off, you may have an electrical problem. Examine the sensors to determine if they are obscured by dust, dirt, cobwebs or debris. If the sensors are dirty, carefully wipe the lenses with a damp cloth, taking care not to scratch them.
Next, examine the wires leading to the photo eyes. If a wire has become twisted, carefully free it. If you detect wire damage, or if the door is still not working after adjusting the sensors, contact a garage door repair company. If the wires are intact and the LED lights are on, but the door is still not working, it is time to call a professional.
Additionally, check if there is an object stored near the garage doorway that might be obstructing the sensors. They are very sensitive, and even small things in their path can initiate the circuit-breaking action. Ensure nothing is blocking the laser between the two sensors.
If you are experiencing sporadic stopping and starting or flashing lights, locate the two sensor devices and make sure each one has a lit LED. If one is off or flickering, try readjusting the height to ensure it isn't out of alignment with the other.
Unlocking the Secrets of Bird Electric Scooters
You may want to see also
Explore related products
Clean dirty sensors
If your garage door sensors are dirty, you can clean them with a damp cloth, taking care not to scratch the lenses. Here are the steps you can follow:
Firstly, shut off the power to your garage door. You can usually do this on the garage door opener itself, or you can turn off the power to the garage at your circuit breaker.
Next, locate the photo eye sensors. Check to see if they are dirty or obscured by dust, dirt, cobwebs, or debris. If so, carefully wipe the lenses with a damp cloth, ensuring you do not scratch the lenses. Use only water, as cleaning solutions, especially those containing harsh chemicals, may degrade the lens material. Be cautious not to over-wet the cloth, as excessive moisture can seep into the sensor and cause it to short.
Once the sensors are clean, dry them with a clean cloth. Then, adjust the sensors so that each lens directly faces the lens opposite. Test your garage door to see if it opens and closes smoothly.
If cleaning the sensors does not solve the problem, they may need to be realigned. Loosen the nut or screw holding the sensor in place, and then tie a piece of string to both sensors. Lay a spirit level over this and check if it is level. If not, adjust the sensor until it is level with the other one, and then secure it back into position.
Vibrations to Electricity: Microphone's Magical Transformation
You may want to see also
Explore related products
Adjust the wing nut
Adjusting the wing nut is a crucial step in ensuring your garage door's eye sensors are aligned correctly. These sensors, typically located about six inches off the ground, are essential safety features that detect obstructions in the garage door's pathway. When the sensors are misaligned, your garage door may try to close but then immediately reopen.
To adjust the wing nut, start by locating the sensor with the unlit or flickering LED light. Once identified, follow these steps:
- Loosen the Wing Nut: Using your hands or an appropriate tool, loosen the wing nut that holds the sensor to its mounting bracket. Do not completely remove the wing nut; simply loosen it enough to adjust the sensor's position.
- Realign the Sensor: With the wing nut loosened, you can now adjust the sensor's position. Move it forward, backward, inside, and out until it is properly aligned with the opposite sensor. Ensure that the sensors' lenses directly face each other.
- Test the Lights: After adjusting the sensor's position, check if both LED lights are illuminated. The sensor lights should be steady, indicating proper alignment.
- Tighten the Wing Nut: Once the sensors are aligned and the lights are illuminated, carefully tighten the wing nut to secure the sensor in its new position. Be gentle during this step to avoid knocking the sensor out of alignment.
- Test the Sensors: Finally, test the sensors by powering on the garage door and observing its movement. Place an obstruction in the doorway to ensure the sensors are functioning correctly and the door reverses when an object is detected.
By following these steps and paying attention to the LED lights, you can fine-tune the position of the sensors by adjusting the wing nut. This process helps ensure that your garage door operates safely and securely.
Electrical Work Outside Drywall: A Step-by-Step Guide
You may want to see also
Explore related products
Check for obstructions
If your garage door is not working properly, it may be because the photoelectric eye sensors are detecting obstructions when there are none. This could be due to a number of reasons.
Firstly, check that nothing stored near the garage doorway is blocking the sensors. These sensors are very sensitive, so even small objects can obstruct them. If you find any obstructions, simply remove them and try closing your garage door again.
Secondly, locate the photo eye sensors and check if they are dirty. If the lenses are obscured by dirt, dust, cobwebs, or debris, carefully wipe them clean with a damp cloth and then wipe them dry with a separate cloth.
Thirdly, examine the wires leading to the photo eyes. If you notice any twisted or damaged wires, carefully untangle or replace them. If you detect wire damage and are unsure of how to proceed, or if the door still doesn't work after adjusting the sensors, it is recommended that you contact a garage door repair company for further assistance.
Finally, check the sensor lights. If the LED lights on the sensors are flickering or one light is off while the other is on, this could indicate that the sensors are misaligned. In this case, you will need to loosen the screws connecting the mounting brackets to the sensors and adjust their position before retightening the screws.
Electrical Earthing: A Guide for Boat Owners
You may want to see also
Explore related products
Fine-tune adjustments
Fine-tuning your electric eye garage door adjustments is a simple process that can enhance the safety and performance of your garage door. Here are the steps you can take:
- Identify the issue: If your garage door is reversing prematurely or not reversing at all, you may need to make fine-tune adjustments.
- Loosen the screws: Before making any adjustments, ensure you have turned off the power to your garage sensors. Loosen the screws connecting the mounting brackets to the sensors. Be careful not to remove the screws completely, just loosen them enough to adjust the sensors.
- Adjust the sensors: Make minor adjustments to the sensors' alignment and sensitivity. Move them forward, backward, inside, and out to ensure they cover all axes. Ensure the sensors are parallel to each other and perpendicular to the floor.
- Test the sensors: After making adjustments, tighten the screws again, being careful not to push the sensors out of alignment. Turn the power back on and test the sensors to ensure they are functioning properly.
- Regular maintenance: Electric eyes can become misaligned or dirty over time, so it's important to regularly check and maintain them. Clean them with a soft cloth and make adjustments as needed to ensure optimal safety and performance.
By following these steps, you can fine-tune the adjustments of your electric eye garage door sensors, ensuring smooth operation and maintaining the safety features of your garage door.
Electric Sheep Squirrels: Androids' Dreamy Escapades
You may want to see also
Frequently asked questions
If your garage door isn't opening or closing, it may be because something is interrupting the electric eye's sensor beam. Check for any obstructions and ensure that the sensors are clean. If the sensors are dirty, wipe them with a damp cloth and then try again.
Check the sensors for any dirt, dust, cobwebs or debris. If the sensors are dirty, carefully wipe the lenses with a damp cloth and then dry them with a clean cloth.
If the yellow light on the sensor is off, you may have an electrical problem. Check for something obvious, like a breaker switch, before calling a professional.
First, turn off the power to your garage sensors using your circuit breaker. Loosen the screws that mount each sensor, but don't take them all the way out. Level the sensors so that they're parallel to each other and perpendicular to the floor. Tighten the screws, being careful not to push the sensors out of alignment.
If your garage door sensors still aren't working, the sensors may be damaged or too old. Call a garage door repair specialist to check the issue and replace the sensors if necessary.
