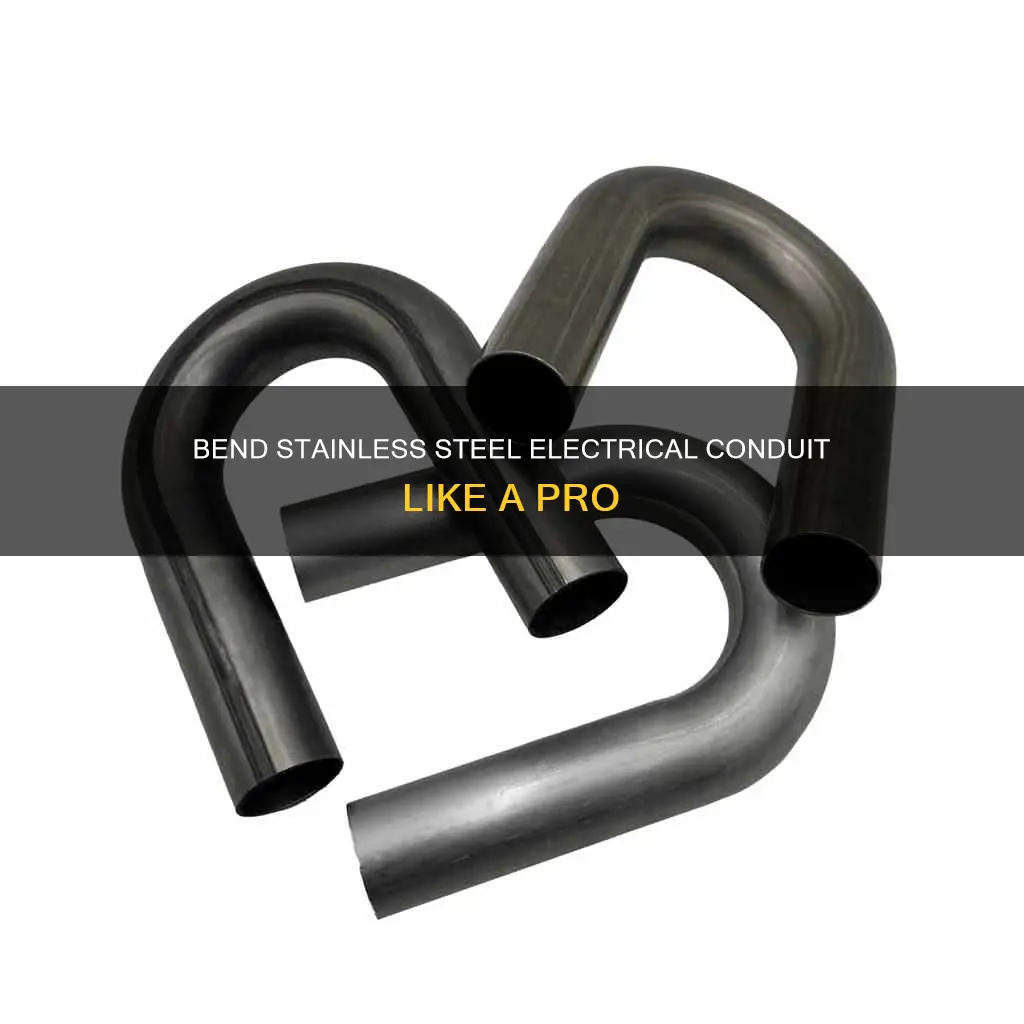

How to bend stainless steel electrical conduit
| Characteristics | Values |
|---|---|
| Tools required | Tape measure, quality level, framing square, conduit bender, conduit reamer/knife |
| Bender type | Steel or aluminum. Steel is cheaper but heavier. |
| Bender features | Degree scale, multiplier values, arrow, star point, rim notch, handle |
| Preparation | Measure length, cut conduit, scrape off rough edges, ensure burrs are removed |
| Bending technique | Align bends, avoid "dog leg", avoid flattening (misplaced pressure, incorrect tools, extensive flattening), avoid bending in air for beginners |
| Common bends | 90° stub-up bend, back-to-back bends, offset bends |
| Notes | Stainless steel hardens after bending, so there is little room for error. Mechanical or hydraulic benders are recommended for multiple bends. |
Explore related products
What You'll Learn
Use the correct tools
Bending stainless steel electrical conduit requires a specific set of tools to ensure the job is done correctly and safely. The most important tool is the conduit bender, which comes in different sizes depending on the diameter of the conduit. Steel conduit benders are generally cheaper but weigh more, so for longer projects, a steel bender may cause fatigue sooner. Aluminum benders are also an option and are lighter, making them more suitable for prolonged use.
When choosing a conduit bender, ensure it has the necessary degree scale and multiplier values. These values help you achieve the desired bend without needing to refer to a separate conduit bending chart for shrinkage calculations. Additionally, look for features like an arrow, which helps line up marks for saddle bends, a star point that indicates a 90-degree angle in back-to-back bends, and a rim notch that marks the center point of a three-point saddle bend.
Other essential tools for bending stainless steel electrical conduit include a tape measure, a quality level, and a framing square. The tape measure should be sturdy enough to extend at least 10 feet without support, especially if you need to work in the air. The level should have strong magnets to hold it securely against the conduit, even when working overhead.
If you plan to do multiple or complex bends, it is recommended to use a mechanical or hydraulic bender. These tools can save time and money by reducing labor and minimizing the risk of damaging the conduit. Remember that stainless steel work hardens, so you usually won't get a chance to correct your mistakes once the conduit is bent.
Troubleshooting Electrical Throttle Control: A Comprehensive Guide
You may want to see also
Explore related products
Avoid common mistakes
Bending stainless steel electrical conduit is not an easy skill to master. It requires extensive practice to learn and master various bends. Here are some common mistakes to avoid when bending stainless steel electrical conduit:
Misplaced pressure: Applying excessive pressure or pressure in the wrong spot, such as too far from the bender or at the bent part of the conduit, can cause flattening or buckling of the conduit. It is important to apply the right amount of pressure in the right place to avoid wrinkling and buckling of the conduit.
Incorrect tools: Using the wrong tools, such as a hickey with EMT, can make it difficult to achieve the desired bend and may lead to flattening. Ensure that the conduit bender accommodates the conduit size and is suitable for the type of conduit being used, whether it is rigid or flexible.
Extensive flattening: Improper pressure or the use of incorrect tools can result in extensive flattening. Additionally, trying to bend the conduit on a carpeted floor can also contribute to flattening issues.
Lack of pressure support: Air bending, or bending the conduit while holding it in the air, can lead to a lack of pressure support. This may cause the conduit to slip inside the bender and result in incorrect bends. It is recommended to bend the conduit on a sturdy, non-carpeted floor to avoid this issue.
Inaccurate measurements: Mark measurements accurately with a pencil or permanent marker to avoid measuring and cutting mistakes. A conduit bending chart can be useful to determine the amount of take-up length for different diameters of conduit bent at various angles. Knowing the diameter of the EMT is crucial, as the conduit bender must match its size.
Not seeking help: Bending conduit can be challenging, and it is common to make mistakes, especially when starting. Don't be afraid to ask your coworkers for tips or advice. Practicing with scrap pieces of pipe or conduit and seeking hands-on experience will help you improve your bending skills over time.
Fixing an Insensitive Electric Drum Pedal: Troubleshooting Guide
You may want to see also
Explore related products
Measure and cut the conduit
Before bending stainless steel electrical conduit, you need to measure and cut the conduit to the correct size. This involves several steps and requires some essential tools.
First, you must measure the length of conduit you will need. Start measuring from a corner or another orienting point, and mark the end point of the conduit on the wall with a pencil. Then, starting from this corner, measure the length of conduit you will need, adding some extra length for each bend you will be making. The amount of extra conduit you will need depends on the diameter of the conduit. For example, a 1/2-inch pipe requires 5 inches of extra conduit, while a 1-inch conduit pipe will need 8 inches. It is a good idea to have some extra conduit on hand, especially if you are not experienced in bending conduit, as it is easy to make a mistake.
Next, cut the conduit to the size you have measured. Use a quality tape measure to ensure an accurate cut. Once you have cut the conduit, use a conduit reamer or knife to scrape off any rough edges or burrs. It is important to remove all fragments before installing the conduit, as these may cause a short or ground fault after the wire has been installed.
Now that you have measured and cut your conduit, you can move on to the next steps of bending the conduit and installing the wire. Remember that bending conduit requires practice to master, so take your time and review the basics before starting.
Transforming Electric Lamps: A DIY Guide to Battery Power
You may want to see also
Explore related products
Practice different bends
Bending stainless steel electrical conduits is an art that requires practice, patience, and the right tools. Here are some tips for practising different bends:
Back-to-Back Bends
Back-to-back bends involve creating two 90-degree bends in opposite directions, resulting in a "U" shape. This type of bend is useful for routing conduit down a wall, across the floor, and then back up another wall. To master this bend:
- Measure the distance between the walls or joists where the bend will fit.
- Follow the 90-degree stub-up bend process, but start from the back of the bend.
- Measure the distance calculated and mark the conduit.
- Place the bender on the conduit, facing the free end opposite the original bend.
- Line up the mark with the start point symbol on the bender.
- Apply pressure to the heel end of the bender with your foot until you reach the 90-degree position.
Offset Bends
Offset bends are almost like a sidewinder pattern, incorporating two 45-degree angles to shift the conduit beside an obstacle while running parallel to the old line. To practice this:
- Familiarise yourself with the multiplier values for different angles. For example, the multiplier for a 10-degree bend is 6, for a 30-degree bend, it is 2, and for a 45-degree bend, it is 1.4.
- Calculate the distance between bends using the angle and the multiplier. For instance, for a 4-inch offset with a 10-degree bend, you would multiply 6 x 4 = 24 inches between the bends.
- Gradually increase the complexity by incorporating offset bends with different angles.
Stub-Up or "L" Conduit Bend
This type of bend creates a vertical "L" shape in the conduit. To practice this:
- Decide on the overall free end height you want after the bend.
- Calculate the stub height by using the free end height and subtracting the stub adjustment from a Bender Take-Up Table.
- Mark the calculated stub height from the "up" free end of the conduit.
- Place the conduit on the ground and attach the bender with the hook pointed towards the "up" free end.
- Line up the start point symbol on the bender with the line you made.
Saddle Bends
Saddle bends can be created using the ""star notch arrow" technique. To practice:
- Find the centre of your bend and multiply it by 2 (or 2.5) to draw lines for the outsides of your saddle.
- Bend 22 degrees on the star on your bender.
- Flip the pipe and put your next mark on the notch.
- You can also use the iBend app to make complicated bends easier.
Remember to always use the correct tools, avoid applying excessive force, and double-check your measurements for accuracy. With practice, you'll be able to master these different bends and create clean, professional installations.
Measuring Electric Resistance of Metals: A Comprehensive Guide
You may want to see also
Explore related products
Work on a sturdy floor
When bending stainless steel electrical conduit, it is recommended to work on a sturdy floor. Avoid bending on a carpeted surface, as this can lead to conduit crushing and unwanted flattening. Working on a solid, flat floor will provide a stable base and help you achieve more accurate results.
Before beginning the bending process, ensure you have all the necessary tools and that your work area is clear and free from obstacles. Measure the length of the conduit you need, starting from a corner or reference point, and mark the conduit with a pencil at the desired length. It is important to add some extra length to account for each bend you will be making, as bending the conduit reduces its overall length.
When working on the floor, place the conduit bender on a flat section of the floor, close to the edge of the work area. Ensure there is enough space to maneuver the conduit and that the bender is securely positioned to avoid slipping or unwanted movement during the bending process.
As you bend the conduit, be mindful of applying the correct amount of pressure. Excessive pressure or pressure applied too far from the bender or at the bent part of the conduit can result in flattening or buckling. Take your time with each bend and ensure they are accurately aligned, especially if you are working with conduits that have multiple bends.
Linking Farenheat Electric Hydronic Baseboard Heaters: Is It Possible?
You may want to see also
Frequently asked questions
You will need a tape measure, a quality level, a framing square, and a conduit bender.
Conduit benders come in different sizes depending on the diameter of the conduit. Steel and aluminium options are available; steel is cheaper but heavier. Look for a degree scale and multiplier values on the bender to avoid using a separate conduit bending chart.
Avoid misplaced pressure, i.e., putting too much pressure too far from the bender or at the bent part of the conduit. Use the correct tools; for example, a hickey with EMT can cause flattening as it is only for rigid conduits. Avoid bending on a carpeted floor as it can lead to flattening and conduit crushing issues.
When you bend a conduit, you lose length as it moves into another plane. A 1/2-inch pipe requires 5 extra inches, a 3/4-inch conduit takes 6 extra inches, and a 1-inch conduit pipe requires 8 extra inches.
Measure the length of the conduit you need, adding some extra length for each bend. Cut the conduit, scrape off any rough edges, and slide it into the bender, aligning the arrow with the desired bend location. Pull the handle to create the bend, following the angle markings. Take your time to ensure bends are aligned, especially with multiple bends, to avoid creating a "dog leg".
