Diy Adapter Plate Guide For Electric Vehicle Motor Integration

how to build a adampter plate for a electric car

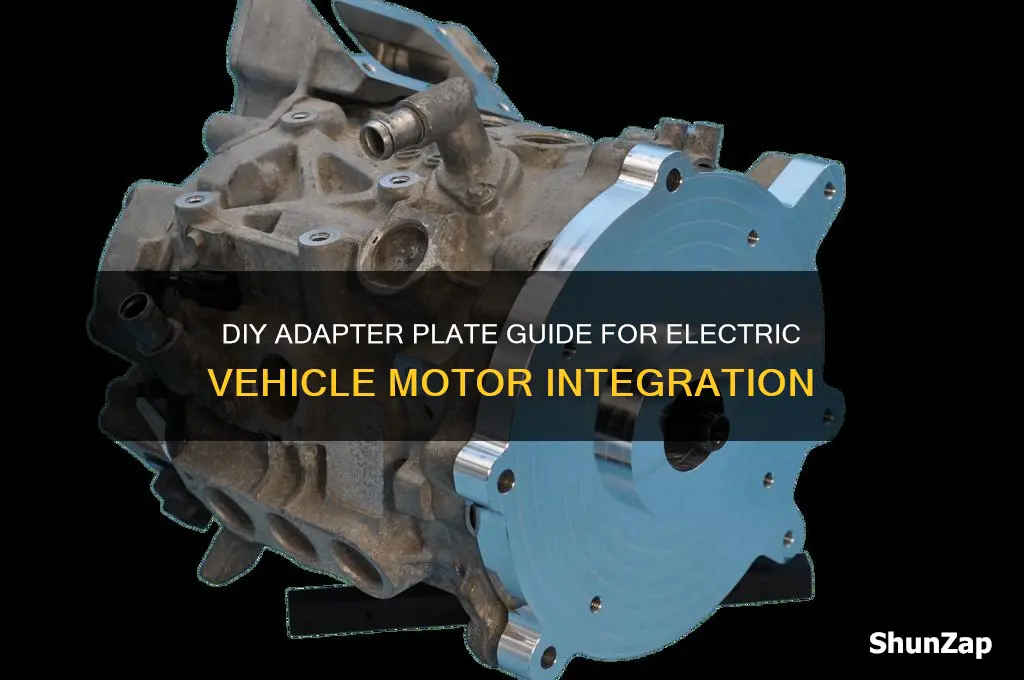

Building an adapter plate for an electric car is a critical step in integrating an electric motor with an existing transmission or drivetrain system. This process involves precise engineering to ensure compatibility between the motor’s mounting points and the vehicle’s chassis or transmission. The adapter plate acts as a bridge, aligning the motor’s output shaft with the transmission input shaft while distributing the motor’s weight and torque evenly. Key considerations include material selection (typically aluminum or steel for strength and durability), accurate measurements of both the motor and transmission flanges, and the use of CAD software for design. Additionally, proper machining techniques, such as drilling, milling, and welding, are essential to achieve a secure and vibration-free fit. Successful execution requires a blend of mechanical knowledge, access to appropriate tools, and attention to detail to ensure safety and optimal performance in the electric vehicle conversion.

shunzap

Material Selection: Choose lightweight, durable materials like aluminum or steel for optimal strength and conductivity

Aluminum and steel dominate adapter plate construction for electric vehicles, but their selection isn’t interchangeable. Aluminum, with a density roughly one-third that of steel, offers significant weight savings, reducing overall vehicle mass and improving efficiency. However, its lower tensile strength (typically 45-60 ksi for 6061-T6 aluminum vs. 50-70 ksi for mild steel) necessitates thicker sections to achieve comparable strength, potentially offsetting weight advantages. Steel, while denser, boasts superior strength and fatigue resistance, making it ideal for high-stress applications like mounting heavy battery packs or motors.

The conductivity of these materials is another critical factor. Aluminum’s thermal conductivity (120-200 W/m·K) surpasses that of steel (15-50 W/m·K), making it better suited for heat dissipation in components like power electronics or charging interfaces. However, aluminum’s susceptibility to galvanic corrosion when paired with steel requires careful design, such as using insulating washers or coatings. For electrical conductivity, both materials are adequate, but aluminum’s lower resistivity (2.65×10⁻⁸ Ω·m vs. 1.49×10⁻⁷ Ω·m for steel) makes it marginally more efficient for high-current pathways.

Practical considerations dictate material choice. For a lightweight adapter plate supporting a 300kg battery pack, 6mm aluminum (yield strength ~270 MPa) may suffice, while a 4mm steel plate (yield strength ~400 MPa) could offer similar strength with less thickness but added weight. Cost also plays a role: aluminum alloys like 6061-T6 are more expensive than mild steel, though prices fluctuate with market conditions. Machinability favors aluminum, which is easier to cut and shape, reducing fabrication time and costs.

When designing, prioritize material properties aligned with the plate’s function. For structural mounts, steel’s strength and fatigue life are paramount. For thermal management interfaces, aluminum’s conductivity and lightweight nature are advantageous. Hybrid designs, such as steel cores with aluminum cladding, can balance strength and heat dissipation, though complexity increases. Always factor in environmental exposure: marine or high-humidity environments may necessitate corrosion-resistant alloys like 5052 aluminum or stainless steel, despite their higher costs.

Ultimately, material selection is a trade-off between weight, strength, conductivity, and cost. Use finite element analysis (FEA) to simulate stress distribution and validate material choices. For DIY builders, start with readily available 6061-T6 aluminum for non-critical applications, ensuring proper surface treatment to prevent corrosion. For professional builds, consult material datasheets and industry standards (e.g., SAE J2340 for EV component durability) to ensure compliance and longevity. The right material not only optimizes performance but also extends the lifespan of the adapter plate in the demanding environment of an electric vehicle.

shunzap

Design Considerations: Ensure proper alignment, bolt patterns, and clearance for motor and transmission components

Precision is paramount when designing an adapter plate for an electric vehicle (EV) powertrain. Misalignment by even a millimeter can lead to excessive vibration, premature wear, or catastrophic failure. Start by verifying the bolt patterns of both the electric motor and the transmission. Use a dial indicator to measure runout on both components, ensuring they align within 0.002 inches (0.05 mm) to maintain concentricity. Overlay the bolt hole patterns on CAD software to confirm compatibility, adjusting hole diameters by 0.01 inches (0.25 mm) to accommodate slight manufacturing variances.

Clearance is equally critical to prevent interference between the motor, transmission, and surrounding components. Measure the axial and radial dimensions of both units, adding a minimum 0.25-inch (6 mm) buffer around all sides to account for thermal expansion and assembly tolerances. For high-torque applications, consider a finite element analysis (FEA) to simulate stress points under load, ensuring the plate material (typically 6061-T6 aluminum or mild steel) can withstand forces without deformation.

Bolt pattern mismatches are a common pitfall in EV adapter plate design. If the motor and transmission bolt holes don’t align, use a hybrid pattern with slotted holes for fine-tuning during installation. For example, a 4-bolt motor and 6-bolt transmission can be reconciled by elongating two of the motor’s holes horizontally, allowing lateral adjustment without compromising structural integrity. Always torque fasteners to manufacturer specifications—overtightening can warp the plate, while undertightening risks loosening under vibration.

Alignment tools are indispensable for ensuring the motor and transmission couple seamlessly. A laser alignment system can verify angular and offset alignment within ±0.001 inches (0.025 mm), while a simple dowel pin method can suffice for low-power setups. For DIY builders, a makeshift jig using threaded rods and spacers can hold components in place while the adapter plate is test-fitted. Remember: a misaligned drivetrain not only reduces efficiency but can also void warranties on expensive components.

Finally, consider the dynamic forces at play. Electric motors deliver instantaneous torque, placing greater stress on the adapter plate than internal combustion engines. Incorporate gussets or ribs into the plate design to distribute loads evenly, particularly around high-stress areas like bolt holes. For racing or off-road applications, opt for a thicker plate (minimum 0.5 inches or 12 mm) and use Grade 8 or higher bolts to handle extreme conditions. Always test the assembly under load before final installation, using a hydraulic press to simulate torque and verify stability.

shunzap

Machining Process: Use CNC milling or laser cutting for precise dimensions and hole placements

Precision is paramount when crafting an adapter plate for an electric vehicle, as even a millimeter's deviation can compromise safety and performance. CNC milling and laser cutting emerge as the gold standard for achieving this level of accuracy. Both methods excel in producing intricate designs with tight tolerances, ensuring that bolt holes, mounting points, and cutouts align seamlessly with both the electric motor and the vehicle's existing drivetrain components.

CNC milling, a subtractive process, carves material away from a solid block using rotating cutters. This method is ideal for adapter plates requiring robust structural integrity, as it allows for the use of thicker, stronger materials like aluminum alloys or steel. Laser cutting, on the other hand, employs a focused beam to melt or vaporize material, offering unparalleled precision for thinner materials like stainless steel sheets.

The choice between CNC milling and laser cutting hinges on the specific demands of your adapter plate design. For applications requiring maximum strength and material thickness, CNC milling takes the lead. Its ability to handle tougher materials and create complex 3D shapes makes it suitable for plates that need to bear significant loads or integrate additional features like cooling channels. Laser cutting shines when precision and speed are paramount. Its non-contact nature minimizes material warping, making it ideal for delicate components or plates with intricate patterns.

Consider the following factors when deciding: desired material thickness, required tolerances, complexity of the design, and budget. While CNC milling generally incurs higher costs due to longer machining times and tool wear, laser cutting can be more economical for simpler designs in thinner materials.

Regardless of the chosen method, meticulous planning is crucial. Utilize CAD software to create a detailed digital model of your adapter plate, incorporating all necessary dimensions, hole placements, and material specifications. This digital blueprint serves as the foundation for both CNC milling and laser cutting, ensuring the physical plate aligns perfectly with your design intent. Remember, the precision achieved through these machining processes directly translates to the reliability and performance of your electric vehicle conversion.

shunzap

Mounting Hardware: Select high-strength bolts, washers, and spacers to secure the adapter plate firmly

Securing an adapter plate in an electric vehicle (EV) conversion demands precision and reliability. High-strength bolts, washers, and spacers are the backbone of this assembly, ensuring the plate withstands the torque and vibrations inherent in automotive operation. Grade 8 or higher bolts, rated for at least 150,000 PSI tensile strength, are ideal for this application. Pair these with hardened steel washers to distribute load evenly and prevent galvanic corrosion, especially when using dissimilar metals like aluminum and steel. Spacers, machined to exact tolerances, maintain proper alignment between the adapter plate and the motor or transmission, eliminating stress points that could lead to failure.

Selecting the correct hardware involves more than strength—compatibility matters. Thread pitch, diameter, and length must match the threaded holes in both the adapter plate and the mounting surface. For example, a 12mm x 1.5 thread pitch is common in European vehicles, while 7/16-20 UNF threads are typical in American models. Always measure twice: use a thread gauge to verify pitch and a caliper to confirm hole diameters. Overlooking these details can lead to stripped threads or inadequate clamping force, compromising the entire assembly.

Torque specifications are non-negotiable. Over-tightening can warp the adapter plate or damage threads, while under-tightening risks loosening under load. Use a torque wrench calibrated to the manufacturer’s specifications—typically 80 to 120 ft-lbs for high-strength bolts in EV applications. Apply thread locker (Loctite 271 or equivalent) to prevent vibration-induced loosening, particularly in high-torque systems. For added security, consider using self-locking nuts or nylon-insert lock nuts in non-critical areas where accessibility allows.

Environmental factors dictate material choices. In coastal or humid regions, stainless steel hardware resists corrosion better than zinc-plated alternatives. However, stainless steel’s lower shear strength may require larger diameters or additional fasteners. In racing or high-performance applications, titanium bolts offer a lightweight, corrosion-resistant solution, though their cost is significantly higher. Always balance durability, weight, and budget when making these decisions.

Finally, inspect and maintain mounting hardware regularly. Post-installation, recheck torque after 50-100 miles of driving to account for settling. Annually inspect for signs of wear, corrosion, or loosening, particularly in high-stress areas. Replace any compromised components immediately—a single failed bolt can cascade into catastrophic failure. By prioritizing quality, compatibility, and maintenance, the mounting hardware ensures the adapter plate remains a reliable link between the EV’s drivetrain and its power source.

shunzap

Testing & Validation: Perform torque tests and fitment checks to ensure compatibility and reliability under load

Torque testing is the backbone of adapter plate validation, ensuring the assembly can withstand the rotational forces transmitted between the electric motor and drivetrain. Begin by securing the adapter plate to a test bench that simulates the vehicle’s mounting points. Apply incremental torque loads using a hydraulic or electric torque wrench, starting at 50% of the motor’s rated torque and increasing in 25% increments up to 125%. Measure deflection using dial indicators placed at critical points around the plate’s perimeter. Acceptable deflection should not exceed 0.02 mm per 100 Nm of applied torque, as excessive flexing can lead to premature fatigue or misalignment. Document strain patterns with strain gauges to identify stress concentrations, particularly near bolt holes or transitions in material thickness.

Fitment checks are equally critical, as even minor misalignments can cause vibration, noise, or component failure. Use a coordinate measuring machine (CMM) to verify that the adapter plate’s mounting holes align with both the motor and drivetrain interfaces within a tolerance of ±0.1 mm. For manual verification, insert precision pins (e.g., 6H6 tolerance) into the holes and check for binding or gaps. Rotate the assembly through its full range of motion, ensuring no interference between components. Pay special attention to clearance around rotating elements, such as the motor shaft or differential gears, maintaining a minimum gap of 2 mm to prevent contact under load.

Dynamic testing under simulated driving conditions provides a real-world validation layer. Mount the adapter plate assembly on a dynamometer and subject it to a load profile mimicking urban, highway, and acceleration cycles. Monitor temperature at critical junctions using thermocouples, ensuring it remains below 120°C to prevent material degradation. Simultaneously, record vibration levels with accelerometers, targeting amplitudes below 5 g RMS to avoid resonance or fatigue. If anomalies occur, disassemble the unit and inspect for wear marks, cracks, or deformed surfaces, addressing issues through design modifications or material upgrades.

Practical tips can streamline the testing process. For torque tests, use a load cell with a capacity 20% higher than the maximum expected torque to ensure accuracy and safety. When performing fitment checks, apply a thin coat of layout fluid or Prussian blue dye to mating surfaces to highlight contact areas. In dynamic tests, incorporate a fail-safe mechanism, such as a shear pin or torque limiter, to prevent catastrophic failure during overload conditions. Finally, maintain a detailed test log, including torque values, deflection measurements, and visual inspection notes, to track performance trends and inform iterative design improvements.

The ultimate goal of testing and validation is to bridge the gap between theoretical design and real-world performance. By systematically applying torque tests, fitment checks, and dynamic simulations, engineers can identify weaknesses early, ensuring the adapter plate meets both functional and safety requirements. This rigorous approach not only enhances reliability but also builds confidence in the integration of electric motors into existing drivetrain architectures, paving the way for broader EV adoption.

Frequently asked questions

An adapter plate is a custom-made component used to mount an electric motor to a vehicle's existing transmission or drivetrain. It is necessary because electric motors often have different bolt patterns and dimensions compared to internal combustion engines, requiring a bridge to ensure proper alignment and fitment.

High-strength materials like aluminum, steel, or billet aluminum are commonly used. Aluminum is lightweight and corrosion-resistant, while steel offers greater durability. The choice depends on the application, load, and budget.

Start by measuring the bolt pattern and dimensions of both the electric motor and the transmission. Use CAD software to design the plate, ensuring proper alignment, clearance, and strength. Consider consulting a professional or using pre-made templates for accuracy.

Essential tools include a drill press, milling machine, welder (if needed), calipers, and a CNC machine for precision cuts. Hand tools like wrenches, clamps, and a marker are also necessary for marking and assembly.

Pre-made adapter plates are available for popular electric motor and vehicle combinations. However, custom builds often require a DIY approach due to unique configurations. Check online forums, manufacturers, or conversion specialists for pre-made options before starting from scratch.
