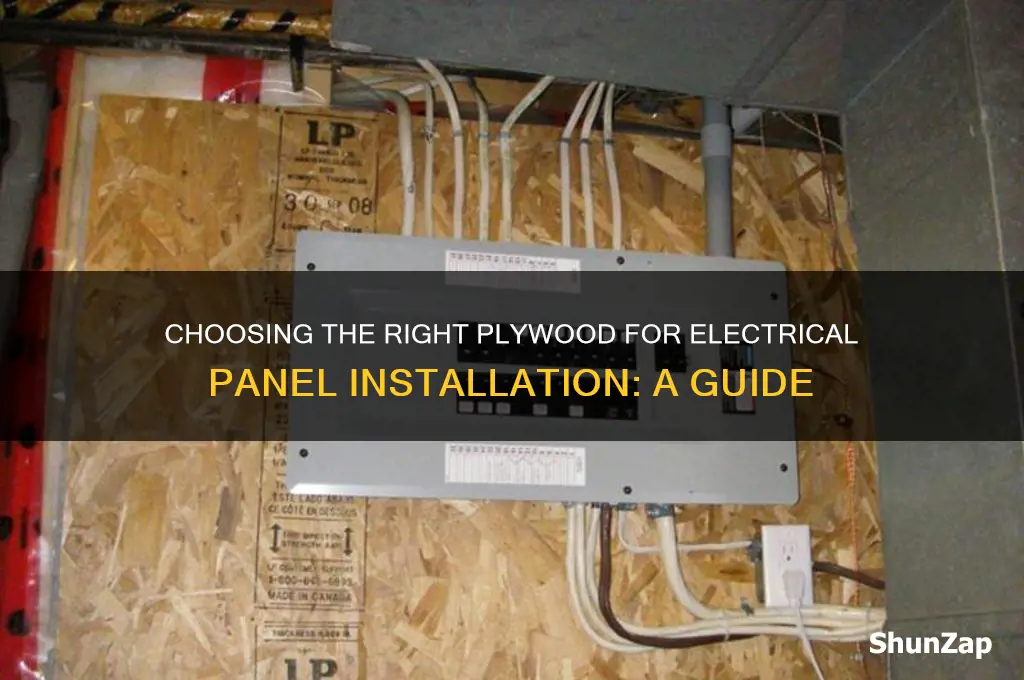

When selecting plywood for an electrical panel, it's crucial to prioritize safety, durability, and compliance with electrical codes. The ideal plywood should be non-conductive, moisture-resistant, and capable of withstanding heat and potential electrical stress. Marine-grade plywood or exterior-grade plywood treated with a non-conductive finish are excellent choices due to their resistance to humidity and warping. Additionally, ensure the plywood is free from metal contaminants and meets local building codes or NEC (National Electrical Code) standards. Thickness typically ranges from ½ inch to ¾ inch, depending on the panel's size and mounting requirements. Always consult a professional electrician to ensure the material and installation meet safety regulations.
| Characteristics | Values |
|---|---|
| Type of Plywood | Exterior-grade plywood (marine or moisture-resistant) |
| Material | Hardwood or softwood (e.g., birch, oak, pine) |
| Thickness | 3/4 inch (18 mm) or 1/2 inch (12 mm) depending on panel size and load |
| Grade | A-B or better (smooth surface for mounting components) |
| Moisture Resistance | Must be moisture-resistant to prevent warping or degradation |
| Fire Rating | Class A or B fire-rated plywood (optional but recommended) |
| Finish | Untreated or treated with non-conductive, non-flammable sealant |
| Size | Standard 4x8 feet sheet (cut to fit panel dimensions) |
| Adhesive | Exterior-grade, waterproof adhesive (e.g., phenolic resin) |
| Surface Smoothness | Smooth on at least one side for easy mounting of components |
| Structural Integrity | Must be rigid and stable to support electrical components and wiring |
| Compliance | Meets local electrical and building codes (e.g., NEC, IEC standards) |
| Weight | Lightweight yet sturdy (consider ease of installation) |
| Cost | Mid-range to high (depending on quality and fire rating) |
| Availability | Widely available at hardware or lumber stores |
Explore related products
What You'll Learn
Plywood Thickness Requirements
When selecting plywood for an electrical panel, understanding the thickness requirements is crucial for ensuring safety, durability, and compliance with electrical codes. The thickness of the plywood directly impacts the panel’s structural integrity and its ability to support the weight of electrical components, such as breakers, wiring, and mounting hardware. Generally, ¼-inch to ½-inch plywood is recommended for most residential and light commercial electrical panel applications. Thinner plywood, like ¼-inch, is suitable for lighter installations where the panel will not bear significant weight, while thicker options, such as ½-inch, are preferred for heavier loads or where additional rigidity is required.
The choice of plywood thickness also depends on the type of electrical panel and its mounting method. For surface-mounted panels, 3/8-inch plywood is often sufficient, as it provides a balance between strength and ease of installation. However, for recessed or flush-mounted panels, ½-inch plywood is typically recommended to ensure the panel remains securely anchored and can withstand the stress of embedded installation. It’s essential to consider the weight of the electrical components and the forces exerted during operation, as inadequate thickness can lead to warping or failure of the panel over time.
Another factor to consider is the environmental conditions where the electrical panel will be installed. In areas with high humidity or exposure to moisture, thicker plywood, such as ½-inch or greater, is advisable to prevent swelling or degradation of the material. Additionally, using exterior-grade plywood treated with moisture-resistant coatings can further enhance durability in such environments. Always ensure the plywood is compatible with the panel’s enclosure material and meets local building and electrical codes.
For DIY enthusiasts or professionals, it’s important to note that thicker plywood may require additional tools and effort during installation, particularly when cutting or drilling holes for wiring and components. However, the added stability and longevity justify the extra work. Always measure the space and plan the installation carefully to avoid unnecessary modifications to the plywood.
Lastly, consult the manufacturer’s guidelines for the specific electrical panel being installed, as some may have explicit recommendations for plywood thickness. Adhering to these guidelines ensures the panel functions safely and efficiently. In summary, while ¼-inch to ½-inch plywood is commonly used, the optimal thickness depends on the panel type, mounting method, load requirements, and environmental conditions. Prioritize safety and compliance to create a reliable electrical panel installation.
Electric Car Tax Credits: Income or Tax Reduction Benefits Explained
You may want to see also
Explore related products
Moisture-Resistant Plywood Options
When selecting plywood for an electrical panel, moisture resistance is a critical factor to ensure durability and safety, especially in environments prone to humidity or water exposure. Moisture-resistant plywood is designed to withstand damp conditions without warping, delaminating, or degrading, which is essential for maintaining the integrity of the electrical components housed within the panel. Below are some of the best moisture-resistant plywood options to consider for this application.
Marine Plywood is one of the top choices for moisture-resistant applications, including electrical panels. It is constructed with waterproof glue and often made from hardwood or treated softwood veneers, providing exceptional resistance to humidity and water. Marine plywood is specifically designed for use in harsh, wet environments, making it ideal for electrical panels in outdoor or high-moisture settings. Its durability and resistance to swelling or delamination ensure that the panel remains structurally sound over time.
Exterior-Grade Plywood is another viable option for moisture-resistant electrical panels. This type of plywood is manufactured with water-resistant adhesives and is often treated to withstand exposure to the elements. While not as robust as marine plywood, exterior-grade plywood offers a cost-effective solution for applications where the panel will be exposed to occasional moisture but not constant water immersion. It is commonly used in construction and can be a practical choice for indoor electrical panels in areas with moderate humidity.
Phenolic-Coated Plywood features a phenolic resin coating that provides excellent moisture resistance and added protection against chemicals and abrasion. This type of plywood is often used in industrial applications where durability and resistance to harsh conditions are paramount. For electrical panels, phenolic-coated plywood ensures that the wood remains stable and intact even in challenging environments, making it a reliable option for both indoor and outdoor use.
Tropical Hardwood Plywood, such as that made from teak or meranti, offers natural moisture resistance due to the dense, oily nature of the wood. These hardwoods are inherently less prone to water absorption and are often used in exterior applications. While tropical hardwood plywood can be more expensive, its natural durability and resistance to moisture make it a premium choice for electrical panels in demanding environments.
When choosing moisture-resistant plywood for an electrical panel, it’s essential to consider the specific conditions the panel will be exposed to, as well as the budget and availability of materials. Proper sealing and finishing can further enhance the moisture resistance of the plywood, ensuring long-term performance and safety. Always ensure the plywood meets relevant standards and regulations for electrical applications to guarantee compatibility and compliance.
Understanding Kilowatt-Hours: Electric Vehicle Energy Units Explained
You may want to see also
Explore related products
Fire-Rated Plywood Standards
When selecting plywood for electrical panels, it's crucial to prioritize fire safety, as electrical systems can pose significant fire hazards. Fire-rated plywood is specifically designed to resist combustion and limit the spread of flames, making it an essential material for applications where fire safety is paramount. The standards for fire-rated plywood are established by regulatory bodies to ensure that the material meets specific performance criteria under fire conditions. These standards dictate the plywood's composition, thickness, and treatment processes to achieve the desired fire resistance.
One of the primary standards for fire-rated plywood is the ASTM E84 (Steiner Tunnel Test), which evaluates the material's flame spread and smoke development indices. For electrical panel applications, plywood should have a flame spread index of 25 or less and a smoke development index of 50 or less to be considered fire-resistant. Additionally, UL 723 is another critical standard that assesses surface-burning characteristics, ensuring the plywood meets safety requirements for use in buildings. Compliance with these standards is non-negotiable when installing electrical panels, as it directly impacts the safety of the structure and its occupants.
Another important standard is NFPA 70 (National Electrical Code), which provides guidelines for the installation of electrical systems, including the materials used in their construction. While it does not specifically address plywood, it emphasizes the need for fire-resistant materials in electrical enclosures to prevent fire propagation. Fire-rated plywood used for electrical panels must also adhere to Building Code Requirements such as those outlined in the International Building Code (IBC) or local regulations, which often mandate the use of fire-retardant-treated (FRT) plywood for such applications.
The manufacturing process of fire-rated plywood involves treating the wood with fire-retardant chemicals, which penetrate the material to inhibit ignition and slow down burning. This treatment must comply with AWPA (American Wood Protection Association) standards, specifically AWPA M2 or M4, which define the retention and penetration levels of fire-retardant chemicals. Plywood treated under these standards is labeled as FRT plywood, ensuring it meets the necessary fire performance criteria for electrical panel installations.
Lastly, the thickness and structural integrity of fire-rated plywood are critical factors. For electrical panels, ¾-inch (19mm) FRT plywood is commonly recommended, as it provides adequate strength and fire resistance. Thinner plywood may not meet the structural or fire safety requirements, while thicker options may be unnecessary and add unnecessary weight. Always verify that the plywood is certified by a recognized testing laboratory, such as UL (Underwriters Laboratories) or Intertek, to ensure it meets all applicable fire-rated plywood standards. By adhering to these standards, you can ensure that the plywood used in electrical panels enhances fire safety and complies with regulatory requirements.
Renewable Energy's Role: Percentage of Global Electricity Generation
You may want to see also
Explore related products
Plywood Size and Dimensions
When selecting plywood for an electrical panel, understanding the appropriate size and dimensions is crucial for both functionality and safety. Standard plywood sheets come in 4 feet by 8 feet (48 inches by 96 inches) dimensions, which is the most common size available. This size is often ideal for electrical panel applications because it provides ample space to mount the panel components while minimizing waste. However, depending on the specific requirements of your electrical panel, you may need to cut the plywood to a smaller size. For instance, a typical residential electrical panel might only require a section of the plywood sheet, such as 2 feet by 4 feet, to accommodate the panel box and wiring.
The thickness of the plywood is another critical dimension to consider. Plywood for electrical panels is generally available in thicknesses ranging from 1/4 inch to 3/4 inch. For most electrical panel applications, 1/2 inch plywood is recommended because it strikes a balance between strength and weight. Thicker plywood provides greater durability and rigidity, which is important for supporting the weight of the panel and ensuring it remains securely mounted. Thinner plywood, such as 1/4 inch, may be insufficient for larger or heavier panels, as it could warp or bend under the load.
If your electrical panel requires additional support or will be installed in a high-traffic area, consider using 3/4 inch plywood for added strength. However, keep in mind that thicker plywood can be heavier and more difficult to work with, especially when cutting or mounting. Additionally, thicker plywood may require longer screws or fasteners to securely attach the panel components. Always ensure that the plywood dimensions align with the mounting requirements of your electrical panel box and the available wall space.
Custom dimensions may be necessary for unique installations or specific project needs. For example, if the electrical panel is being mounted in a tight space, you may need to cut the plywood to fit exact measurements, such as 3 feet by 5 feet or 2 feet by 3 feet. When cutting plywood to custom sizes, ensure the edges are straight and smooth to maintain a professional appearance and proper fit. Using a circular saw or table saw with a fine-tooth blade is recommended for precise cuts.
Lastly, consider the orientation of the plywood grain when determining dimensions. Plywood has a grain direction that affects its strength and stability. For electrical panels, it’s best to orient the grain vertically to provide maximum support along the height of the panel. This ensures the plywood can withstand the weight of the panel components without sagging or bending over time. Always measure twice and cut once to avoid errors and ensure the plywood dimensions meet the specific needs of your electrical panel installation.
Copper: The Essential Mineral Powering Electrical Wiring Worldwide
You may want to see also
Explore related products
Cost-Effective Plywood Choices
When selecting plywood for an electrical panel, cost-effectiveness is a key consideration without compromising on safety and durability. Plywood grades and types vary widely in price, but not all expensive options are necessary for this application. For electrical panels, the primary requirements are moisture resistance, stability, and the ability to securely hold screws and mounting hardware. This narrows down the choices to specific plywood types that balance affordability and functionality.
Pine plywood is often the most budget-friendly option and can be suitable for electrical panels in dry, indoor environments. It is lightweight and easy to work with, making installation straightforward. However, pine plywood is less resistant to moisture and may warp over time if exposed to humidity. To enhance its durability, consider applying a moisture-resistant sealant or paint. This treatment adds minimal cost but significantly extends the plywood's lifespan, making it a cost-effective choice for indoor electrical panels.
Lauan plywood, also known as Philippine mahogany, is another affordable option that offers better moisture resistance than pine. It is commonly used in interior applications and provides a smooth surface for mounting electrical components. While lauan is slightly more expensive than pine, its durability and resistance to warping make it a better long-term investment for electrical panels in areas with moderate humidity. Its lightweight nature also reduces labor costs during installation.
For those seeking a balance between cost and performance, BC sanded plywood is an excellent choice. This type of plywood features a smooth, sanded surface on one side, making it ideal for mounting electrical panels. BC sanded plywood is typically made from fir or spruce, offering good strength and stability at a reasonable price. It is more moisture-resistant than pine and can be used in both indoor and covered outdoor applications, provided it is properly sealed.
Lastly, CDX plywood is a cost-effective option for electrical panels in utility or outdoor settings. While it has a rough surface and is primarily used for sheathing, it can be adapted for electrical panel use with proper preparation. CDX plywood is treated to resist moisture and is highly durable, making it suitable for harsher environments. However, its rough surface may require additional sanding or the use of a mounting board to ensure a secure fit for electrical components.
In summary, cost-effective plywood choices for electrical panels include pine, lauan, BC sanded, and CDX plywood. Each option offers specific advantages in terms of price, durability, and moisture resistance. By selecting the appropriate type based on the installation environment and applying necessary treatments, you can achieve a safe and economical solution for your electrical panel needs.
Unplugged: The Shocking Truth Behind the Electric Car's Demise
You may want to see also
Frequently asked questions
Marine-grade plywood is the best choice for electrical panels due to its moisture resistance, durability, and ability to withstand harsh conditions.
Regular plywood is not recommended for electrical panels as it lacks moisture resistance and may warp or degrade over time, compromising safety.
Yes, plywood thickness matters; a minimum of 3/4-inch thickness is typically recommended to provide stability and support for mounting electrical components.
If using non-marine-grade plywood, it’s advisable to treat it with a moisture-resistant sealant or paint to enhance durability and prevent damage.
Yes, but only marine-grade or pressure-treated plywood should be used for outdoor electrical panels to ensure resistance to weather and moisture.
