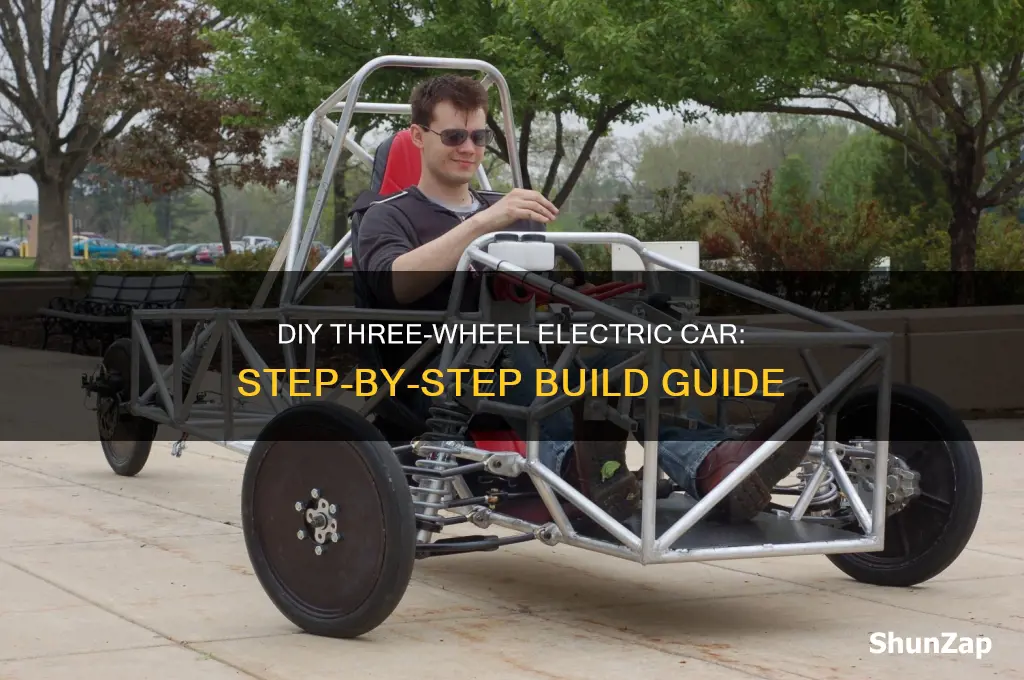

Building a three-wheel electric car combines innovation, sustainability, and engineering prowess, offering a unique solution for eco-friendly transportation. This project involves designing a lightweight, efficient vehicle with a single wheel in the front or rear, powered by an electric motor and battery system. Key steps include selecting a suitable chassis, integrating a compact drivetrain, and ensuring stability through precise weight distribution and steering mechanisms. Additionally, incorporating regenerative braking, advanced battery management, and a user-friendly interface enhances performance and usability. Whether for personal use or as a prototype, constructing a three-wheel electric car showcases the potential of green technology while addressing urban mobility challenges.
Explore related products
What You'll Learn
- Frame Design: Lightweight, sturdy materials; balance stability with weight for optimal performance and safety
- Motor Selection: Choose efficient, high-torque electric motor suited for three-wheel vehicle dynamics
- Battery System: High-capacity, compact battery pack with fast charging and long-range capabilities
- Steering Mechanism: Design responsive, stable steering system tailored for three-wheel configuration
- Safety Features: Include roll bars, seat belts, and braking systems for enhanced driver protection
Frame Design: Lightweight, sturdy materials; balance stability with weight for optimal performance and safety
The frame of a three-wheel electric car is its backbone, dictating not only structural integrity but also performance and safety. Lightweight materials like aluminum alloys or carbon fiber composites are ideal, as they reduce overall vehicle weight, enhancing efficiency and range. However, the challenge lies in balancing this lightness with the sturdiness required to withstand impacts and maintain stability, especially in a three-wheel configuration where the center of gravity is critical.
Consider the trade-offs: aluminum offers a favorable strength-to-weight ratio and is cost-effective, making it a popular choice for DIY builders. Carbon fiber, while more expensive, provides exceptional strength and rigidity, ideal for high-performance vehicles. For instance, a frame using 6061-T6 aluminum can achieve a weight reduction of up to 40% compared to steel while maintaining sufficient durability for everyday use. When selecting materials, factor in the vehicle’s intended use—commuting, racing, or off-roading—to prioritize either weight savings or robustness.
Stability in a three-wheel design hinges on the frame’s geometry and weight distribution. A triangular layout, with two wheels in front and one in the rear, inherently provides better stability than a single-front-wheel design. To optimize this, position the battery pack low and centered within the frame to lower the center of gravity. For example, placing the battery between the rear wheel and the driver’s seat can reduce rollover risk by up to 30%. Additionally, incorporate roll bars or reinforced struts to enhance structural rigidity without adding excessive weight.
Practical tips for builders include using finite element analysis (FEA) software to test frame designs virtually before fabrication. This ensures stress points are identified and addressed early. Welding techniques also matter: TIG welding aluminum joints provides stronger, cleaner connections compared to MIG welding. For carbon fiber, use epoxy resins and follow manufacturer guidelines for curing times to avoid weak spots. Always consult safety standards like FMVSS 500 for three-wheeled vehicles to ensure compliance.
In conclusion, a well-designed frame is a delicate balance of material choice, geometry, and weight distribution. By prioritizing lightweight yet sturdy materials and focusing on stability-enhancing features, builders can create a three-wheel electric car that is both efficient and safe. Remember, the frame isn’t just a skeleton—it’s the foundation for every aspect of performance, from handling to energy consumption.
Electric Vehicle Buyers: Understanding the US Market
You may want to see also
Explore related products
Motor Selection: Choose efficient, high-torque electric motor suited for three-wheel vehicle dynamics
Selecting the right electric motor is pivotal for a three-wheel vehicle, as it directly impacts performance, efficiency, and handling. Unlike four-wheel cars, three-wheelers often have unique weight distributions and stability challenges, requiring motors that deliver both high torque for acceleration and efficiency for extended range. A motor’s torque-to-weight ratio is critical here—aim for a motor capable of delivering at least 50 Nm of torque for lightweight vehicles (under 500 kg) and up to 100 Nm for heavier builds. Brushless DC (BLDC) or Permanent Magnet Synchronous Motors (PMSM) are ideal due to their compact size, high efficiency (85-95%), and ability to handle varying loads.
When evaluating motors, consider the vehicle’s intended use. For urban commuting, prioritize efficiency and low-end torque for stop-and-go traffic. A motor with a power rating of 5-10 kW should suffice, balancing energy consumption and performance. For off-road or high-speed applications, opt for a higher power output (15-20 kW) and a wider RPM range to maintain torque at higher speeds. Always match the motor’s kV (RPM per volt) rating to your battery voltage and desired top speed—a 200 kV motor paired with a 48V battery, for example, will deliver a practical balance of speed and control.
Efficiency isn’t just about the motor itself; it’s also about integration. Choose a motor with a compatible gear ratio to optimize power delivery to the wheels. A reduction ratio of 8:1 to 10:1 is common for three-wheelers, ensuring the motor operates within its peak efficiency range (typically 2,000-3,000 RPM). Additionally, pair the motor with a regenerative braking system to recapture energy during deceleration, further extending the vehicle’s range.
Practical tips: Always test the motor under load conditions to ensure it meets your torque and speed requirements. Use a motor controller with field-oriented control (FOC) for smoother operation and better efficiency. Finally, consider the cooling system—air-cooled motors are sufficient for most builds, but liquid cooling may be necessary for high-power applications to prevent overheating during prolonged use.
In conclusion, motor selection for a three-wheel electric car demands a balance of torque, efficiency, and application-specific performance. By focusing on these factors and integrating the motor thoughtfully, you’ll create a vehicle that’s not only functional but also optimized for its intended use.
Maximize Efficiency: Benefits of 3-Phase Power for Electricity Savings
You may want to see also
Explore related products
Battery System: High-capacity, compact battery pack with fast charging and long-range capabilities
The heart of any electric vehicle, including a three-wheeled variant, is its battery system. For optimal performance, focus on a high-capacity, compact battery pack that balances energy density with physical footprint. Lithium-ion batteries, particularly those using nickel-manganese-cobalt (NMC) or lithium iron phosphate (LFP) chemistries, offer the best compromise between energy storage, weight, and safety. Aim for a battery capacity of at least 20 kWh for a range of 100 miles, though 40 kWh or more is ideal for extended trips. Compact designs, such as prismatic or pouch cells, maximize space efficiency, crucial in a three-wheel vehicle’s limited chassis.
Fast charging capability is non-negotiable for practicality. A battery system supporting DC fast charging (50 kW or higher) can recharge up to 80% in under an hour, reducing downtime. Ensure the battery management system (BMS) is compatible with CCS or CHAdeMO standards for widespread charging network access. Thermal management, via liquid cooling or phase-change materials, prevents overheating during rapid charging and extends battery life. Integrate a regenerative braking system to recapture kinetic energy, further enhancing efficiency and range.
Long-range capabilities require not just high capacity but also energy-efficient design. Optimize the vehicle’s aerodynamics and reduce weight by using lightweight materials like aluminum or composites for the chassis. A BMS with state-of-the-art algorithms can monitor cell health, balance charging, and predict remaining range accurately. Pair the battery with a high-efficiency electric motor (90%+ efficiency) to minimize energy loss. For extended trips, consider a modular battery design that allows swapping or adding packs, though this adds complexity and cost.
Safety is paramount, especially in a three-wheel configuration where stability is inherently less than four-wheel vehicles. Choose batteries with built-in safety features like overcharge/discharge protection, thermal runaway prevention, and robust enclosures to withstand impacts. LFP batteries, while slightly less energy-dense, offer superior thermal stability and are less prone to combustion. Regularly inspect the battery system for signs of wear, swelling, or leakage, and replace cells or packs as needed. Follow manufacturer guidelines for storage temperature (ideally 20–25°C) to preserve longevity.
Finally, cost-effectiveness and scalability are critical for hobbyists or small-scale builders. Off-the-shelf battery packs from EV manufacturers or repurposing modules from salvaged vehicles (e.g., Tesla, Nissan Leaf) can reduce expenses. However, ensure compatibility with your vehicle’s voltage and current requirements. DIY builders should invest in a professional BMS and consult experts to avoid costly mistakes. While high-capacity, fast-charging batteries are pricier upfront, they pay dividends in usability and resale value. Prioritize quality over cutting corners—a reliable battery system is the cornerstone of a successful three-wheel electric car.
Is the Ford Mustang Mach-E a Worthy Electric Car Choice?
You may want to see also
Explore related products
Steering Mechanism: Design responsive, stable steering system tailored for three-wheel configuration
A three-wheel electric car’s steering system must balance responsiveness and stability, a challenge unique to its asymmetrical configuration. Unlike four-wheel vehicles, trikes rely on a single front or rear wheel for steering, demanding precise geometry to prevent tipping or sluggish handling. Ackerman steering principles, which account for wheel angles during turns, are critical here. For a single-front-wheel design (tadpole configuration), the steering knuckle should be angled inward at 5–7 degrees to ensure all wheels follow the same circular path. This minimizes tire wear and improves cornering precision.
Consider the leverage effect of a single steering wheel. In a rear-steered delta configuration, the system must counteract the tendency for the vehicle to "lean out" during turns. A dual-linkage mechanism, paired with a self-centering torsion bar, can provide the necessary stability. For electric trikes, where weight distribution is often skewed toward the battery pack, a variable-ratio steering rack is recommended. This adjusts steering effort based on speed, offering light control at low speeds and tighter response at higher velocities.
Material selection is non-negotiable. Aluminum alloys for the steering column and tie rods reduce unsprung weight, enhancing responsiveness without compromising strength. For DIY builders, pre-fabricated rack-and-pinion kits from go-kart or motorcycle suppliers can be adapted, but ensure the torque rating exceeds the vehicle’s maximum load by 30% for safety. Test the system incrementally: start with a 10-degree lock-to-lock range, gradually increasing to 30 degrees while monitoring wheel alignment and chassis stress.
Stability in three-wheelers hinges on countersteering dynamics. For tadpole designs, a caster angle of 10–12 degrees provides straight-line stability, while delta configurations benefit from a lower 6–8 degrees to reduce rear-wheel slip. Incorporate a steering damper, particularly in high-torque electric setups, to suppress wobble at speeds above 30 mph. Simulate emergency maneuvers during testing—abrupt lane changes or slalom patterns—to validate the system’s limits.
Finally, integrate regenerative braking with the steering system for energy efficiency. A torque sensor on the steering column can modulate regen intensity during turns, reducing wheel lockup risk. For urban trikes, prioritize tighter turning radii (under 12 feet) over high-speed stability, while off-road variants should emphasize robust steering stops to protect components from terrain impacts. Every decision should prioritize the trike’s center of gravity, ensuring the steering mechanism complements, not competes with, its unique weight distribution.
Arizona's Electric Vehicle Companies: Who's Leading the Charge?
You may want to see also
Explore related products
Safety Features: Include roll bars, seat belts, and braking systems for enhanced driver protection
Three-wheeled electric vehicles, by their very nature, present unique safety challenges due to their narrower stance and lighter weight compared to traditional four-wheeled cars. This makes the integration of robust safety features not just beneficial, but essential. Roll bars, seat belts, and advanced braking systems form the cornerstone of driver protection in these vehicles, addressing the heightened risks of rollovers, ejections, and reduced stopping power.
Roll bars, typically constructed from high-strength steel or composite materials, are designed to absorb and distribute the energy of a rollover, preventing the vehicle's cabin from collapsing. For three-wheelers, where the center of gravity is often higher, a well-engineered roll bar system can mean the difference between a survivable accident and a catastrophic one. When selecting a roll bar, ensure it meets or exceeds industry standards such as the Society of Automotive Engineers (SAE) J765, which specifies performance requirements for occupant protection in light vehicles.
Seat belts in three-wheel electric cars must be more than just a regulatory checkbox; they need to be optimized for the vehicle's dynamics. A three-point harness, which secures the driver across the lap and shoulder, is the minimum requirement. However, for added safety, consider a four-point or even a five-point harness, commonly used in racing vehicles, which provides better restraint during sudden maneuvers or impacts. The angle and positioning of the seat belt anchors are critical—they should be mounted at a 45-degree angle to the vehicle's floor to ensure optimal load distribution in the event of a collision.
Braking systems in three-wheel electric cars demand a balance between efficiency and redundancy. Regenerative braking, a staple in electric vehicles, can recover energy but may not provide sufficient stopping power in emergency situations. Therefore, a hydraulic or mechanical braking system should complement it. Anti-lock braking systems (ABS) are particularly important in three-wheelers, as they prevent wheel lockup and maintain steering control on slippery surfaces. For optimal performance, the braking system should be designed to distribute force evenly across all wheels, even if one wheel loses traction.
Integrating these safety features requires careful consideration of the vehicle's overall design. Roll bars must be seamlessly integrated into the chassis without compromising cabin space or aesthetics. Seat belts should be ergonomically positioned to ensure comfort during long drives while remaining easily accessible. Braking systems need to be calibrated to the vehicle's weight and power output, with regular testing to ensure consistent performance. By prioritizing these safety features, builders can create a three-wheel electric car that not only meets regulatory standards but also provides peace of mind for drivers and passengers alike.
Driving Electric Cars: Is It Really as Easy as It Seems?
You may want to see also
Frequently asked questions
The essential components include an electric motor, battery pack, motor controller, chassis, steering system, brakes, wheels, and a basic frame. Additionally, you’ll need wiring, connectors, and a charging system.
Select a motor based on power requirements, voltage compatibility with your battery, and torque needed for your vehicle’s weight. Brushless DC (BLDC) motors are commonly used for efficiency and reliability.
Lithium-ion batteries are ideal due to their high energy density, long lifespan, and lightweight design. Ensure the battery voltage and capacity match your motor and desired range.
Focus on a low center of gravity by placing the battery pack at the bottom. Use a wide wheelbase for stability, and incorporate a robust braking system and tilt-resistant design. Always test the vehicle incrementally before full-speed operation.
