Trystan Casey

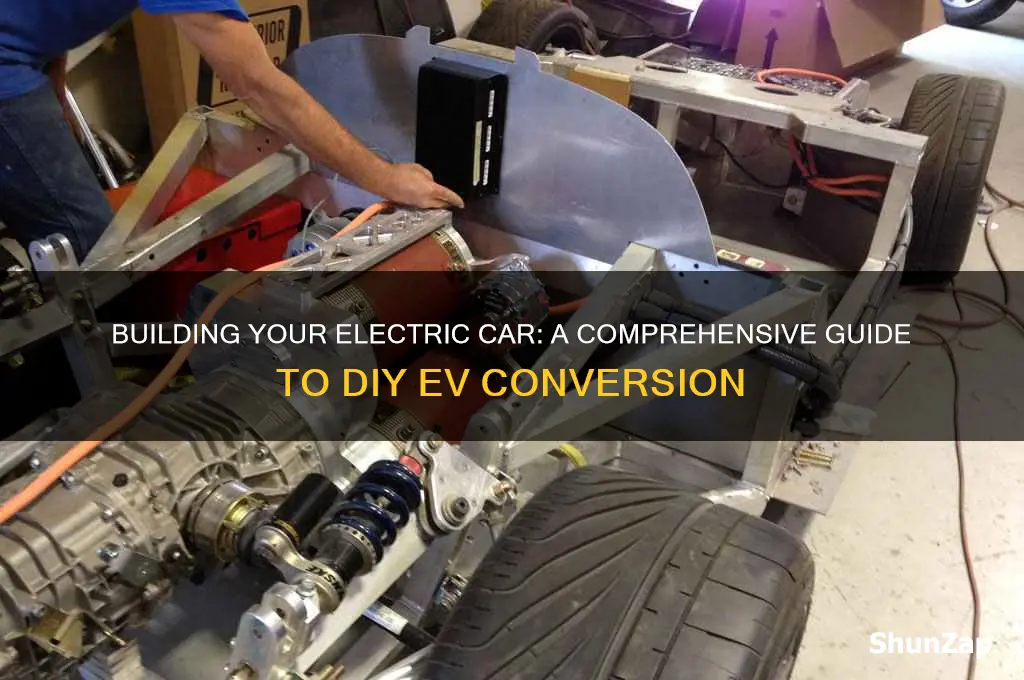

How to Build an Electric Car is an essential guide for enthusiasts, engineers, and DIYers looking to dive into the world of electric vehicle (EV) technology. This comprehensive book walks readers through the entire process of converting a traditional internal combustion engine vehicle into an electric car or building one from scratch. Covering everything from selecting the right components, such as motors, batteries, and controllers, to understanding electrical systems and safety protocols, the book demystifies the complexities of EV construction. With step-by-step instructions, detailed diagrams, and real-world examples, it empowers readers to take on this ambitious project while promoting sustainability and innovation in personal transportation. Whether you're a beginner or an experienced builder, this book provides the knowledge and confidence needed to bring your electric car vision to life.
Explore related products
What You'll Learn
- Battery Selection & Management: Choosing right battery type, capacity, and efficient thermal management for optimal performance
- Motor & Drivetrain Design: Selecting motors, gear ratios, and drivetrain layouts for efficiency and power
- Charging System Integration: Designing onboard chargers, connectors, and compatibility with charging infrastructure
- Chassis & Lightweight Materials: Using lightweight materials for chassis to improve range and handling
- Electronics & Software Control: Developing control systems, sensors, and software for seamless vehicle operation
Battery Selection & Management: Choosing right battery type, capacity, and efficient thermal management for optimal performance
The heart of any electric vehicle (EV) is its battery pack, and selecting the right battery type is a critical decision that impacts performance, range, and safety. Lithium-ion batteries dominate the EV market due to their high energy density, long cycle life, and declining costs. Within this category, variants like Lithium Nickel Manganese Cobalt Oxide (NMC) and Lithium Iron Phosphate (LFP) offer distinct advantages. NMC batteries, used in vehicles like the Tesla Model S, provide higher energy density and faster charging but are more sensitive to temperature extremes. LFP batteries, found in some BYD models, offer superior thermal stability and longevity, making them ideal for fleet vehicles or regions with extreme climates. The choice hinges on balancing energy needs, safety, and cost.
Once the battery type is selected, determining the appropriate capacity is next. Capacity, measured in kilowatt-hours (kWh), dictates the vehicle’s range. A compact city car might require a 30–40 kWh battery, while a high-performance SUV could need 100 kWh or more. However, larger batteries add weight and cost, reducing efficiency and increasing manufacturing expenses. A practical approach is to align capacity with the vehicle’s intended use. For instance, a daily commuter might prioritize a smaller, lighter battery, while a long-haul EV could justify a larger pack. Tools like the Peukert’s Law equation can help estimate battery performance under different discharge rates, ensuring the chosen capacity meets real-world demands.
Efficient thermal management is non-negotiable for battery longevity and safety. Lithium-ion batteries operate optimally within a narrow temperature range (15°C to 35°C). Deviations can reduce efficiency, accelerate degradation, or even cause thermal runaway. Active cooling systems, such as liquid cooling, are essential for high-performance EVs, as they maintain consistent temperatures during fast charging or heavy loads. Passive systems, like phase-change materials, are cost-effective for milder climates or smaller batteries. For example, the Nissan Leaf uses air cooling, while the Porsche Taycan employs a sophisticated liquid cooling system. Integrating thermal management early in the design phase ensures the battery operates safely and efficiently across all conditions.
Finally, battery management systems (BMS) are the unsung heroes of EV performance. A BMS monitors voltage, current, temperature, and state of charge (SoC) for each cell, ensuring balanced operation and preventing overcharging or deep discharging. Advanced BMS features, like cell balancing and predictive analytics, can extend battery life by 20–30%. For DIY builders, off-the-shelf BMS solutions from companies like Orion or Daly offer plug-and-play functionality, while custom systems allow for greater control and optimization. Regular firmware updates and diagnostics are essential to keep the BMS aligned with evolving battery behavior. Without a robust BMS, even the best battery selection and thermal management strategies will fall short.
In summary, battery selection and management require a holistic approach that considers type, capacity, thermal control, and system integration. By prioritizing these elements, builders can create EVs that deliver optimal performance, safety, and longevity. Whether for a personal project or commercial venture, mastering these principles is key to unlocking the full potential of electric mobility.
Do 24kW Electric Cars Work with DC Charging? Explained
You may want to see also
Explore related products
Motor & Drivetrain Design: Selecting motors, gear ratios, and drivetrain layouts for efficiency and power
Selecting the right motor is the cornerstone of electric vehicle (EV) performance. Brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM) dominate the market due to their high efficiency and power density. For instance, Tesla uses PMSM in its Model S, achieving 0-60 mph in under 2.5 seconds. When choosing, consider peak power (kW) and continuous power (kW) ratings. Peak power handles short bursts, like acceleration, while continuous power sustains cruising. A 100 kW peak motor with 50 kW continuous output balances performance and efficiency for most passenger EVs.
Gear ratios are the unsung heroes of drivetrain efficiency. A single-speed transmission, common in EVs, simplifies design but requires a motor capable of both low-end torque and high-speed efficiency. For example, a gear ratio of 9:1 provides strong acceleration, while 7:1 optimizes highway efficiency. Use the formula *Gear Ratio = (Motor Speed × Tire Radius) / (Vehicle Speed × Differential Ratio)* to calculate the ideal ratio. Simulations or test drives with adjustable gearboxes can fine-tune this balance, ensuring the motor operates within its most efficient RPM range.
Drivetrain layouts—front-wheel drive (FWD), rear-wheel drive (RWD), all-wheel drive (AWD), and hub motors—each have unique advantages. RWD offers better weight distribution and handling, while AWD enhances traction and performance, as seen in the Audi e-tron. Hub motors eliminate the need for a central motor and gearbox, reducing complexity, but they add unsprung weight, affecting ride quality. For DIY builders, RWD with a single motor is cost-effective and straightforward, while AWD requires precise torque vectoring control, increasing complexity and cost.
Efficiency and power are often at odds, but strategic design choices can harmonize them. Lightweight materials like aluminum or carbon fiber in the drivetrain reduce energy loss. Regenerative braking, standard in most EVs, recovers 15-25% of kinetic energy during deceleration. Pairing a high-efficiency motor (95%+ efficiency) with a well-matched gear ratio can extend range by 10-15%. For example, the Nissan Leaf’s 80 kW motor and 8.27:1 gear ratio achieve 149 miles of EPA range, showcasing the synergy of these components.
Practical tips for DIY builders: Start with a motor sized for your vehicle’s weight and desired performance. Use online calculators to determine gear ratios based on tire size, vehicle speed, and motor RPM. Test different drivetrain layouts in simulations before committing to hardware. Prioritize regenerative braking systems, even in basic builds, to maximize efficiency. Finally, document your design choices and test results—this iterative process is key to refining your EV’s performance and range.
Should Electric Car Owners Keep Their Manuals Handy?
You may want to see also
Explore related products
Charging System Integration: Designing onboard chargers, connectors, and compatibility with charging infrastructure
The onboard charger is the unsung hero of electric vehicle (EV) design, converting AC power from the grid to DC power for the battery. Its efficiency directly impacts charging time and energy consumption. A well-designed onboard charger should aim for a power factor above 0.95 to minimize grid strain and a peak efficiency of at least 92% to reduce energy loss. For instance, Tesla’s onboard chargers operate at 94% efficiency, contributing to their vehicles’ rapid charging capabilities. When designing, prioritize wide input voltage ranges (85–265 VAC) to ensure compatibility with global charging standards, and incorporate thermal management systems to prevent overheating during high-power charging.
Connector design is a critical yet often overlooked aspect of charging system integration. The SAE J1772 and CCS (Combined Charging System) are dominant standards, but emerging designs like Tesla’s proprietary connector and the CHAdeMO standard in Asia highlight the need for interoperability. A robust connector must withstand 10,000 mating cycles, handle currents up to 400 A for DC fast charging, and include locking mechanisms to prevent accidental disconnections. For example, the CCS connector combines AC and DC charging in a single interface, streamlining design and reducing vehicle weight. Always test connectors for IP67 waterproofing and ensure they meet UL and IEC safety standards to prevent electrical hazards.
Compatibility with charging infrastructure is the linchpin of a seamless EV ownership experience. Onboard chargers must support Level 1 (120 V), Level 2 (240 V), and DC fast charging protocols. However, the challenge lies in balancing cost and functionality. For instance, integrating a 50 kW DC fast charging capability increases the onboard charger’s cost by 20–30%, but it reduces charging times from hours to minutes. Use CAN or PLC communication protocols to ensure the vehicle and charger exchange data on power levels, temperature, and fault conditions. Test compatibility across major networks like Electrify America and ChargePoint to identify and resolve interoperability issues early in development.
A practical tip for designers: modularize the charging system to future-proof the vehicle. For example, design the onboard charger as a replaceable unit, allowing upgrades to higher power ratings as charging infrastructure evolves. Incorporate firmware update capabilities via OTA (over-the-air) updates to adapt to new charging standards or protocols. For instance, Nissan’s Leaf initially supported CHAdeMO but later models added CCS compatibility through software updates. This approach reduces long-term costs and ensures the vehicle remains relevant in a rapidly changing ecosystem. Always benchmark against industry leaders like the Porsche Taycan, which achieves 80% charge in 22.5 minutes by optimizing both onboard and offboard charging systems.
Electric Car Fires: Frequency, Causes, and Safety Measures Explained
You may want to see also
Explore related products
Chassis & Lightweight Materials: Using lightweight materials for chassis to improve range and handling
Reducing vehicle weight directly improves electric car efficiency, as every kilogram shed translates into extended range. A 10% reduction in vehicle mass can increase range by 5–7%, depending on driving conditions. This principle makes lightweight chassis materials a critical focus for electric vehicle (EV) design. Traditional steel chassis, while durable, contribute significantly to overall weight. Replacing them with advanced materials like aluminum, carbon fiber composites, or high-strength steel alloys can yield substantial benefits. For instance, aluminum is approximately one-third the weight of steel, while carbon fiber composites offer a 50% weight reduction with comparable strength.
Selecting the right material requires balancing cost, manufacturability, and performance. Aluminum, though lighter than steel, is more expensive and requires specialized welding techniques. Carbon fiber, while exceptionally light and strong, is costly and time-consuming to produce, making it more suitable for high-end or niche vehicles. High-strength steel alloys offer a middle ground, providing weight savings over conventional steel with fewer manufacturing challenges. For budget-conscious projects, a hybrid approach—using aluminum for the chassis frame and high-strength steel for critical components—can optimize weight reduction without breaking the bank.
Designing a lightweight chassis isn’t just about material choice; it’s also about structural optimization. Computer-aided engineering (CAE) tools enable designers to simulate stress points and refine the chassis geometry, minimizing material use without compromising safety. For example, a lattice or honeycomb structure in non-load-bearing areas can reduce weight while maintaining rigidity. Additionally, integrating the battery pack into the chassis as a structural component—a technique known as "skateboard design"—further reduces weight and lowers the vehicle’s center of gravity, enhancing handling.
Handling improvements from lightweight chassis materials are equally significant. A lighter vehicle responds more dynamically to steering inputs, reducing body roll and improving cornering stability. Pairing a lightweight chassis with a low-mounted battery pack creates a favorable weight distribution, typically around 50:50, which is ideal for balanced handling. However, lighter materials may introduce challenges like reduced NVH (noise, vibration, and harshness) performance, requiring additional soundproofing measures.
In practice, successful implementation of lightweight chassis materials demands careful planning. Start by defining the vehicle’s target weight and performance metrics. Use finite element analysis (FEA) to test different material and design combinations before prototyping. Collaborate with suppliers to source cost-effective materials and leverage their expertise in manufacturing techniques. Finally, conduct real-world testing to validate the chassis’s durability, safety, and performance. By prioritizing lightweight materials, EV builders can create vehicles that not only travel farther on a single charge but also deliver a more engaging driving experience.
Choosing the Right Breaker for Your Electric Stove: A Guide
You may want to see also
Explore related products
Electronics & Software Control: Developing control systems, sensors, and software for seamless vehicle operation
The heart of any electric vehicle (EV) lies in its electronics and software control systems. These components orchestrate everything from battery management to motor control, ensuring the vehicle operates efficiently, safely, and seamlessly. Developing these systems requires a deep understanding of both hardware and software integration, as well as the ability to anticipate and mitigate potential failures. For instance, a well-designed control system must balance power delivery to the motor while monitoring battery health, temperature, and state of charge—all in real time. This section delves into the critical aspects of designing and implementing these systems, offering practical insights for builders and engineers alike.
Consider the role of sensors in an EV. They are the eyes and ears of the control system, providing critical data on speed, temperature, pressure, and more. For example, a hall-effect sensor can monitor the position of the motor rotor, enabling precise control of torque and speed. Similarly, a battery management system (BMS) relies on voltage, current, and temperature sensors to prevent overcharging, overheating, or deep discharging. When selecting sensors, prioritize accuracy, response time, and environmental robustness. For instance, a temperature sensor with a response time of <100 ms and an accuracy of ±0.5°C is ideal for thermal management. Always calibrate sensors before integration and implement redundancy for critical functions, such as using dual temperature sensors in the battery pack to ensure fail-safe operation.
Software development is equally pivotal, as it translates sensor data into actionable commands for the vehicle’s systems. A real-time operating system (RTOS) like FreeRTOS or QNX is often preferred for its deterministic behavior, ensuring tasks like motor control and regenerative braking execute with minimal latency. For example, a control algorithm might use proportional-integral-derivative (PID) logic to adjust motor current based on driver input and vehicle speed. When coding, adopt a modular approach, separating concerns into distinct modules like power management, traction control, and user interface. Use version control systems like Git to track changes and collaborate effectively. Additionally, implement over-the-air (OTA) update capabilities to allow for software improvements post-deployment, a feature increasingly expected by consumers.
One of the most challenging aspects of EV control systems is ensuring compatibility and communication between components. Protocols like CAN (Controller Area Network) are standard for in-vehicle communication, enabling devices like the BMS, motor controller, and dashboard to exchange data at speeds up to 1 Mbps. However, as EVs evolve, newer protocols like Ethernet or FlexRay may be required for higher bandwidth applications, such as advanced driver-assistance systems (ADAS). When designing the architecture, map out the data flow between components and identify potential bottlenecks. For instance, a high-resolution camera feeding into an ADAS system might require a dedicated Ethernet link to avoid overwhelming the CAN bus.
Finally, testing and validation are non-negotiable. Simulate edge cases, such as sudden battery disconnects or sensor failures, to ensure the system responds safely. Use hardware-in-the-loop (HIL) testing to validate software behavior before deploying it to the vehicle. For example, simulate a high-temperature scenario in the battery pack and verify that the BMS reduces charging current or activates cooling systems as designed. Document test results meticulously and iterate on the design based on findings. Remember, the goal is not just functionality but robustness—ensuring the vehicle operates seamlessly under all conditions, from Arctic cold to desert heat. By mastering these electronics and software control principles, builders can create EVs that are not only innovative but also reliable and safe.
