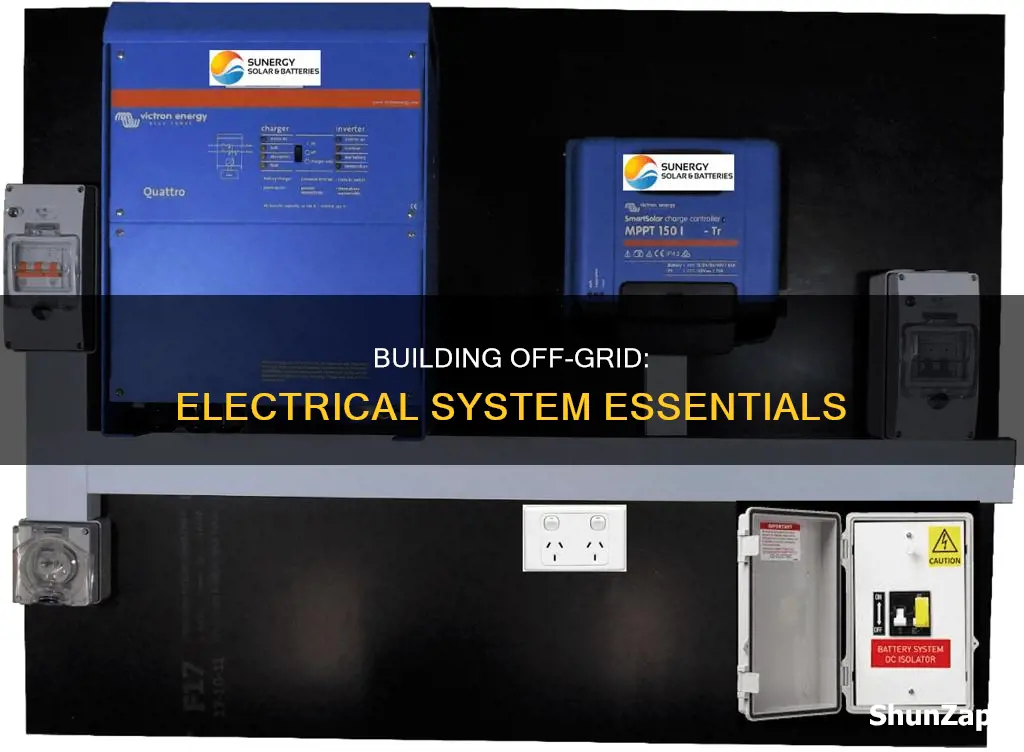

Building an off-grid electrical system can be a complex process, but it offers complete independence from the traditional power grid. Off-grid solar systems rely on solar panels, batteries, and inverters to generate, store, and supply electricity. Before designing such a system, it's crucial to understand your daily energy requirements, which can be calculated using a load table or load calculator. Solar batteries, a crucial component, come in various voltages, and their capacity is measured in Ah or Wh. Deep-cycle batteries, commonly used in off-grid systems, undergo a 24-hour charge/discharge cycle. When choosing a battery type, maintenance requirements should be considered, with sealed lead-acid batteries being low-maintenance alternatives to flooded lead-acid batteries. Selecting the right solar inverter is also essential, as some inverters are designed specifically for off-grid use and can provide additional power during high-load situations. While off-grid systems require careful planning and investment, they can be a reliable and environmentally friendly solution, especially in areas with unreliable or unavailable grid infrastructure.
| Characteristics | Values |
|---|---|
| Energy source | Solar |
| Installation | Should be installed by a licensed electrical professional |
| Energy required | Calculate how much energy is required per day in kWh |
| Load data | Use an off-grid load calculator for summer and winter |
| Battery capacity | Measured in Ah (Amp-hours) or Wh (Watt-hours) |
| Number of days of autonomy | Determine the number of days of autonomy (continuous days without sunshine) required for the battery to last |
| Solar array size | Consider local solar irradiation and any shading losses |
| Battery type | Deep cycle batteries, flooded lead-acid (FLA), sealed lead acid (SLA) |
| Voltage | 6V, 12V, 24V, 48V |
| Inverter | Outback Radian, Schneider XW+, Selectronic, Victron Energy, Schneider Electric inverter chargers |
| Cost | Batteries are one of the most expensive parts |
Explore related products
![Hydraulic Ram Pump | by Land To House [ 1-1/4" ] (Large) Pump Water Off Grid from Creeks and Streams without Fuel or Electricity](https://m.media-amazon.com/images/I/71ilWn-p2BL._AC_UY218_.jpg)
What You'll Learn
- Solar panels: Use panels with the right voltage, positioned to maximise sun exposure
- Battery selection: Deep cycle batteries are common, but require regular maintenance
- Energy requirements: Calculate your daily energy consumption to determine the size of the solar array
- System sizing: Consider the number of days without sunshine and select a battery with sufficient capacity
- Inverters: Choose an off-grid inverter that can pass through power from the grid or a backup generator
Solar panels: Use panels with the right voltage, positioned to maximise sun exposure
Solar panels are a crucial component of an off-grid electrical system. They harness the sun's energy to generate electricity, but they can't produce electricity without sunlight. This means that if you're relying solely on solar panels, you'll need to ensure they are positioned to maximise sun exposure.
When choosing solar panels, it's important to select those with the right voltage for your system. Solar batteries come in various voltages, including 6V, 12V, 24V, and 48V. The voltage you choose will impact the efficiency and cost-effectiveness of your system. For instance, at lower voltages, you will need to invest in more electronics and cabling to handle the higher amperage. Therefore, a 48V system is recommended for off-grid residences as it is more efficient and cost-effective.
It's also important to consider the size and positioning of your solar panels. If you have limited roof space or obstructions that prevent optimal sun exposure, consider mounting the panels on the ground. Ground-mounted panels can be easier to install and maintain, and they make it simpler to use a tracking system, which ensures you get the maximum energy yield.
Additionally, you'll need to determine the solar array size in kW, taking into account local solar irradiation and any shading losses. This calculation will impact the number of panels you need and how they should be configured.
While solar panels can be expensive, there are ways to save money. For example, you can shop around for used panels or look for wholesale deals and online marketplaces. Keep in mind that solar panels are designed to last for decades and rarely fail, so they are a reliable investment.
Overall, selecting solar panels with the right voltage and positioning them for maximum sun exposure are critical steps in building an effective off-grid electrical system.
Electric Starters in Classic Cars: 1984 Jaguar's Innovation
You may want to see also
Explore related products
![The DIY Off Grid Solar Power Bible: [10 in 1] The Most Complete and Updated Guide to Design, Install, and Maintain Solar Energy Systems for Tiny Homes, Cabins, Rvs, and Boats](https://m.media-amazon.com/images/I/71nDFhnyQaL._AC_UY218_.jpg)
Battery selection: Deep cycle batteries are common, but require regular maintenance
Batteries are one of the most expensive parts of an off-grid electrical system. When selecting a battery for your off-grid electrical system, deep cycle batteries are a common choice. These batteries are designed to be discharged and recharged gradually and are sized to cover your energy usage for one night. They complete one charge/discharge cycle over a 24-hour period.
Deep cycle batteries come in a variety of voltages, including 6V, 12V, 24V, and 48V. The voltage you choose will depend on your specific needs and system configuration. A 48V DC battery bank is the most efficient and cost-effective option for an off-grid residence. This is because, at lower voltages, you will need to invest in more electronics and cabling to handle the higher amperage.
There are several types of deep cycle batteries available, each with its own advantages and maintenance requirements. Flooded lead-acid (FLA) batteries, also known as "wet cell" batteries, are commonly used in off-grid solar applications. However, they require routine maintenance as the water in the electrolyte solution evaporates during charging and needs to be refilled with distilled water. This maintenance involves monthly checks and refills, making them unsuitable for those who cannot commit to a regular schedule or are not interested in hands-on system management.
Sealed lead acid (SLA) batteries, on the other hand, have minimal maintenance requirements. The electrolyte compartment is sealed, preventing leaks and noxious fumes. SLA batteries can be mounted in any orientation and do not need to be installed in a ventilated enclosure, offering more flexibility in their placement.
When choosing deep cycle batteries, it is important to consider the number of days of autonomy you require. Lead-acid batteries are generally sized for three or more days of autonomy, while lithium battery systems typically require a minimum of two days. Additionally, battery capacity should be considered when sizing your solar array, as it will impact the ability to fully charge the battery bank.
Electricity Flow: Anode to Cathode Direction
You may want to see also
Explore related products
$18.99 $18.99
Energy requirements: Calculate your daily energy consumption to determine the size of the solar array
When building an off-grid electrical system, it is crucial to calculate your daily energy consumption to determine the size of the solar array and battery bank required to meet your needs. This process involves several steps, and it is recommended that you consult a professional solar installer or system designer if you are unsure.
First, you need to estimate your daily energy requirements in kilowatt-hours (kWh). This can be done using a load table or load calculator, which will help you estimate the amount of energy needed to be generated and stored daily. For grid-connected sites, detailed load data can often be obtained from your electricity retailer or by using meters to measure loads directly. If you are designing an off-grid system, you will need to use an off-grid load calculator that takes into account seasonal variations, such as summer and winter.
When using a load calculator, you will need to input information about your specific energy needs, including the types and number of appliances you use, their wattage, and the number of hours they are used daily. This will help you estimate your average daily energy consumption in kWh. It is important to be as accurate as possible in this step, as underestimating your energy requirements can lead to insufficient power generation and storage.
Once you have determined your daily energy consumption, you can start sizing your solar array. The size of the solar array will depend on the amount of sunlight your location receives, known as peak sun hours (PSH). PSH values are unique to each location and can be obtained from meteorological organisations. You will want to use the minimum PSH of your location in winter to ensure your solar array is large enough to fully charge your battery bank during the shortest sunny days.
In addition to PSH, you should also consider the efficiency of your solar panels and any potential shading losses when sizing your solar array. Solar panels have an efficiency rating, usually ranging from 15% to 22%, which indicates the percentage of sunlight they can convert into electricity. Taking these factors into account, you can determine the size of the solar array in kW needed to meet your daily energy consumption.
Finally, you will need to select a battery bank that can store enough energy to power your off-grid system during periods of low or no sunlight. Battery capacity is typically measured in Amp-hours (Ah) or Watt-hours (Wh), and you will need to determine the number of days of autonomy (continuous days without sunshine) your battery bank should last. Lithium batteries typically require a minimum of two days of autonomy, while lead-acid batteries are sized for three or more days due to their lower efficiency.
Enhancing Electric Shower Pressure: Simple UK Hacks to Try
You may want to see also
Explore related products
System sizing: Consider the number of days without sunshine and select a battery with sufficient capacity
When building an off-grid electrical system, it is important to size your system based on the month with the least amount of sunshine. This ensures that you will have access to sufficient energy at all times.
Firstly, calculate your average daily energy consumption in kilowatt-hours (kWh). This is done by adding up the wattage of all the appliances and devices that could be run simultaneously, such as microwaves, lights, computers, and clocks. Then, multiply the wattage of each device by the number of hours it will be used in a day to get the energy in watt-hours per day.
Next, decide on the number of days' worth of energy you want to store in your battery bank. This is typically anywhere from two to five days. If you are using lithium batteries, the minimum is two days, while less efficient lead-acid batteries are generally sized for three or more days.
Finally, calculate the minimum battery amp-hour (AH) capacity required. Take the watt-hours per day and multiply them by the number of days you decided on. This will give you the total watt-hours needed for the specified number of days. To get the amp-hours, divide this value by the battery voltage, which can be 12V, 24V, or 48V for commercial applications.
For example, if you use 1.8 kWh per day and want the battery bank to last for three days without recharging, the calculation would be as follows:
- 1.8 kWh/day x 3 days x 2 (for 50% depth of discharge) = 10.8 kWh
- To convert to AH, divide by the voltage: 10.8 kWh / 48V = 225 AH
Now you have the minimum AH capacity required for your battery bank.
It is important to note that the wiring configuration, such as series or parallel connections, will also impact the number of batteries you need and their lifespan. Additionally, factors like ambient temperature and seasonal variations in sunlight can affect battery performance and capacity, so these should be considered when sizing your off-grid electrical system.
The Vatican's Power: A Modern Electricity Conundrum
You may want to see also
Explore related products
Inverters: Choose an off-grid inverter that can pass through power from the grid or a backup generator
When building an off-grid electrical system, it is important to select an inverter that suits your energy requirements. An inverter is the heart and brain of an off-grid system, and its primary job is to supply pure sine wave AC power. It must be able to meet the power requirements of your appliances under all conditions.
For off-grid installations, it is critical that the solar inverter is compatible with the inverter-charger to optimise battery charging. The inverter should be able to manage multiple energy sources in various configurations, including AC and DC-coupled solar, backup generators, and other AC sources.
When selecting an inverter, it is important to consider its pass-through power capability. This feature, also known as an integrated transfer switch, enables the inverter to supply additional power from the grid or a backup generator when the batteries are low or solar energy is unavailable. This can greatly simplify the installation process by eliminating the need to separate essential and non-essential loads.
Generally, only high-end grid-interactive and off-grid inverters can pass through additional power from the grid or auto-start and run a connected backup generator. Selectronic, Victron Energy, and Schneider Electric inverter chargers feature built-in transfer switches with pass-through power capability.
When designing your off-grid system, it is important to adequately size your inverter according to the appliances it will be running. Some equipment, such as water pumps, fridge compressors, and air conditioning units, require very high surge power during startup, which can overwhelm cheaper inverters.
Additionally, consider the battery capacity and voltage that will work best for your system. Off-grid solar systems typically use deep cycle batteries, which are designed to be discharged and recharged gradually. The battery capacity is measured in Ah (Amp-hours) or Wh (Watt-hours), and the most efficient and cost-effective option for an off-grid residence is a 48V DC battery bank.
Electricity-Related Fire Emergencies: Quick and Safe Solutions
You may want to see also
Frequently asked questions
The first step is to calculate your average daily energy consumption in kilowatt-hours (kWh). Next, you need to determine the solar array size in kW, considering local solar irradiation and shading losses. You should also select a suitable build site for your panels, preferably facing them in the right direction to maximise sun exposure. Off-grid solar systems use deep cycle batteries, which are designed to be discharged and recharged gradually. These batteries are typically sized to cover your energy usage for one night and recharge during the day.
It is crucial to understand the basics of designing and sizing energy storage systems. You can use a load table or load calculator to estimate the amount of energy needed to be generated and stored daily. Additionally, consider the battery capacity (kWh) when sizing the solar array, especially for off-grid systems. Another important feature to consider is the pass-through power capability, which allows the inverter to supply additional power from the grid or a backup generator when needed.
There are two common types of batteries used: flooded lead-acid (FLA) batteries and sealed lead-acid (SLA) batteries. FLA batteries require regular maintenance and are prone to failure if not properly maintained. SLA batteries, on the other hand, have minimal maintenance requirements and can be mounted in any orientation since their electrolyte compartment is sealed. Other battery types include lithium-ion batteries and different voltage options, such as 6V, 12V, 24V, and 48V.
