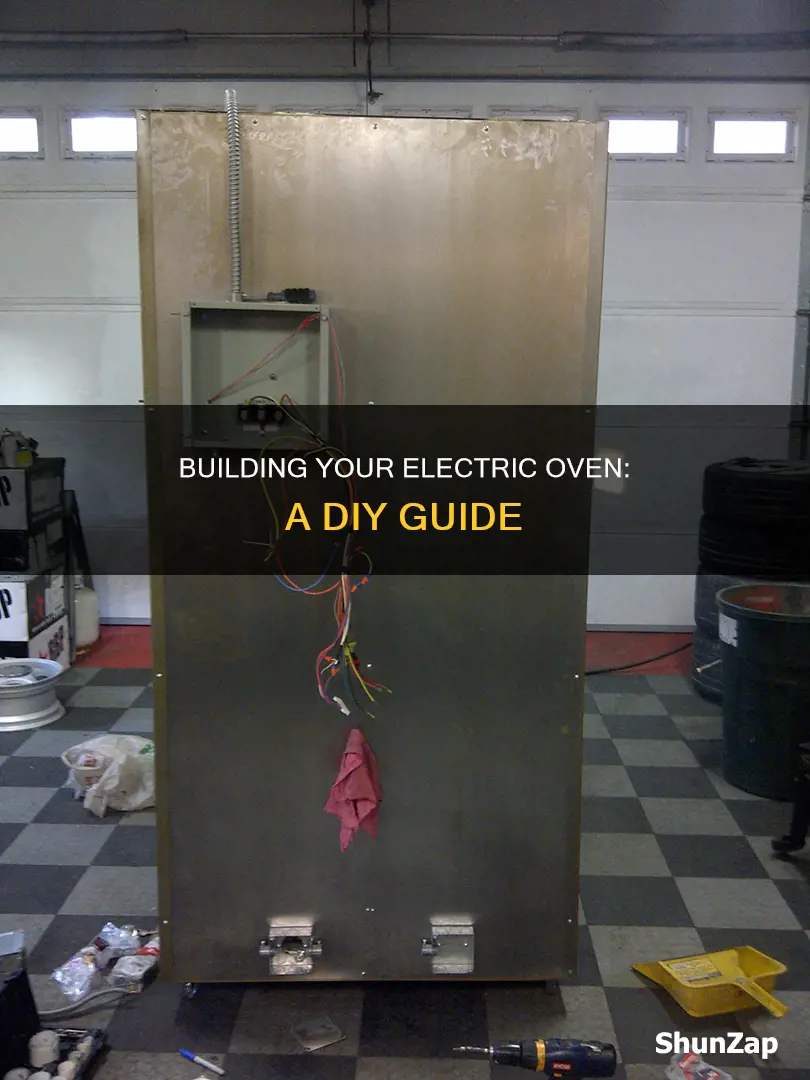

Building your own electric oven is a challenging but rewarding project. Whether you're a pizza enthusiast, a metalworker, or simply looking for a unique cooking experience, a DIY electric oven can be customized to your specific needs and preferences. From choosing the right materials to considering electrical connections and insulation, there are many factors to keep in mind when building your own oven. With proper planning, research, and dedication, you can create a functional and efficient oven that will serve you for years to come.
| Characteristics | Values |
|---|---|
| Oven type | Earth oven, powder coating oven, industrial oven, pizza oven, sauna stove, steam room |
| Oven fuel | Electric, propane, wood |
| Oven material | Bricks, rocks, cob, clay, magnesium oxide, steel, sand, cement |
| Oven features | Door, hinges, wire, sensors, timer, heating elements, thermal layer, insulation |
| Cost | Approximately $1400 for materials, $300 for wire and electrical work if DIY, $500 if hiring an electrician |
| Additional considerations | Ventilation, fuel supply, cleaning, temperature and humidity control, grounding loop |
Explore related products
What You'll Learn
Planning and materials
Planning and building your own electric oven can be a challenging but rewarding project. Before you begin, it's important to carefully plan and gather the necessary materials. Here are some detailed instructions and considerations for the planning and materials selection process:
Planning:
- Purpose and Size: Determine the primary purpose of your oven, such as baking bread, pizzas, or melting metals. Decide on a suitable size, considering the types of items you plan to cook and the available space for construction.
- Location: Choose an appropriate location for your oven, ensuring it is well-ventilated and away from flammable materials. Consider the distance from your electrical panel, as this will impact voltage drop and wiring costs.
- Power Source: Decide on an appropriate power source for your oven. You may need to install a 220-volt 50 or 60-amp electrical circuit, which can add to the overall cost.
- Safety Considerations: Research and understand the safety precautions and regulations for building and operating an electric oven. Ensure you have the necessary permits, if required.
Materials:
- Insulation: Select suitable insulation materials to retain heat and prevent heat loss. Examples include clay, straw, perlite, sand, and firebricks for the oven floor.
- Building Materials: Gather the necessary materials for constructing the oven structure. This could include bricks, rocks, mortar, and a thermal layer such as mud or clay. For a more industrial oven, you may use magnesium oxide bricks or mild steel.
- Electrical Components: Choose the right electrical heating elements, such as nichrome heating coils, that can withstand high temperatures. Ensure you have the appropriate electrical cables, connectors, and a timer or temperature control system.
- Wiring and Connections: Determine the length and type of wire needed, considering voltage drop. You may need #6 or #4 copper wire, breakers, and receptacles. If you're unsure, consult an electrician.
- Sensors and Controls: Install sensors to monitor temperature and, if applicable, humidity levels. Connect these sensors to a control panel using heat-resistant cables.
- Catchment Tray (optional): Depending on your oven's purpose, you may need a catchment tray to collect wax or other byproducts. Consider the materials for the tray, avoiding aluminium if your oven will exceed the melting point of aluminium.
Remember to refer to specific guides and instructions for the type of oven you plan to build, as the materials and steps may vary. Always prioritise safety and consult experts or professionals if you have any doubts during the planning or building process.
Electrical Contracting Services in Danbury, CT: Am Rizzo Inc
You may want to see also
Explore related products
Building the foundation
Building a foundation is a crucial step in constructing an electric oven. While the process may vary slightly depending on the specific type of oven you are creating, here is a detailed guide to help you build a strong and stable foundation.
Firstly, decide on the size and location of your oven. This is important as it will determine the amount of space you have to work with and the type of materials you will need. For example, if you are building a pizza oven, you might want to consider the size of pizzas you plan to cook. Once you have chosen a location, clear the area of any debris or obstacles that might get in the way.
Next, gather your materials. This could include bricks, rocks, sand, clay, straw, and wooden boards. If you plan to build a cob oven, you will need subsoil, water, and straw. For insulation, you can use bottles, perlite, and sand, as well as firebricks for the oven floor. It is important to ensure you have all the necessary materials before you begin construction to avoid delays.
Now, you can start constructing the foundation. Begin by laying a circle of bricks or large rocks to create the oven's circumference. Fill the centre with large rocks and shovelfuls of dirt, building it up to an acceptable height. This height should be comfortable for you to lean down and put wood or food inside. Remember to leave a few inches for insulation, as this is crucial for retaining heat.
Once you have reached the desired height, fill the centre with dirt and compact and level it using a wooden board. This creates a stable base for the oven floor. If using firebricks, place them closely together on top of the compacted sand to create a smooth and even cooking surface. Ensure the bricks do not shift or rest unevenly to avoid food getting caught on edges.
Finally, you can add an insulation layer to help the oven cool slowly and retain heat. You can use clay and straw for this layer, adding enough water to make it stick together. Forming small, handheld bricks can make this process more manageable. Remember to let your foundation dry completely before moving on to the next steps of building your electric oven.
Harvesting Wind: Powering Our World With Clean Energy
You may want to see also
Explore related products
Insulation
Firstly, decide on the type of insulation material you want to use. Common options include clay and straw, perlite, or even bottles filled with insulating material. For example, one builder used root beer and beer bottles filled with perlite for insulation. This unique approach not only provides insulation but also adds a decorative touch to the oven.
When building your oven, ensure you leave enough space for insulation. For example, when constructing the foundation, build it to a height that allows comfortable access for adding wood or food. Then, fill the remaining space with insulation, leaving a couple of inches from the top. This step ensures that the oven floor doesn't absorb too much heat, which is crucial for efficient cooking.
The thickness of the insulation layer is also important. A thicker layer will slow down the cooling process, allowing you to cook for longer periods. Aim for a thermal layer of around 3 inches in thickness, as this will provide effective insulation without taking up too much space. Form the insulation material into small, handheld bricks, and carefully stack them to create a sturdy layer.
Additionally, pay close attention to the oven door. The door should have a layer of insulation, and its height should be approximately 63% of the inner dome's height to ensure proper airflow and heat retention. Consider using a top-hinged door, as it provides a better seal than a bottom-hinged door, reducing heat loss through the top edge.
Lastly, be mindful of the electrical connections. Make all connections in the open air to keep them cool, and ensure that the wires are long enough to reach the oven without causing a significant voltage drop. Insulate the wires with protective corrugated sleeves and non-combustible building materials to prevent heat-related damage.
Wish.com's Electric Scooter Offerings: What's the Deal?
You may want to see also
Explore related products
Electrical wiring
Building an electric oven requires careful planning and execution, especially when it comes to electrical wiring. Here are some detailed instructions for wiring your oven safely and effectively:
Firstly, it is important to determine the voltage requirements for your oven. If your oven is located far from your electrical panel, you may experience a significant voltage drop. In such cases, upgrading to a larger wire size, such as #4 copper wire, can help mitigate this issue. Copper wire can be expensive, so it is essential to factor this into your budget.
When installing the wiring, it is crucial to use protective measures to ensure safety. The wires from the control panel should be connected to a separate circuit breaker and laid in protective corrugated sleeves. Grooves should be made in the walls for wiring, and after installing the wires, these grooves should be sealed with a non-combustible material, like a cement-sand mixture.
Additionally, it is recommended to install sensors to monitor temperature and humidity levels in the oven. These sensors should be connected using heat-resistant cables, without any connections, and are typically mounted above the unit, above the shelves, or near the entrance door.
For ovens requiring high temperatures, such as those used for metal softening, it is essential to use appropriate materials. For example, a user on Hackaday built their oven with magnesium oxide bricks, which allowed them to inset nichrome heating coils into the surface on three sides.
Finally, when making electrical connections, it is important to do so in open air to prevent overheating. Connections near an oven can get trickier than you might expect, so it is essential to take your time and plan carefully.
By following these steps and guidelines, you can effectively wire your electric oven, ensuring both functionality and safety.
Estimating Electricity Usage: A Facility Management Guide
You may want to see also
Explore related products
Heating and testing
Once you have built your oven, you will need to install a heating system. This can be done by connecting the oven to a heating unit with an electric cable. The heating system can be triggered by turning on a timer. The maximum allowable heating level for heating elements is 650ºC. If the temperature drops to 600ºC, a sensor is triggered and a "Heating" lamp comes on. You can also lay out the stones on top of the body of the oven, above the heating elements, on a metal grill welded from fittings. During use, you can pour water or an infusion of herbs onto the stones to generate steam.
It is important to note that the power of your electric furnace will depend on the thermal conductivity of the material from which the oven was built, as well as its geometric parameters. Therefore, when calculating the power of your electric furnace, you should take these factors into account.
Additionally, you will need to install sensors to monitor temperature and humidity levels. To connect these sensors, use heat-resistant cables that are one-piece in length, without connections. These sensors are typically mounted on top of the unit, above the shelves, or above the entrance door.
It is also recommended that the electric stove be connected to its own ground loop, which should be laid in the ground during the construction phase. This will help ensure the safe operation of the oven.
Finally, you will need to test your oven to ensure that it is functioning properly. This can include testing the heating elements, sensors, and ground connection. It is important to follow all safety precautions when testing your oven to avoid injury or damage.
Puerto Rico's Power Outage: A Territory-Wide Blackout
You may want to see also
Frequently asked questions
You will need a variety of materials, including bricks, rocks, clay, straw, wood, sand, and electrical wiring. The specific materials and quantities will depend on the design and size of your oven.
The cost can vary depending on the materials used and the complexity of the design. Some sources suggest that building a basic electric oven can cost around \$1400 for materials alone, while others estimate the cost of wiring to be around \$300 if done yourself or \$500 if an electrician is hired.
It is important to ensure that your oven has proper insulation to retain heat effectively. Additionally, consider the placement of your oven in relation to your electrical panel, as this will impact the length and cost of wiring needed. Also, take note of the heating capabilities of your oven and the materials used, as some metals have melting points lower than oven temperatures.
