The electrical axis of the heart is a crucial concept in understanding cardiac function and diagnosing various conditions. It involves determining the direction of the net flow of electrical current through the heart, which is influenced by the depolarization vectors generated by individual cardiac cells. This axis is typically visualised using a hexaxial lead system, with the normal mean electrical axis pointing towards the left ventricle, the larger of the two ventricles. The calculation of this axis is essential for identifying underlying pathologies, such as hypertrophy, cardiac conduction disturbances, and arrhythmias, and can be performed manually or with the help of an ECG machine.
| Characteristics | Values |
|---|---|
| Definition | The mean electrical axis of the heart is the principal vector of ventricular depolarization. |
| Calculation | The mean electrical axis is the sum of all the waves of depolarization that occur simultaneously. |
| Direction | The mean electrical axis normally points toward the left ventricle, as this is the larger of the two ventricles. |
| Clinical Use | The mean electrical axis is used to detect hypertrophy, cardiac conduction disturbances, and the origin of arrhythmias. |
| Normal Range | The normal range for the mean electrical axis in humans is between +30° and +90°. |
| Deviation | A right axis deviation is indicated by an angle greater than +90°, while a left axis deviation is indicated by an angle less than -30°. |
| Extreme Deviation | An extreme axis deviation occurs when the angle is between +90° and +180° or between -90° and -180°. |
| Pediatric Range | In newborns, the normal range is between +30° and +190°, with the axis moving leftward as the child ages. |
| Vector Length | The length of the vector is proportional to the voltage. |
| Hexaxial Lead System | The hexaxial lead system is arranged around the heart in a short-axis plane, referred to as the frontal plane. |
| Trigonometry | The mean electrical axis can be determined using trigonometric principles and equations. |
Explore related products
What You'll Learn
- The mean electrical axis normally points towards the left ventricle, the larger of the two ventricles
- The hexaxial lead system is arranged around the heart in a short-axis plane, referred to as the frontal plane
- The normal mean electrical axis in cats is between 0° and +160°; in dogs, it is between +40° and +100°
- The normal heart axis in humans is between –30° and 90°
- The QRS axis is at 90° to the isoelectric lead, pointing in the direction of the positive leads
The mean electrical axis normally points towards the left ventricle, the larger of the two ventricles

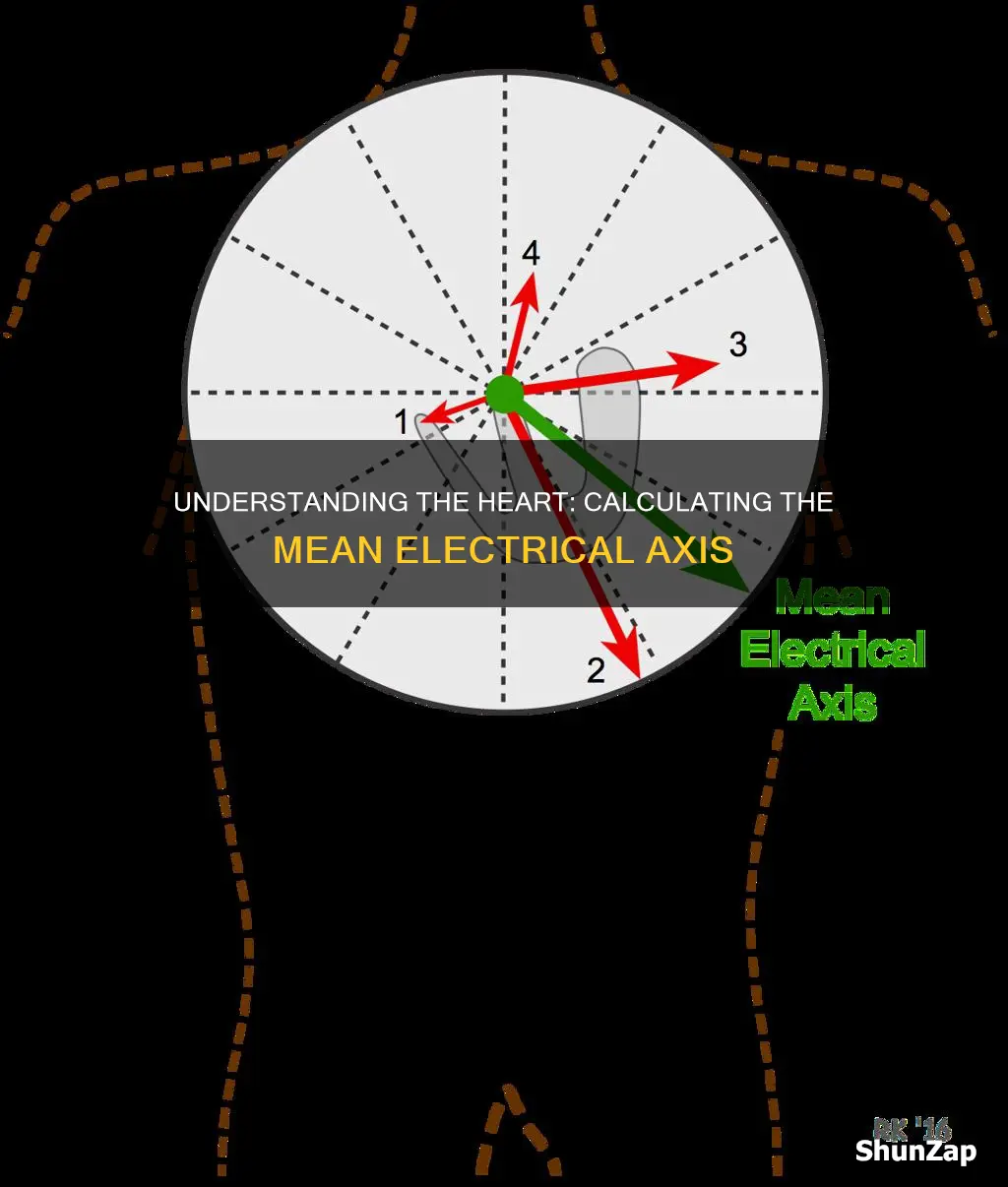

The mean electrical axis of the heart is the principal vector of ventricular depolarization. It represents the sum of all the waves of depolarization that occur simultaneously. The mean electrical axis is calculated using a hexaxial lead system, which is arranged around the heart in a short-axis plane, referred to as the frontal plane. This plane is labelled in degrees, ranging from 0 to +180 and 0 to -180.
The mean electrical axis typically points towards the left ventricle, which is the larger of the two ventricles. The left ventricle comprises most of the heart muscle and generates the most electrical force visible on an ECG. This is reflected in the ventricular axis, which, under normal circumstances, is directed downward and slightly to the left. The normal cardiac axis is between -30° and +90°.
The direction of the electrical axis is important in clinical practice. It can provide insight into underlying disease states and help steer the differential diagnosis towards or away from certain conditions. For example, deviations from the mean electrical axis can result from either right ventricular hypertrophy or a block in the intraventricular conduction system. In the case of left ventricular hypertrophy, there is usually no shift in the mean electrical axis because the left ventricle tends to enlarge in the direction of lead II. However, severe hypertrophy of the right ventricle will cause a shift in the mean electrical axis towards the right as the electrical activity of the right heart will dominate on the ECG.
The mean electrical axis can be determined by evaluating lead I, lead II, and aVF. If the QRS complex in either lead I or II does not have a net positive deflection, then the mean electrical axis is abnormal. When both leads have a net positive deflection, then the mean electrical axis must fall between -30 and +90 degrees, which is the normal range.
