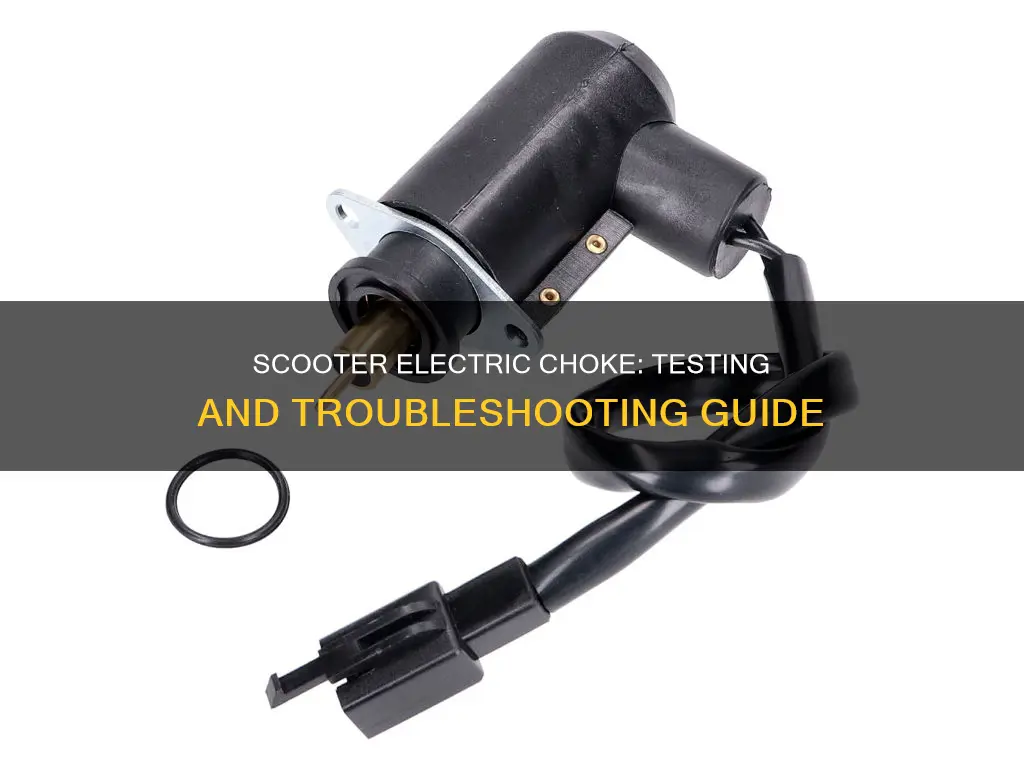

The electric choke is an essential component in scooters that enhances the vehicle's performance, especially during cold starts. It is part of the scooter's carburetor system and automatically adjusts the air-fuel mixture needed for the engine to start and warm up efficiently. When the engine is cold, the fuel is less volatile and harder to ignite. The choke addresses this issue by restricting the amount of air entering the carburetor, enriching the fuel mixture, and making it easier for the spark plug to ignite the fuel. This automated functionality ensures a smooth riding experience from the start, eliminating the need for manual adjustments. To check the electric choke on a scooter, you can perform tests using a multimeter to measure resistance and continuity.
| Characteristics | Values |
|---|---|
| Function | Regulates the engine's air/fuel mixture |
| Mechanism | Adjusts the air-fuel mixture needed for the engine to start and warm up efficiently |
| Automated | Yes |
| Temperature-sensitive | Yes |
| Power source | Scooter's electrical system |
| Modulation | Yes |
| Smoother ride | Yes |
| Motor longevity | Prevents excessive current that can heat and damage the motor over time |
| Better battery management | Extends battery life by preventing wastage of electricity through inefficient acceleration spikes |
| Testing | Use a multimeter to test the choke's resistance and continuity |
| Maintenance | Regular maintenance of the scooter's battery and motor |
Explore related products
What You'll Learn
Check the choke gets warm
Checking if the choke gets warm is a simple test to determine whether your scooter's electric choke is working. The choke is a critical component for the efficient starting and operation of a scooter, especially in colder conditions. It is part of the scooter's carburetor system and automatically adjusts the air-fuel mixture needed for the engine to start and warm up efficiently.
To check if the choke gets warm, first, ensure your scooter is turned off and the key is removed. Locate the choke by referring to your scooter's manual. Once you have located the choke, you can test it by turning the ignition key to the 'run' position without starting the engine. If the choke is working, you should see it opening slowly.
If you want to test the choke further, you can use a multimeter. First, set your multimeter to the resistance (ohms) setting. If your multimeter has an auto-ranging feature, use it. Otherwise, select a mid-range setting that will cover the expected resistance of the choke. Then, access the choke's wiring and disconnect the wiring harness from the choke. With your multimeter probes, touch each terminal of the electric choke. The multimeter will display a resistance value, which should correspond to the specifications in your scooter's service manual. If the value deviates significantly from the specified range, it could indicate a problem with the choke.
It is important to note that this process may vary depending on the make and model of your scooter, and some scooters may not have components directly analogous to an electric choke. Always refer to your scooter's manual for specific instructions and precautions, and consult a professional technician if you are unsure.
Golf Club Carts: Electric or Gas-Powered?
You may want to see also
Explore related products
Measure the choke's resistance
To measure the choke's resistance, you will need a multimeter. This device will allow you to test the power supply to the choke.
Firstly, disconnect the automatic choke. Then, touch the meter leads onto the wires that the choke was connected to. Ensure that you do not touch the leads together. The wires should give a reading of 12-14 volts AC. It is important to test with the meter set to AC as well as DC, as the choke runs off the lighting circuit, which is usually AC on mopeds. The choke will work off either AC or DC, so as long as you have 12-14 volts, the power supply is fine.
If you do not have a multimeter, you can test the choke by removing it from the scooter and connecting it directly to a fully charged moped battery using suitable wires. Ensure that you do not short the wires together.
After confirming that the electric choke resistance is within the specified range, you can test the power source. Reconnect the wiring harness to the choke and switch your multimeter to the DC voltage setting. Connect the leads to the battery or power source and turn on the ignition switch. Do not start the engine. The multimeter should show a reading of approximately 12 volts (or the specified voltage for your scooter). If the reading is below the recommended voltage, there may be a problem with the wiring or charging system.
Fixing a Neon Sign: Replacing the Electrodes
You may want to see also
Explore related products
Test the choke's continuity
To test the choke's continuity, you will need to use a multimeter. Before you begin, ensure your electric scooter is turned off and the battery is disconnected to prevent any electrical shocks or short circuits. The process can vary depending on the make and model of your electric scooter, and some scooters may not have components directly analogous to an electric choke. If you’re ever in doubt, consult with a professional technician.
First, locate the choke. In electric scooters, the electric choke can refer to a component within the electronic fuel injection (EFI) system or an electrical part that aids in starting the scooter. The choke of a scooter consists of a dedicated choke nozzle in the fuel reservoir and two narrow drillings leading to the venturi (the pipe where the air goes through).
To test the choke's continuity, switch your multimeter to the continuity setting and place the probes on each terminal of the choke. A continuous circuit will typically produce a beeping noise or a specific continuity indication on your multimeter. The value should correspond to the specifications outlined in your scooter's service manual. A significant deviation from this value may indicate a problem.
If you do not have a multimeter, there are other ways to test the choke. One way is to remove the choke from the scooter and connect it directly to a fully charged moped battery using suitable wires. Be careful not to short the wires together. After 5 minutes of being connected, the choke should have fully extended. Subsequently, it should retract after the battery has been disconnected for 20 minutes. If the plunger still doesn't move, the choke unit is faulty and will need to be replaced.
Breeding Electric Yellow Labs: A Step-by-Step Guide
You may want to see also
Explore related products
Check the choke unit itself
The choke unit in a scooter is an essential component that enhances the vehicle's performance, especially during cold starts. When the engine is cold, the fuel is less volatile, making it harder to ignite. The choke unit provides a method of increasing the fuel supply until the scooter has warmed up and then shuts off.
- Start and run the scooter for at least 5 minutes. This should ensure that the choke plunger is fully extended.
- Switch off the engine and quickly remove the choke unit. It is important to do this within 30-60 seconds of switching off the engine. Remove any panels that may be in the way beforehand.
- Measure the distance from the end of the plunger to the top of the unit (Distance A).
- Allow the choke unit to cool down for at least 20 minutes.
- Measure the distance again (Distance B).
- Compare Distance A and Distance B. If the choke is working correctly, Distance B should be at least 2mm greater than Distance A, indicating that the plunger has retracted.
- If the plunger has not retracted, the choke unit may be faulty.
- You can also use a multimeter to test the choke unit. Locate the choke and carefully access the wiring connected to it.
- Set your multimeter to the resistance (ohms) setting. If your multimeter has an auto-ranging feature, use it. Otherwise, select a mid-range setting that will cover the expected resistance of the choke.
- Disconnect the wiring harness from the choke and touch each terminal of the choke with the multimeter probes.
- The multimeter will display a resistance value. Compare this value to the specifications in your scooter's service manual. A significant deviation from this value may indicate a problem with the choke unit.
- Some choke units may also require checking for continuity to ensure uninterrupted electric potential flow.
Building a Cordless Electric Weed Wacker: A DIY Guide
You may want to see also
Explore related products
Check the power supply
To check the power supply of your electric scooter, you must first understand its battery and charging system. The battery is the heart of the power supply, so maintaining its lifespan is crucial. Here are the steps to check the power supply:
Locate the Battery:
Refer to your scooter's manual to identify the battery compartment. Typically, it is located under the deck of the scooter. Open the compartment carefully to access the battery.
Identify the Battery Type:
Check the label on the battery to identify its type. Common types include lead-acid, lithium-ion, and nickel-metal hydride. This information is essential for determining the battery's voltage output and charging requirements.
Check the Voltage:
Use a multimeter to measure the voltage. Set the multimeter to the required voltage range, usually DC (direct current) for electric scooter batteries. Connect the positive probe (red) to the positive terminal of the battery and the negative probe (black) to the negative terminal. Observe the reading on the multimeter display. A fully charged battery's voltage should be around or slightly higher than the rated voltage mentioned in the manual.
Charging and Indicators:
When charging your scooter, pay attention to the charger's indicator light. It should turn on when plugged in, indicating that charging is occurring. Additionally, the battery level indicator on the handlebar or dashboard should show the level increasing as it charges. Some scooters may also emit a beeping sound or flashing light when charging starts.
Charging Best Practices:
To maintain optimal battery life, it is recommended to charge your scooter immediately after each ride. Always charge in a dry, cool location and avoid overcharging. Do not expose the scooter to extreme temperatures, and ensure regular cleaning to remove dust and debris from the battery connections.
By following these steps, you can effectively check the power supply of your electric scooter, ensuring it receives the correct charge and operates efficiently.
FEIT Electric WiFi Bulbs: Are They Secure?
You may want to see also
Frequently asked questions
The choke typically fails in two ways: either the piston does not retract (choke always inactive) or it does not extend (choke always active). To test this, check if the choke gets warm when power is applied. If it doesn't, the choke may not be getting power. You can also test the power supply with a multimeter.
Disconnect the automatic choke and touch the meter leads onto the wires which the choke was connected to whilst running the engine. The wires should give you a reading of 12-14 volts AC.
The choke is temperature-sensitive and automatically adjusts the air-fuel mixture needed for the engine to start and warm up efficiently. When the engine is cold, the choke cuts off additional air, increasing the vacuum in the carburetor and pulling more fuel into the combustion chamber. As the engine warms, the choke opens, allowing a balanced air-fuel mix.
Start and run the scooter for at least 5 minutes. Switch off the engine and quickly remove the choke unit. Measure the distance (A) between the specified points. Leave the choke for at least 20 minutes to cool down and measure the distance again (B). The choke is working correctly if distance A is at least 2mm greater than distance B.
