Testing for an electrical ground is an important step in ensuring the safety of your electronics and preventing possible damage to your electrical system. A ground is essential to prevent current from flowing freely and causing damage to electronics or even electrical shock. To test for an electrical ground, you can use a multimeter, a neon circuit tester, or a voltage detector pen. This paragraph will outline the steps to take to check for an electrical ground using these tools.
Explore related products
What You'll Learn
Using a multimeter
Firstly, you will need to connect the probes of the multimeter. Connect the black probe to the common (COM) socket and the red probe to the socket marked for resistance (ohms). Touch the probes together to ensure the multimeter is working correctly; if it shows zero resistance, it is functioning properly.
Next, touch the black probe to a known ground, such as the metal chassis of the equipment or a metal part of the electrical box. Then, touch the red probe to the wire you want to test for a ground. Observe the ground reading on the multimeter. If the wire is properly grounded, the multimeter should display a low resistance reading. If the reading is high, the wire is not grounded.
You can also test wires with the multimeter by placing the red wire in the port labelled for a positive charge (usually marked with a plus sign) and the black wire in the negative port (usually marked with a minus symbol). Check the AC voltage to see if the ground wire is getting a charge. If you are testing an electrical outlet, simply plug the multimeter into the outlet and note the reading.
If you are using an analog multimeter, turn the dial to the letter "V" with wavy lines next to it for AC power. For a digital multimeter, cycle through the settings until you reach AC voltage. Choose the highest cutoff value for voltage on the meter to get an accurate reading.
Fixing Electric Fireplace Lights: A Step-by-Step Guide
You may want to see also
Explore related products
Using a neon circuit tester
A neon circuit tester is a simple device that uses a small neon bulb and a resistor to check for the presence of an electric current in a wire or outlet. It is a potentially dangerous task because it can deliver an electric shock if the electrodes are not properly grounded.
To test for proper grounding, touch the probes on either end of the fuse. If neither end shows a light, then the fuse is good. If the fuse has a hot lead, then it is not good. While working with a neon circuit tester, make sure the leads are always touching the live terminals of the device.
When using a neon circuit tester, you must ensure that the receptacle is grounded. This tool can detect whether a circuit is live and whether it is not. It measures voltage on a scale of 110 volts to 700 volts and can check the presence of a 03 phased supply form. If it is not grounded, the receptacle is ungrounded.
Neon testers are also available in a screwdriver style, which limits you to only comparing yourself (and not another wire) to the wire or metal you touch its tip to. You should touch a metal piece on the handle's end with your thumb or the palm of your hand. Its light bulb is in the middle of the handle.
Atom Count Impacting Electronegativity: Understanding the Relationship
You may want to see also
Explore related products
Measuring resistance
Understanding Ground Resistance
Ground resistance refers to the opposition of the earth or soil to the flow of current from a grounding device to the earth. It is an important parameter that indicates the quality of the electrical ground. A lower ground resistance value signifies a better electrical ground.
Measurement Techniques
There are several techniques for measuring ground resistance, each with its advantages and suitability for specific applications:
- The Dead Earth Method: This method is simple but less accurate compared to others. It is useful for quickly testing connections and conductors between connection points.
- The Three-Point Method: This method is considered more accurate than the Dead Earth Method and is widely used. It involves using one clamp and two stakes. By isolating the system, you can measure the ground resistance at specific parts of an installation.
- The Four-Electrode Methods: This technique, such as the Wenner equally spaced 4-pin method, uses four electrodes of equal length driven into the ground in a straight line at equal distances. The voltage and current between the inner and outer probes are measured, respectively, and resistance is then calculated.
- Fall-of-Potential Method: This method involves using two stakes and the electrode under test to verify the correct installation of a system. It is often used to check existing grounding systems or as part of maintenance programs.
Using Test Equipment
To measure ground resistance, you can use specialised equipment such as a ground resistance tester or a multimeter:

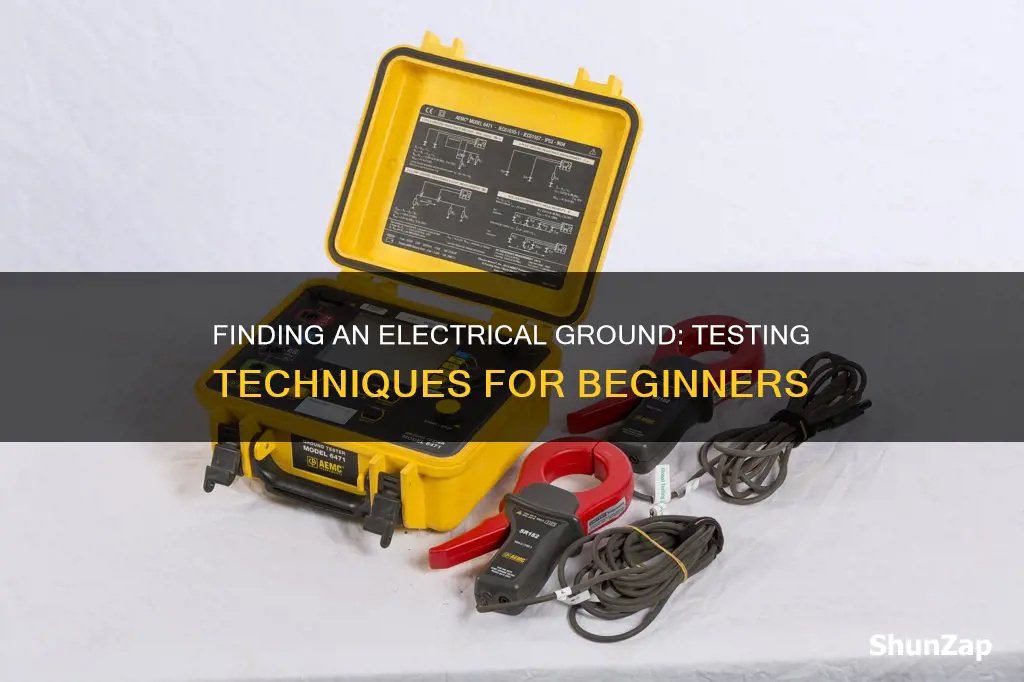

- Ground Resistance Tester: This equipment is designed to accurately measure ground resistance by generating a known current and measuring any drop in voltage potential. It can automatically calculate soil resistance.
- Multimeter: With a multimeter, you can measure the resistance of the soil between a ground electrode and a reference point, such as a water pipe system. However, it is a more complex process that involves measuring voltage and current.
Important Considerations
When measuring ground resistance, keep the following in mind:
- Electrode Placement: Ensure that the measured grounding components are arranged in a straight line, with specific distance requirements depending on the type of grounding device.
- Soil Resistivity: The resistance values can vary depending on the type of soil. Soil resistivity measurements are typically taken before installing an earthing arrangement.
- Safety Standards: Refer to standards and guidelines, such as the IEEE standards and the National Electrical Code, to ensure safety and compliance. These standards provide valuable information on acceptable resistance values and electrode requirements.
In conclusion, measuring resistance for an electrical ground involves using appropriate techniques, equipment, and considerations to ensure accurate results. It is a critical step in maintaining the safety and functionality of electrical systems.
Protecting Electrical Terminals: Preventing Corrosion
You may want to see also
Explore related products
Safety precautions
Safety should always be a priority when working with electrical systems. Before attempting to check for an electrical ground, ensure you have the proper safety gear and measures in place to protect yourself from potential hazards. Safety gear may include safety goggles to shield your eyes from sparking wires or flying debris. It is also crucial to turn off the power if you are dealing with wiring or uncertain of any potential dangers.
Use a "voltage sniffer", or a non-contact voltage detector pen, to check that no electricity is flowing through the wires before proceeding. It is essential to have a basic understanding of how electricity works and the associated hazards to take the necessary precautions.
When checking for an electrical ground, a multimeter is often used. Before using a multimeter, test it by connecting both tips at the end of the cables together and observing the measured value. It should be less than 1 Ohm, ideally less than 0.1 Ohm. If the multimeter reading is higher, it may be inaccurate, and you should consider cleaning the pipe with sandpaper to ensure a good clean metallic surface without oxidation.
Additionally, be aware of the regulations in your jurisdiction. For example, in the US, metal pipes within a building are required to be bonded to the building's grounding system, and specific resistance values are considered acceptable. If you are unsure, it is recommended to consult a certified electrician to ensure your safety.
Electrical Burns: Treating and Healing Electrical Injuries
You may want to see also
Explore related products
Testing electrical outlets
To test electrical outlets with a multimeter, start by turning off the power and disconnecting the outlet from the wiring. Then, set your multimeter to Ohms and insert the probes into the outlet as follows:
- Place one probe into one of the outlet slots and the other probe on the nearest terminal screw. The multimeter should indicate continuity.
- Test the remaining slot and terminal.
- Test the ground slot to the grounding terminal.
To test for polarity, insert one probe of a voltage detector or a multimeter into the large slot and the other against the screw. If the voltage detector lights up, the hot and neutral wires are reversed, and the wiring should be further checked.
To test for faulty grounding, turn the multimeter to the highest AC voltage range. Then, insert the two test probes into the hot and neutral slots of the outlet. Pull the black probe out and move it into the third outlet hole. A properly grounded outlet will display the same measurement on the multimeter. If the value changes, the outlet is improperly grounded or has reversed wiring.
If you are uncomfortable testing for grounding yourself, it is important to contact a licensed electrician to assist you with the testing and any necessary repairs.
Do Electric Fireplaces Need a Dedicated Electrical Circuit?
You may want to see also
Frequently asked questions
You can use a multimeter to test for grounding. First, set the multimeter to the highest AC voltage range. Then, insert the two test probes into the hot and neutral slots of the outlet. If you then pull out the black probe and move it into the third outlet hole, a properly grounded outlet will display the same measurement on the multimeter.
A multimeter is a tool used to test voltage and identify circuitry issues.
Ideally, you should read very low resistance, less than 1 ohm, but dry sandy soils may be as high as 25 ohms and still be indicative of a good solid ground.
Safety gear might include safety goggles to protect your eyes from sparking wires or flying debris. Always turn off the power if you are changing out the wiring or uncertain of any potential dangers.
A neon circuit tester is a simple and inexpensive tool that can be used to test for voltage and check for grounding.
