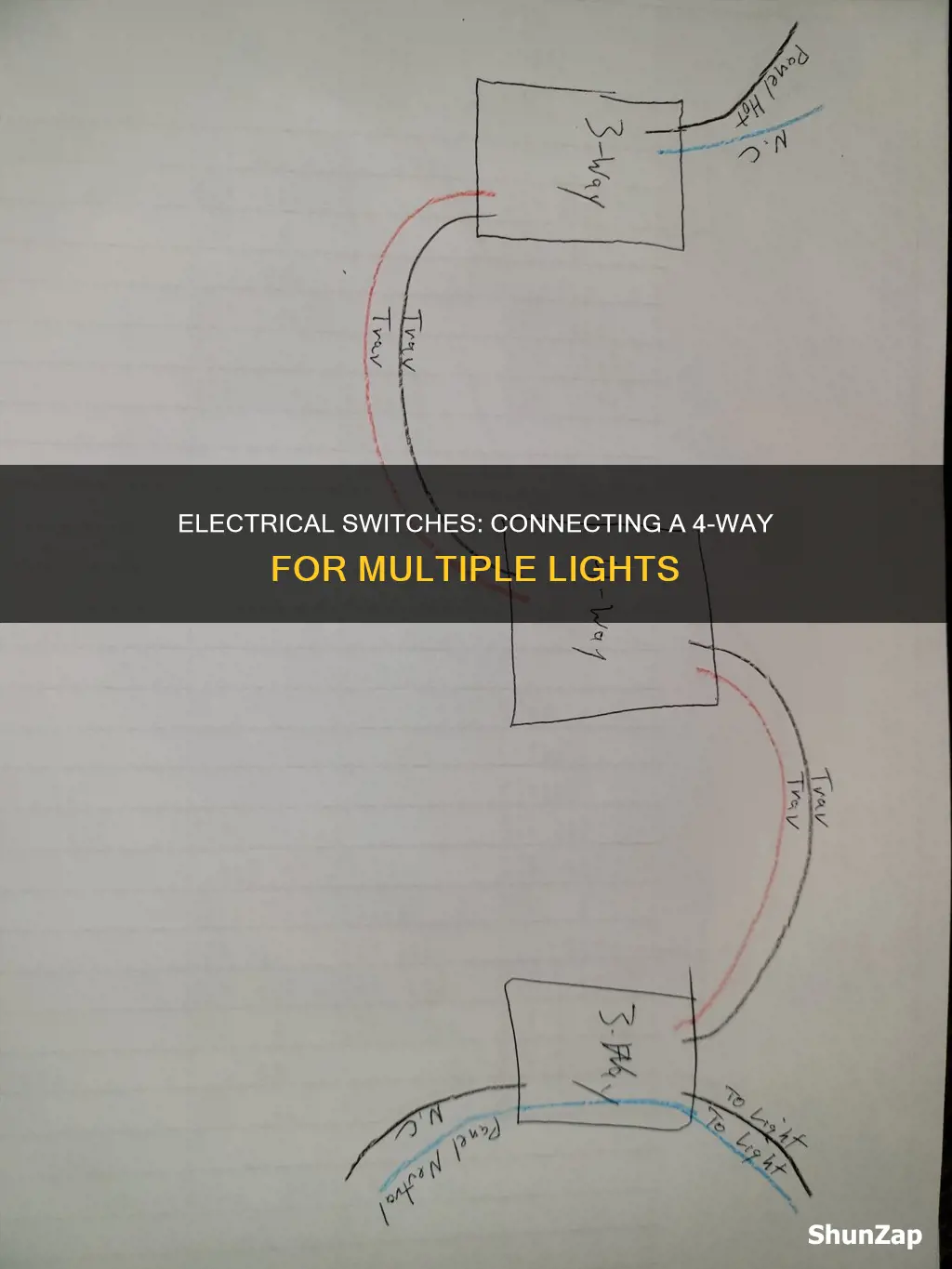

A four-way switch is a simple electrical device that can be used to control lights, appliances, or devices from three different locations. When wiring a four-way switch, it is important to first determine the size of the circuit breaker and use the appropriate wire gauge. For example, a 15-amp circuit breaker requires 14 American Wire Gauge (AWG) cable. It is also important to ensure that any replacement switches have the same rating as the original switches. When splicing wires, twist the wires together and trim off any uneven ends before spinning on a wire nut. The National Electrical Code (NEC) requires neutral wires to be installed at switch box locations for electronic devices like dimmers and night lights. There are various ways to wire a four-way switch, and it is important to understand the basics of electricity and safety precautions before attempting any electrical work.
Explore related products
What You'll Learn
Understanding three-way and four-way switches
Three-way and four-way switches are electrical devices that control lights or other fixtures from multiple locations. These switches are commonly used in areas like stairways, large rooms with multiple entrances, or hallways to provide convenient access to lighting controls.
A three-way switch allows you to control a light or fixture from two different locations. For example, you can use it to turn a light on or off from the top and bottom of a staircase. It has three terminals, including a common screw terminal and two "traveller" terminal screws. The common terminal is usually identified by a distinct colour. The traveller terminals carry the current between switches, depending on the internal switch contacts activated.
A four-way switch, on the other hand, enables control of a light or fixture from three or more locations. This type of switch is often used in large rooms with multiple doors or open floor plans. By using four-way switches, each entrance can have a switch that controls the same light source, enhancing safety and convenience. Four-way switches have four terminals, providing two sets of toggle positions. When the switch is in the up position, the current flows through two terminals, and in the down position, the current flows through the other two terminals.
To properly install a four-way switch, it must be placed between two three-way switches. It should be electrically connected using 14/3 or 12/3 wiring, depending on the circuit's ampacity. The National Electrical Code (NEC) also requires neutral wires to be installed at switch box locations for connections to devices like dimmers, sensors, and night lights. When splicing wires, remember to twist them together, trim uneven ends, and secure them with a wire nut. Additionally, ensure that the switches are properly grounded for safety.
It is important to note that when working with electrical switches, you should always be aware of the circuit rating and ensure that any replacement switches have the same rating. This attention to detail helps to maintain the safety and functionality of the electrical system.
