If you've recently purchased an electric clothes dryer, you might be wondering why it didn't come with a power cord attached. In 1996, the National Electrical Code (NEC) changed the requirements for electric dryer wiring and cord connections, which is why newer homes will have a four-prong outlet, while older homes may have a three-prong outlet. This guide will help you install a new four-prong dryer cord for a four-slot outlet, or a three-prong cord for a three-slot outlet.
| Characteristics | Values |
|---|---|
| Number of prongs | 3 or 4 |
| Type of outlet | Three-slot or four-slot |
| Cord compatibility | Three-prong cords are compatible with three-slot outlets, four-prong cords are compatible with four-slot outlets |
| Wire connection | For three-prong cords, the center wire (ground/neutral) connects to the center terminal, the other two wires connect to the outer terminals (hot); for four-wire systems, ensure nothing is plugged in, then remove the access panel |
| Installation process | Remove the electrical cover plate on the back of the dryer, insert the cord into the hole near the terminal block, secure the green cord wire under the ground screw and tighten it, fit the two halves of the cord and screw them in place, set the cover plate over the terminal block and secure it with screws, connect the dryer's vent duct |
Explore related products
What You'll Learn
Identify your dryer outlet type: three-prong or four-prong
The type of outlet you have will determine the type of cord you need to connect your electric dryer.
Three-Prong Outlets
Older homes tend to have 240V three-prong outlets. These outlets have one ground slot and two live slots. The ground slot also serves as the neutral connection. Three-prong plugs were standard for electric dryers for decades and are still common in older homes.
Four-Prong Outlets
Newer homes tend to have 240V four-prong outlets. These outlets have one ground slot, two live slots, and one neutral slot. The separate neutral slot (wire) returns non-consumed power, minimising the risk of electric shock. Since 1996, the National Electrical Code (NEC) has mandated that new installations include four-slot dryer outlets for 240V dryers.
Converting Your Outlet or Cord
If you have a three-prong outlet and want to convert it to a four-prong, it is recommended that you hire a certified electrician or appliance repair professional to do the installation. However, if you have a three-prong cord and want to convert it to a four-prong cord, this is a relatively simple process that most people can do themselves.
Electric Eels: Safe Zappers of the Waterways
You may want to see also
Explore related products
Consult manufacturer instructions for cord installation
When connecting an electric dryer cord, it is important to consult the manufacturer's instructions for cord installation. This is because the process may vary depending on the specific make and model of your dryer. By following the manufacturer's instructions, you can ensure that you are using the correct type of cord for your appliance and that you are following the necessary safety precautions.
If you are installing a three-prong cord, the center wire, which serves as both the ground and neutral connection, is connected to the center ground/neutral terminal on the dryer. The other two wires, which are both hot wires, are connected to the outer terminals on the dryer. It is important to ensure that there is a metal jumper between the center neutral terminal and the ground terminal in the dryer's wire connection box.
If you are installing a four-prong cord, the process is similar, but there are some key differences. The four-prong cord has separate neutral and ground wires, so the neutral and ground terminals in the dryer's connection box are not jumpered together. When attaching the four-prong cord, the red wire typically connects to the top left terminal, the black wire to the top right terminal, the white wire to the bottom left terminal, and the green wire to the bottom right terminal.
Additionally, when consulting the manufacturer's instructions, be sure to check if your existing cord is in good condition and conforms to current safety codes. If there are any signs of wear, fraying, or damage, it is important to replace the cord with a new one. Always make certain that the appliance is disconnected from its power source before beginning any installation or replacement work.
Piggybacking Electric Water Heaters: A Smart Way to Save Energy
You may want to see also
Explore related products

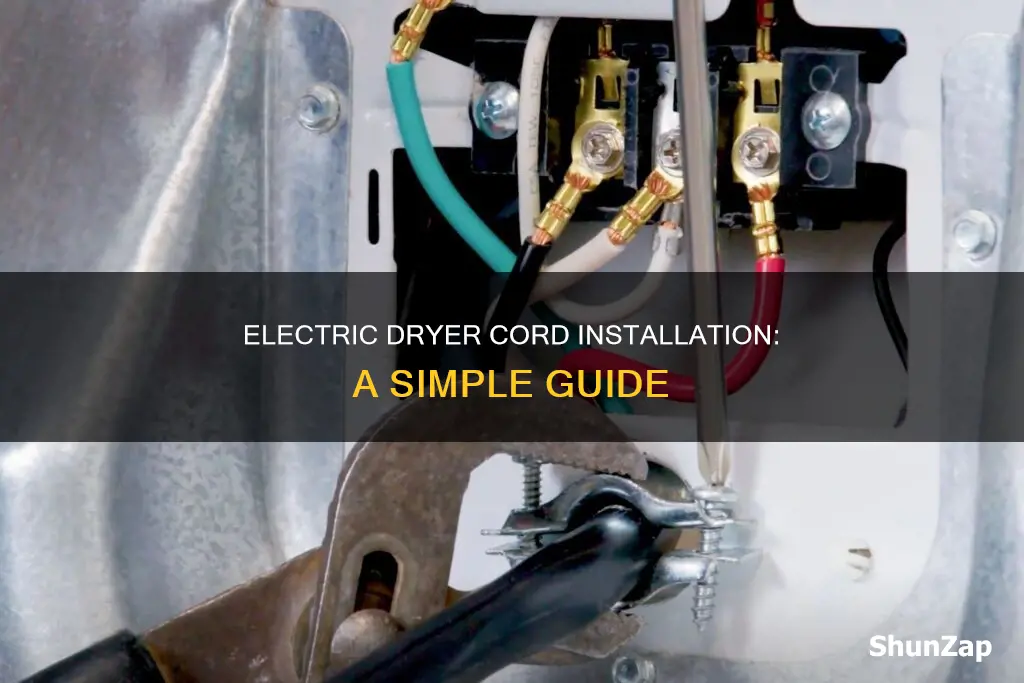

Remove the electrical cover plate to access the wiring terminal block
To connect an electric dryer cord, you must first identify the type of dryer outlet in your home. Older homes tend to have three-prong outlets, while newer homes have four-prong outlets. Knowing your outlet type is essential as it determines the type of cord you need to purchase. Once you've identified the outlet type, follow these steps:
Remove the Electrical Cover Plate:
- Locate the electrical cover plate at the back of your dryer. It is usually near a 3/4-inch diameter hole in the dryer's back panel.
- Using a screwdriver or nut driver, remove the screws securing the cover plate in place.
- Set the screws aside in a safe place, along with the cover plate, to expose the wiring terminal block for the cord connections.
- Be cautious and ensure that all dryer controls are turned off before proceeding.
Accessing the Wiring Terminal Block:
- With the cover plate removed, you will see the wiring terminal block, which is where the cord connections are made.
- Consult the instructions provided with your dryer for specific details on connecting the wires to the terminal block.
- Proceed to connect the wires according to the instructions, ensuring proper polarity and secure connections.
Remember always to consult professional advice or a qualified electrician if you are unsure about any part of the process.
Gorilla Glue and Electrical Joints: A Safe Mix?
You may want to see also
Explore related products
Connect wires to the correct terminals: centre, left, right
To connect the wires to the correct terminals, follow these steps:
Firstly, identify the type of cord you have. For a three-prong cord, the centre wire is the ground/neutral wire, and the left and right wires are the hot wires. For a four-prong cord, there are separate neutral and ground wires, and the configuration in the dryer's connection box is different, with the neutral and ground terminals no longer connected.
If you have a three-prong cord, the centre wire should be connected to the centre terminal, which is the ground/neutral connection. The left and right wires are then connected to the outer terminals, which are both hot connections.
For a four-prong cord, the wire connections are slightly different. First, ensure that nothing is plugged into the outlet. Then, remove the access panel to access the wire connection box. Consult your dryer's instructions for specific information, as the wire connections may vary depending on the make and model of your dryer.
It is important to note that the wire connections for a three-prong cord are different from those for a four-prong cord. The older three-prong cords had the ground and neutral wires combined, while the newer four-prong cords have separate wires for ground and neutral, which changed with the 1996 National Electrical Code (NEC) revision.
Carmen Electra's Breast Enhancements: Fact or Fiction?
You may want to see also
Explore related products
Secure the cord and cover plate with screws
Once the electrical cover plate has been located and removed, exposing the wiring terminal block, the next step is to secure the cord and cover plate with screws. Insert the dryer cord into the hole near the terminal block. Secure the green cord wire under the ground screw on the dryer body. Tighten the ground screw firmly with a screwdriver or nut driver. Fit the two halves over the cord and reinstall the fitting's screws. It is important to tighten the screws so that the cord is held firmly, but do not overtighten, as this may deform the cord or pinch the insulation.
The cover plate can then be placed back over the terminal block and secured with its mounting screws. Ensure all dryer controls are off before plugging the dryer into the outlet. The dryer can then be turned on to test for proper function. It is important to ensure that the dryer's vent duct is connected before using the dryer to dry clothes.
If you have an older three-slot dryer outlet, the electrical code allows you to install a three-prong cord to fit the outlet. The installation process is similar to that of a four-prong cord, with one exception: there must be a metal jumper between the centre neutral terminal and the ground terminal in the dryer's wire connection box.
It is important to consult the instructions that came with your dryer for specific information on how to secure the cord and cover plate with screws, as there may be variations depending on the make and model of your dryer.
Porygon Z: Electric-Type Moves and Their Effectiveness
You may want to see also
Frequently asked questions
There are two types of electric dryer cords: three-prong and four-prong. The type of cord you need depends on your outlet. Older homes may have a three-prong outlet, while newer homes will have a four-prong outlet.
First, remove the electrical cover plate on the back of the dryer to expose the wiring terminal block. Insert the cord into the hole near the terminal block and secure the green cord wire under the ground screw. Tighten the screw firmly and replace the cover plate. Make sure all dryer controls are off before plugging in the dryer and testing it.
For a three-wire system, attach the centre wire to the centre terminal, the left wire to the left terminal, and the right wire to the right terminal. For a three-slot outlet, you must install a metal jumper between the centre neutral terminal and the ground terminal in the dryer's wire connection box.
The 1996 NEC revision changed the requirements for electric dryer wiring and cord connections. New installations required separate neutral and ground wires, which meant that dryer outlets had to be wired to accept four-prong cords.
Always consult the instructions that came with your dryer for specific information on installation.
