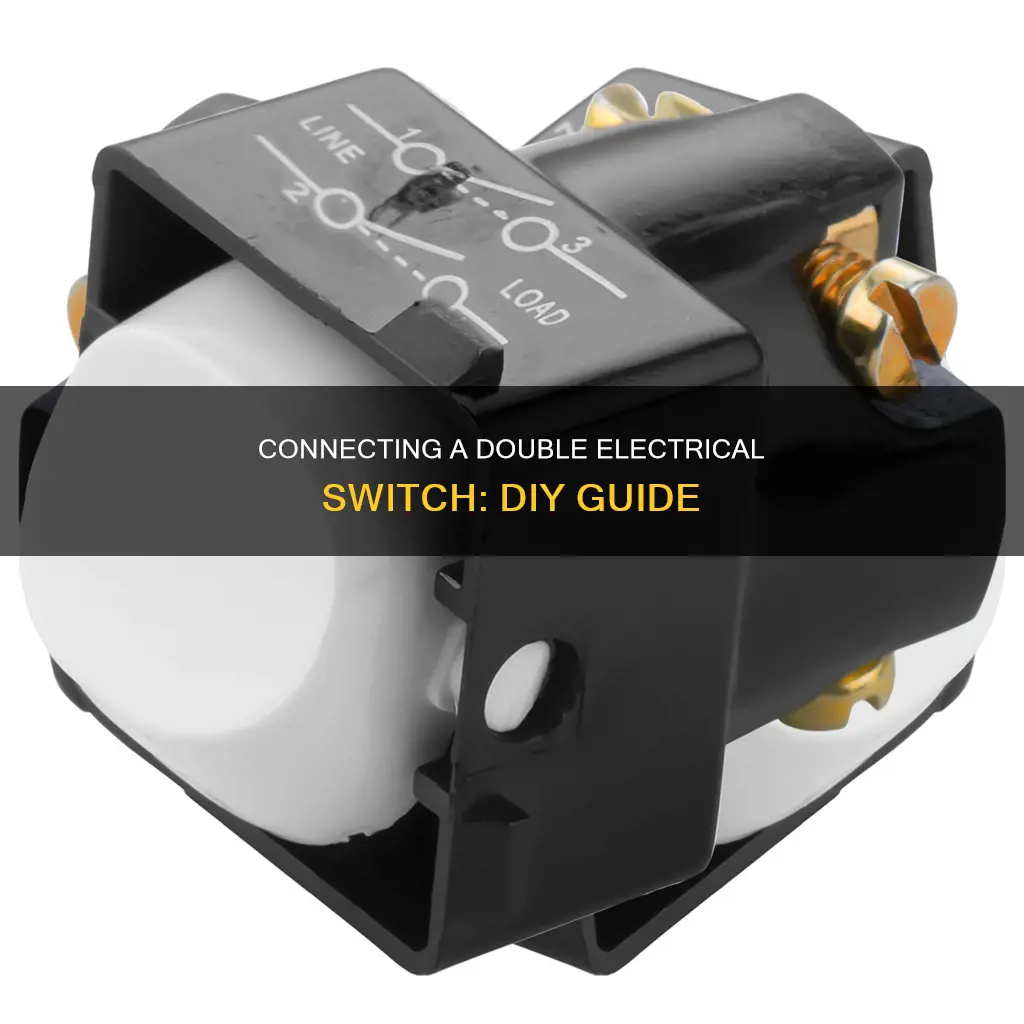

A double electrical switch, sometimes called a double pole, allows you to control power to two separate appliances from the same location. For example, you could turn on a bathroom light and a ceiling fan separately using a double switch. Installing or replacing a double switch can be dangerous, so it is always best to get a qualified electrician to perform any electrical work. However, if you are confident and cautious, there are online guides that can help you to wire a double switch.
Explore related products
What You'll Learn
Identify the feed wire
The feed wire, also known as the hot wire, is the wire that supplies power to the switch. It is important to identify the feed wire correctly to ensure safe and proper wiring of a double electrical switch. Here are some key considerations and steps to help you identify the feed wire:
Firstly, it is crucial to understand the type of electrical switch you are working with. There are two main types: power-through switches and end-line switches. In a power-through switch, the feed wire brings power directly to the switch box before continuing to the fixture. On the other hand, in an end-line switch, the feed wire goes directly to the fixture, and only one cable enters the switch box.
When working with power-through wiring, you will observe two cables entering the switch box. One of these cables is the feed wire, carrying power from the service panel. It is typically identified by its black or red insulation colour, depending on the wiring standards of your region. The feed wire connects to the switch terminal, while the neutral wires from the service panel and the fixture are spliced together.
In the case of end-line wiring, the feed wire bypasses the switch box and goes directly to the fixture. In this scenario, the cable entering the switch box originates from the fixture. The white wire within this cable, which would typically be neutral, is now acting as a hot wire. It should be marked accordingly to indicate that it is hot. This wire connects to the switch, and flipping the switch interrupts the flow of electricity to the light.
It is important to note that electrical power supply wire insulation colours may vary depending on your location. For example, in North America, the wiring colours may differ from those used in the European Union. Always refer to the wiring standards and colour codes specific to your region to accurately identify the feed wire.
Lastly, it is essential to prioritize safety when working with electrical switches. If you are uncomfortable or unfamiliar with the wiring process, it is recommended to consult a professional electrician. They can guide you through the process or perform the wiring for you, ensuring a safe and proper installation.
Electricity and Magnetism: A Dynamic Duo
You may want to see also
Explore related products
Understand wire colours
It is important to understand wire colours before attempting to connect a double electrical switch. Wires are colour-coded for safety reasons, and each colour indicates whether the wire is a ground, hot or neutral wire.
Black wires are most commonly used as "hot" wires in residential systems. They carry electricity from the power source to a device, such as a switch, outlet, light fixture or appliance. Black wires are also used as internal wiring in light fixtures and appliances. Red wires are also hot wires, and are often used as secondary hot wires, such as in a 240-volt outlet or when a wall switch controls the outlet.
White or grey wires are neutral wires. They carry power back to the power source or electrical panel. Although they are called neutral wires, they can still carry electrical current and pose a danger of electrocution if not handled properly.
Green wires are ground wires. They carry electricity back to the breaker panel and outside to a rod that is buried in the ground. This prevents electricity from running through you! Blue and yellow wires can be used as hot wires, but they are usually pulled through a conduit and are most often used for switches.
Priming Your Electric Fuel Pump: Steps to Success
You may want to see also
Explore related products
Remove the old switch
Before you begin, turn off the power at the main fuse box for the home or by switching off the circuit breaker that controls the circuit feeding the switch. In older systems with fuse panels, turn off the power by unscrewing the fuse that protects the circuit you're working on. Return to the switch and flip it to ensure the power is off. If not, return to the panel and locate the correct circuit breaker. You can use a voltage tester to guarantee that the power is off.
Remove the wall switch's cover plate by locating and removing the mounting screws. You may need to use a screwdriver to turn the screws counter-clockwise.
Now, unscrew the old switch and pull it out. There may be three or four wires attached to screws on the switch, and they are usually not labelled. You will need to find out which wire is which later on. There will be a feed wire (hot wire) and two neutral wires. The feed wire is always running with electricity and is usually red or black. The neutral wires are usually white.
Remove the wires from the old switch. You can either mark the location of the wires with tape so that you can replace them on the new switch, or transfer one wire at a time from the old switch to the new switch.
Reconnection Fee Payment Guide for Electricity Services
You may want to see also
Explore related products
Connect the wires to the new switch
Connecting wires to a new double switch is a straightforward process, but it requires careful attention to safety. Before beginning any work, ensure that the power is cut to the room you are working in. You can never be too careful when working with electricity.
Once the power is off, you can begin to connect the wires. First, identify the feed wire, which is the hot wire that sends electricity to the switch. This wire is usually red or black and is connected to the side of the switch with a small metal tab or "fin". If your switch has two black terminals on the same side, it doesn't matter which one you attach the feed wire to. The feed wire will control whether electricity is sent to your light, fan, or other appliances.
Next, identify the neutral wires, which are usually white. There will be two neutral wires, each corresponding to one of the switches on your double switch. Connect these neutral wires to the appropriate switches. Make sure there is enough wire exposed to make a good connection with the terminal. Use wire strippers to expose at least 1/2 inch of wire. If the wire is frayed or nicked, cut it off and strip another inch of insulation.
Finally, connect the ground wire. The ground wire is bare and has no insulation. It is connected to the electrical box, which is bonded to the ground. With all the wires connected, you can now turn the power back on and test your new double switch.
Electricity Prices: Impact of Emissions Permits
You may want to see also
Explore related products
Test the connections
Testing the connections of a double electrical switch is a crucial step to ensure its proper functioning and safety. Here is a detailed guide on how to test the connections:
Prepare the Switch
Firstly, identify the type of switch you are working with. A double-pole switch has four terminals and controls two separate circuits simultaneously. It is important to understand the configuration of your switch before proceeding. Then, if possible, remove or isolate the switch from its operational environment. This may involve unscrewing the switch from the wall and pulling it out, being careful to straighten the wires as you do so.
Voltage Testing
Use a voltage tester or a multimeter to confirm the absence of live electricity before proceeding with any testing or handling of the switch. This is an essential safety precaution. Ensure that the circuit is shut off before handling the switch or its wire connections.
Continuity Testing
Continuity refers to a closed or complete circuit with a clear path for electrical current to flow. You can use a multimeter or a dedicated continuity tester for this step. Set your multimeter to the continuity setting if it has one, or use the lowest-value Resistance test feature (Ω) and look for a resistance value. Place the probes of the tester on the copper terminals of the switch. With the switch in the "off" position, there should be no continuity; in the "on" position, the tester should indicate continuity with a beep or a reading of less than 25 ohms. Repeat this test for both sets of terminals in a double-pole switch, as they control two separate circuits.
Voltage Check
For this step, you will use the multimeter to check the voltage. Connect one probe of the multimeter to the terminal connected to the power source and the other probe to the output terminal. Turn on the switch and take a reading. A reading close to the source voltage indicates that the switch is functional.
Additional Considerations
If you notice any issues such as visible burns, melted metal, burning smells, or flickering, these could be signs of a short circuit. In such cases, it is recommended to call a professional electrician for assistance. Additionally, if your wiring is very old, it is advisable to have a qualified electrician handle the work.
Fixing Your Lawn Mower: Switch Repair Guide
You may want to see also
Frequently asked questions
A double electrical switch, sometimes called a
Always check and double-check that there is no power coming to you when you work. It is recommended to leave electrical work to qualified technicians.
The hot wire that feeds electricity to the switch is usually black or red, while the neutral wires are usually white. If your wires are not labelled, turn the power on and use a voltage detector to identify the hot wire.
First, unscrew and remove the old switch from the wall. Identify the feed wire and the neutral wires. Connect the feed wire to the line side of the switches and the neutral wires to the load side. Test the connections by turning the power on and checking each switch individually.
It is important to identify the correct wires and their connections. Issues may arise due to different screw types or wiring combinations.
