Trystan Casey

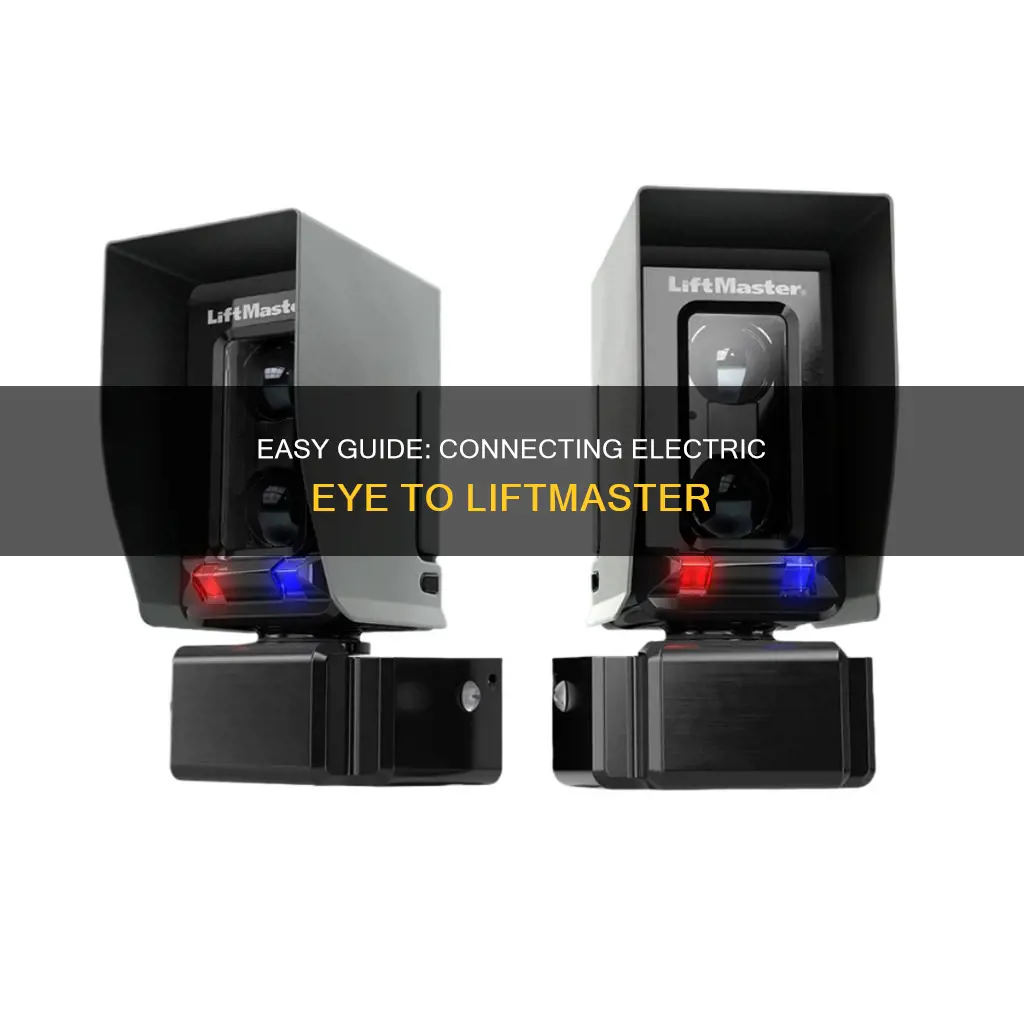

The LiftMaster LMRRUL is a photoelectric eye system that is installed for external entrapment protection. The LMRRUL model is UL 325 Safety Standards-compliant, with power required on only one side of the installation. The LiftMaster electric eye system is designed to detect objects that obstruct the path of garage doors, preventing injuries. While troubleshooting, if both lights on the photo eyes are on, the system is likely functioning correctly. However, if one eye flickers, realignment may be necessary.
Characteristics and Values Table for the LMRRUL Electric Eye:
| Characteristics | Values |
|---|---|
| Power Requirements | Requires power on only one side of the installation |
| Safety Standards | Meets UL 325 standards |
| Sensing Distance | Up to 50 ft |
| Beam Angle | Increased for simple and reliable alignment |
| Performance | Built-in heater for dependable performance in various environments |
| Alignment Indicator | Signals optimal beam alignment |
| Included Accessories | Steel sensor hood, polyethylene reflector hood, 10 ft wire, brackets, mounting hardware |
| Weather Resistance | NEMA 4X rated for superior weather resistance |
| Troubleshooting | Check photo eyes on both sides for lights; if one eye flickers, realignment is needed |
| Testing | Check continuity of wires when beam is broken and unbroken |
Explore related products
What You'll Learn
Troubleshooting a LiftMaster LMRRUL electric eye
One issue could be water inside the unit. In this case, you may want to check for leaks and remove the water from the sensor. However, it is not recommended to open the sensor yourself, and professional assistance is advised.
Another issue could be related to the continuity of the wires. To test this, you can use a multimeter to check for changes in ohms when the beam is interrupted. If there is no change in ohms, it could indicate an issue with the wires or the control board. In this case, replacing the sensors or the control board may be necessary.
If you are experiencing issues with the LiftMaster LMRRUL electric eye, it is important to first identify the specific problem. For example, if the beam is not functioning properly, you may need to adjust the alignment. The LiftMaster LMRRUL has an alignment strength indicator that signals optimal beam alignment. Adjusting the sensor's position may help improve the range and reliability of the beam.
Additionally, the LiftMaster LMRRUL electric eye has a built-in heater for performance in various environments and a steel sensor hood and durable polyethylene reflector hood for weather resistance. Ensuring that these features are functioning properly and not obstructed can also be part of troubleshooting.
Finally, while not recommended for safety reasons, some people choose to bypass or disable the electric eye. This can be done by mounting the sensors up on the rail, pointing them at each other, or using the "resistor trick," which involves adding a resistor to the circuit. However, it is important to note that bypassing the electric eye can be dangerous and may void warranties or violate safety standards.
Electrical Faults: A House Fire Waiting to Happen
You may want to see also
Explore related products
Realigning a LiftMaster photo eye
If your LiftMaster door is not functioning properly, it might be due to the photo eyes. There are a few ways to troubleshoot this issue. Firstly, you can try realigning the photo eyes. The LiftMaster LMRRUL model, for example, has an alignment strength indicator that signals optimal beam alignment. This can guide you in adjusting the photo eyes to the correct angle.
If realignment does not work, you may have broken wires that need fixing. You can refer to the included manuals for guidance on how to fix these issues. The LiftMaster LMRRUL and LMTBUL models, for instance, provide detailed instructions and diagrams for installation, which include information on wire connections.
In some cases, you may need to replace the photo eye entirely. However, for older LiftMaster models, it may be difficult to find the necessary parts and advice for replacement.
It is important to note that LiftMaster recommends the use of external entrapment protection devices, such as photoelectric or edge sensors, to meet UL 325 safety standards. These devices provide additional safety measures to prevent accidents or injuries.
Electrical Conduit: To Bury or Not To Bury?
You may want to see also
Explore related products
LiftMaster LMRRUL electric eye safety standards
The LiftMaster LMRRUL electric eye is a monitored retro-reflective photo eye that enhances safety and security. It has a long-range sensing distance of up to 50 feet and only requires power on one side of the installation.
The LMRRUL meets UL 325 Safety Standards and has been tested to meet stringent UL 325 industry guidelines. To comply with UL 325 standards, external entrapment protection devices must be added, such as photoelectric or edge sensors. These devices prevent objects or individuals from becoming trapped by the gate. Your installer will recommend suitable entrapment protection devices for your installation.
The LMRRUL also features a built-in heater for dependable performance in most environments and an alignment strength indicator that signals optimal beam alignment. It has a steel sensor hood and a durable polyethylene reflector hood, with a 10-foot wire, brackets, and mounting hardware included. The LMRRUL is NEMA 4X rated, which means it offers superior weather resistance.
The LiftMaster LMRRUL is easy to install and compatible with LiftMaster gate operators, making it a reliable choice for enhancing safety and security in residential, commercial, and gate opener systems.
Electric Bulbs and UV Light: What's the Connection?
You may want to see also
Explore related products
LiftMaster 3800 electric eye bypass
The LiftMaster 3800 is a residential gate opener system. Some users have expressed a desire to bypass the electric eye on their LiftMaster 3800 systems, due to inconvenience and the belief that they do little for safety.
One suggested method for bypassing the electric eye is to tape the sensors together. However, this method may not work for all units. Another suggestion is to use a resistor in the circuit, although this method only works for cable tension sensors.
It is important to note that disabling safety features such as electric eyes can be dangerous and is not recommended. If you are experiencing issues with your LiftMaster 3800, it is best to consult with a professional installer or LiftMaster technical support for advice and assistance.
In some cases, issues with the LiftMaster 3800 may be related to the cable tension monitor (CTM) or logic board. Adjusting the horizontal tracks, softening the spring tension, and wiping the memory may help resolve issues with the CTM. In other cases, a faulty logic board may be the cause of the problem.
Logging into Dakota Electric: A Step-by-Step Guide
You may want to see also
Explore related products
Testing LiftMaster LMRRUL electric eye leads
To test the LiftMaster LMRRUL electric eye leads, you will need to check the continuity of the wires from the sensors to the unit.
Firstly, check if the wires have continuity when the beam is uninterrupted. You should see zero continuity with an unbroken beam (indicated by a solid blue indicator on the front of the electric eye).
Next, stand in front of the beam and check the continuity again. With the beam interrupted, there should again be zero continuity (indicated by a red light on the front of the electric eye).
If there is no change in continuity whether the beam is interrupted or not, it may be that the wires are simply a dry contact set. To test this, jump the connection on the control board. If the gate reverses as it should, this confirms that the wires are a dry contact set.
In the case that continuity is good, you will need to replace the sensors or the control board. It is recommended to replace the complete system, as this is cheaper than buying all the individual parts.
The LiftMaster LMRRUL photo eye is tested to stringent UL 325 industry guidelines and requires power on only one side of the installation. It features a long-range sensing distance of up to 50 ft and an increased beam angle for simple and reliable alignment.
Electrical vs Chemical: Which Signals are Faster?
You may want to see also
