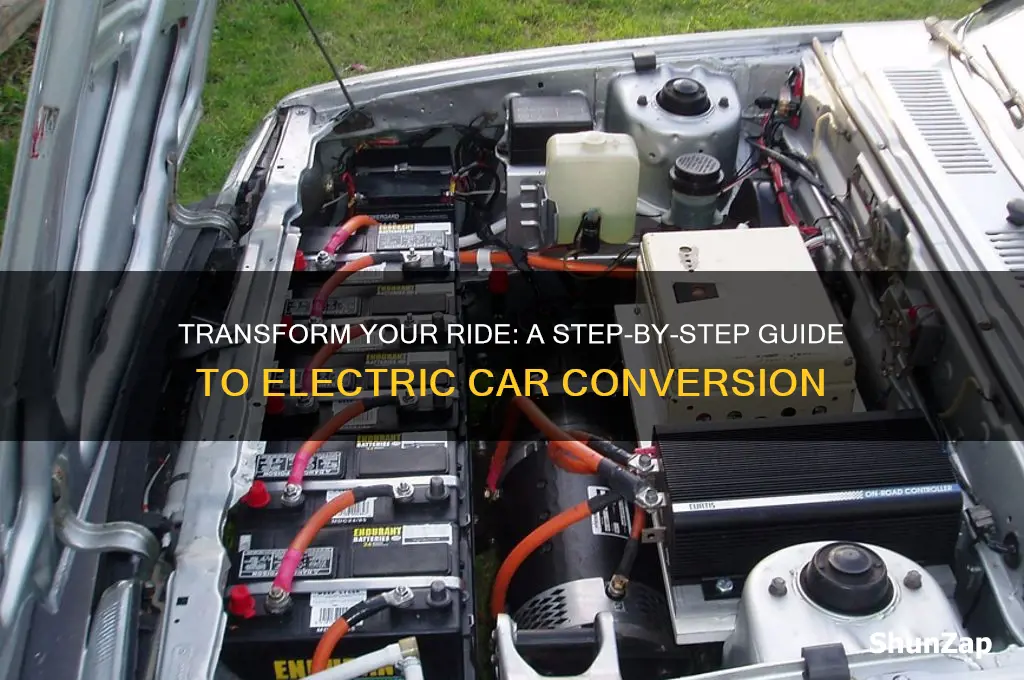

Converting a traditional internal combustion engine car to an electric vehicle (EV) is an increasingly popular and environmentally conscious project that allows enthusiasts and eco-minded individuals to reduce their carbon footprint while extending the life of older vehicles. This process involves replacing the gasoline engine, transmission, and fuel system with an electric motor, battery pack, and associated components, transforming the car into a zero-emission vehicle. While the conversion requires technical expertise, careful planning, and a significant investment in parts and tools, it offers the satisfaction of creating a sustainable transportation solution tailored to personal preferences. From selecting the right donor vehicle and sourcing compatible electric components to ensuring proper safety and compliance with regulations, each step demands attention to detail and a commitment to innovation. For those willing to take on the challenge, converting a car to electric not only contributes to a greener future but also provides a unique opportunity to engage with cutting-edge automotive technology.
Explore related products
What You'll Learn
- Battery Selection: Choose suitable EV battery type, capacity, and voltage for your car's performance needs
- Motor Integration: Select and install the right electric motor and controller for optimal efficiency
- Charging System: Set up onboard and external charging solutions for convenient and safe recharging
- Power Management: Install a battery management system (BMS) to monitor and protect the battery pack
- Drivetrain Conversion: Modify or replace the transmission and drivetrain to fit electric components
Battery Selection: Choose suitable EV battery type, capacity, and voltage for your car's performance needs
When converting a car to electric, battery selection is one of the most critical decisions you’ll make, as it directly impacts performance, range, and safety. The first step is to choose the battery type. Lithium-ion (Li-ion) batteries are the most popular choice for EV conversions due to their high energy density, long cycle life, and relatively low weight. Within Li-ion, Lithium Iron Phosphate (LiFePO4) batteries are highly recommended for their safety, thermal stability, and longevity, making them ideal for DIY conversions. Avoid lead-acid batteries unless budget is a severe constraint, as they are heavy, have lower energy density, and require more maintenance.
Next, determine the battery capacity, measured in kilowatt-hours (kWh), based on your desired range and driving needs. A general rule of thumb is that 1 kWh provides approximately 3-5 miles of range, depending on driving conditions and vehicle efficiency. For a daily commuter, a 20-30 kWh battery may suffice, while long-distance driving may require 40 kWh or more. Calculate your expected daily mileage and factor in a buffer for efficiency losses and battery degradation over time.
Voltage is another crucial factor, as it affects the power output and compatibility with your motor and controller. Most EV conversions use battery packs ranging from 100V to 400V. Higher voltage systems (200V and above) are more efficient and provide better performance, but they require careful handling and components rated for higher voltage. Match the battery voltage to your motor’s specifications and ensure your charging system and safety components (fuses, contactors, etc.) are compatible.
Consider the physical dimensions and weight of the battery pack. Measure the available space in your vehicle (often where the fuel tank and engine were) and choose a battery configuration that fits without compromising safety or accessibility. LiFePO4 batteries are modular, allowing you to stack or arrange cells to fit your space. However, remember that heavier batteries can affect handling and efficiency, so aim for a balance between capacity and weight.
Finally, prioritize safety and quality. Always source batteries from reputable manufacturers and ensure they come with built-in Battery Management Systems (BMS) to monitor cell balance, temperature, and voltage. Proper cooling and insulation are essential to prevent overheating and extend battery life. Investing in high-quality batteries and components upfront will save you from potential hazards and costly replacements down the line.
Genesis Vehicles: Electric or Not?
You may want to see also
Explore related products
Motor Integration: Select and install the right electric motor and controller for optimal efficiency
Converting a car to electric power requires careful consideration of the motor and controller, as these components are the heart of the electric drivetrain. Motor Integration begins with selecting the right electric motor that matches the vehicle’s weight, desired performance, and efficiency goals. Typically, AC induction motors or permanent magnet DC motors are used for EV conversions. AC motors are favored for their high efficiency and reliability, while DC motors are simpler and more cost-effective. The motor’s power rating, measured in kilowatts (kW), should align with the vehicle’s original internal combustion engine (ICE) horsepower to ensure adequate performance. For example, a 50 kW motor is roughly equivalent to a 67 hp ICE, making it suitable for compact cars. Always consult motor specifications and consider factors like torque, RPM range, and cooling requirements to ensure compatibility with your vehicle.
Once the motor is selected, the next step is choosing a compatible motor controller. The controller acts as the brain of the system, regulating power flow from the battery to the motor based on driver input. It must match the motor’s voltage, current, and phase requirements. For instance, a 72V motor requires a controller rated for at least 72V, with sufficient amperage to handle peak loads. Advanced controllers offer features like regenerative braking, which improves efficiency by converting kinetic energy back into battery power. Ensure the controller has a robust cooling system, as overheating can lead to performance degradation or failure. Some popular controller brands for EV conversions include Curtis, Sevcon, and Alltrax, each offering models suited to different motor types and power levels.
Installation of the motor and controller requires precise planning and execution. The motor should be mounted securely to the vehicle’s drivetrain, often replacing the original transmission or differential. Custom adapters or couplings may be needed to ensure proper alignment and power transmission. For rear-wheel-drive vehicles, the motor is typically installed at the rear axle, while front-wheel-drive setups may require more complex modifications. The controller should be placed in a well-ventilated area, away from heat sources and moisture, with easy access for maintenance. Wiring must be done using high-gauge, heat-resistant cables to handle the high currents involved, and all connections should be sealed to prevent short circuits.
Efficiency optimization is critical during motor integration. This involves tuning the controller’s settings to match the motor’s characteristics and the vehicle’s driving profile. Parameters like acceleration curves, top speed limits, and regenerative braking strength can be adjusted to maximize energy use. Software tools provided by the controller manufacturer often allow for fine-tuning via a laptop or mobile device. Additionally, ensuring proper gear ratios in the drivetrain can reduce energy loss and improve range. For example, a higher gear ratio may be beneficial for highway driving, while a lower ratio enhances acceleration and hill-climbing ability.
Finally, testing and validation are essential to ensure the motor and controller operate efficiently and safely. Conduct initial bench testing to verify functionality and troubleshoot any issues before installing the system in the vehicle. Once installed, perform road tests to monitor performance, battery consumption, and temperature under various driving conditions. Use data logging tools to analyze efficiency metrics and make adjustments as needed. Regular maintenance, such as checking for loose connections and cleaning cooling systems, will prolong the lifespan of the motor and controller, ensuring optimal efficiency throughout the vehicle’s electric life.
Are Car Horns Electric? Uncovering the Technology Behind Vehicle Alerts
You may want to see also
Explore related products
Charging System: Set up onboard and external charging solutions for convenient and safe recharging
When converting a car to electric, setting up a robust and efficient charging system is crucial for convenience, safety, and reliability. The charging system consists of both onboard and external components, ensuring that your electric vehicle (EV) can recharge seamlessly at home, work, or public charging stations. Start by selecting a compatible onboard charger that matches your battery system’s voltage and amperage requirements. The onboard charger converts AC power from an external source to DC power for the battery pack. It should be integrated into the vehicle’s electrical system, often mounted in the engine bay or trunk, and connected to the battery management system (BMS) to monitor charging levels and prevent overcharging. Ensure the charger is rated for the power supply available in your region (e.g., 110V, 220V) and includes safety features like overvoltage, overcurrent, and thermal protection.
For external charging solutions, invest in a high-quality EV charging station or portable charger that complies with industry standards such as SAE J1772 or CCS. Home charging stations, also known as Electric Vehicle Supply Equipment (EVSE), are ideal for overnight charging and can be installed in your garage or driveway. These units typically provide Level 2 charging (240V), which is faster than standard household outlets. When installing an EVSE, hire a certified electrician to ensure proper wiring, grounding, and compliance with local electrical codes. For on-the-go charging, a portable Level 1 charger (120V) can be used with standard household outlets, though it charges more slowly. Always use chargers from reputable manufacturers to avoid compatibility issues or safety risks.
Safety is paramount when setting up a charging system. Ensure all components, including cables, connectors, and charging ports, are rated for the current and voltage they will handle. Use weatherproof enclosures for outdoor charging stations to protect against moisture and temperature extremes. Grounding is critical to prevent electrical hazards, so verify that both the onboard charger and external EVSE are properly grounded. Additionally, install a residual-current device (RCD) or ground fault circuit interrupter (GFCI) to detect and prevent electrical leaks. Regularly inspect charging equipment for wear, damage, or corrosion, and replace any faulty components immediately.
To enhance convenience, consider integrating smart charging features. Many modern EVSE units offer Wi-Fi connectivity, allowing you to monitor charging status, schedule charging sessions during off-peak hours, and receive notifications via a smartphone app. Some systems also support load balancing to prevent overloading your home’s electrical circuit when multiple devices are in use. For onboard systems, a user-friendly dashboard display or mobile app can provide real-time data on battery levels, charging progress, and estimated range, making it easier to manage your EV’s energy usage.
Finally, plan for future scalability when designing your charging system. As battery technology advances and your charging needs evolve, you may want to upgrade to faster charging options like Level 3 DC fast chargers, which require more powerful onboard systems and specialized external infrastructure. Ensure your vehicle’s electrical architecture and battery pack are compatible with higher charging rates, and leave room for additional components if needed. By prioritizing safety, convenience, and future-proofing, your charging system will support a seamless transition to electric driving.
Are Electric Company Cars Tax-Free? Exploring Benefits and Regulations
You may want to see also
Explore related products
Power Management: Install a battery management system (BMS) to monitor and protect the battery pack
Converting a car to electric power is an ambitious project that requires careful planning and execution, especially when it comes to power management. One of the most critical components in this process is the Battery Management System (BMS), which plays a vital role in monitoring and protecting the battery pack. The BMS ensures the longevity, safety, and efficiency of the battery by managing its charging and discharging cycles, temperature, and overall health. Without a properly installed and functioning BMS, the battery pack could be at risk of overcharging, overheating, or even failure, which could compromise the entire conversion project.
The first step in installing a BMS is to select the right system for your battery pack. Different battery chemistries (e.g., lithium-ion, lead-acid) and configurations (series or parallel connections) require specific BMS capabilities. For instance, lithium-ion batteries typically need a BMS that can monitor individual cell voltages, balance cells, and manage temperature. Ensure the BMS is compatible with the voltage and current ratings of your battery pack. Many EV conversion kits come with recommended BMS options, but if you’re sourcing components separately, consult with a specialist or refer to manufacturer specifications to make an informed choice.
Once you’ve chosen the appropriate BMS, the next step is proper installation. The BMS should be mounted in a secure, dry, and easily accessible location within the vehicle. It must be connected to the battery pack using high-quality wiring and connectors that can handle the expected current. Each battery cell or module should be wired to the BMS for voltage monitoring, and temperature sensors should be placed strategically to provide accurate readings. Follow the manufacturer’s wiring diagram carefully to avoid errors, as incorrect connections can lead to malfunctions or damage. Additionally, ensure the BMS is grounded properly to prevent electrical interference.
After installation, configuring the BMS is crucial to ensure it operates effectively. Most BMS units allow for customization of parameters such as voltage thresholds, temperature limits, and balancing settings. These settings should be tailored to the specific requirements of your battery pack and the demands of your electric vehicle. For example, setting the correct over-voltage and under-voltage thresholds will prevent damage during charging and discharging. Many BMS systems also offer communication protocols (e.g., CAN bus) that allow integration with the vehicle’s main controller, providing real-time data on battery status to the driver.
Finally, regular maintenance and monitoring of the BMS and battery pack are essential to ensure long-term reliability. Periodically check the BMS for error codes or warnings, which can indicate issues such as cell imbalances or overheating. Keep the BMS firmware updated to benefit from the latest performance improvements and bug fixes. Additionally, inspect the wiring and connections for signs of wear or corrosion, as these can degrade the system’s performance over time. By diligently managing your BMS, you’ll maximize the efficiency and lifespan of your battery pack, ensuring a safe and sustainable electric vehicle conversion.
Florida's Electric Vehicle Incentives: Tax Credits Explained
You may want to see also
Explore related products
Drivetrain Conversion: Modify or replace the transmission and drivetrain to fit electric components
Converting a car to electric power involves a significant overhaul of its drivetrain, as the traditional internal combustion engine (ICE) components must be replaced or modified to accommodate electric motor systems. The drivetrain conversion is a critical step, focusing on the transmission and related components to ensure seamless integration with the electric powertrain. The first decision in this process is whether to modify the existing transmission or replace it entirely. Manual transmissions are often preferred for conversions because they can be adapted more easily, but automatic transmissions may require complete replacement due to their complexity and incompatibility with electric motors.
If opting to modify the existing transmission, the process typically involves removing the clutch assembly, as electric motors deliver torque instantly and do not require a clutch for power delivery. The input shaft of the transmission is then connected directly to the electric motor, often using a custom adapter plate to ensure proper alignment. Gear ratios may also need adjustment to match the torque and RPM characteristics of the electric motor, which differ significantly from those of an ICE. This may involve swapping gears within the transmission or using a reduction gear setup between the motor and transmission.
For those choosing to replace the transmission, a direct-drive system is a popular option. This eliminates the need for a multi-speed transmission altogether, as electric motors provide maximum torque from zero RPM, making gear changes unnecessary. A direct-drive setup typically consists of a fixed gear ratio between the motor and the driveshaft, simplifying the drivetrain and reducing weight. However, this approach may require careful consideration of the vehicle’s final drive ratio to ensure optimal performance and efficiency at various speeds.
Another critical aspect of drivetrain conversion is the driveshaft and differential. In rear-wheel-drive vehicles, the driveshaft must be adapted to connect the electric motor to the differential, which distributes power to the wheels. Front-wheel-drive conversions may involve modifying the transaxle or using a custom solution to integrate the electric motor. The differential itself may also need adjustments, particularly if the vehicle’s weight distribution changes significantly due to the addition of heavy battery packs.
Finally, the drivetrain conversion must address cooling and mounting systems for the electric motor and associated components. Electric motors generate heat under load, so adequate cooling solutions, such as liquid cooling or heat sinks, are essential to prevent overheating. Additionally, the motor and transmission must be securely mounted to the vehicle chassis, often requiring custom brackets or reinforcement to handle the unique stresses of electric propulsion. Proper alignment and balancing of the drivetrain are crucial to avoid vibrations and ensure longevity.
In summary, drivetrain conversion for an electric vehicle involves careful planning and execution, whether modifying an existing transmission or installing a new direct-drive system. Attention to detail in areas like gear ratios, cooling, and mounting ensures that the electric drivetrain operates efficiently and reliably. This step is fundamental to the overall success of the EV conversion, bridging the gap between the electric motor and the vehicle’s wheels for a smooth and powerful driving experience.
Are Subaru Electric Cars a Reality? Exploring Their EV Lineup
You may want to see also
Frequently asked questions
The first step is to assess the vehicle’s suitability for conversion. Factors like weight, condition, and available space for batteries and components are crucial. Researching compatibility with electric drivetrain kits is also essential.
The cost varies widely, typically ranging from $5,000 to $20,000 or more, depending on the car, battery type, motor, and whether you do it yourself or hire a professional. DIY conversions can save money but require technical expertise.
Key components include an electric motor, battery pack, motor controller, charger, DC-DC converter, and adapters for the drivetrain. Additional parts like cooling systems and instrumentation may also be necessary.
