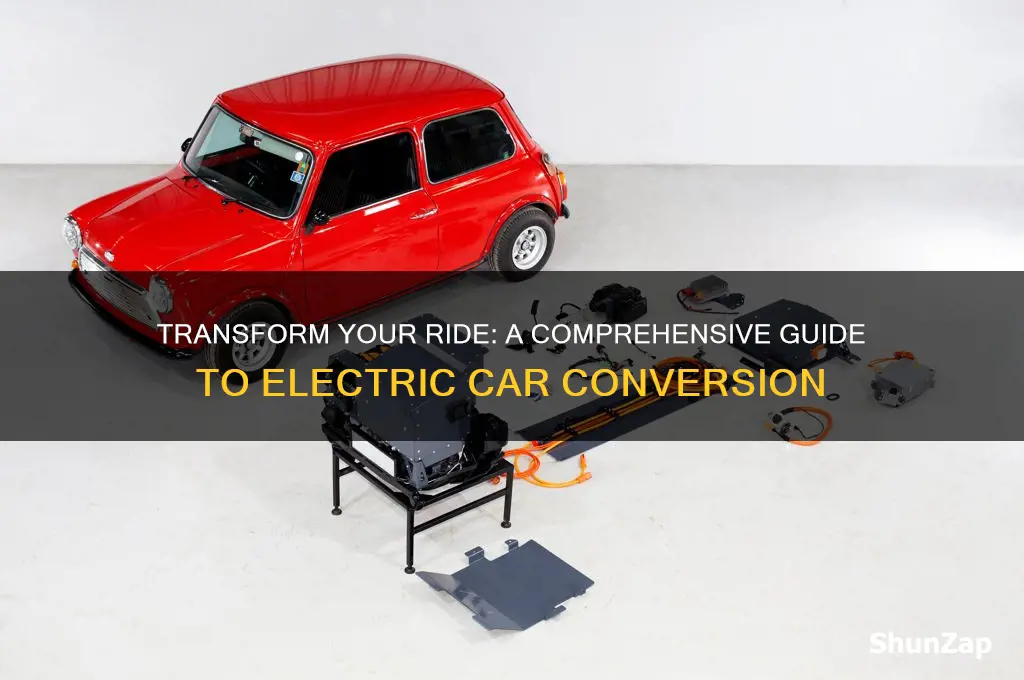

Converting a traditional internal combustion engine car to an electric vehicle (EV) is an increasingly popular and eco-friendly project that allows car enthusiasts and environmentally conscious individuals to reduce their carbon footprint while extending the life of older vehicles. This comprehensive guide will walk you through the essential steps, tools, and considerations involved in the conversion process, from assessing your vehicle’s suitability and sourcing electric components to installing the battery pack, motor, and control systems. Whether you’re a DIY enthusiast or a professional mechanic, understanding the technical aspects, safety precautions, and legal requirements is crucial to successfully transforming your car into a sustainable, electric-powered machine.
Explore related products
What You'll Learn
- Battery Selection: Choose right capacity, voltage, and type for your vehicle's needs and performance goals
- Motor Installation: Match motor power to car weight; ensure proper mounting and cooling systems
- Controller Setup: Integrate motor controller for efficient power management and throttle response
- Charging System: Install compatible onboard charger and plan for home/public charging solutions
- Safety & Compliance: Meet electrical safety standards, inspect wiring, and ensure legal roadworthiness
Battery Selection: Choose right capacity, voltage, and type for your vehicle's needs and performance goals
Selecting the right battery is the cornerstone of any electric vehicle conversion, as it directly dictates range, performance, and longevity. Start by assessing your vehicle’s energy demands: a compact car might require a 20-30 kWh battery for daily commuting, while a larger SUV or high-performance vehicle could need 50 kWh or more. Capacity, measured in kilowatt-hours (kWh), determines how far you can drive on a single charge. For context, a Tesla Model 3 uses a 50-60 kWh battery, offering 260-350 miles of range. Calculate your needs by estimating daily mileage and factoring in efficiency losses, typically 3-4 miles per kWh in a well-optimized conversion.
Voltage is equally critical, as it influences motor performance and charging efficiency. Most EV conversions use battery packs ranging from 100V to 400V, with higher voltages delivering better power output and reduced energy loss. For instance, a 200V system paired with a 50 kW motor strikes a balance between efficiency and cost, while a 400V setup suits high-performance builds. Ensure your motor, controller, and charging system are compatible with your chosen voltage to avoid costly mismatches. A rule of thumb: match the voltage to the motor’s rated input for optimal performance.
Battery type is where trade-offs become most apparent. Lithium-ion batteries, particularly lithium iron phosphate (LiFePO4), dominate EV conversions due to their high energy density, long cycle life (2000-5000 cycles), and safety. While pricier upfront, they offer better value over time compared to lead-acid batteries, which are heavier, less efficient, and degrade faster. For budget builds, consider nickel-manganese-cobalt (NMC) batteries, which provide higher energy density but require stricter thermal management. Avoid lead-acid unless cost is the sole priority, as their weight and inefficiency limit performance.
Practical tips: prioritize modular designs for scalability, allowing you to add or replace cells as needed. Invest in a battery management system (BMS) to monitor cell health, balance voltage, and prevent overheating. For safety, ensure the battery pack is securely mounted, well-ventilated, and protected from moisture. Finally, factor in weight distribution: placing batteries low and centered improves handling. A well-chosen battery isn’t just a component—it’s the heart of your electric vehicle, shaping every aspect of its performance and usability.
