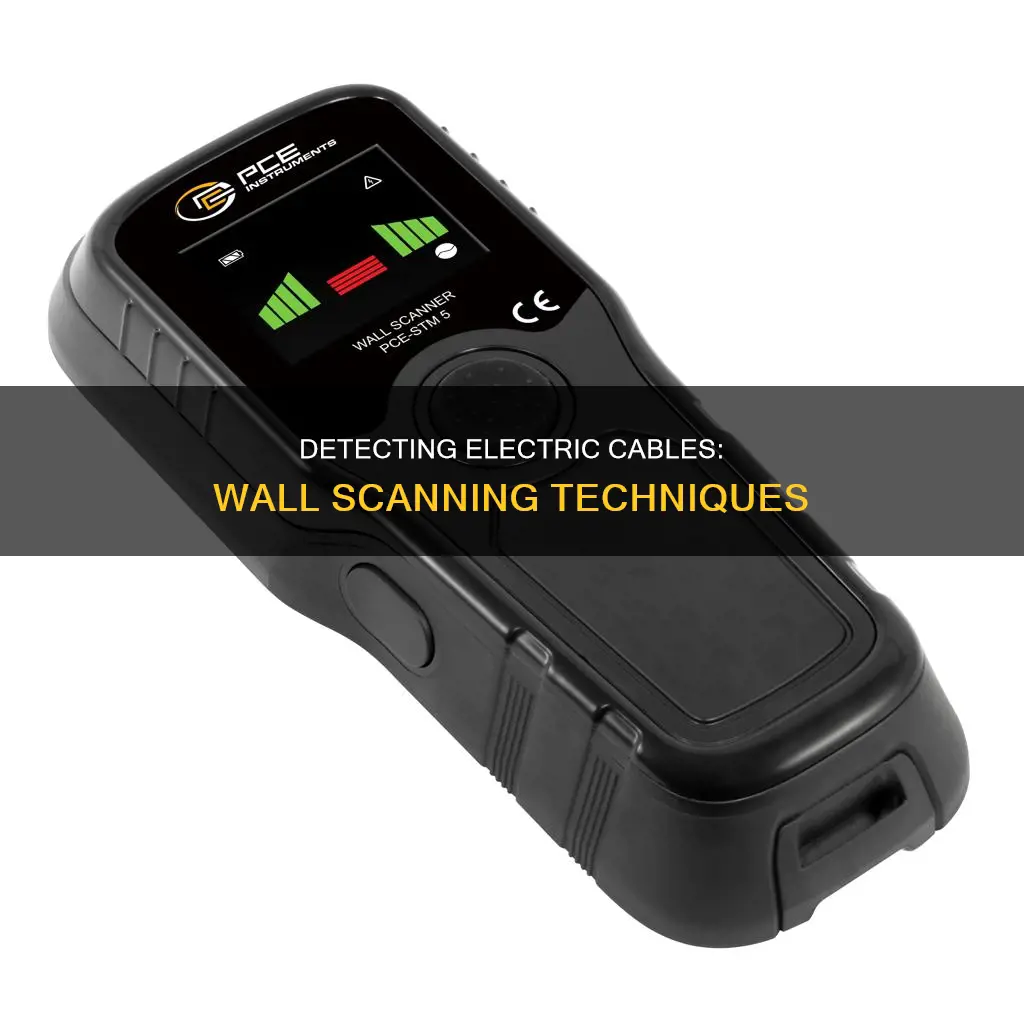

Detecting electric cables in walls can be a challenging task, especially when dealing with older homes or unconventional wiring setups. The process becomes essential when performing tasks such as hanging cabinets, drilling holes, or conducting electrical work. To ensure safety and avoid potential hazards like drilling through cables, it is crucial to locate hidden electrical wires beforehand. This can be achieved through various methods, ranging from using cable detectors and stud finders to employing voltage testers and electrical circuit tracers. Each tool has its advantages and limitations, and combining multiple techniques can increase accuracy and safety.
Characteristics and Values for Detecting Electrical Cables in Walls
| Characteristics | Values |
|---|---|
| Tools | Stud finder, Cable detector, Non-contact voltage tester, Electrical circuit tracer, Tone generator, Probe |
| Stud Finder Features | Built-in wire detection, Density change detection |
| Voltage Tester Features | Visual or audible alert upon detecting voltage |
| Tracer Features | Transmitter and receiver unit to send signals through wires and identify endpoints |
| Probe Features | Speaker to hear distinctive hum of energized electrical wire |
| Tone Generator Features | Turns cables into an antenna to transmit audio tone |
| General Tips | Avoid drilling horizontally or vertically from fittings/sockets, Tap wall gently with a hammer to listen for hollow sounds |
Explore related products
What You'll Learn
Using a stud finder with a wire detection feature
Using a stud finder to detect electric cables in walls is a simple and effective method. Stud finders are versatile tools that can help locate wooden studs and electric wires in walls. They do so by scanning the wall surface and detecting changes in density that may indicate the presence of wires or other obstacles.
To use a stud finder with a wire detection feature, start by running the device along the wall surface in the area where you suspect electric wires may be located. The stud finder will indicate the presence of wiring by detecting changes in density. When the stud finder detects a possible wire, mark the location on the wall and move the tool horizontally and vertically to trace the wire's path.
It is important to note that stud finders may also detect metal studs, plumbing pipes, or other obstacles in the wall, so it is recommended to use additional tools to confirm the presence of wiring. False positives may occur due to significant metalwork nearby, textured walls, or other factors. To reduce false positives, you can try grounding the wall by touching it with your hand, or by placing paper between the stud finder and the wall to decrease its sensitivity.
Before starting any work, it is crucial to ensure safety by confirming the presence of live electrical wires. This can be done using a non-contact voltage tester, which detects voltage signals without making physical contact with the wall.
By following these steps and using a stud finder with a wire detection feature, you can effectively locate and trace electric cables within walls.
The Heart's Electrical System: Powering Every Beat
You may want to see also
Explore related products
Using a non-contact voltage tester
To use a non-contact voltage tester, simply hold the tester close to the wall surface, and it will alert you with a visual or audible signal if voltage is detected. Some models can detect voltage through walls, but results depend on factors like wall thickness and material, wire depth, and the tester's sensitivity settings. For example, wood and drywall work better than concrete, and deeper wires may not be detected.
It is important to note that non-contact voltage testers are typically designed to be within a few millimetres of the wire to work. While they do not require direct electrical contact, you may need to touch the tool to the insulation of a wire for them to function properly.
There are various models of non-contact voltage testers available, such as the Klein NCVT-3, which is equipped with a flashlight, or the Milwaukee 2203-20 Voltage Detector with an LED light. These tools can be extremely useful in detecting live electrical wires in walls and ensuring safe working conditions.
Finding an Electrician: License Number Essentials
You may want to see also
Explore related products
Using a cable detector
There are various types of cable detectors, from simple stud finders to more advanced electrical circuit tracers. Stud finders can detect changes in wall density, indicating the presence of wires or other objects. They can also detect wooden studs, metal, wood, plastic, and electric conduit in dry concrete. Look for a stud finder with a wire detection feature. When using a stud finder, run it along the wall surface in the suspected area and when it detects wiring, mark the location and move the tool horizontally and vertically to trace the wire's path.
More advanced cable detectors, such as electrical circuit tracers, use a transmitter and receiver unit to send a signal through the wires, allowing you to track their path and identify endpoints. These tools can be very helpful for more complex projects or when you need a detailed survey of what's behind the walls.
When using a cable detector, it's important to adjust the sensitivity to reduce false positives. Start with a high sensitivity to detect known wires, such as those near sockets, and then reduce the sensitivity to locate unknown wires with more confidence. Mark any detected areas with a pencil to indicate where to avoid drilling.
Additionally, if you're concerned about live electrical wires, a non-contact voltage tester is a useful tool. It can detect live wires without making physical contact, providing visual or audible alerts when voltage is detected.
Electric Rates in Pennsylvania: What's Causing the Spike?
You may want to see also
Explore related products
Tapping on the wall gently with a screwdriver
If you are drilling into a wall, it is important to identify any electrical cables to avoid electrocution or damaging the wiring. One way to do this is to use a screwdriver to tap gently on the wall. This method can be used once there is a small hole in the wall. You can then use the tip of the screwdriver to 'feel' for a wire directly behind the hole.
It is recommended that you use an old insulated electrician's screwdriver for this method. You should also ensure that the screwdriver does not penetrate the wall by more than two inches (including 1.5 inches of wood and 0.5 inches of drywall). This will help to avoid damaging any wires that may be behind the wall.
If you are unable to find any wires with the screwdriver, it may be necessary to create a slightly larger hole and use a stiff wire to sweep through the hole and locate any wires by contact. However, it is important to be cautious when using this method, as you may accidentally damage the wires if you are not careful.
Overall, using a screwdriver to gently tap on the wall is a simple and effective way to locate electrical cables before drilling. By being careful and patient, you can help ensure that your DIY projects are safe and successful.
Switching Showers: Converting Electric to Mains
You may want to see also
Explore related products
Using a tone generator and probe
One way to detect electric cables in walls is by using a tone generator and probe. This method is often used by electricians, data cabling technicians, and other professionals to find and trace specific wires within a cable trunk. It involves sending a signal through the wire being traced.
Tone and probe kits, such as Triplett's Fox & Hound series, come with tone generators that can produce multiple tones, including warble and pulse, and provide audible and visual continuity tests. These generators are connected to the start of the wire, and the probe tool produces an audible tone once it identifies the correct wire. The kits also feature LED headlights to illuminate dark areas and an earphone jack for use in noisy environments.
When using a tone generator and probe, it is important to ensure that the circuit is off if you are tracing low-voltage cabling. If you need to trace energized circuits, there are specific tools available, such as the Ideal Suretest or the Triplett 3388, which can handle live circuits up to a certain voltage.
A tone generator and probe can be an effective way to streamline the process of identifying and tracing cables, saving time and effort for technicians. However, it is essential to choose the right tool for the specific type of wiring and voltage you are working with.
How Metal Racks Conduct Electricity: Understanding the Science
You may want to see also
Frequently asked questions
You can use a cable detector or a stud finder with a wire detection feature. A cable detector will help you track buried cables, while a stud finder can detect changes in density that may indicate the presence of wires.
You can use a non-contact voltage tester to detect live electrical wires without making physical contact. Simply hold the tester close to the wall and it will alert you with a signal if voltage is detected.
It is recommended to avoid any area horizontally or vertically from any switch or socket. Electricians will try to do vertical runs of cable to sockets and switches, but this is not always the case.
