The electrical service size of your home determines the power and efficiency of your electrical distribution system. It indicates the number of appliances, lights, and other electrical devices you can operate simultaneously. The capacity of the electrical service in a house is determined by three factors: the capacity of the service entry cable, the capacity of the main electric panel, and the capacity of the main disconnect. The main electrical service reaches your home either through overhead service wires that enter a service mast and pass down through an electrical meter or through underground wires that pass through an electrical meter. The first stop for the electrical service once it enters your home is the main service panel. In most homes built after the 1960s, the main service panel uses circuit breakers that control and protect the individual circuits. The main breaker will likely be the largest breaker in the panel and will usually be labelled with its capacity, such as 100A, 150A, or 200A.
| Characteristics | Values |
|---|---|
| Electrical service capacity | 100-200 amps for most homes, can go up to 400 amps for large houses with electrical appliances and heating systems |
| Main service panel | Usually a grey metal box located inside along an exterior wall, often in a utility area like a garage or basement |
| Circuit breakers | Control and protect individual circuits, preventing them from drawing more power than the wires can handle |
| Fuse panels | Used in older homes or those with outdated electrical services, with 30-amp or 60-amp services |
| Service wires | Two 120-volt service wires offer a combined 240 volts of power |
| Conduit | Houses the service cable that enters the meter box; its diameter can indicate the service size, e.g., a 1-inch conduit holds up to 6-gauge wires with 60-amp service |
| Main disconnect | A large breaker labelled "main" indicates the capacity, e.g., 100A, 150A, or 200A |
| Electrical load | The amount of energy needed to power light fixtures, appliances, and other electrical items; important to ensure the service panel can handle the load |
Explore related products
What You'll Learn
The main circuit breaker

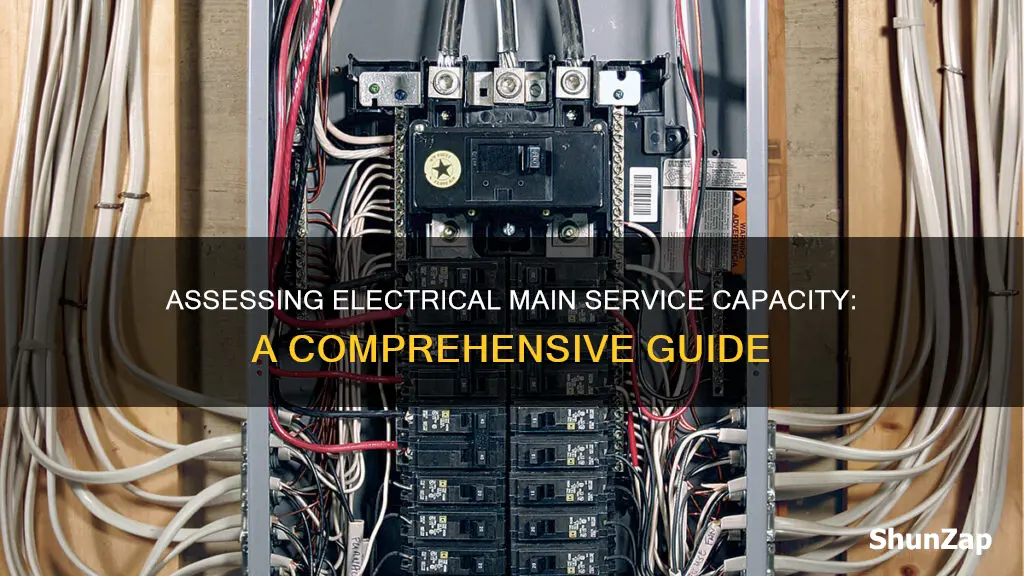

To find the main circuit breaker, open the front-facing door of the main service panel. Inside, you'll see two rows of individual circuit breakers with small toggles. The main breaker is usually located above these rows, but in some cases, it may be mounted at the bottom of the service panel.
The amp rating on the main circuit breaker indicates your electrical service size or dimension. It can range from 100 amps in older homes to as high as 400 amps in large houses with extensive electrical needs. Knowing this rating is essential to understanding if your electrical service can handle additional loads or if an upgrade is required.
Electricity Costs: A Global Comparison of Power Prices
You may want to see also
Explore related products
The main service panel
In most homes built after the 1960s, the main service panel uses circuit breakers that control and protect the individual circuits. Circuit breakers are safety switches that prevent individual branch circuits from drawing more power than the circuit wires can handle. Older homes may have fuse panels, which protect individual circuits with screw-in or cartridge fuses.
To determine the size of your electrical service, you need to find the amp rating of the main circuit breaker. The amp score on this breaker identifies your electrical service dimension. Most breaker boxes are 100, 150, or 200 amps. The main breaker will usually be labelled as the "main" and will indicate the capacity, for example, 100A, 150A, or 200A.
The electrical service size of your home determines how many electrical services, such as lights and appliances, you can run at once. A 100-amp service is good for a small home or a home of less than 3,000 square feet without electric heating or central air conditioning. A 200-amp service is the current standard for new homes and updated service panels and can supply all standard electrical needs in a typical family home. In large homes, 300-amp or larger service capacity may be needed, especially with electric heating.
Jackson, GA: Paying Your Electric Bill Easily
You may want to see also
Explore related products
The service entry cable
The size of the service entry cable is important as it determines the electrical service capacity of the building. A larger cable can carry more power, and a smaller cable may be inadequate for modern usage and require an upgrade. The cable size is measured in amps or amperes, and the amp rating of the main circuit breaker or fuse will determine the overall service dimension.
To estimate the electrical service capacity, a visual inspection of the service entry cable can be conducted. This involves examining the cable, electric meter, meter base, electrical service panel, and main switch. It is important to ensure that the service entry cable is not deteriorated or leaky, as this can lead to water entry and potential electrical hazards.
In addition to the visual inspection, tools such as digital multimeters, volt-ohm meters, and electrical inspection safety procedures can be used to estimate the electrical service capacity. It is important to note that "rule of thumb" approaches to electrical wiring may be unsafe, especially when dealing with higher voltages or service entry wiring. Consulting a professional engineer is recommended to ensure safety and accuracy.
Relocating Electrical for Pendant Lights: A DIY Guide
You may want to see also
Explore related products
The electrical meter
One way to determine the electrical service capacity is to inspect the meter and the associated equipment. If the electrical service is delivered by overhead wires, they may enter a metal service pipe or conduit that runs down an exterior wall and connects to the meter base. The type of meter and its physical characteristics can offer clues about the amperage. For example, a glass dome meter mounted on a square metal base typically indicates 100 amps of power, while a newer 150-amp service may have a rectangular base that extends below the glass dome. However, modern electrical meters may have designs that do not conform to these traditional indicators, so caution should be exercised when estimating capacity in this manner.
Another approach is to examine the conduit or service entrance cable that houses the wires entering the meter box. The diameter of the conduit can provide an initial estimate of the wiring capacity. For instance, a 1-inch conduit typically holds wires supplying 60-amp service, while a 2-inch conduit can accommodate wires for over 100-amp service. The width of the main service cable can also be visually assessed, with 60-amp cables typically measuring between 3/4 and 7/8 inches, and 100-amp cables measuring approximately 1 inch.
Additionally, the electrical panel, also known as the main service panel or circuit box, located inside the residence, provides further information. This panel is usually found on the opposite side of the wall where the exterior electrical meter is positioned. It is often a grey metal box, although it may be brown or white, and it houses the circuit breakers. The electrical panel may have a label inside the panel door, affixed by an electrician, manufacturer, or inspector, indicating the amperage rating. Inspecting the panel for a main disconnect or "main breaker" can also help determine the service capacity. This breaker is typically the largest in the panel and may be labelled with capacities such as 100A, 150A, or 200A.
While these methods provide valuable estimates, it is important to recognise their limitations. In modern electrical systems, simply reading the amperage number on the main breaker may not always be accurate. Therefore, when in doubt or dealing with more complex electrical setups, it is advisable to consult a professional electrician or inspector to determine the electrical service capacity with confidence.
Building Your Own Electric Go-Kart: A Step-by-Step Guide
You may want to see also
Explore related products
The individual branch circuits
The electrical capacity of a home is the maximum amount of electricity its circuits, panels, or generators can handle before they short circuit, trip, or cause electrical fires. This is measured in amperage (amps).
The main service panel is the distribution centre that splits the main electrical service into individual branch circuits that run through your home to power lights, outlets, and individual appliances. The main service panel is usually a grey metal box located somewhere along the inside surface of an exterior wall. It is often found in a utility area, such as a garage, basement, or furnace room.
Inside the panel, you will see two rows of individual circuit breakers with small toggle levers. These individual, or branch, circuit breakers are numbered, and they control individual branch circuits running through your home. The amperage of these individual breakers will be between 15 and 50 amps, usually.
At the top or bottom end of the two rows of branch circuit breakers, there will be a central circuit breaker that controls the power to the entire panel. This is the main circuit breaker, and its amperage rating will be something like 60, 100, 150, or 200 amps.
The capacity of individual branch circuits can be calculated in a few ways. One way is to add up the wattage or amperage of every device on a circuit that is turned on at the same time. For example, a 20-amp circuit should be safe using 16 amps/1920 watts running continuously, which could power an electric heater and a couple of lights.
Another way to calculate the capacity of a branch circuit is to multiply the number of receptacle outlets by 180 volt-amperes. For example, the branch circuit load for three receptacle outlets is 540 volt-amperes (3 x 180 = 540).
It's important to note that circuits that serve bathroom, kitchen, laundry, and garage receptacles cannot serve anything else. Additionally, if you plan to add more circuits to your electrical system, you may need to upgrade to a larger service panel.
Understanding Electrical Circuit Resistance: Definition and Basics
You may want to see also
Frequently asked questions
The current standard for new homes and updated service panels is 200-amp service. It can supply all standard electrical needs in a typical family home but may not support a large electric heating system.
The capacity of the electric service in a house is determined by three factors: the capacity of the service entry cable, the capacity of the main electric panel, and the capacity of the main disconnect. The capacity of the service entry cable (the cable feeding the house) is usually printed on the cable.
The main electric panel is usually a grey metal box located somewhere along the inside surface of an exterior wall. It is often found in a utility area, such as a garage, basement, or furnace room.
100-amp service provides enough power for a small home without electric heating. It can supply an electric range and dryer, plus general lighting and receptacle outlets. A 200-amp service is required for a home larger than 2,000 square feet with central air-conditioning or electric heating.
