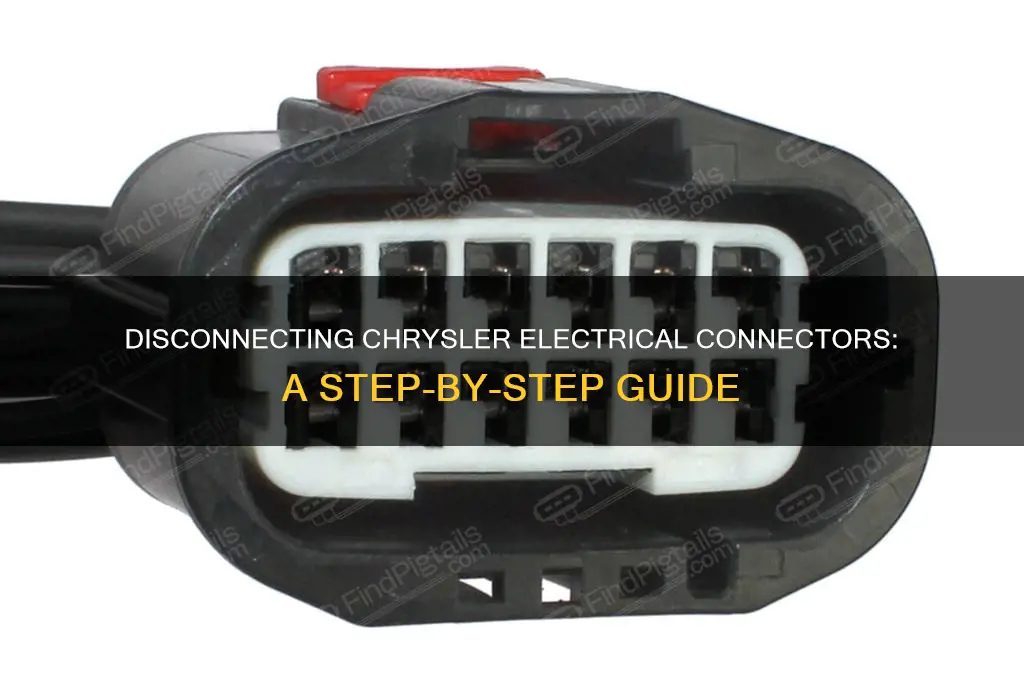

Disconnecting electrical connectors on cars can be a challenging task, especially with the variety of connector types and release mechanisms. Chrysler connectors are known for their locking tabs, which can be frustrating to deal with. To disconnect them, some sources suggest using a small flat-head screwdriver to gently pry them open, while others recommend specialised tools like the Lisle 13120 Electrical Connector Separator. In some cases, applying heat with a heat gun can help loosen the connectors, but caution is advised to avoid damage. Before attempting any repairs, it is essential to consult a professional or a mechanic to ensure the correct procedure is followed for the specific connector type.
| Characteristics | Values |
|---|---|
| Tools | Small flat-head screwdriver, heat gun, Lisle 13120 Electrical Connector Separator, slip joint pliers, dykes, bullet or spade connectors |
| Actions | Push the tab and pull apart the two halves, pry one side loose, push it back and work on the other side, pinch and pull, press down on the clip, wiggle it out, clean the connectors, spray with soapy water, use a pick to unlatch the locking portion, press the release tab |
Explore related products
What You'll Learn
Using a small flat-head screwdriver
Disconnecting Chrysler electrical connectors can be a tricky task, as there are many different types of connectors, each with its own unique method of release. Here's a step-by-step guide on how to use a small flat-head screwdriver to disconnect different Chrysler electrical connectors:
Step 1: Identify the Connector Type
Before attempting any disconnection, it is crucial to identify the type of connector you are dealing with. Jeep wire harness connections, for instance, typically have a red or orange-colored lock tab. Understanding the specific type of connector will make the disconnection process smoother.
Step 2: Prepare the Necessary Tools
Ensure you have the right tools for the job. In addition to a small flat-head screwdriver, you may also need a terminal removal tool or de-pin release tool, safety glasses, and insulated gloves for protection. It is important to choose insulated tools to enhance safety when working with electrical connectors.
Step 3: Disconnect the Power Source
As a safety precaution, disconnect the vehicle's battery to cut off the electrical power source. This will prevent accidents and potential damage to the electrical system during the disconnection process.
Step 4: Locate the Locking Latch
Each connector has a locking mechanism with latches at the top and bottom. Use your small flat-head screwdriver to carefully locate and release these latches. Be cautious not to apply too much force to avoid damaging the connectors, especially if you plan to reuse them.
Step 5: Release the Tabs
With the red locking mechanism slid to the side, carefully insert the small flat-head screwdriver just below the lock. Use a gentle lifting motion to help disconnect the clip. The tabs can be fragile, so take care not to use excessive force, as it may cause them to break.
Step 6: Separate the Connector Halves
Once the tabs are released, gently slide the connector halves apart. If the connector is locked, you may need to pull the latch down before separating the halves. Again, be cautious not to force the connector apart, as it may cause damage.
Additional Tips:
- If the connector is stuck due to dirt and grime, try blowing compressed air around it to dislodge any debris and facilitate the release.
- For connectors with a grey lever, such as the main connection block in the engine bay, rotating the lever 90 degrees or more should cause the connector to start sliding apart.
- Always take your time and work with patience when disconnecting electrical connectors. Each connector is unique, and a gentle touch is often required to successfully release the connection without causing damage.
Framing an Electric Fireplace: A Step-by-Step Guide
You may want to see also
Explore related products
Applying WD40 or electrical contact cleaner
Disconnecting electrical connectors on cars can be a challenging task due to the variety of connector types and release mechanisms. Some Chrysler connectors feature locking tabs or keys, which can be particularly tricky to work with. Before attempting to disconnect any electrical connectors, it is crucial to ensure that all electrical components are switched off for safety reasons.
When it comes to applying WD-40 or electrical contact cleaner, here are some detailed instructions:
Preparation
Before applying any product, it is essential to identify the type of connector you are working with and understand its release mechanism. As mentioned earlier, Chrysler connectors may have locking tabs or keys, so carefully examine the connector to determine the best approach. Ensure you have the necessary tools, such as a small flat-head screwdriver, to assist in the process. Additionally, always refer to the manufacturer's instructions before performing any maintenance or using products like WD-40 on electrical equipment.
Cleaning the Connectors
Dirt and grime can accumulate on electrical connectors over time, making it challenging to disconnect them. To address this, carefully clean the connectors with a suitable product, such as WD-40 Specialist Contact Cleaner. This product is designed to remove oil, dirt, flux residue, condensation, and other contaminants from sensitive electronics and electrical equipment. It is safe to use on most plastics, rubber, and metal surfaces. However, it is important to test it on a small area first and avoid using it on device screens, adhesives, or keyboards.
Restoring Electrical Conductivity
If you are experiencing issues with electrical malfunctions, applying WD-40 Electrical Contact Cleaner can help restore electrical conductivity and prevent short circuits. This product is designed to penetrate hard-to-reach areas and quickly evaporate without leaving any residue. It is compatible with various materials, including metals, plastics, and rubbers, making it safe to use in most automotive applications.
Disconnecting the Connectors
Once the connectors are clean and treated with the appropriate product, you can carefully attempt to disconnect them. For Chrysler connectors with locking tabs, you may need to pry one side loose, push it back, and then work on the other side. This process may require patience and careful prying without forcing the connector. If the connector has a red tab, pull it out first, and then push the release to detach the connector. Alternatively, if there is no red tab, look for a plastic lock that you can push to release the connector.
Seeking Professional Help
It is important to recognize when a task is beyond your expertise or comfort level. If you encounter significant difficulty or if the problem persists after cleaning and treating the connectors, consider seeking assistance from a professional mechanic or electrician. They will have the experience and specialized tools to handle challenging connector issues and ensure the work is done safely and correctly.
Electric Scooters: Pennsylvania's Street Legality Question
You may want to see also
Explore related products
Using a heat gun
It is advisable to use a cloth to drape over the connector before applying the heat gun. This will help to protect the surrounding area from any potential damage caused by the heat. Once the glue has melted, carefully use a small flat-head screwdriver to gently pry the connectors apart, being mindful not to apply excessive force that could damage the connector.
For thicker connectors, a small amount of gentle force can be applied, but it is important to be cautious with the retaining tabs to avoid breakage. If the connector has a release tab, it may be necessary to use a pick or a small flat-head screwdriver to press it down while pulling the connector halves apart.
In some cases, it may be beneficial to use a blow gun to remove any dirt or grime buildup on the connector before applying heat. This step can help ensure that the heat is applied directly to the glued area, improving the chances of successfully separating the connectors without causing damage.
It is important to note that using a heat gun requires caution to avoid overheating the connectors or surrounding components. It is always recommended to follow safety guidelines when operating power tools like heat guns.
Enhancing Electrical Systems in Project Zomboid
You may want to see also
Explore related products
Using a pick to unlatch the locking portion
Disconnecting electrical connectors on cars can be a challenging task due to the variety of connector types and their often-inaccessible locations. Chrysler connectors, in particular, are known for their locking mechanisms, such as the red locking tabs, which can be notoriously difficult to unlatch.
When faced with a locking connector, a useful technique is to utilise a pick to unlatch the locking portion. This approach effectively bypasses the plastic locking tab, allowing for easier unlatching. Cheap picks from suppliers like Harbor Freight have proven effective in releasing connectors, and their small size makes them ideal for accessing tight spaces.
To employ the pick effectively, insert it between the two halves of the connector. This action will release the locking mechanism, enabling you to slide the connector halves apart with ease. It is worth noting that some connectors have tabs that must be lifted slightly before separating, so be cautious to avoid breaking them.
In addition to the pick, a small flat-head screwdriver can also be utilised. This tool can be jammed between the connector halves or used to press the tab, providing leverage for unlatching. Alternatively, a blunt tool can be used to push the other end of the connector, offering a different approach to unlatching.
By following these suggestions, you can successfully unlatch the locking portion of Chrysler electrical connectors. Remember to take your time, as each connector type may have unique nuances in their release mechanisms.
Eco Mode on Dishwashers: Electricity Saver or Not?
You may want to see also
Explore related products
Pinching and pulling the plastic clippy
Disconnecting Chrysler electrical connectors can be a challenging task, especially with the variety of connector types and release mechanisms. Here's a detailed guide specifically focused on the technique of "pinching and pulling the plastic clippy":
Understanding the Plastic Clippy Mechanism:
The plastic clippy is a common method of securing electrical connectors in vehicles, including Chryslers. It typically involves a small plastic tab or clip that locks the connector in place. To disconnect, you need to pinch or press this plastic clippy while simultaneously pulling out the connector.
Pinching and Pulling Techniques:
- Identify the Plastic Clippy: Locate the plastic clippy on the connector. It could be a small tab, a "T" clip, or a locking key, depending on the connector type.
- Flex and Pinch: Using your fingers or a tool like a screwdriver, gently pinch the flexible sides of the plastic clippy. Some connectors may have tabs that need to be lifted slightly before they can be pinched. Be careful not to apply excessive force, as the plastic can become brittle over time.
- Pull Out the Connector: While pinching or pressing the plastic clippy, use your other hand to firmly pull out the connector. This requires a bit of coordination and force to overcome any resistance due to bonding between the sensor and connector.
- Wiggle and Work It Loose: If the connector is stubborn, try wiggling it gently while pushing the connector together. This can help create some movement and loosen the connection before you attempt to pull it apart.
- Use of Tools: In some cases, you may find it helpful to use tools like a small flat-head screwdriver, long-necked hose pliers, or a dull, round butter knife. These tools can provide leverage and help you press or pinch the plastic clippy while reducing the risk of damaging the connector.
- Lubrication and Heat: Applying a small amount of spray brake cleaner mixed with fork oil, as suggested by one source, or using a heat gun to apply gentle heat, can help loosen the connection and make it easier to pinch and pull the plastic clippy.
Remember that different connectors may have slight variations in their design and release mechanisms, so always inspect the connector carefully before attempting to disconnect it. Take your time, and if necessary, consult a professional or refer to vehicle-specific repair guides for more detailed instructions.
Hong Kong's Electric Scooter Laws: What You Need to Know
You may want to see also
Frequently asked questions
If the connector has a locking tab, you can try to pry one side loose, push it back, and then work on the other side. You can also use a small flat-head screwdriver to help you disconnect the connector.
If the connector has a red tab, pull it out first and then push the release to remove the connector. If there is no red tab, there should be a plastic lock that you can push in to release the connector.
You can use a variety of tools to disconnect a Chrysler electrical connector, including a small flat-head screwdriver, slip joint pliers, or a pick tool. If you are looking for an inexpensive tool, you can try the Lisle 13120 Electrical Connector Separator.
