Disconnecting electrical connectors on cars is a fundamental skill for both professional mechanics and DIY enthusiasts, as it is often necessary for repairs, maintenance, or upgrades. These connectors, which link various components like sensors, lights, and modules, are designed to be secure yet removable, but improper handling can lead to damage or malfunction. Understanding the correct techniques—such as identifying the type of connector, using the appropriate tools, and applying gentle force to release locking mechanisms—ensures a safe and efficient process. Proper disconnection not only protects the vehicle’s electrical system but also simplifies troubleshooting and reassembly, making it a critical step in any automotive project.
| Characteristics | Values |
|---|---|
| Tools Required | Flathead screwdriver, trim panel removal tool, or connector release tool. |
| Safety Precautions | Disconnect the car battery to prevent electrical shocks or short circuits. |
| Locator Pins | Identify and avoid damaging locator pins (small plastic tabs) that align the connector. |
| Release Mechanism | Locate the release tab, lever, or clip on the connector side or wire harness side. |
| Release Direction | Pull the release tab or lever in the direction indicated by arrows or notches on the connector. |
| Force Required | Apply gentle, even pressure; avoid excessive force to prevent breakage. |
| Sealed Connectors | Use a trim panel removal tool or flathead screwdriver to carefully pry open sealed connectors. |
| Weatherproof Connectors | Twist or pull the connector straight out after releasing the locking mechanism. |
| Multi-Pin Connectors | Ensure all release mechanisms are disengaged before pulling apart. |
| Post-Disconnection | Inspect connectors for damage, corrosion, or loose pins before reconnecting. |
| Reassembly | Align locator pins and ensure the connector clicks securely into place. |
| Common Locations | Engine bay, interior panels, under seats, or near the battery. |
| Reference Material | Consult the vehicle's service manual for specific connector types and locations. |
| Professional Help | Seek assistance if connectors are difficult to access or require specialized tools. |
Explore related products
What You'll Learn
- Identify Connector Types: Recognize different car electrical connectors by shape, size, and locking mechanisms
- Release Locking Tabs: Locate and gently press or lift tabs to unlock connectors safely
- Avoid Forced Removal: Never pull or twist connectors; use proper tools to prevent damage
- Inspect for Damage: Check connectors for corrosion, wear, or broken pins before disconnecting
- Reconnect Properly: Ensure connectors align correctly and lock securely after disconnection

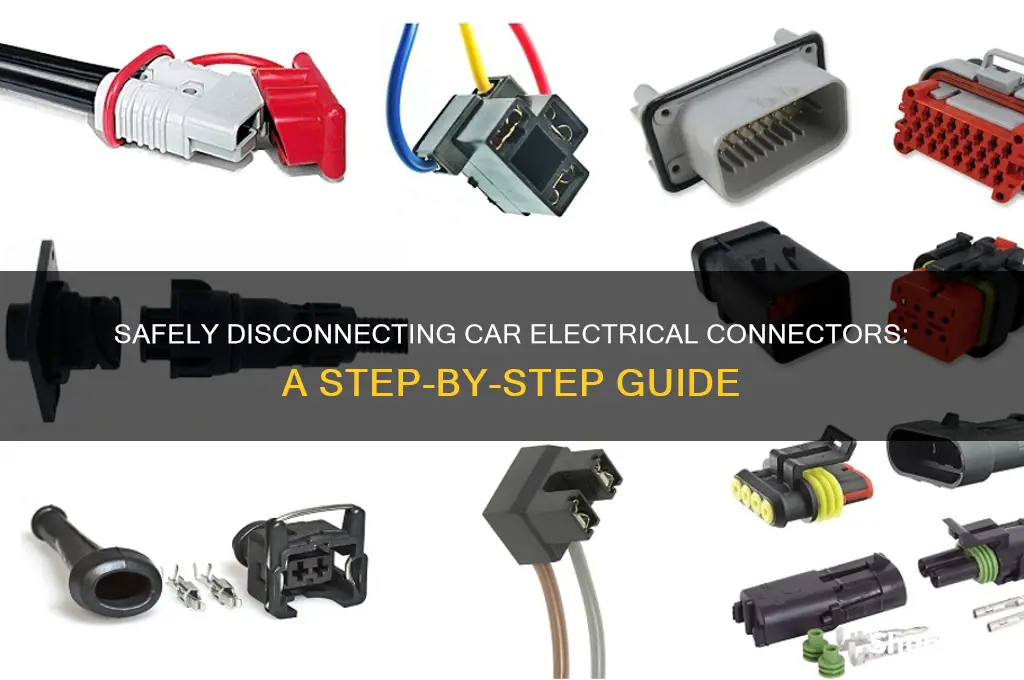

Identify Connector Types: Recognize different car electrical connectors by shape, size, and locking mechanisms
Car electrical connectors are not one-size-fits-all. They come in a variety of shapes, sizes, and locking mechanisms, each designed for specific functions and locations within a vehicle. Recognizing these differences is crucial for safe and effective disconnection. For instance, a rectangular connector with a latch on one side might be found in the engine bay, while a smaller, round connector with a push-tab release could be part of the interior lighting system. Understanding these distinctions prevents damage and ensures you use the correct technique for each type.
Analyzing connector shapes provides the first clue to their identity. Blade connectors, characterized by flat, rectangular terminals, are common in older vehicles for low-current applications like sensors. In contrast, weatherpack connectors feature a rounded, robust design with integrated seals, ideal for outdoor use in areas prone to moisture. Bullet connectors, with their cylindrical shape and single wire connection, are often used for high-current applications like headlights. Observing these shapes narrows down the possibilities and guides your approach to disconnection.
Size matters when identifying connectors, as it often correlates with the current they handle. Larger connectors, such as those found in battery terminals or alternators, are designed to manage high currents and typically have more robust locking mechanisms. Smaller connectors, like those in door switches or dashboard controls, handle lower currents and may have simpler releases. A quick visual assessment of size can help you anticipate the force and technique needed for disconnection, reducing the risk of breakage or short circuits.
Locking mechanisms are the final piece of the puzzle. Some connectors, like the common "push-and-release" types, require a gentle press on a tab before pulling apart. Others, such as those with a sliding lock or screw-on caps, demand a more deliberate action. For example, Deutsch connectors, often used in heavy-duty applications, have a threaded collar that must be unscrewed before separation. Familiarizing yourself with these mechanisms ensures you don’t force a connector apart, which can damage wires or terminals.
In practice, combining these observations—shape, size, and locking mechanism—allows you to confidently identify and disconnect car electrical connectors. For instance, a large, rectangular connector with a sliding lock in the engine bay is likely a fuse box connector, while a small, round connector with a push-tab in the cabin could be part of the audio system. This systematic approach not only speeds up the process but also minimizes the risk of errors, making it an essential skill for anyone working on car electrical systems.
